Muncie SSV Series Parts List & Service Manual

View the official Muncie PTO SSH parts manual (PDF)Download PDF

Model Number Construction

Click a number on the diagram to highlight that part below.

Item	Part No.	Description	Qty	Notes	Price

Section 1 SSH2 & SSV* PTO Specifications Page Section 2 SSH2 & SSV* Exploded Views

Item	Part No.	Description	Qty	Notes	Price
	SSH2SSV	Output Dimensions .19-20			—	Call for availability

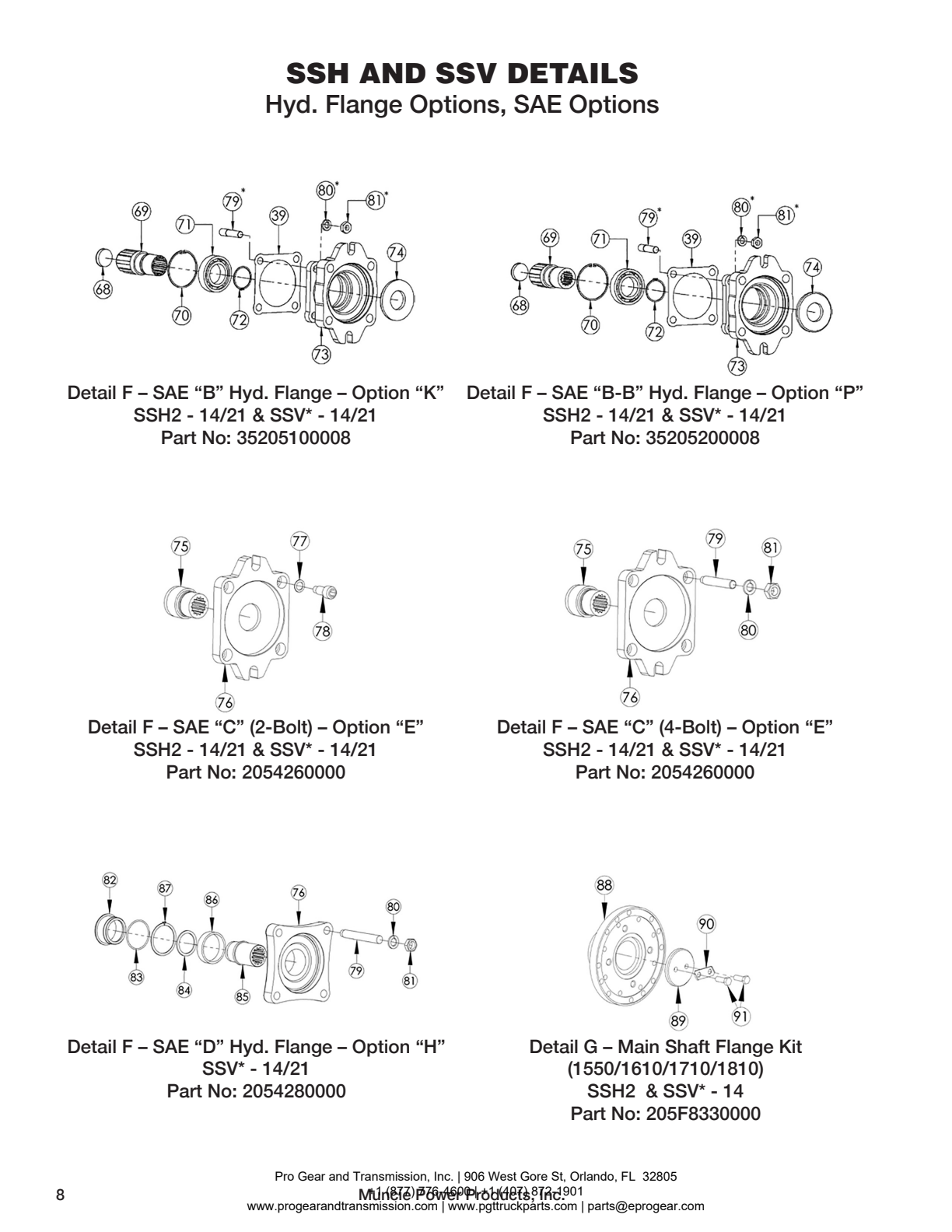

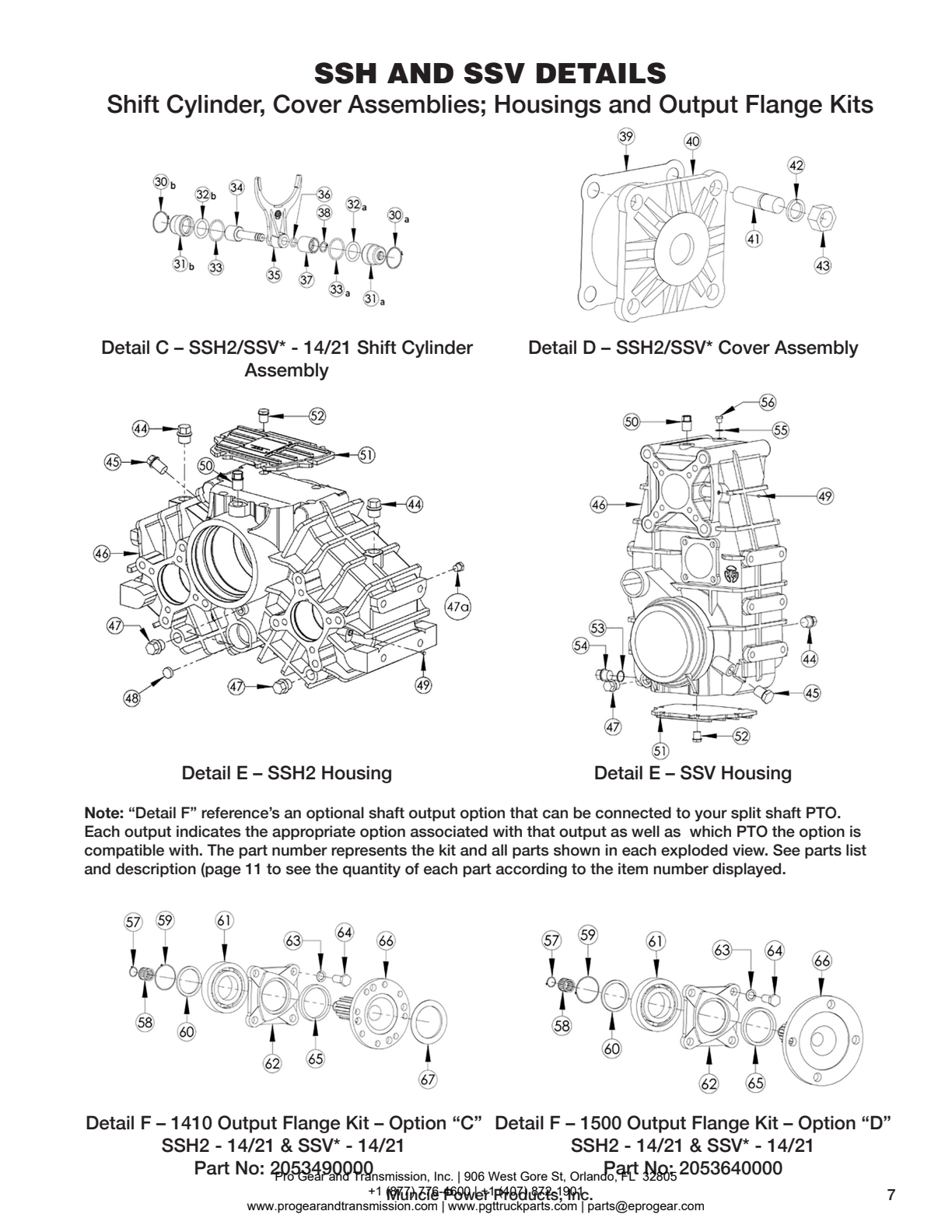

Parts List and Description

Item 10 Item 12 Item 12 Item 27 Item 18

Item 51 Item 65 Item 65

Item 68 Item 68 Item 73 Item 81 Item 78 Item 76 Item 84 Item 91 Item 89

Item 91 Item 89 Item 03 Item 100 Item 100

Click a number on the diagram to highlight that part below.

Item	Part No.	Description	Qty	Price
01	0070204600	Snap Ring 150i Uni 7437	2	—	Call for availability
02	0080214000	O-ring Or 4562 Viton (SSH2/SSV* 21) -	2	—	Call for availability
03	1270212200	Ring	2	$1,245.73	Add to Cart
04	0080109100	Seal 90x110x12 Viton	2	—	Call for availability
05	0100104100	Bearing 6313NR (SSH2/SSV* 14) -	1	—	Call for availability
	0100302200	Bearing Nup 216 (SSH2/SSV* 21) -	1	—	Call for availability
06	1170208000	Splined Sleeve	1	—	Call for availability
07	1130115200	Shaft (SSH2/SSV* 14) -	1	$2,858.19	Add to Cart
	11301193000	Shaft (SSH2/SSV* 21) -	1	—	Call for availability
08	0110100200	Ball ⅜"	1	—	Call for availability
09	1280100600	Coil Spring Mod .15	1	—	Call for availability
10	0100601700	Needle Cage K50x55x20H	1	—	Call for availability
11	1130115100	Shaft (SSH2/SSV* 14) -	1	—	Call for availability
	11301194000	Shaft (SSH2/SSV* - 21)	1	—	Call for availability
12	0100104200	Bearing 6217	1	—	Call for availability
13	1110310700	Gear 50T (SSH2/SSV* - 14)	1	—	Call for availability
	1110310900	Gear 50T (SSH2/SSV* - 21)	1	—	Call for availability
14	0100104000	Bearing 6313 (SSH2/SSV* - 14)	1	—	Call for availability
	0100302100	Bearing Nj 216 (SSH2/SSV* - 21)	1	—	Call for availability
15	0070204700	Snap Ring 140i Uni 7437 (SSH2/SSV* - 21 Only)	1	—	Call for availability
16	1260112200	Spacer (SSH2/SSV* - 21)	1	—	Call for availability
17	0070201200	Snap Ring 80i Uni 7437 (SSH22 -14/21)	8	—	Call for availability
	0070201200	Snap Ring 80i Uni 7437 (SSV2 14/21) -	6	—	Call for availability
18	1270207900	Ring (SSH2 14/21) -	4	$264.44	Add to Cart
	1270207900	Ring (SSV2 - 14/21)	2	$264.44	Add to Cart
19	0070101600	Snap Ring 42e Uni 7435 (SSH2 - 14/21)	4	—	Call for availability
	0070101600	Snap Ring 42e Uni 7435 (SSV2 14/21) -	2	—	Call for availability
20	1260108500	Spacer (SSH2 14/21) -	4	$19.81	Add to Cart
	1260108500	Spacer (ssv 14/21) -	2	$19.81	Add to Cart
21	0080211900	O-ring Or 6275 Viton (SSH2 14/21) -	8	—	Call for availability
	0080211900	O-ring Or 6275 Viton (SSV2 14/21) -	4	—	Call for availability
22	1210202500	Piston (SSH2 14/21) -	4	$455.43	Add to Cart
	1210202500	Piston (SSV2 14/21) -	2	$455.43	Add to Cart
23	1280107500	Coil Spring (SSH2 14/21) -	4	$43.18	Add to Cart
	1280107500	Coil Spring (SSV2 14/21) -	2	$43.18	Add to Cart
24	1170207100	Splined Coupler (SSH2 14/21) -	4	—	No longer available — call for replacement
	1170207100	Splined Coupler (SSV2 14/21) -	2	—	No longer available — call for replacement
25	1260113200	Ring (SSH2 14/21) -	4	—	Call for availability
	1260113200	Ring (SSV2 14/21) -	2	—	Call for availability
26	0100502700	Bearing 32010X (ssh* 14/21) -	4	—	Call for availability
	0100502700	Bearing 32010X (ssv* 14/21) -	2	—	Call for availability
27	0060101800	Key 14x9x40 Uni 6604 “b” (SSH2 14/21) – -	4	—	Call for availability
	0060101800	Key 14x9x40 Uni 6604 “b” (ssv* 14/21) – -	2	—	Call for availability
28	1130204000	Shaft (SSH2 14/21) -	2	—	Call for availability
	1130204000	Shaft (ssv* 14/21) -	1	—	Call for availability
29	1111010800	Gear 39T (SSH2 14/21) -	2	—	Call for availability
	1111010800	Gear 39T (ssv* 14/21) -	1	—	Call for availability
	007020040000	Snap Ring	1	—	Call for availability
	0070500200	Snap Ring	1	—	Call for availability
	12401128000	Cap (activation)	1	$340.92	Add to Cart
	19900389000	Cap (indicator)	1	$236.76	Add to Cart
	0080213700	O-ring	1	—	Call for availability
	00802121000	O-ring	1	—	Call for availability
	00802278000	O-ring	1	—	Call for availability
	0080213800	O-ring	1	—	Call for availability
34	1210202500	Piston	1	$455.43	Add to Cart
35	1220104400	Fork	1	$2,996.83	Add to Cart
39	1290113100	Gasket (SSH2/SSV2 14/21) -	4	$21.48	Add to Cart
	1290113100	Gasket (SSV4 14/21) -	2	$21.48	Add to Cart
40	1240111300	Cover (SSH2/SSV2 14/21) -	4	$588.84	Add to Cart
	1240111300	Cover (SSV4 14/21) -	2	$588.84	Add to Cart
41	0020203100	Stud M12x30 (SSH2/SSV2 14/21) -	16	—	Call for availability
	0020203100	Stud M12x30 (SSV4 14/21) -	8	—	Call for availability
42	0040800200	Lock Washer 12.5 Din 7980 (SSH2/SSV2 14/21) -	16	—	Call for availability
	0040800200	Lock Washer 12.5 Din 7980 (SSV4 14/21) -	8	—	Call for availability
43	0030101900	Hex Nut M12 (SSH2/SSV2 14/21) -	16	—	Call for availability
	0030101900	Hex Nut M12 (SSV4 14/21) -	8	—	Call for availability
44	0120106500	Plug M22x1 .5 (SSH2 14/21) -	2	—	Call for availability
	0120106500	Plug M22x1 .5 (ssv* 14/21) -	1	—	Call for availability
45	0120104900	Plug 18x1 .5	1	—	Call for availability
46	1010501000	Ssh Housing	1	—	Call for availability
	1010501400	Ssv Housing	1	—	Call for availability
47	0120100200	Plug M20x1 .5 (SSH2 14/21) -	2	—	Call for availability
	0120100200	Plug M20x1 .5 (ssv* 14/21) -	1	—	Call for availability
	0120111400	Oil Fill Plug (SSH2 14/21) –	1	—	Call for availability
48	0120107700	Plug M14x1 .5 (SSH2 14/21) -	1	—	Call for availability
49	0120105900	Plug U-908 ⅛" Bspp (SSH2 14/21) - -	4	—	Call for availability
	0120105900	Plug U-908 ⅛" Bspp (ssv* 14/21) - -	2	—	Call for availability
50	0120111500	Filler Breather ½" Bspp	1	—	Call for availability
51	1240109400	Cover	1	—	Call for availability
52	0010107600	Capscrew Te W/ Flange M8x20 Din 6921	6	—	Call for availability
53	0040103900	Washer 26x20x1 (ssv* 14/21) -	1	—	Call for availability
54	0120102400	Plug G ½" (ssv* 14/21) -	1	—	Call for availability
55	0040107700	Washer 13.5x19x1 .5 (ssv* 14/21) -	1	—	Call for availability
56	1300302900	Plug ¼" Bspp (ssv* - 14/21)	1	—	Call for availability
57	0070400400	Snap Ring WR16 (option “c” & “d”)	1	—	Call for availability
58	0100600100	Needle Cage K16x22x16 (option “c” & “d”)	1	—	Call for availability
59	0070100200	Snap Ring 40e Uni 7435 (option “c” & “d”)	1	—	Call for availability
60	1260102600	Spacer 206E/20 (option “c” & “d”)	1	$76.04	Add to Cart
61	0100100500	Bearing 6208-NR (option “c” & “d”)	1	—	Call for availability
62	1090103700	Cover (option “c” & “d”)	1	$364.19	Add to Cart
63	0040200400	Lock Washer 13 Uni 1751 (option “c” & “d”)	4	—	Call for availability
64	0010101000	Capscrew Te M12x30 Uni 5739 (option “c” & “d”)	4	$5.98	Add to Cart
65	0080109000	Seal 50x72x8 Viton (option “c” & “d”)	1	—	Call for availability
66	1160401200	1410/DIN 20 Flange (option “c”)	1	—	Call for availability
	1160103500	1550 Flange (option “d”)	1	$2,805.69	Add to Cart
67	1270212300	Centering Ring (din Option Only) (option “c”)	1	$226.87	Add to Cart
68	0120106400	Plug 26x5 (option “k” & “p”)	1	—	Call for availability
69	1170211100	“b” Splined Coupler (option “k”)	1	$564.14	Add to Cart
	1170211200	“b-b” Splined Coupler (option “p”)	1	—	Call for availability
70	0070200900	Snap Ring 62i Uni 7437 (option “k” & “p”)	1	—	Call for availability
71	10T40064	Bearing 6007 (option “k” & “p”)	1	$30.97	Add to Cart
72	0070100300	Snap Ring 35e Uni 7435 (option “k” & “p”)	1	—	Call for availability
73	1090105000	Cover (option “k” & “p”)	1	$435.01	Add to Cart
74	0080108800	Seal (option “k” & “p”)	1	—	Call for availability
75	1170207300	Splined Coupler (option “e”, 2- & 4-Bolt)	1	$632.44	Add to Cart
76	1070116200	Flange (option “e”, 2- & 4-Bolt)	1	—	Call for availability
	1070116300	Flange (option “h”)	1	—	Call for availability
77	0040400500	Washer Schnorr 14 (option “e”, 2-Bolt)	4	—	Call for availability
78	0010308400	Capscrew M14x25 (option “e”, 2-Bolt)	4	—	Call for availability
79	0020205200	Stud M14x55 (option “e”, 4-Bolt)	4	—	Call for availability
	1300108700	Stud M20x110 (option “h”)	4	—	Call for availability
	20M47050	Stud M12x50/0.438 20 Unf (option “k” & “p”) –	4	$11.99	Add to Cart
80	0040201000	Lock Washer 15 Uni 1751 (option “e”, 4-Bolt)	4	—	Call for availability
	0040201100	Lock Washer 20 Uni 1751(Option “h”)	4	—	Call for availability
	21ML4375	Lock Washer (option “k” & “p”)	4	$2.00	Add to Cart
81	0030101700	Hex Nut M14 (option “e”, 4-Bolt)	4	—	Call for availability
	0030101800	Hex Nut M20 (option “h”)	4	—	Call for availability
	22MX4420	Hex Nut 0.438 20 Unf (option “k” & “p”) –	4	$2.28	Add to Cart
82	1210202700	Piston (option 2- & 4-Bolt, & “h”)	1	—	Call for availability
83	0080213500	O-ring (option 2- & 4-Bolt, & “h”)	1	—	Call for availability
84	1270208100	Washer 8x53x3 (option 2- & 4-Bolt, & “h”)	1	—	Call for availability
85	1170209500	Splined Coupler (option 2- & 4-Bolt, & “h”)	1	—	Call for availability
	1170209600	Splined Coupler (option “h”)	1	—	Call for availability
86	1270214200	Ring (option 2- & 4-Bolt, & “h”)	1	—	Call for availability
87	0070204800	Snap Ring J80x2.5V (option 2- & 4-Bolt, & “h”)	1	—	Call for availability
88	1160400900	Flange 1550/1610/1710/1810	1	—	Call for availability
	1160401100	Flange 1610/1710/1810	1	—	Call for availability
89	1270219500	Washer 1550/1610/1710/1810	1	—	Call for availability
	12702191000	Washer 1610/1710/1810	1	$360.25	Add to Cart
90	19900387000	Securing Tab	1	$34.56	Add to Cart
91	00101234000	Capscrew Te M12x30 Uni 5739	2	—	Call for availability
64	0010100500	Capscrew Te M12x40 Uni 5739	4	—	Call for availability
	0010500200	Capscrew Stei M8x25 Uni 5927	1	—	Call for availability
	0010101000	Capscrew Te M12x30 Uni 5739	4	$5.98	Add to Cart
92	1270204300	Centering Ring	1	—	Call for availability
93	0100502900	Bearing 33109	2	—	Call for availability
94	1130204000	Shaft	1	—	Call for availability
95	1111011200	Gear 40T	1	—	Call for availability
96	1250301300	Shaft Support	1	—	Call for availability
97	0990026400	Bush 12x18x12 Din 179	4	—	Call for availability
98	0080214200	O-ring Or 4112 Viton	2	—	Call for availability
99	1260102000	Spacer AS23/3	2	—	Call for availability
100	0100300600	Bearing Nj 207	2	—	Call for availability
101	0070201500	Snap Ring 72i Uni 7437	2	—	Call for availability
102	1110114800	Gear 42T	1	—	Call for availability
103	1140102000	Shaft 800A/4	1	—	Call for availability
104	1250301400	Shaft Support	1	—	Call for availability
	SSH214RBK	Rebuild Kit SSH2-14 - 15, 30, 32, 33, 37 And 38	1	$6,836.42	Add to Cart
	SSV214RBK	Rebuild Kit SSV2-14 - 15, 30, 32, 33, 37, 38 And 93	1	$8,660.96	Add to Cart
	SSH221	-rbk Rebuild Kit SSH2-21 - 15, 30, 32, 33, 37 And 38	1	—	Call for availability
	SSV221	-rbk Rebuild Kit SSV2-21 - 15, 30, 32, 33, 37, 38 And 93	1	—	Call for availability

48TK4428 (12V Light) (“A” Option)

Item	Part No.	Description	Qty	Price
1	30T37954	Pressure Switch	1	$172.61	Superseded by 30T60228Add to Cart
2	44MB2252	Fitting	1	$8.29	Add to Cart
3	44MB6842	Fitting	2	$6.66	Add to Cart
4	44MB6844	Fitting	2	$9.14	Add to Cart
5	44T35791	Pipe Coupling	1	$6.77	Add to Cart
	34T36941	Pig Tail	1	$38.67	Add to Cart
7	44T38628	12 Mm Taper Adapter	2	$41.75	Add to Cart
	KIT48M61261	(included In 48TK4428)	Activation	—	Call for availability
8	31M15759	Pressure Protection Valve	1	$120.08	Add to Cart
10	45M44430	Air Tubing 30 Ft. X 250"	1	$64.95	Add to Cart
11	44MB2164	¼" N .p.t. Nipple	1	$5.22	Add to Cart
12	44MB6844	Tube Fitting	1	$9.14	Add to Cart
	34M18002	End Crimp	3	$2.93	Add to Cart
	37M18000	Electrical Wire	12.5'	$2.18	Add to Cart
15	35T37955	Air Valve	1	$214.10	Add to Cart
16	32M12001	Pto Light 12V Dc -	1	$44.73	Add to Cart
17	36T38049	Dash Bracket	1	$24.14	Add to Cart
18	36T38016	Face Plate	1	$36.00	Add to Cart
	34T38163	Booted Connector	1	$8.77	Add to Cart
	44MB6942	Tube Fitting (elbow)	2	$10.62	Add to Cart

48TK5268A (12V Light) (“E” Option)

Item	Part No.	Description	Qty	Price
1	30T41994	Rocker Switch	1	$109.78	Add to Cart
2	30T60228	Pressure Switch	1	$172.61	Add to Cart
3	31M15759	Pressure Valve	1	$120.08	Add to Cart
	32MSR12V	½ 12V Red Light	1	$14.21	Add to Cart
5	33T36299	10 Amp Fuse	1	$11.93	Add to Cart
6	34M18009	Ring Terminal	3	$2.82	Add to Cart
	34M18187	³⁄₁₆" Female Sp Term	2	$3.30	Add to Cart
8	34M18250	Spade Terminal	3	$2.93	Add to Cart
9	34T36362	Crimp Connect	6	$2.39	Add to Cart
10	34T36941	Harness Pigtail	1	$38.67	Add to Cart
11	34M30692	Solenoid 12V	2	—	Call for availability
12	35MA1005	Dash Bracket	1	—	Call for availability
	36MK1007	Bolt Kit	1	$5.27	Add to Cart
14	35T35431	Face Plate	1	—	Call for availability
15	37T42512	Wire 18 Awg. 12 Ft.	1	$7.07	Add to Cart
16	44MB0942	Reducer Bushing	1	$3.90	Add to Cart
17	44MB2164	Fitting	1	$5.22	Add to Cart
18	44MB2254	Street Tee	1	$13.58	Add to Cart
19	44MB6844PTC	¼" N .p.t. X ¼" Tube	5	$13.14	Add to Cart
20	44T40394	¼" Tee Fitting	1	$84.08	Add to Cart
21	44T43444	⅜ G X ¼ Tube Str	2	—	Call for availability
22	45M44430	Tubbing 30 Ft.	1	$64.95	Add to Cart

Split Shaft PTO Output Air Shift System

Item	Part No.	Description	Qty	Price
1	44MB6844	Tube Fitting	2	$9.14	Add to Cart
2	44T43444	⅛ G X ¼ Tube Str	1	—	Call for availability
3	45M44430	Tubing 30 Ft.	1	$64.95	Add to Cart
4	31M15759	Pressure Valve	1	$120.08	Add to Cart
5	44MB6842	Tub Fitting Straight -	2	$6.66	Add to Cart
6	44MB2164	Fitting	1	$5.22	Add to Cart
7	37T42512	Wire 18 Awg 12 Ft.	1	$7.07	Add to Cart
8	33T36299	10 Amp Fuse	1	$11.93	Add to Cart
9	34T36362	Crimp Connect	3	$2.39	Add to Cart
10	30T60228	Pressure Switch	1	$172.61	Add to Cart
11	35M18653	Air Valve	1	$209.42	Add to Cart
12	44MB2252	Fitting	1	$8.29	Add to Cart
13	34T36941	Harness Pigtail	1	$38.67	Add to Cart
14	34M18009	Ring Terminal	2	$2.82	Add to Cart
15	32M12001	Light Assy 12V	1	$44.73	Add to Cart
16	35MA1004	Dash Bracket	1	—	Call for availability
17	36M01005	Face Plate	1	$7.44	Add to Cart
	36MK1007	Bolt Kit	1	$5.27	Add to Cart
	25T21684	Pipe Plug	1	$2.31	Add to Cart
	44MB6942	Tube Fitting (elbow)	1	$10.62	Add to Cart
1	44MB2164	Pipe Nipple	1	$5.22	Add to Cart
2	31M15759	Pressure Protection Valve	1	$120.08	Add to Cart
3	44MB6844	Tube Fitting	2	$9.14	Add to Cart
4	44T38629	Adapter ⅓" Bspt	1	$66.53	Add to Cart
6	45M44430	Air Tubing 30 Ft. -	1	$64.95	Add to Cart
7	37M18000	Electric Wire 30 Ft. -	30	$2.18	Add to Cart
9	34M18002	Butt Splice	3	$2.93	Add to Cart
10	30T37054	Pressure Switch	1	—	Call for availability
11	32M12001	Light Assembly 12V	1	$44.73	Add to Cart
12	35M18653	Air Valvve Switch Assembly Note: Red Indicator Light Is To	1	$209.42	Add to Cart
13	36MA1004	Dash Bracket Spade Connector 13 Turn “on” When Pto Is Engaged,	1	$49.06	Add to Cart
14	36M01005	Face Plate And Is To Turn “off” When Pto Is	1	$7.44	Add to Cart
15	34T36941	Wiring Pigtail Disengaged.	1	$38.67	Add to Cart
16	44MB2252	Street Tee	1	$8.29	Add to Cart
	2991010000		SSH	$1,339.33	Add to Cart
	2991070000	For Each Split Shaft Part No. Description Kit (ssh)* 2991010000 & (ss)* 2991070000 -	SSV	$989.88	Add to Cart

SSV2 Lube Pump Oil Cooling Kit

Item	Part No.	Description	Qty	Price
1	0130005900	¼" Bspp 0 ⅜" Bspp Straight Fitting	1	—	Call for availability
2	0130005800	⅜" Bspp Elbow Fitting	1	—	Call for availability
3	0040106300	Washer 22x17x1 .5	3	—	Call for availability
4	0130005700	⅜" Bspp Fitting	3	—	Call for availability
5	0990026900	Jubilee Clip	4	—	Call for availability
6	0990026800	600mm Hose (16x25)	2	—	Call for availability
7	1290101400	Gasket	1	$18.67	Add to Cart
8	1070204300	Flange	1	—	Call for availability
9	1170302000	Coupling	1	—	Call for availability
10	1170301900	Coupling	1	—	Call for availability
11	004040200	Schnorr 12 Washer	4	—	Call for availability
12	0010306700	Capscrew M12x30 Uni 5931	4	—	Call for availability
13	0000901000	Gear Pump 10A1x385	1	—	Call for availability
14	0010309000	Capscrew M8x85 Uni 5931	2	—	Call for availability
15	0040200200	Lock Washer Uni 1751	2	—	Call for availability
16	0120100200	Plug	1	—	Call for availability
17	0040400300	Schnorr 8 Washer	6	—	Call for availability
18	0010301000	Capscrew M8x20 Uni 5931	6	—	Call for availability
19	0130005600	½" Bspp Fitting	1	—	Call for availability
20	0130005400	½" Bspp Elbow Fitting	1	—	Call for availability
21	1990030800	Oil Sump	1	—	Call for availability

This is the complete factory parts breakdown for the Muncie PTO SSH — every part in the manual, matched to our live inventory. We stock 105 of the 252 parts above; click any part number to view it, or add it straight to your cart. Click a number on any diagram to jump to that part.

No parts match that search — try the part number with no dashes.

This Muncie Parts & Service Manual helps you identify the correct gear sets, shifter kits and service parts for your power take-off before you order.

PTO type	Muncie power take-off (PTO)
Document	Parts & Service Manual (Muncie)
Length	21 pages
Format	PDF — view below or download free

What’s inside

Gear sets & output shaft assemblies
Shifter & air-shift control kits
Mounting gaskets & adapter plates
Housings & cover assemblies
Seal, bearing & snap-ring kits
Application & ratio reference tables
Exploded views with OEM part numbers

Muncie parts & units we stock

Pro Gear and Transmission stocks new, remanufactured and good-used parts for Muncie PTO units:

All Muncie PTO parts & units

Not sure exactly which unit you have? Check our identification guides, or Ask an Expert — send us photos of your data tag and our drivetrain specialists will identify the unit and the exact parts you need. Or call (877) 776-4600.
