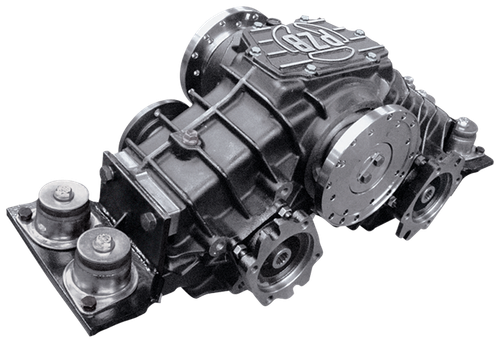

The Muncie SSV4-21XC-EEXXXX or SSV421XCEEXXXX is a split shaft power takeoff designed for applications requiring multiple independent output drives. Available in upright or horizontal configurations, the unit provides flexible access to front and rear output positions. Precision-ground gearing delivers quiet operation under high-torque loads. Air-shift controls simplify activation, and the clutch-shift option allows individual outputs to be engaged or disengaged without interrupting other active drives. A frame mounting kit option using isolation-type mounts is available for installation. Call us to confirm proper fit for your specific chassis and application.
Maximum PTO Output Torque: Up to 940 lb.ft.
PTO Outputs: 2 front, 2 rear - SAE "B" through SAE "D" pump mounts; Spicer 1410 to 1500 companion flanges
Features
Air-shift controls for straightforward output activation
Individual clutch-shift outputs can be engaged without stopping other drives
Upright or horizontal mounting configurations available
Precision-ground gearing for quiet, high-torque power delivery
Frame mounting kit option with isolation-type mounts for simplified installation
Multiple front and rear output positions for flexible drive configurations
Tech Specs
Additional Information
Maximum Torque (thru-shaft): Up to 21,600 lb.ft.Maximum PTO Output Torque: Up to 940 lb.ft.
PTO Outputs: 2 front, 2 rear - SAE "B" through SAE "D" pump mounts; Spicer 1410 to 1500 companion flanges
