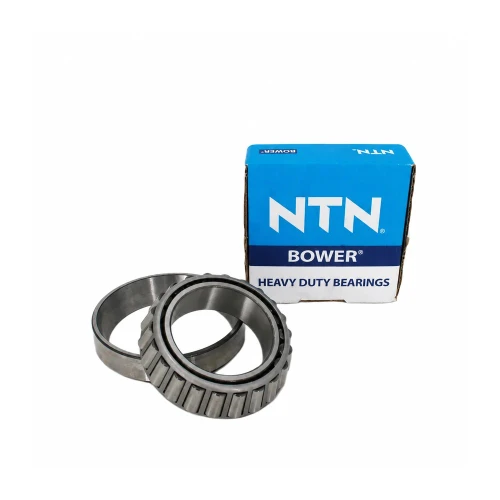

30210HD NTN Bower tapered roller bearing set fits a 50 mm bore with a 90 mm outside diameter and 21.75 mm assembled width. The cone measures 20 mm wide and the cup 17 mm wide, part of the 30210 catalog series. It carries a dynamic load rating of 77 kN and a static load rating of 93 kN, built to ABEC-1, RBEC-1, JIS-0, and ISO-Normal tolerance classes. A genuine NTN Bower part from Pro Gear and Transmission.
Interchanges:
- Timken 30210 $73.89
Features
50 mm bore diameter
90 mm outside diameter
21.75 mm assembled width
20 mm cone width, 17 mm cup width
77 kN dynamic load rating, 93 kN static load rating
ABEC-1, RBEC-1, JIS-0, ISO-Normal tolerance class
Tech Specs
- Bore (ID): 50 mm
- Outside Diameter (OD): 90 mm
- Assembled Width: 21.75 mm
- Cone Width: 20 mm
- Cup Width: 17 mm
- Dynamic Load Rating: 77 kN
- Static Load Rating: 93 kN
- Catalog Series: 30210
- Tolerance Class: ABEC-1, RBEC-1, JIS-0, ISO-Normal
