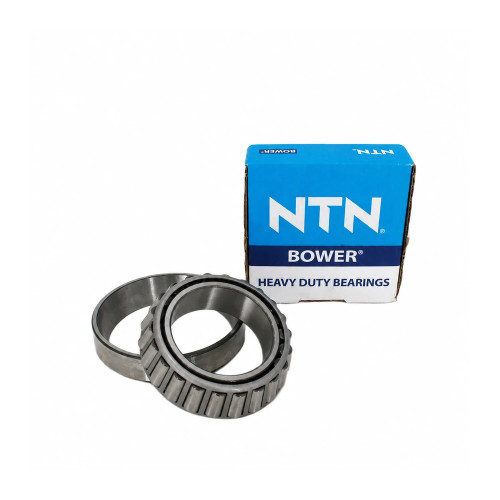

The NTN Bower 31594HD is a tapered roller bearing cone with a 76.2 mm ID and a 28.575 mm cone width. This listing is for the cone only. Load ratings are 80.5 kN dynamic and 97 kN static. The bearing designation is catalog series 31500, made to tolerance class ABMA Class 4 (Inch). Sold by Pro Gear and Transmission. Call us if you need help confirming the right size for your application.
Interchanges:
- Timken 31594 $48.10
Features
Tapered roller bearing cone, catalog series 31500
76.2 mm ID
Cone width 28.575 mm
Dynamic load rating 80.5 kN, static load rating 97 kN
Tolerance class ABMA Class 4 (Inch)
Tech Specs
- Bearing designation: 31500
- ID: 76.2 mm
- Cone width: 28.575 mm
- Dynamic load rating: 80.5 kN
- Static load rating: 97 kN
- Tolerance class: ABMA Class 4 (Inch)
