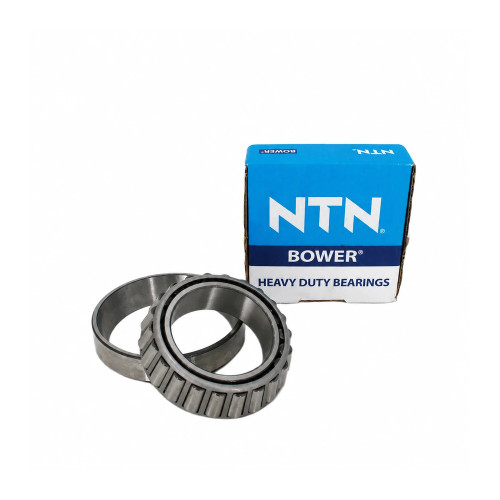

47687HD NTN Bower tapered roller bearing cone fits the 47600 catalog series with an 82.55 mm bore and 33.3375 mm cone width. It carries a 156 kN dynamic load rating and a 238 kN static load rating, built to ABMA Class 2 (Inch) tolerance for accurate mounting in heavy-duty axle and hub applications. This cone is a genuine NTN Bower part from Pro Gear and Transmission.
Interchanges:
- Timken 47687 $136.17
Features
82.55 mm bore diameter
33.3375 mm cone width
156 kN dynamic load rating
238 kN static load rating
Catalog series 47600
ABMA Class 2 (Inch) tolerance
Tech Specs
- Bore (ID): 82.55 mm
- Cone width: 33.3375 mm
- Dynamic load rating: 156 kN
- Static load rating: 238 kN
- Catalog series: 47600
- Tolerance class: ABMA Class 2 (Inch)
