565HD NTN Bower Tapered Roller Bearing Cone

NTN Bower

Listing Price: $207.99
Sale Price: $152.57

This item qualifies for FREE shipping on orders over $295 and under 70 lbs

(No reviews yet) Write a Review
Product Code:
BWR565HD
Condition:
New
Availability:
Usually Ships in 3 to 5 Business Days
Adding to cart… The item has been added

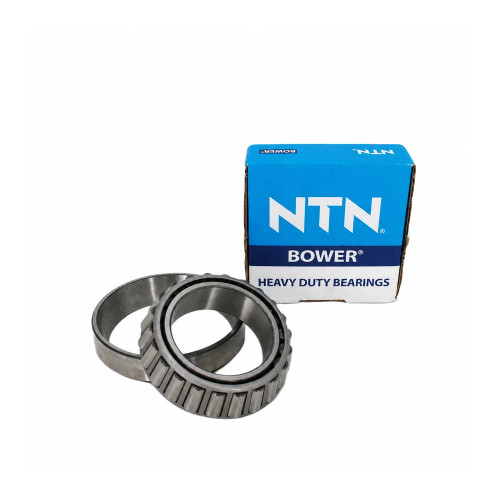

565HD NTN Bower tapered roller bearing cone with a 63.5 mm bore and a cone width of 36.1696 mm, built to catalog series 565 dimensions and ABMA Class 2 (Inch) tolerance. It carries a dynamic load rating of 160 kN and a static load rating of 225 kN. The cone is the inner ring of a tapered roller bearing: it rides on the shaft and holds the rollers and cage so they turn freely inside the mating cup. Pitting or spalling on the cone race tends to show up as roughness or noise, and that is the point to replace the bearing. A genuine NTN Bower part from Pro Gear and Transmission. Call us to confirm proper fit for your application.
Interchanges:

Features

63.5 mm bore diameter
36.1696 mm cone width
Dynamic load rating: 160 kN
Static load rating: 225 kN
Catalog series 565, ABMA Class 2 (Inch) tolerance
Race pitting or spalling is the wear sign that calls for replacement

Tech Specs

  • Bore (ID): 63.5 mm
  • Cone width: 36.1696 mm
  • Dynamic load rating: 160 kN
  • Static load rating: 225 kN
  • Catalog series: 565
  • Tolerance class: ABMA Class 2 (Inch)
