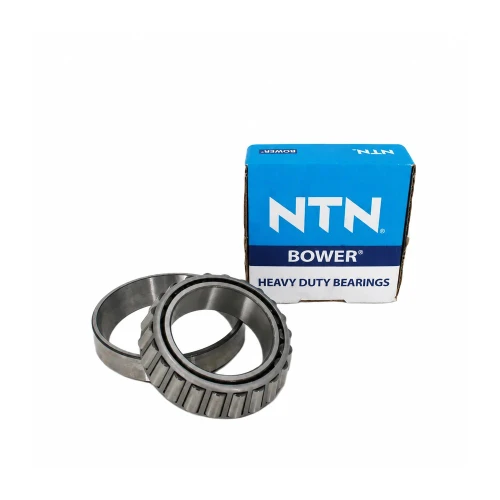

NTN Bower LM12749/LM12710HD tapered roller bearing set with a 22 mm ID, 45.237 mm OD and 15.494 mm assembled width. The set pairs a cone 16.637 mm wide with a cup 12.065 mm wide, and is rated at 29.6 kN dynamic and 34 kN static load. It belongs to catalog series LM12700 and carries an ABMA Class 4 (Inch) tolerance class, and LM12749/LM12710HD is the bearing designation for the size. A genuine NTN Bower part from Pro Gear and Transmission.
Features
Tapered roller bearing set
22 mm ID, 45.237 mm OD, 15.494 mm assembled width
Cone width 16.637 mm, cup width 12.065 mm
Dynamic load rating 29.6 kN, static load rating 34 kN
Catalog series LM12700, bearing designation LM12749/LM12710HD
Tolerance class ABMA Class 4 (Inch)
Tech Specs
- Bearing designation: LM12749/LM12710HD
- Inside diameter (ID): 22 mm
- Outside diameter (OD): 45.237 mm
- Assembled width: 15.494 mm
- Cone width: 16.637 mm
- Cup width: 12.065 mm
- Dynamic load rating: 29.6 kN
- Static load rating: 34 kN
- Catalog series: LM12700
- Tolerance class: ABMA Class 4 (Inch)
