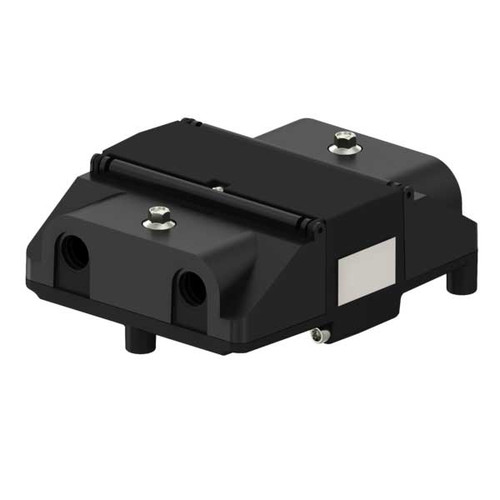

The Wabco 4008644150 is a PABS ECU E4C electronic control unit for tractor ABS systems, operating on a 12-volt, 4S/4M (four-sensor/four-modulator) configuration. Built to OE specification, this ECU carries an IP40 protection rating per IEC 529 and is rated for operation from -40 degrees C to +75 degrees C. The unit measures 184 x 57 x 216 mm and mounts via three 7.5 mm diameter holes spaced 4.41 x 4.8 inches apart. Sold by Pro Gear and Transmission. Call us to confirm proper fit for your application before ordering.
A refundable core charge of $420.00 applies to this item and will be collected at checkout. The core charge is refunded upon receipt of your returned core, subject to its condition; customer is responsible for return shipping. Call us at (877) 776-4600 for details.
Features
Wabco PABS ECU E4C, part number 4008644150
12-volt system, 4S/4M (four-sensor/four-modulator) ABS configuration
IP40 protection rating per IEC 529
Operating temperature range: -40 degrees C to +75 degrees C
Unit dimensions: 184 x 57 x 216 mm
Mounts via three 7.5 mm diameter holes; hole spacing 4.41 x 4.8 in
Tech Specs
- Brand: Wabco
- Type: PABS ECU E4C
- System: 4S/4M (four-sensor/four-modulator)
- Voltage: 12V
- Protection Class: IP40 (IEC 529)
- Temperature Range: -40 degrees C to +75 degrees C
- Mounting: 3x 7.5 mm diameter holes
- Hole Spacing: 4.41 x 4.8 in
- Dimensions (L x H x W): 184 x 57 x 216 mm
- Technical Specification: OE specification
