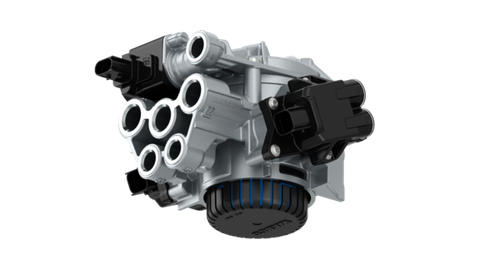

Genuine Wabco Release Valve Assembly Abs P/N: 9760001020, in box ready to ship! Do not hesitate to ask us any questions.
Tech Specs
- Brand WABCO
- Part type Premium original quality
- Product category Device
- Electrical connection TYCO HDSCS 3x2.8 Coding A+B
- Max. operating pressure 159.5 psi
- Port thread 11/2 - 14 Dry Seal NPTF
- Port thread 211/2 - 14 Dry Seal NPTF
- Port thread 221/2 - 14 Dry Seal NPTF
- Port thread 253/8 - 18 Dry Seal NPTF
- Port thread 26Closed
- Port thread 3Silencer
- Port thread 43/8 - 18 Dry Seal NPTF
- Protection classIP 6K6K, IP 6K9K
- Rated current2220 mA
- Response pressure0.38 bar
- System 4S/4M
- Technical specification OE specification
- Temperature range-40°C to +80°C
- Voltage 12 V
- Size (mm x mm x mm)195 x 152 x 135
