K-3600CL or K3600CLM Eaton Clutch Install Kit

Genuine Eaton

Clutch Kit

Listing Price: $638.88
Sale Price: $351.38

This item qualifies for FREE shipping on orders over $295 and under 70 lbs

(No reviews yet) Write a Review
Product Code:
EATK3600CLM
Condition:
New
Availability:
Usually Ships in 3 to 5 Business Days
Adding to cart… The item has been added

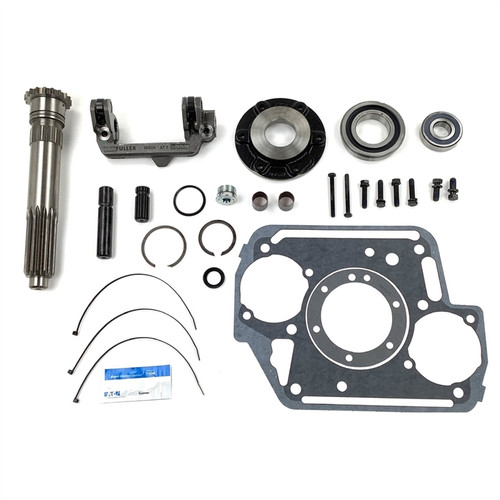

The Eaton K-3600CL clutch install kit, also listed as K3600CLM, packages the wear parts needed to service a clutch and transmission front end in one box. The kit includes an input shaft assembly, an input shaft bearing, a pilot bearing, a front bearing cover, a clutch release yoke, a clutch brake disc assembly, a gasket kit, four bushings, and two snap rings. Buying the kit keeps the matched components together so you replace the related pieces in a single job. This is a genuine Eaton part from Pro Gear and Transmission. Not sure this is your part? Give us a call to confirm proper fit for your application.
Kit Contains:
QtyPart NumberDescription
412815Clutch Release Shaft Bushing
116980Snap Ring
120550Front Bearing Cover
14303362Snap Ring
14308451Roller Bearing
15566505Ball Bearing
185533Clutch Release Yoke 105 C 137
185541Clutch Brake Disc Assembly
1K-3453Gasket Kit
1S-2822Input Shaft Assembly

Features

Genuine Eaton clutch install kit, part number K-3600CL or K3600CLM
Includes input shaft assembly and input shaft bearing
Pilot bearing and front bearing cover included
Clutch release yoke and clutch brake disc assembly included
Gasket kit, four bushings, and two snap rings included

Tech Specs

  • Kit contents:
  • Input shaft assembly (S-2822) x1
  • Input shaft bearing (4308451) x1
  • Pilot bearing (5566505) x1
  • Front bearing cover (20550) x1
  • Clutch release yoke, 105-C-137 (85533) x1
  • Clutch brake disc assembly (85541) x1
  • Gasket kit (K-3453) x1
  • Bushing (12815) x4
  • Snap ring (16980) x1
  • Snap ring (4303362) x1
