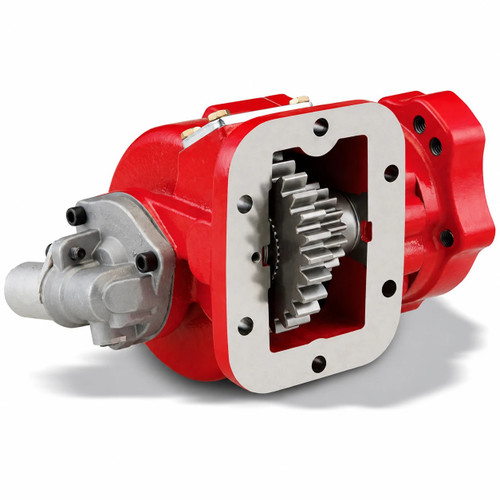

The Chelsea Output Assembly XS, part number 329609-1X or 3296091X, is a genuine Chelsea PTO output assembly designed for SAE C mounting in either 2-bolt or 4-bolt configurations. The output features a 1.25 in. 14-tooth spline interface, making it a precise-fit replacement for Chelsea power takeoff applications requiring this specific XS-series output configuration. Cross-references include CHE-329609-1X, CHE3296091X, CHL 329609 1X, and CHL3296091X. Sold individually by Pro Gear and Transmission. Call us to confirm proper fit for your PTO application.
Features
SAE C mounting pattern, compatible with 2-bolt or 4-bolt configurations
1.25 in. 14-tooth spline output shaft
XS-series Chelsea PTO output assembly
Sold as an individual assembly (each)
Cross-references: 3296091X, CHE-329609-1X, CHE3296091X, CHL 329609 1X, CHL3296091X
Tech Specs
- Output Spline: 1.25 in., 14 teeth
- Mount Pattern: SAE C, 2-bolt or 4-bolt
- Series: XS
- Sold As: Each
- Cross References: 329609-1X, 3296091X, CHE-329609-1X, CHE3296091X, CHL 329609 1X, CHL3296091X
