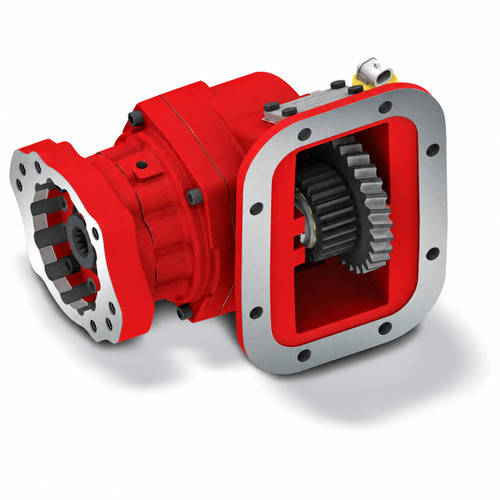

The Chelsea 272UKMGP-V3RS is a 6-bolt, hot shift Power Take-Off from the Chelsea 272 Series. This medium-duty PTO supports up to 300 lb-ft of intermittent torque and is available with pneumatic or hydraulic shift, with an integral air control valve included. The 272 Series consolidates several earlier Chelsea PTO lines into one platform, offering rotatable flanges and a continuous-duty torque rating. Applications served by this series include aerial equipment, construction equipment, water trucks, and towing and recovery. The 272UKMGP-V3RS is a genuine Chelsea part, sold by Pro Gear and Transmission.
Features
6-bolt mounting configuration
Hot shift operation with pneumatic or hydraulic shift options
Intermittent torque capability up to 300 lb-ft (401-500 Nm)
Integral air control valve included
Rotatable flanges for flexible installation
Series-level Smart Start option for high-torque start-up conditions
Tech Specs
- Mounting Type: 6-Bolt
- Shift Type: Pneumatic or Hydraulic
- Intermittent Torque: 201-300 lb-ft (401-500 Nm)
- Output Power: 56+ HP (41-50 kW)
- Output Shaft Options: Round Shaft 1" with 1/4" Key; Round Shaft 1-1/4" with 5/16" Key
- Lubricant Options: No Pressure Lube (X), Pressure Lube (P), Wet Spline (W)
Additional Information
The 272 Series replaces and consolidates the earlier Chelsea 230, 231, 236, 238, 270, and 271 PTO series into a single medium-duty platform. Markets served include aerial, construction equipment, water trucks, towing and recovery, defense, material handling, and water drilling.Parts Manual: Chelsea 272 Series PTO Parts Manual (PDF) — exploded views, item numbers and the full parts breakdown for this series.
