Chelsea 272 Series PTO Parts Manual
Model Number Designation

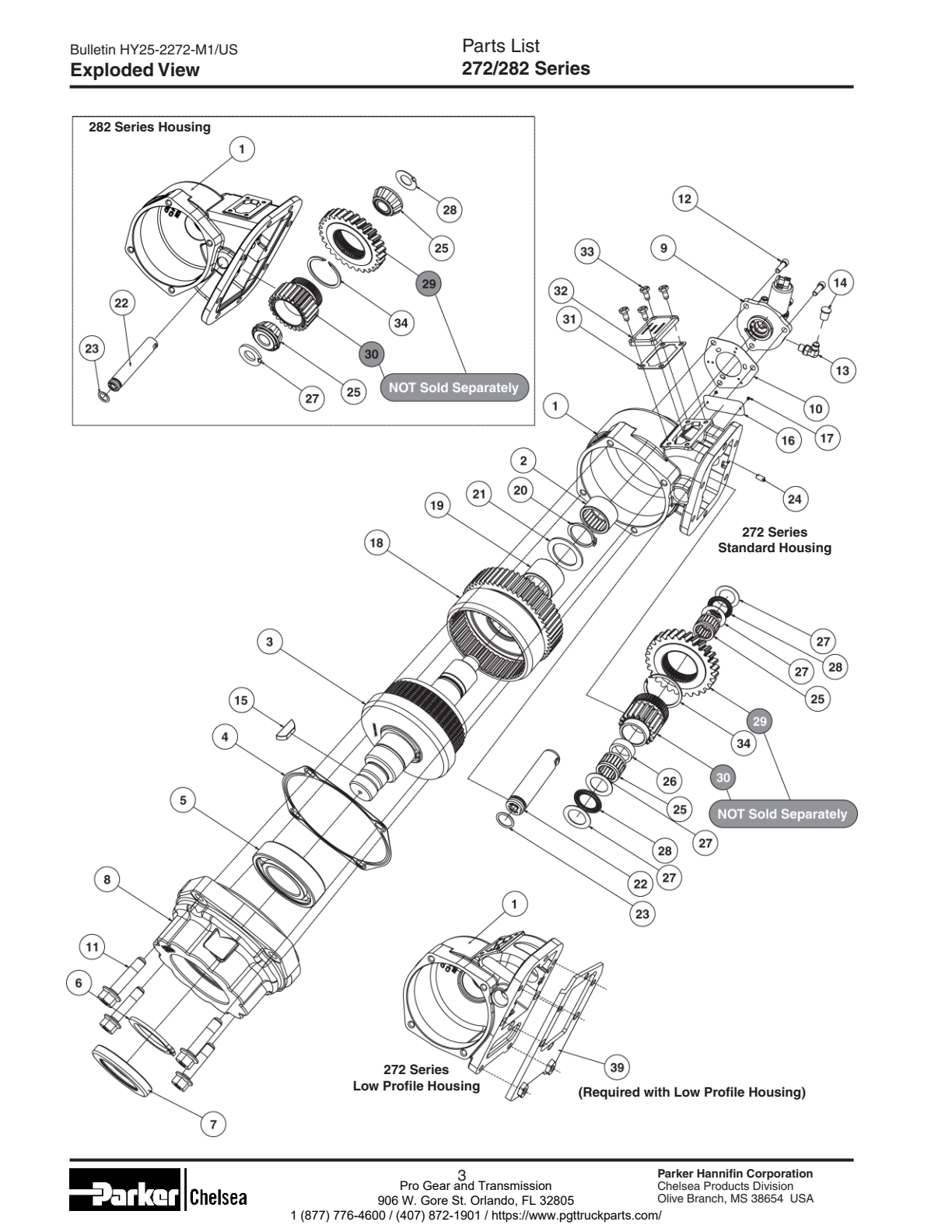

Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price |
|---|
Parts List Bill Of Materials 272/282 Series
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 1P766 | Housing (3 Arrangement A, D, G K, R, X) 1 Or | $466.16 | Add to Cart | ||
| 1P767 | Housing (5 Arrangement A, D, G K, R, X) 1 Or | $466.16 | Add to Cart | |||
| 1P769 | Housing (3 Arrangement, Low Profile M N) 1 Or | $466.16 | Add to Cart | |||
| 1P771 | Housing (5 Arrangement, Low Profile M N) 1 Or | $466.17 | Add to Cart | |||
| 1P722 | Housing (3 Arrangement, Deep Mount L, Z) 1 Or | $466.16 | Add to Cart | |||
| 1P723 | Housing (5 Arrangement, Deep Mount L, Z) 1 | $466.16 | Add to Cart | |||
| 1P770 | Housing (3 Arrangement All) 1 Or | $598.87 | Add to Cart | |||
| 1P772 | Housing (5 Arrangement All) 1 | $598.87 | Add to Cart | |||
| 2 | 560972 | Needle Roller Bearing Ass’y 1 .500" X 1 .875" X 1 .000" 1 1 | $32.22 | Add to Cart | ||
| 3 | 3298281X | Drive Shaft & Clutch Ass’y Xd (3-P-1 133 Shaft) (hyd) 1 Or 1 Or | $977.15 | Add to Cart | ||
| 329829X | Drive Shaft & Clutch Ass’y Bv (3-P-1 139 Shaft) (hyd) 1 Or 1 Or | $1,185.48 | Add to Cart | |||
| 3298321X | Drive Shaft & Clutch Ass’y Xd (3-P-1 133 Shaft) (air) 1 1 | $802.15 | Add to Cart | |||
| 329833X | Drive Shaft & Clutch Ass’y Bv (3-P-1 139 Shaft) (air) 1 1 | $1,251.74 | Add to Cart | |||
| 4 | 22P151 | Gasket 1 1 | $15.38 | Add to Cart | ||
| 5 | 550311 | Bearing-ball 1 .77" X 3.346" X .748" 1 1 | $81.15 | Add to Cart | ||
| 6 | 379555 | Lockring 1 1 | $23.13 | Add to Cart | ||
| 7 | 28P267 | Oil Seal 2.627" X 1 .750" X .312" 1 | $66.05 | Add to Cart | ||
| 28P225 | Oil Seal 2.004" X 1 .375" X .315" 1 | $19.01 | Add to Cart | |||
| 8 | 21P886 | Bearing Cap 1 1 | $189.52 | Add to Cart | ||
| 10 | 22P112 | Valve Cap Gasket 1 1 | $20.18 | Add to Cart | ||
| 38056314 | Hex Flange Head Capscrew .375"-16 X 1 .500" Grade 8 (non-drag Brake Option) 4 Or 4 Or | $7.14 | Add to Cart | |||
| 38056328 | Hex Flange Head Capscrew .375"-16 X 3.500" Grade 8 (drag Brake Option) 4 4 | $11.07 | Add to Cart | |||
| 12 | 3784476 | Socket Head Capscrew .312"-18 X 1 .000" 3 3 | $4.33 | Add to Cart | ||
| 13 | 379486 | 90° Elbow .438"-20 (hydraulic Shift Options Only) 1 1 | $28.97 | Add to Cart | ||
| 14 | 3795642 | Thread Cap .438" (hydraulic Shift Options Only) 1 1 | $1.23 | Add to Cart | ||
| 15 | 50000729 | Woodruff Key (xd Output Only) 1 1 | $3.11 | Add to Cart | ||
| 16 | 68P51 | Name Plate 1 1 | $2.14 | Add to Cart | ||
| 17 | 378422 | Drive Screw 2 2 | $11.52 | Add to Cart | ||
| 19 | 561088 | Bearing-needle Roller Ass’y 1 .500" X 1 .875" X 1 .250" 1 1 | $41.81 | Add to Cart | ||
| 20 | 379746 | Lockring 1 1 | $5.06 | Add to Cart | ||
| 21 | 31P70 | Thrust Washer 1 .507" X 2.167" X .094" 1 1 | $13.66 | Add to Cart | ||
| 22 | 9P109 | Idler Shaft 1 .00" 1 | $124.99 | Add to Cart | ||
| 9P106 | Idler Shaft .75" N/r 1 | $127.66 | Add to Cart | |||
| 23 | 28P198 | O-ring .798" X .103" 1 | $7.10 | Add to Cart | ||
| 28P191 | O-ring .549" X .103" N/r 1 | $3.59 | Add to Cart | |||
| 24 | 3784527 | Set Screw Socket Head .250"-20 X .500" 1 1 | $4.37 | Add to Cart | ||
| 25 | 550886 | Bearing-needle Roller Ass’y 1 .000" X 1 .312" X 1 .000" 2 N/r | $18.17 | Add to Cart | ||
| 550439 | Bearing-tapered Cone .750" X .8598" N/r 2 | $51.63 | Add to Cart | |||
| 561006 | Bearing-tapered Cone .750" X .655" (b Ratio Only) N/r 2 | $28.12 | Add to Cart | |||
| 26 | 14P54 | Spacer 1 .035" X 1 .310" X .462" 1 N/r | $7.89 | Add to Cart | ||
| 27 | 31P61 | Thrust Washer 1 .007" X 1 .542" X .031 " 4 N/r | $4.17 | Add to Cart | ||
| 14P731 | Spacer .762" X 1 .5" X .150" N/r 1 | $10.38 | Add to Cart | |||
| 14P732 | Spacer .762" X 1 .5" X .153" N/r 1 | $11.01 | Add to Cart | |||
| 14P733 | Spacer .762" X 1 .5" X .156" N/r 1 | $10.38 | Add to Cart | |||
| 28 | 560920 | Thrust Bearing 1 .000" X .078" 2 N/r | $9.52 | Add to Cart | ||
| 31P102 | Thrust Washer .754" X .440" X .030 N/r 1 Continued On Next Page | $3.72 | Add to Cart | |||
| ALL282 | — | Call for availability | ||||
| 32989212X | 12V Hyd Valve Installation Kit (b Shift, Except Hv Gear) 1 Or 1 Or | $490.97 | Add to Cart | |||
| 32988212X | 12V Hyd Valve Installation Kit (b Shift, Hv Gear) 1 Or | $464.56 | Add to Cart | |||
| 32990712X | 12V Hyd Valve Installation Kit (b Shift, Ku Gear, Except D, R Mount) 1 Or | $330.30 | Add to Cart | |||
| 32988412X | 12V Hyd Valve Installation Kit (b Shift, Ku Gear, D Mount) 1 Or | $342.85 | Add to Cart | |||
| 32984112X | 12V Hyd Valve Installation Kit (b Shift, Ku Gear, R Mount) 1 Or | $575.82 | Add to Cart | |||
| 32989224X | 24V Hyd Valve Installation Kit (d Shift, Except Hv Gear) 1 Or 1 Or | $448.50 | Add to Cart | |||
| 32988224X | 24V Hyd Valve Installation Kit (d Shift, Hv Gear) 1 Or | $469.06 | Add to Cart | |||
| 32990724X | 24V Hyd Valve Installation Kit (d Shift, Ku Gear, Except D, R Mount) 1 Or | $308.04 | Add to Cart | |||
| 32988512X | 12V Remote Hyd Valve Installation Kit (g Shift, Except Hv Gear) 1 Or 1 Or | $742.90 | Add to Cart | |||
| 32984212X | 12V Remote Hyd Valve Installation Kit (g Shift, Hv Gear) 1 Or | $793.57 | Add to Cart | |||
| 32990812X | 12V Remote Hyd Valve Installation Kit (g Shift, Ku Gear, Except D, R Mount) 1 Or | $714.91 | Add to Cart | |||
| 32988812X | 12V Remote Hyd Valve Installation Kit (g Shift, Ku Gear, D Mount) 1 Or | $533.89 | Add to Cart | |||
| 32988712X | 12V Remote Hyd Valve Installation Kit (g Shift, Ku Gear, R Mount) 1 Or | $813.30 | Add to Cart | |||
| 32988524X | 24V Remote Hyd Valve Installation Kit (h Shift, Except Hv Gear) 1 Or 1 Or | $746.91 | Add to Cart | |||
| 32984224X | 24V Remote Hyd Valve Installation Kit (h Shift, Hv Gear) 1 Or | $793.57 | Add to Cart | |||
| 32990824X | 24V Remote Hyd Valve Installation Kit (h Shift, Ku Gear, Except D, R Mount) 1 Or | — | No longer available — call for replacement | |||
| 329900X | 12V & 24V Hyd Valve Installation Kit W/ Eoc (k Shift & L Shift, Except Hv, Ku Gear) 1 Or 1 | $731.46 | Add to Cart | |||
| 329883X | 12V & 24V Hyd Valve Installation Kit W/ Eoc (k Shift & L Shift, Hv Gear) 1 Or | $742.90 | Add to Cart | |||
| 329886X | 12V & 24V Hyd Valve Installation Kit W/ Eoc (k Shift & L Shift, Ku Gear, D, R Mount) 1 Air Installation Kits | $850.34 | Add to Cart | |||
| 328388113X | Air Shift Installation Kit (a Shift) 1 Or 1 Or | $761.79 | Add to Cart | |||
| 32989312X | 12V Elec/air Valve Installation Kit (1 Shift) 1 Or 1 Or | $545.52 | Add to Cart | |||
| 32990912X | 12V Elec/air Valve Installation Kit (1 Shift, Hv Gear) 1 Or | $591.53 | Add to Cart | |||
| 32989112X | 12V Remote Elec/air Valve Installation Kit (p Shift, Except Hv Gear) 1 Or 1 Or | $754.83 | Add to Cart | |||
| 32991012X | 12V Remote Elec/air Valve Installation Kit (p Shift, Hv Gear) 1 Or | $832.87 | Add to Cart | |||
| 32988912X | 12V Remote Elec/air Valve Installation Kit W/ Eoc (r Shift, Except Hv Gear) 1 Or 1 Or | $1,779.28 | Add to Cart | |||
| 32989012X | 12V Remote Elec/air Valve Installation Kit W/ Eoc (r Shift, Hv Gear) 1 Or | $974.84 | Add to Cart | |||
| 32989324X | 24V Elec/air Valve Installation Kit (2 Shift, Except Hv Gear) 1 Or 1 Or | — | No longer available — call for replacement | |||
| 32990924X | 24V Elec/air Valve Installation Kit (2 Shift, Hv Gear) 1 Or | $307.89 | Add to Cart | |||
| 32989124X | 24V Remote Elec/air Valve Installation Kit (q Shift, Except Hv Gear) 1 Or 1 Or | $644.67 | Add to Cart | |||
| 32991024X | 24V Remote Elec/air Valve Installation Kit (q Shift, Hv Gear) 1 Or | $433.49 | Add to Cart | |||
| 32988924X | 24V Remote Elec/air Valve Installation Kit W/ Eoc (4 Shift, Except Hv Gear) 1 Or 1 Or | — | No longer available — call for replacement | |||
| 32989024X | 24V Remote Elec/air Valve Installation Kit W/ Eoc (4 Shift, Hv Gear) 1 Or | $945.88 | Add to Cart | |||
| 329894X | 12V & 24V Elec/air Valve Installation Kit W/ Eoc (j Shift & 3 Shift, Except Hv Gear) 1 Or 1 Or | $1,483.89 | Add to Cart | |||
| 329911X | 12V & 24V Elec/air Valve Installation Kit W/ Eoc (j Shift & 3 Shift, Hv Gear) 1 Or Conversion Kits | $840.56 | Add to Cart | |||
| 32917512X | 12V W/ Eoc Conversion Kit | $1,568.56 | Add to Cart | |||
| 32935412X | 12V Remote Hyd Valve Conversion Kit (all) | $930.53 | Add to Cart | |||
| 32917524X | 24V W/ Eoc Conversion Kit | $675.81 | Add to Cart | |||
| 32935424X | 24V Remote Hyd Valve Conversion Kit (all) | $473.86 | Add to Cart |
Gear Ratio Options 272/282 Series
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 5P15091X | 5-P-1509 28 5-P-1498 19 2-P-925 53 | $519.68 | Add to Cart | |||
| 5P15092X | 5-P-1509 28 5-P-1499 22 2-P-926 50 | $519.68 | Add to Cart | |||
| 5P15093X | 5-P-1509 28 5-P-1500 25 2-P-927 47 | $534.83 | Add to Cart | |||
| 5P15094X | 5-P-1509 28 5-P-1501 28 2-P-928 44 | $592.70 | Add to Cart | |||
| 5P15095X | 5-P-1509 28 5-P-1502 31 2-P-929 41 | $592.70 | Add to Cart | |||
| 5P15096X | 5-P-1509 28 5-P-1503 33 2-P-931 39 | $643.24 | Add to Cart | |||
| 5P15097X | 5-P-1509 28 5-P-1504 35 2-P-933 37 | $643.24 | Add to Cart | |||
| 5P15098X | 5-P-1509 28 5-P-1505 37 2-P-935 35 | $671.85 | Add to Cart | |||
| 5P15099X | 5-P-1509 28 5-P-1506 39 2-P-936 33 | $701.71 | Add to Cart | |||
| 5P15101X | 5-P-1510 25 5-P-1498 19 2-P-925 53 | $427.25 | Add to Cart | |||
| 5P15102X | 5-P-1510 25 5-P-1499 22 2-P-926 50 | $427.25 | Add to Cart | |||
| 5P15103X | 5-P-1510 25 5-P-1500 25 2-P-927 47 | $427.25 | Add to Cart | |||
| 5P15104X | 5-P-1510 25 5-P-1501 28 2-P-928 44 | $427.25 | Add to Cart | |||
| 5P15105X | 5-P-1510 25 5-P-1502 31 2-P-929 41 | $427.25 | Add to Cart | |||
| 5P15106X | 5-P-1510 25 5-P-1503 33 2-P-931 39 | $427.25 | Add to Cart | |||
| 5P15107X | 5-P-1510 25 5-P-1504 35 2-P-933 37 | $427.25 | Add to Cart | |||
| 5P15108X | 5-P-1510 25 5-P-1505 37 2-P-935 35 | $451.44 | Add to Cart | |||
| 5P15109X | 5-P-1510 25 5-P-1506 39 2-P-936 33 | $427.25 | Add to Cart | |||
| 5P15111X | 5-P-151 1 27 5-P-1498 19 2-P-925 53 | $427.25 | Add to Cart | |||
| 5P15112X | 5-P-151 1 27 5-P-1499 22 2-P-926 50 | $427.25 | Add to Cart | |||
| 5P15113X | 5-P-151 1 27 5-P-1500 25 2-P-927 47 | $427.25 | Add to Cart | |||
| 5P15114X | 5-P-151 1 27 5-P-1501 28 2-P-928 44 | $427.27 | Add to Cart | |||
| 5P15115X | 5-P-151 1 27 5-P-1502 31 2-P-929 41 | $427.25 | Add to Cart | |||
| 5P15116X | 5-P-151 1 27 5-P-1503 33 2-P-931 39 | $427.27 | Add to Cart | |||
| 5P15117X | 5-P-151 1 27 5-P-1504 35 2-P-933 37 | $427.25 | Add to Cart | |||
| 5P15118X | 5-P-151 1 27 5-P-1505 37 2-P-935 35 | $427.27 | Add to Cart | |||
| 5P15119X | 5-P-151 1 27 5-P-1506 39 2-P-936 33 | $427.25 | Add to Cart | |||
| 5P15121X | 5-P-1512 23 5-P-1498 19 2-P-925 53 | $510.63 | Add to Cart | |||
| 5P15122X | 5-P-1512 23 5-P-1499 22 2-P-926 50 | $510.63 | Add to Cart | |||
| 5P15123X | 5-P-1512 23 5-P-1500 25 2-P-927 47 | $525.69 | Add to Cart | |||
| 5P15124X | 5-P-1512 23 5-P-1501 28 2-P-928 44 | $583.59 | Add to Cart | |||
| 5P15125X | 5-P-1512 23 5-P-1502 31 2-P-929 41 | $583.59 | Add to Cart | |||
| 5P15126X | 5-P-1512 23 5-P-1503 33 2-P-931 39 | $634.18 | Add to Cart | |||
| 5P15127X | 5-P-1512 23 5-P-1504 35 2-P-933 37 | $634.18 | Add to Cart | |||
| 5P15128X | 5-P-1512 23 5-P-1505 37 2-P-935 35 | $662.52 | Add to Cart | |||
| 5P15129X | 5-P-1512 23 5-P-1506 39 2-P-936 33 Input Gear, Ratio Gear And 379522 Pre-assembled Continued On Next Page | $692.65 | Add to Cart |
Gear Ratio Options 272/282 Series Gear Chart 272 Series (Continued)
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 5P15131X | 5-P-1513 26 5-P-1498 19 2-P-925 53 | $519.68 | Add to Cart | |||
| 5P15132X | 5-P-1513 26 5-P-1499 22 2-P-926 50 | $519.68 | Add to Cart | |||
| 5P15133X | 5-P-1513 26 5-P-1500 25 2-P-927 47 | $534.77 | Add to Cart | |||
| 5P15134X | 5-P-1513 26 5-P-1501 28 2-P-928 44 | $592.68 | Add to Cart | |||
| 5P15135X | 5-P-1513 26 5-P-1502 31 2-P-929 41 | $592.68 | Add to Cart | |||
| 5P15136X | 5-P-1513 26 5-P-1503 33 2-P-931 39 | $643.22 | Add to Cart | |||
| 5P15137X | 5-P-1513 26 5-P-1504 35 2-P-933 37 | $645.17 | Add to Cart | |||
| 5P15138X | 5-P-1513 26 5-P-1505 37 2-P-935 35 | $671.80 | Add to Cart | |||
| 5P15139X | 5-P-1513 26 5-P-1506 39 2-P-936 33 | $701.71 | Add to Cart | |||
| 5P15141X | 5-P-1514 25 5-P-1498 19 2-P-925 53 | $519.68 | Add to Cart | |||
| 5P15142X | 5-P-1514 25 5-P-1499 22 2-P-926 50 | $519.68 | Add to Cart | |||
| 5P15143X | 5-P-1514 25 5-P-1500 25 2-P-927 47 | $534.77 | Add to Cart | |||
| 5P15144X | 5-P-1514 25 5-P-1501 28 2-P-928 44 | $592.68 | Add to Cart | |||
| 5P15145X | 5-P-1514 25 5-P-1502 31 2-P-929 41 | $592.68 | Add to Cart | |||
| 5P15146X | 5-P-1514 25 5-P-1503 33 2-P-931 39 | $643.22 | Add to Cart | |||
| 5P15147X | 5-P-1514 25 5-P-1504 35 2-P-933 37 | $643.22 | Add to Cart | |||
| 5P15148X | 5-P-1514 25 5-P-1505 37 2-P-935 35 | $671.80 | Add to Cart | |||
| 5P15149X | 5-P-1514 25 5-P-1506 39 2-P-936 33 | $701.71 | Add to Cart | |||
| 5P15151X | 5-P-1515 36 5-P-1498 19 2-P-925 53 | $549.12 | Add to Cart | |||
| 5P15152X | 5-P-1515 36 5-P-1499 22 2-P-926 50 | $534.77 | Add to Cart | |||
| 5P15153X | 5-P-1515 36 5-P-1500 25 2-P-927 47 | $534.77 | Add to Cart | |||
| 5P15154X | 5-P-1515 36 5-P-1501 28 2-P-928 44 | $655.36 | Add to Cart | |||
| 5P15155X | 5-P-1515 36 5-P-1502 31 2-P-929 41 | $592.68 | Add to Cart | |||
| 5P15156X | 5-P-1515 36 5-P-1503 33 2-P-931 39 | $643.22 | Add to Cart | |||
| 5P15157X | 5-P-1515 36 5-P-1504 35 2-P-933 37 | $643.22 | Add to Cart | |||
| 5P15158X | 5-P-1515 36 5-P-1505 37 2-P-935 35 | $671.80 | Add to Cart | |||
| 5P15159X | 5-P-1515 36 5-P-1506 39 2-P-936 33 | $701.71 | Add to Cart | |||
| 5P15161X | 5-P-1516 27 5-P-1498 19 2-P-925 53 | $564.63 | Add to Cart | |||
| 5P15162X | 5-P-1516 27 5-P-1499 22 2-P-926 50 | $564.63 | Add to Cart | |||
| 5P15163X | 5-P-1516 27 5-P-1500 25 2-P-927 47 | $581.30 | Add to Cart | |||
| 5P15164X | 5-P-1516 27 5-P-1501 28 2-P-928 44 | $645.32 | Add to Cart | |||
| 5P15165X | 5-P-1516 27 5-P-1502 31 2-P-929 41 | $645.32 | Add to Cart | |||
| 5P15166X | 5-P-1516 27 5-P-1503 33 2-P-931 39 | $634.18 | Add to Cart | |||
| 5P15167X | 5-P-1516 27 5-P-1504 35 2-P-933 37 | $634.18 | Add to Cart | |||
| 5P15168X | 5-P-1516 27 5-P-1505 37 2-P-935 35 | $662.52 | Add to Cart | |||
| 5P15169X | 5-P-1516 27 5-P-1506 39 2-P-936 33 | $692.65 | Add to Cart | |||
| 5P15171X | 5-P-1517 25 5-P-1498 19 2-P-925 53 | $519.68 | Add to Cart | |||
| 5P15172X | 5-P-1517 25 5-P-1499 22 2-P-926 50 | $519.68 | Add to Cart | |||
| 5P15173X | 5-P-1556 25 5-P-1500 25 2-P-927 47 | $519.68 | Add to Cart | |||
| 5P15174X | 5-P-1517 25 5-P-1501 28 2-P-928 44 | $519.68 | Add to Cart | |||
| 5P15175X | 5-P-1517 25 5-P-1502 31 2-P-929 41 | $519.68 | Add to Cart | |||
| 5P15176X | 5-P-1517 25 5-P-1503 33 2-P-931 39 | $519.68 | Add to Cart | |||
| 5P15177X | 5-P-1517 25 5-P-1504 35 2-P-933 37 | $519.68 | Add to Cart | |||
| 5P15178X | 5-P-1517 25 5-P-1505 37 2-P-935 35 | $519.68 | Add to Cart | |||
| 5P15179X | 5-P-1517 25 5-P-1506 39 2-P-936 33 | $519.68 | Add to Cart | |||
| 5P15561X | 5-P-1556 25 5-P-1498 19 2-P-925 53 | — | Call for availability | |||
| 5P15562X | 5-P-1556 25 5-P-1499 22 2-P-926 50 | — | Call for availability | |||
| 5P15563X | 5-P-1556 25 5-P-1500 25 2-P-927 47 | — | Call for availability | |||
| 5P15564X | 5-P-1556 25 5-P-1501 28 2-P-928 44 | — | Call for availability | |||
| 5P15565X | 5-P-1556 25 5-P-1502 31 2-P-929 41 | — | Call for availability | |||
| 5P15566X | 5-P-1556 25 5-P-1503 33 2-P-931 39 | — | Call for availability | |||
| 5P15567X | 5-P-1556 25 5-P-1504 35 2-P-933 37 | — | Call for availability | |||
| 5P15568X | 5-P-1556 25 5-P-1505 37 2-P-935 35 | — | Call for availability |
Gear Ratio Options 272/282 Series
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 5P151011X | 5-P-1510 25 5-P-1478 22 2-P-926 50 | $427.27 | Add to Cart | |||
| 5P151012X | 5-P-1510 25 5-P-1495 25 2-P-927 47 | $427.25 | Add to Cart | |||
| 5P151013X | 5-P-1510 25 5-P-1479 28 2-P-928 44 | $427.25 | Add to Cart | |||
| 5P151014X | 5-P-1510 25 5-P-1480 31 2-P-929 41 | $427.27 | Add to Cart | |||
| 5P151015X | 5-P-1510 25 5-P-1481 33 2-P-931 39 | $472.44 | Add to Cart | |||
| 5P151016X | 5-P-1510 25 5-P-1482 35 2-P-933 37 | $427.27 | Add to Cart | |||
| 5P151017X | 5-P-1510 25 5-P-1483 37 2-P-935 35 | $427.27 | Add to Cart | |||
| 5P151018X | 5-P-1510 25 5-P-1484 39 2-P-936 33 | $427.25 | Add to Cart | |||
| 5P151019X | 5-P-1510 25 5-P-1497 41 2-P-937 31 | $451.46 | Add to Cart | |||
| 5P151111X | 5-P-151 1 27 5-P-1478 22 2-P-926 50 | — | Call for availability | |||
| 5P151112X | 5-P-151 1 27 5-P-1495 25 2-P-927 47 | $427.27 | Add to Cart | |||
| 5P151113X | 5-P-151 1 27 5-P-1479 28 2-P-928 44 | $427.25 | Add to Cart | |||
| 5P151114X | 5-P-151 1 27 5-P-1480 31 2-P-929 41 | $427.27 | Add to Cart | |||
| 5P151115X | 5-P-151 1 27 5-P-1481 33 2-P-931 39 | $427.25 | Add to Cart | |||
| 5P151116X | 5-P-151 1 27 5-P-1482 35 2-P-933 37 | $427.27 | Add to Cart | |||
| 5P151117X | 5-P-151 1 27 5-P-1483 37 2-P-935 35 | $427.25 | Add to Cart | |||
| 5P151118X | 5-P-151 1 27 5-P-1484 39 2-P-936 33 | $427.27 | Add to Cart | |||
| 5P151119X | 5-P-151 1 27 5-P-1497 41 2-P-937 31 | $427.25 | Add to Cart | |||
| 5P151711X | 5-P-1517 25 5-P-1478 22 2-P-926 50 | — | Call for availability | |||
| 5P151712X | 5-P-1517 25 5-P-1495 25 2-P-927 47 | $519.68 | Add to Cart | |||
| 5P151713X | 5-P-1517 25 5-P-1479 28 2-P-928 44 | $519.68 | Add to Cart | |||
| 5P151714X | 5-P-1517 25 5-P-1480 31 2-P-929 41 | $519.68 | Add to Cart | |||
| 5P151715X | 5-P-1517 25 5-P-1481 33 2-P-931 39 | $519.68 | Add to Cart | |||
| 5P151716X | 5-P-1517 25 5-P-1482 35 2-P-933 37 | $519.68 | Add to Cart | |||
| 5P151717X | 5-P-1517 25 5-P-1483 37 2-P-935 35 | $519.68 | Add to Cart | |||
| 5P151718X | 5-P-1517 25 5-P-1484 39 2-P-936 33 | $519.68 | Add to Cart | |||
| 5P151719X | 5-P-1517 25 5-P-1497 41 2-P-937 31 Input Gear, Ratio Gear And 379522 Pre-assembled | $519.68 | Add to Cart |
Shift Options 272/282 Series Valve Cap Assembly (Air) 329858-*X
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price |
|---|

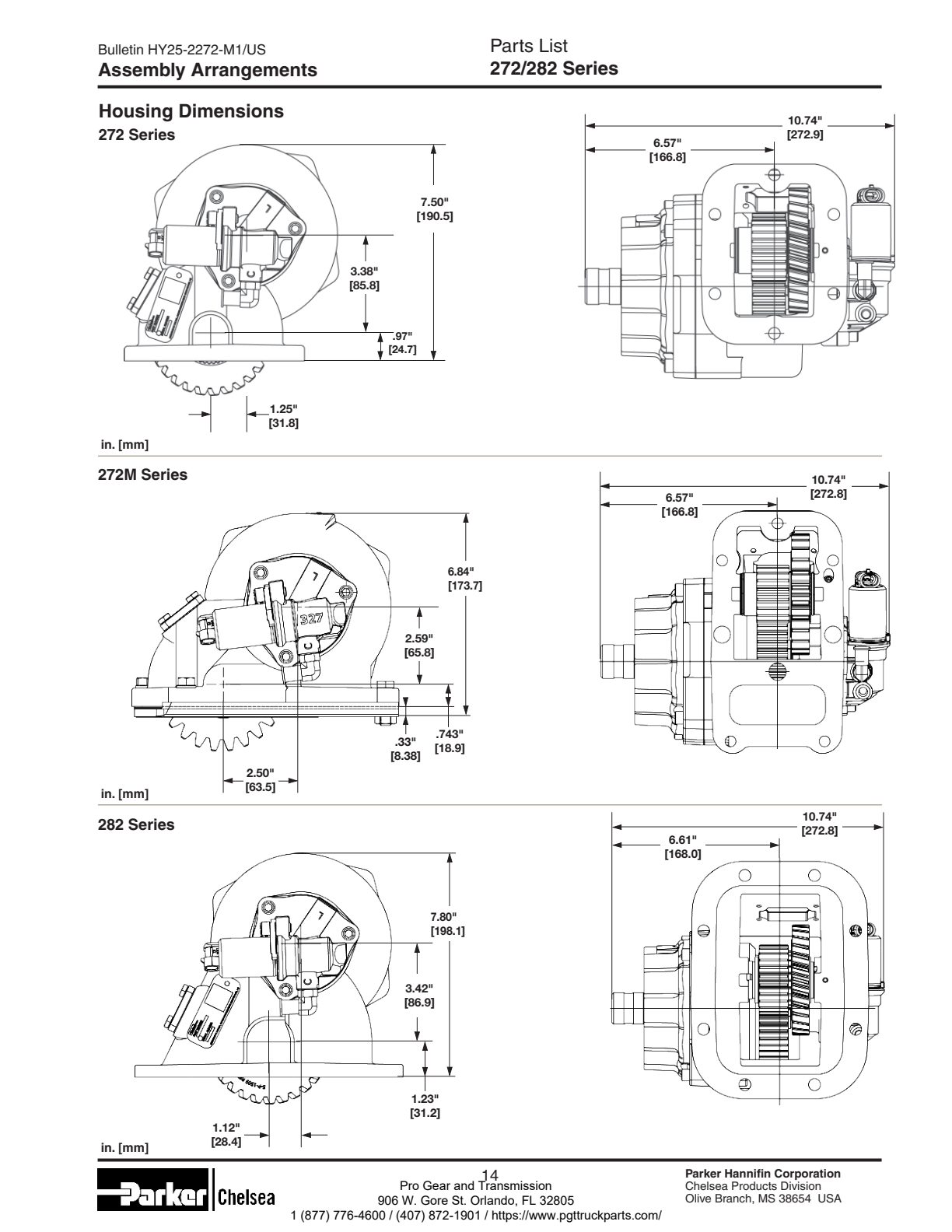

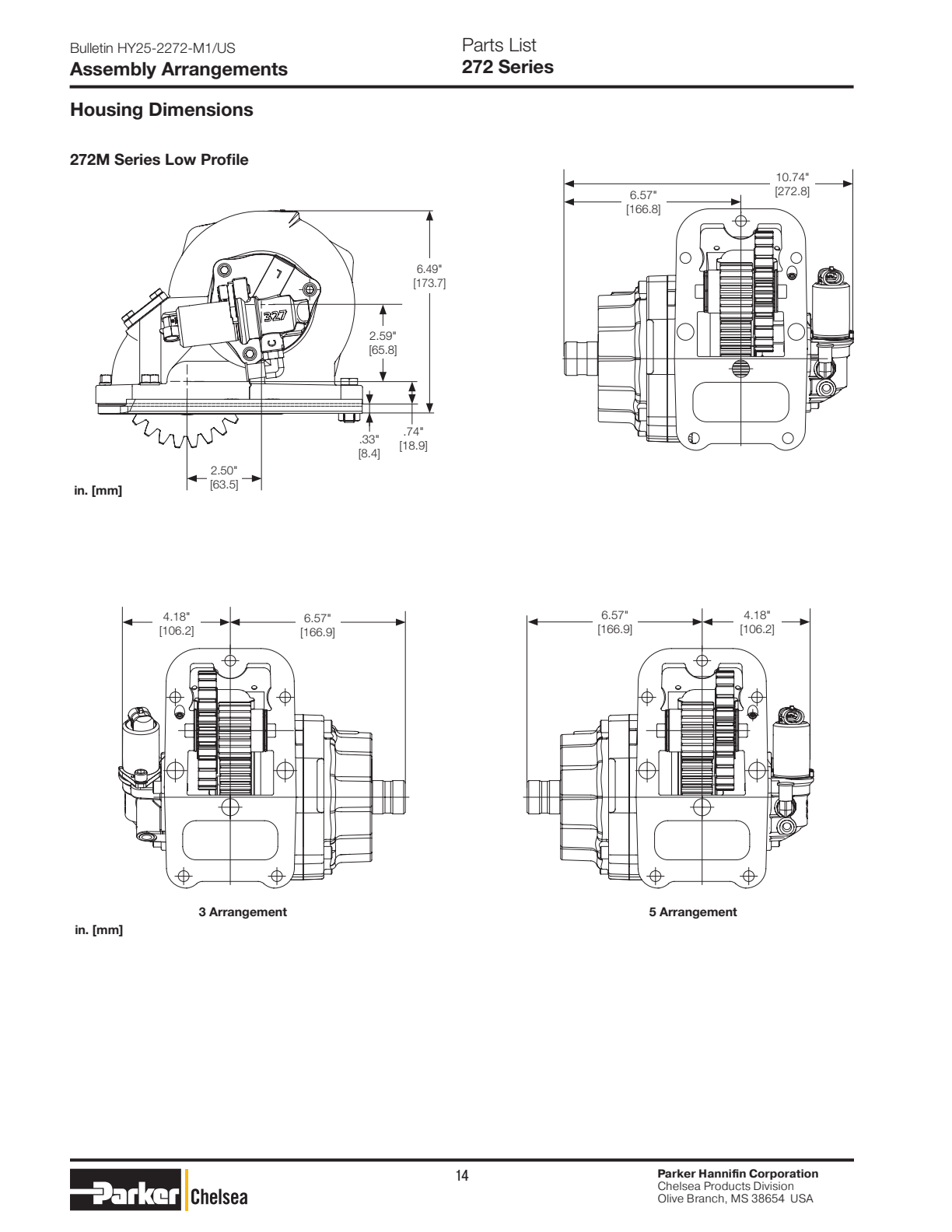

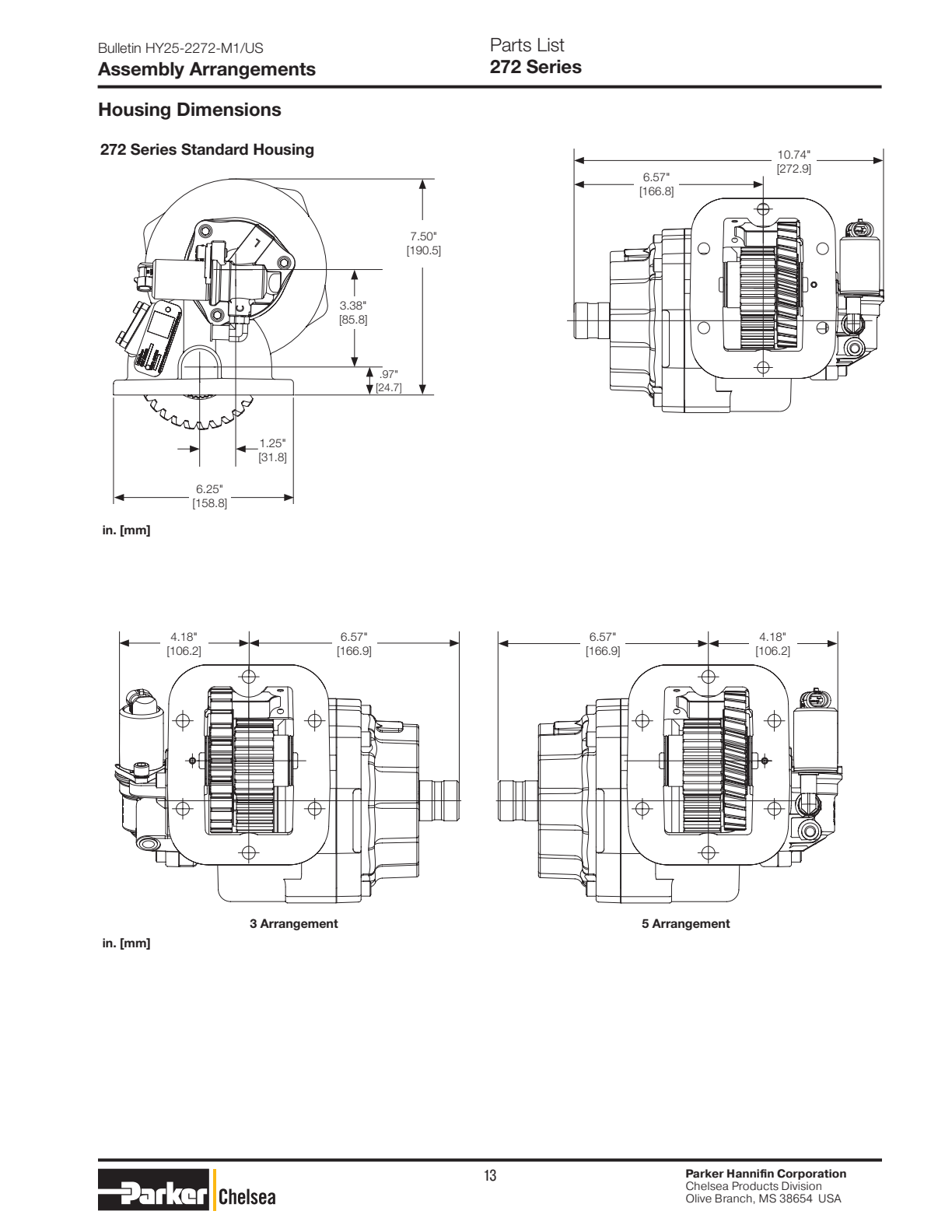

Assembly Arrangements 272/282 Series Housing Dimensions
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 10617 | [106.17] [166.88] | — | Call for availability | |||
| 10490 | [104.90] [167.89] | — | Call for availability |
Output Options 272/282 Series Pump Flange & Shaft Dimensions
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price |
|---|
Output Options 272/282 Series Output Conversion Kits
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| DIN120 | Din 120 Series Companion Flange Xd To Ab 329160-1 | 12X | — | Call for availability | ||
| DIN100 | Din 100 Series Companion Flange Xd To Ac 329160-1 Rd Standard Shaft (1 -1/4"-5/16" Key) Xd To Bd 329160-103X W/ Drag Brake 1410 Series Companion Flange Xd To Bv 329160-102X W/ Drag Brake | 13X | — | Call for availability | ||
| ISO765380X80MM | Din 5462 Shaft (B8x32x36) Xd To Ry (wet) 329160-109X Xd To Rz (dry) 329160-1 | 10X | — | Call for availability |
Output Options 272/282 Series Drive Shaft & Clutch Assembly (Hyd) 329828-*X & (Air) 329832-*X
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 3P1133 | Xd Output Shaft (329828-1X & 329832-1X) | 1 or | $387.77 | Add to Cart | ||
| 3P1134 | Xv, Ab, & Ac Output Shaft 10T Straight (329828-2X & 329832-2X) | 1 or | $603.41 | Add to Cart | ||
| 3P1135 | Rk & Xr Output Shaft .875" 13T (329828-3X & 329832-3X) | 1 or | $383.11 | Add to Cart | ||
| 3P1136 | Rf Output Shaft 1 .02" 15T (329828-4X & 329832-4X) | 1 or | $427.93 | Add to Cart | ||
| 3P1137 | Rs, Rz Output Shaft 1 .25" 14T (329828-5X & 329832-5X) | 1 or | $505.33 | Add to Cart | ||
| 3P1138 | Ry Output Shaft Din 8T (329828-6X & 329832-6X) | 1 | $421.53 | Add to Cart | ||
| 3P1168 | Sd Smart Start, Output Shaft (329828-8X) | 1 | $589.43 | Add to Cart | ||
| 3P1169 | Sv Smart Start, 10T Straight Output Shaft (329828-9X) | 1 | $598.90 | Add to Cart | ||
| 3P1170 | Re Output Shaft .625" 9T (329828-10X & 329832-8X) | 1 | $464.71 | Add to Cart | ||
| 2 | 28P285 | O-ring 1 .597" X .103" | 2 | $12.64 | Add to Cart | |
| 3 | 28P178 | O-ring 4.484" X .138" | 1 | $41.94 | Add to Cart | |
| 4 | 380051 | Clutch Back Up Cylinder | 1 | — | No longer available — call for replacement | |
| 5 | 3801101 | Clutch Piston (hydraulic Shift) | 1 | $392.01 | Add to Cart | |
| 3801102 | Clutch Piston (air Shift) | 1 | $68.99 | Add to Cart | ||
| 6 | 379555 | Lock Ring | 1 | $23.13 | Add to Cart | |
| 7 | 380069 | Lock Ring | 1 | $6.90 | Add to Cart | |
| 8 | 329678X | Gear & Clutch Plates Kit | 1 | $474.31 | Add to Cart | |
| 379485 | Friction Disc | 1 1 | $14.45 | Add to Cart | ||
| 2P858 | Inner Hub Gear | 1 | $186.14 | Add to Cart | ||
| 380065 | Clutch Plate | 10 | $16.48 | Add to Cart | ||
| 9 | 37P72 | Spring 2 .14" X 1 .941 " | 1 | $26.96 | Add to Cart |
Output Options 272/282 Series Drive Shaft & Clutch Assembly (Hyd) 329829-*X & (Air) 329833-*X W/ Drag Brake
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 3P1139 | Bv Output Shaft (329829X & 329833X) | 1 or | $505.33 | Add to Cart | ||
| 3P1142 | Bd Output Shaft (329829-1X & 329833-1X) | 1 | $429.17 | Add to Cart | ||
| 2 | 28P244 | O-ring 1 .174" X .103" | 2 | $5.03 | Add to Cart | |
| 3 | 380069 | Lock Ring | 1 | $6.90 | Add to Cart | |
| 4 | 378576 | Lock Ring | 1 | $3.16 | Add to Cart | |
| 5 | 329179X | Piston & Back Up Cylinder Ass’y (hydraulic Shift) | 1 or | $732.68 | Add to Cart | |
| 3291791X | Piston & Back Up Cylinder Ass’y (air Shift) | 1 | $268.17 | Add to Cart | ||
| 379323 | Back Up Clutch Cylinder (hydraulic Shift) | 1 or | $239.23 | Add to Cart | ||
| 3793231 | Back Up Clutch Cylinder (air Shift) | 1 | $102.10 | Add to Cart | ||
| 380057 | Air Clutch Piston (hydraulic Shift) | 1 or | $88.16 | Add to Cart | ||
| 3800571 | Air Clutch Piston (air Shift) | 1 | $85.93 | Add to Cart | ||
| 28P178 | O-ring 4.359" X .138" | 1 | $41.94 | Add to Cart | ||
| 6 | 329678X | Gear & Clutch Plates Kit | 1 | $474.31 | Add to Cart | |
| 379485 | Friction Disc | 1 1 | $14.45 | Add to Cart | ||
| 2P858 | Inner Hub Gear | 1 | $186.14 | Add to Cart | ||
| 380065 | Clutch Plate | 10 | $16.48 | Add to Cart | ||
| 7 | 37P39 | Spring 2 .552" X 1 .985" | 1 | $6.55 | Add to Cart |
[ 35.31 ] [ 31 .71 ] . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . [ 2.18 ] [ 69.90 ] - . . . . . . . . . . . . . . [ 2.41 ] [ 75.01 ] -
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 3996101 | -115 Nm] | — | Call for availability |

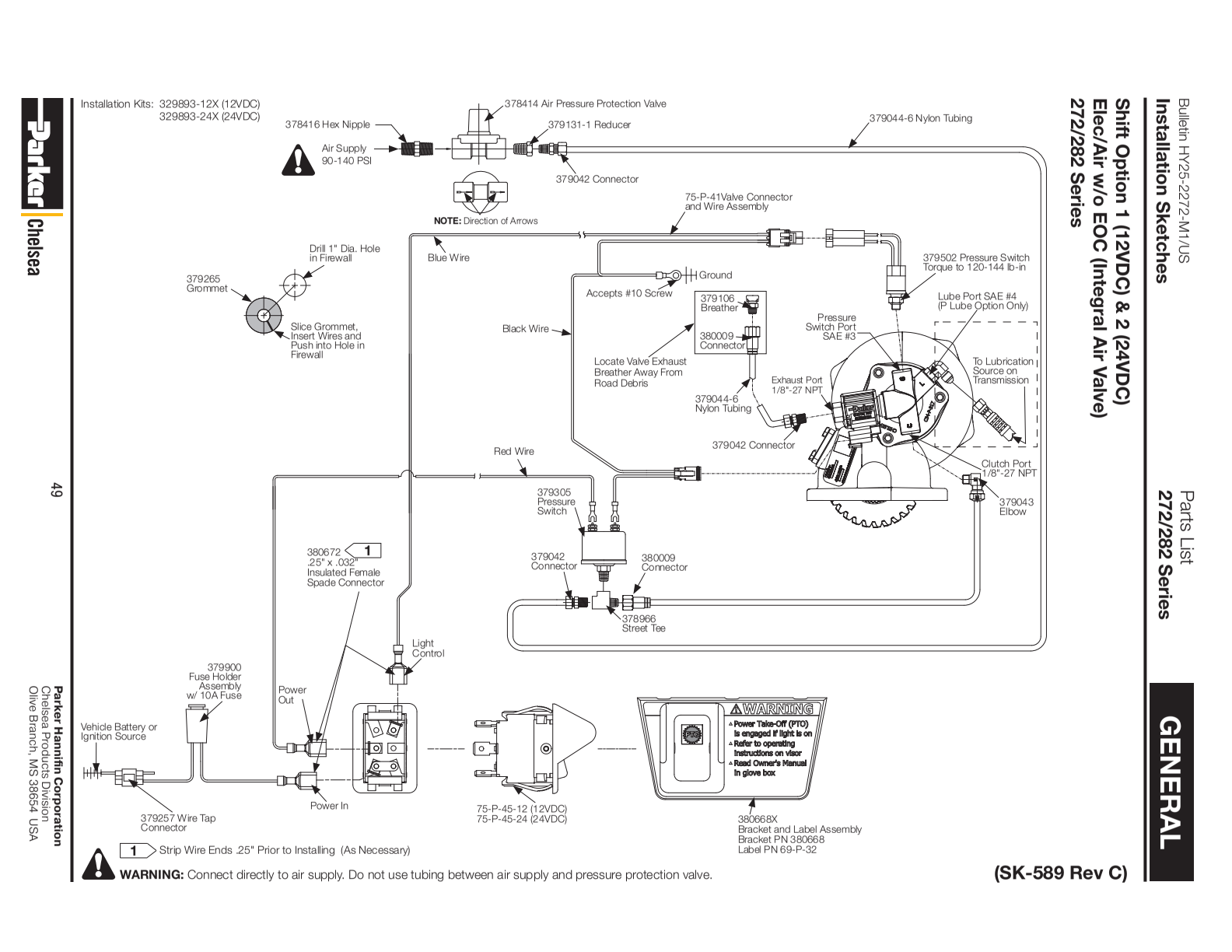

General
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 112237LE | 3 N ( | — | Call for availability | |||
| R03E03E | — | Call for availability | ||||
| 6E9V9V | — | Call for availability | ||||
| 1224B | — | Call for availability | ||||
| 31328 | 7 | — | Call for availability |

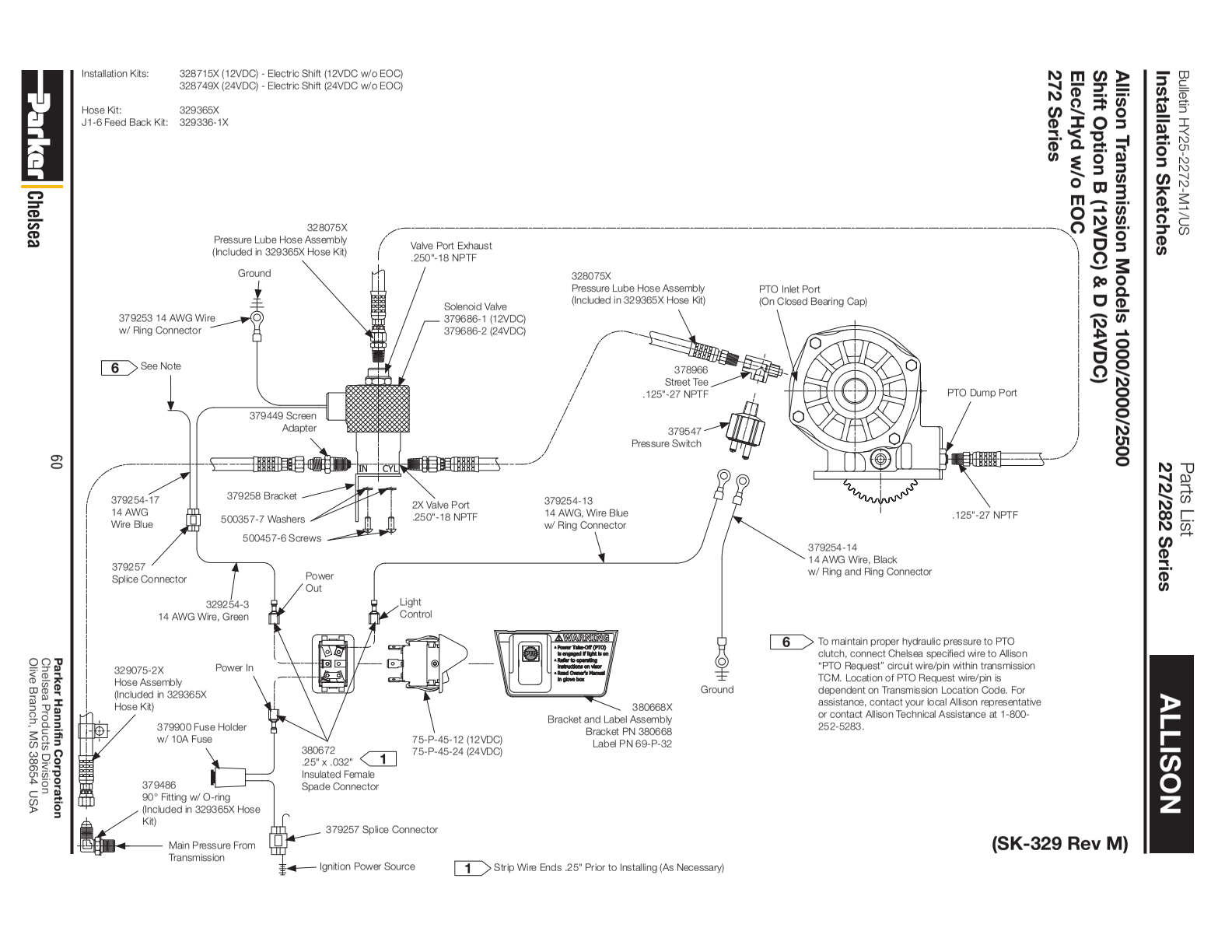

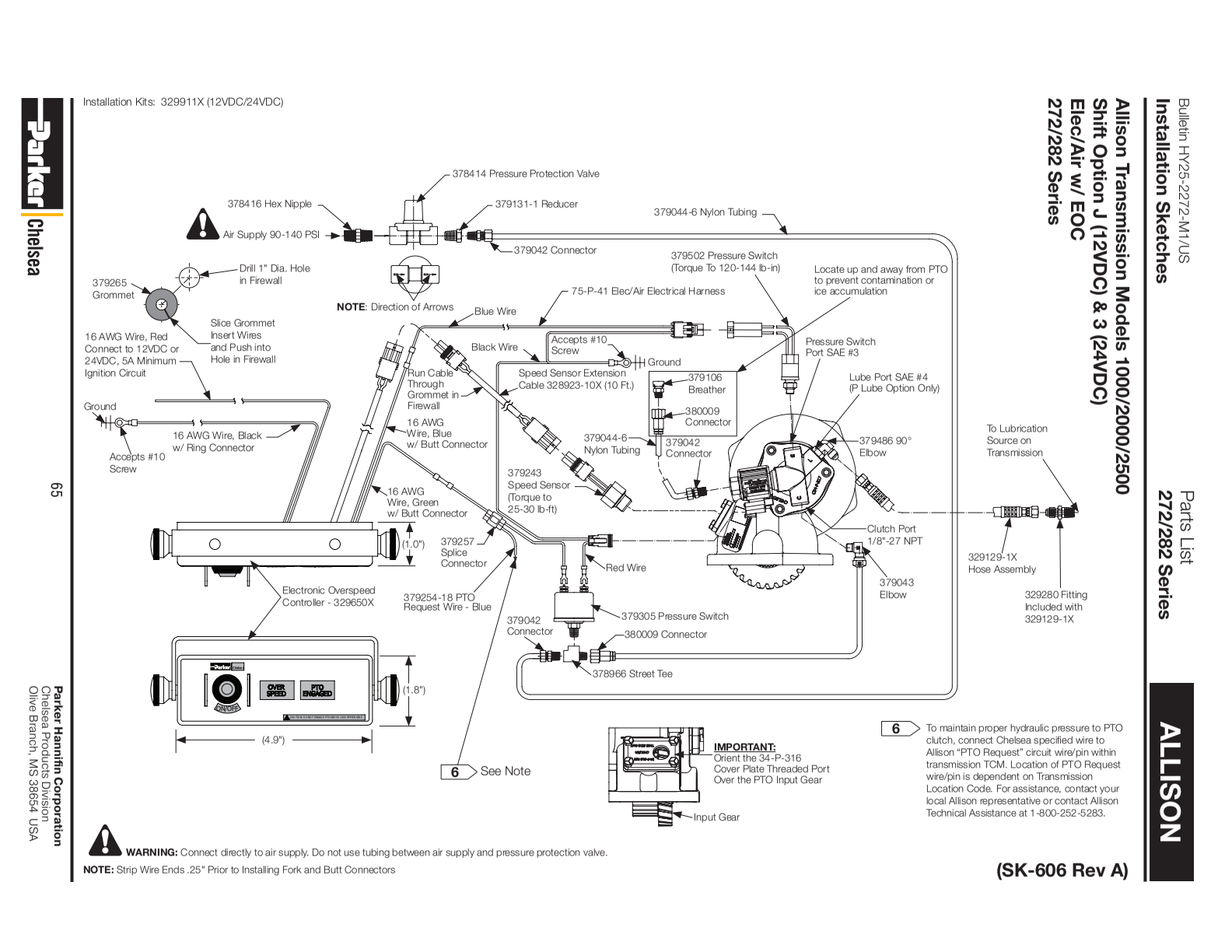

Allison
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| RE00 | — | Call for availability | ||||
| 6H33 | — | Call for availability | ||||
| 1A77 | 5 K | — | Call for availability |

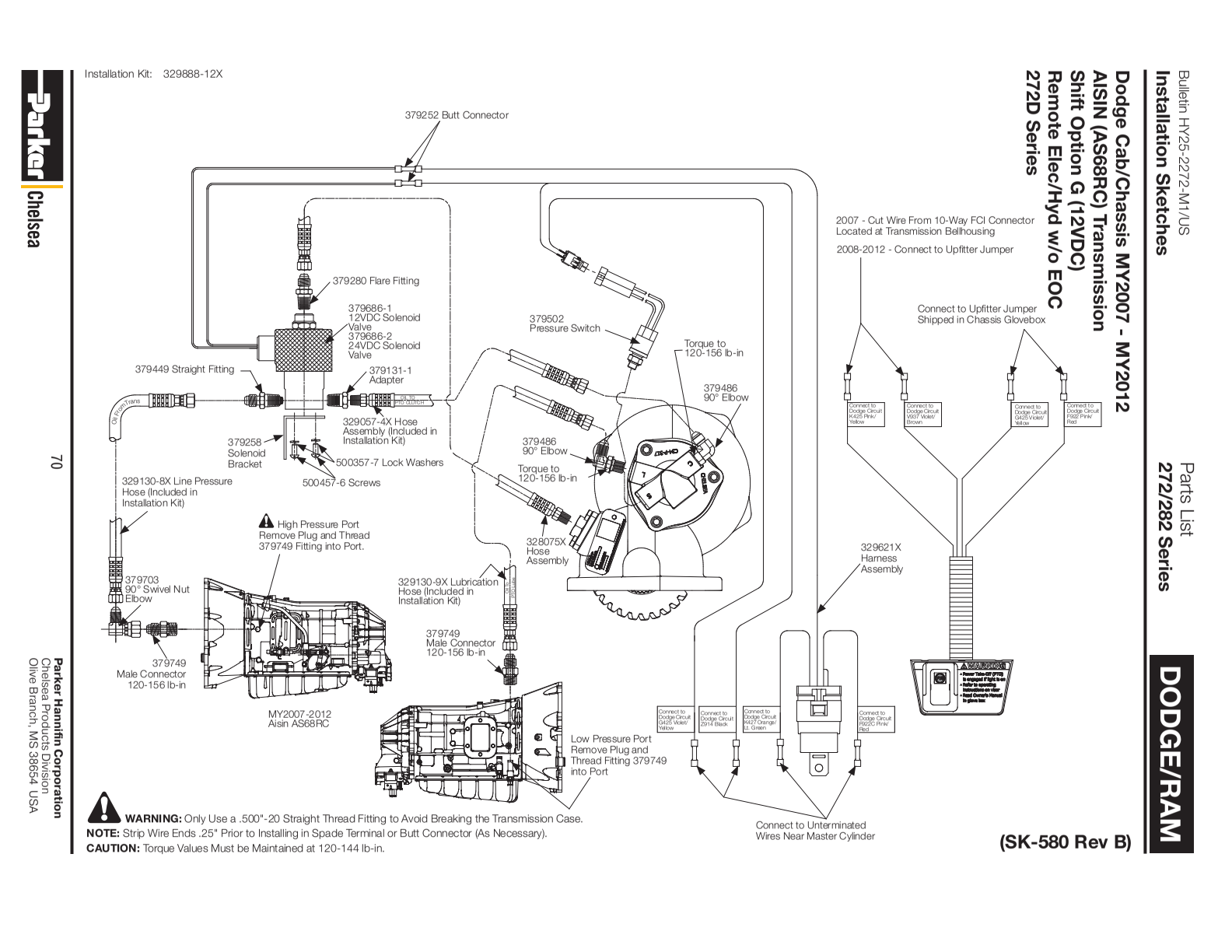

Dodge/Ram
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| MY20072012 | ) | — | Call for availability |
Parts List Kits Bill Of Materials 272/282 Series
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1500X1875X1000 | 2 7170-131X Standard Stud Kit (272Z) | — | Call for availability | |||
| ALL282 | 379265 Grommet. .010" 8-Bolt 2 379306 Electrical Fork Terminal .020" 8-Bolt 2 379336 Switch Bracket 1 379449 Screen Adapter. 1 379502 Pressure Switch Card 1 379686-1 12V Hydraulic Solenoid Valve | 1 | — | Call for availability | ||
| DIN120 | 1 379688 Spline Lubricant 1 379746 Lockring 1 380069 Lockring Thin .875"-14 1 28-P-267 Oil Seal 2.627" X 1 .750" X .312" , 1 329906X Pump Kit Xr | 1 | — | Call for availability | ||
| DIN100 | 1 380069 Lockring 1 380486 Lock Nut Nylon Thin .875"-14 , 1 380503 1410 Series Companion Flange Thin .875"-14 1 22-P-151 Bearing Cap Gasket , 1 28-P-21 1 Oil Seal 3.001 " X 2.00" X .375" | 1 | — | Call for availability |
Additional Parts Listed In This Manual
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 35-P-118 | Gasket 1 | 1 | $5.77 | Add to Cart | ||
| 34-P-315 | Cover Plate 1 Or 1 Or | $13.89 | Add to Cart | |||
| 34-P-316 | Cover Plate Eoc (w/ Eoc Or J, K, L, R, 3, 4 Shift Types Only) 1 | 1 | $221.15 | Add to Cart | ||
| 378429-4 | Hex Head Capscrew .250"-20 X .500" 4 | 4 | $1.35 | Add to Cart | ||
| 379522 | Lockring 1 | 1 | $5.76 | Add to Cart | ||
| 380511 | Tapered Plug .302" (w, V & Y Lubrication Only) 1 | 1 | $5.92 | Add to Cart | ||
| 69-P-18 | Wet Spline Tag (w, V & Y Lubrication Only) 1 | 1 | $6.83 | Add to Cart | ||
| 379231 | Pipe Plug .125"-27 (w/ Eoc Or J, K, L, R, 3, 4 Shift Types Only) 1 | 1 | $1.50 | Add to Cart | ||
| 379242 | Straight Adapter .125"-27 X .750"-16 (w/ Eoc Or J, K, L, R, 3, 4 Shift Types Only) 1 | 1 | $22.23 | Add to Cart | ||
| 329150X | Adapter Plate | 1 | $320.78 | Add to Cart | ||
| 329071-62X | Gasket & Seal Kit (all Outputs Except Bd, Bv) | $283.42 | Add to Cart | |||
| 329071-63X | Bearing Kit Ab, Ac, Xd, Xv, Rf, Rk, Rs, Ry, Rz (all Outputs Except Bv, Bd) | $263.32 | Add to Cart | |||
| 329071-64X | Bearing Kit (bv & Bd Outputs) | $419.23 | Add to Cart | |||
| 329071-83X | Hydraulic Solenoid Valve O-ring Kit (for Part Number 380123**) | $135.56 | Add to Cart | |||
| 328170-200X | Stud Kit (282X) 1 Or | $31.15 | Add to Cart | |||
| 328170-201X | Metric Stud Kit (282G) | 1 | $74.25 | Add to Cart | ||
| 328950-6X | Gasket & Installation Instructions Kit (all 272 Except M & N Mounting) 1 Or | $29.21 | Add to Cart | |||
| 328948-5X | Gasket & Installation Instructions Kit (all 272 M & N Mounting) | 1 | $180.18 | Add to Cart | ||
| 3298951-8X | Gasket & Installation Instructions Kit (all 282) | 1 | — | Call for availability | ||
| 35-P-41 | Mounting Gasket .030" 6-Bolt | 1 | $12.41 | Add to Cart | ||
| 35-P-69 | Mounting Gasket | 1 | $5.70 | Add to Cart | ||
| 35-P-84 | Mounting Gasket (long) | 1 | $24.87 | Add to Cart | ||
| 5-P-1498 | 19 2-P-925 | 53 | $220.14 | Add to Cart | ||
| 5-P-1499 | 22 2-P-926 | 50 | $235.19 | Add to Cart | ||
| 5-P-1500 | 25 2-P-927 | 47 | $251.91 | Add to Cart | ||
| 5-P-1501 | 28 2-P-928 | 44 | $270.27 | Add to Cart | ||
| 5-P-1502 | 31 2-P-929 | 41 | $292.22 | Add to Cart | ||
| 5-P-1503 | 33 2-P-931 | 39 | $341.86 | Add to Cart | ||
| 5-P-1504 | 35 2-P-933 | 37 | $380.09 | Add to Cart | ||
| 5-P-1505 | 37 2-P-935 | 35 | $370.01 | Add to Cart | ||
| 5-P-1506 | 39 2-P-936 | 33 | $399.66 | Add to Cart | ||
| 379627 | Male Branch Tee | $20.06 | Add to Cart | |||
| 34-P-318 | Air Integral Cap W/ Lube (329858-1X & 329858-3X) 1 Or | $362.31 | Add to Cart | |||
| 380574 | Valve-pneumatic Plunger Ass'y | 1 | $157.53 | Add to Cart | ||
| 378811 | Seal Plate Backup | 1 | $5.21 | Add to Cart | ||
| 378849 | Lockring | 1 | $2.12 | Add to Cart | ||
| 28-P-179 | Oil Seal 1.379" X .875" X .249" | 1 | $88.26 | Add to Cart | ||
| 34-P-327 | High Pressure W/ Lube Valve Cap Solenoid Port (329872-1X & 329872-3X) 1 Or | $150.35 | Add to Cart | |||
| 34-P-326 | High Pressure W/ Lube Valve Cap Solenoid Port (329872-2X & 329872-4X) | 1 | $158.99 | Add to Cart | ||
| 28-P-119 | Oil Seal 1.379" X .875" X .250" | 1 | $26.61 | Add to Cart | ||
| 380123-12 | Non Regulating Cartridge Valve 12V (329872-1X & 329872-2X) 1 Or | $222.19 | Add to Cart | |||
| 380123-24 | Non Regulating Cartridge Valve 24V (329872-3X & 329872-4X) | 1 | $213.64 | Add to Cart | ||
| 378447-4 | Socket Head Capscrew .312"-18 X .750" | 1 | $1.78 | Add to Cart | ||
| 34-P-320 | Hydraulic Remote Cap W/ Lube (329880-1X) | 11 | $333.73 | Add to Cart | ||
| 329828-2X | Shaft & Clutch Ass'y (3-P-1134 Shaft) (hyd) 1 Or | $917.19 | Add to Cart | |||
| 28-P-211 | Oil Seal 3.001" X 2.00" X .375" | 1 | $35.18 | Add to Cart | ||
| 329829-1X | Shaft & Clutch Ass'y (3-P-1142 Shaft) (hyd) 1 Or | $737.48 | Add to Cart | |||
| 21-P-888 | Bearing Cap Drag Brake | 1 | $212.98 | Add to Cart | ||
| 31-P-113 | Thrust Washer 1.385" X 3.125" X .125" | 1 | $44.53 | Add to Cart | ||
| 329410X | Brake Ass'y | 1 | $387.98 | Add to Cart | ||
| 379977 | Spring Pin | 1 | $3.85 | Add to Cart | ||
| 4-P-186 | Spacer 1.385" X 1.750" X .365" | 1 | $31.43 | Add to Cart | ||
| 37-P-24 | Spring 2.531" X 2.13" X .207" (air) | 1 | $12.29 | Add to Cart | ||
| 21-P-884 | Bearing Cap | 1 | $1,216.03 | Add to Cart | ||
| 378435-7 | Hex Head Capscrew .625"-11 X 1.250" | 1 | $11.93 | Add to Cart | ||
| 378895 | Lockring | 1 | $7.41 | Add to Cart | ||
| 23-P-73 | Oil Seal 2.506" X 1.750" X .315" | 1 | $582.70 | Add to Cart | ||
| 37-P-60 | Spring 2.531" X 2.13" X .172" (hyd) 1 Or | $36.98 | Add to Cart | |||
| 4-P-130 | Spacer .640" X 1.620" X .188" | 1 | $67.32 | Add to Cart | ||
| 380081 | 1410 Series Companion Flange | 1 | $558.76 | Add to Cart | ||
| 329828-9X | Shaft & Clutch Ass'y Xv Smart Start (3-P-1169) | 1 | $973.25 | Add to Cart | ||
| 380486 | Lock Nut Nylon, Thin .875"-14 | 1 | $60.21 | Add to Cart | ||
| 329832-2X | Shaft & Clutch Ass'y (3-P-1134 Shaft) (air) | 1 | $933.24 | Add to Cart | ||
| 380076-13 | Flat Washer Hardened .950" X 1.762" X .157" | 1 | $3.51 | Add to Cart | ||
| 329828-10X | Shaft & Clutch Ass'y (3-P-1170 Shaft) (hyd) 1 Or | $859.63 | Add to Cart | |||
| 21-P-880 | Bearing Cap Re (dry) | 1 | $246.35 | Add to Cart | ||
| 21-P-885 | Bearing Cap (dry) 1 Or | $260.17 | Add to Cart | |||
| 21-P-887 | Bearing Cap (wet) | 1 | $217.64 | Add to Cart | ||
| 328170-216X | Capscrew Kit (378447-8 Qty. 4) | 1 | $7.38 | Add to Cart | ||
| 35-P-101 | Bearing Cap Gasket Wet Spline | 1 | $37.17 | Add to Cart | ||
| 329699-1X | Hose Assembly | 1 | $85.54 | Add to Cart | ||
| 329700X | Wet Spline Parts Kit | 1 | $84.79 | Add to Cart | ||
| 329828-4X | Shaft & Clutch Ass'y (3-P-1136 Shaft) (hyd) 1 Or | $829.13 | Add to Cart | |||
| 329832-5X | Shaft & Clutch Ass'y (3-P-1137 Shaft) (air) | 1 | $904.58 | Add to Cart | ||
| 21-P-769 | Pump Flange | 1 | $477.36 | Add to Cart | ||
| 329160-106X | Conversion Kit (xd To Rs Dry) | $1,730.44 | Add to Cart | |||
| 21-P-771 | Pump Flange | 1 | $649.32 | Add to Cart | ||
| 329828-3X | Shaft & Clutch Ass'y (3-P-1135 Shaft) (hyd) 1 Or | $775.81 | Add to Cart | |||
| 329832-3X | Shaft & Clutch Ass'y (3-P-1135 Shaft) (air) | 1 | $791.70 | Add to Cart | ||
| 4-P-209 | Spacer, (included In Kit) | 1 | $239.00 | Add to Cart | ||
| 329160-143X | Conversion Kit (xd To Xr) | — | No longer available — call for replacement | |||
| 379253 | Pressure | $3.11 | Add to Cart | |||
| 379502 | Torque | $93.06 | Add to Cart | |||
| 379106 | 380009 | $5.65 | Add to Cart | |||
| 378414 | Wire | $66.97 | Add to Cart | |||
| 379252 | 378978 379005 | $2.30 | Add to Cart | |||
| 378881 | In | $111.97 | Add to Cart | |||
| 379336 | To | $10.11 | Add to Cart | |||
| 379900 | Fuse | $5.99 | Add to Cart | |||
| 379243 | Torque | $229.65 | Add to Cart | |||
| 379042 | Wire | $5.66 | Add to Cart | |||
| 378966 | Tee | $30.15 | Add to Cart | |||
| 329231X | Wire 379502 Torque | $123.35 | Add to Cart | |||
| 378978 | 379005 | $25.82 | Add to Cart | |||
| 379305 | Pressure | $206.60 | Add to Cart | |||
| 379265 | (10 | $3.21 | Add to Cart | |||
| 329230X | 379265 | — | No longer available — call for replacement | |||
| 379005 | 378978 | — | No longer available — call for replacement | |||
| 379504 | 90° | $52.22 | Add to Cart | |||
| 378840 | 378970 | $292.91 | Add to Cart | |||
| 379306 | 379257 | $2.50 | Add to Cart | |||
| 379280 | 378840 378970 | $7.49 | Add to Cart | |||
| 379449 | Line Torque | $13.18 | Add to Cart | |||
| 379257 | 378978 379005 | $2.91 | Add to Cart | |||
| 378416 | Wires | $4.80 | Add to Cart | |||
| 379258 | 379305 | $5.11 | Add to Cart | |||
| 379043 | Gear | $7.39 | Add to Cart | |||
| 329621X | Harness | $251.33 | Add to Cart | |||
| 379703 | Wire | $20.23 | Add to Cart | |||
| 379428-14 | Stud M10 | 6 | $7.23 | Add to Cart | ||
| 22-P-101 | Gasket | 1 | $15.38 | Add to Cart | ||
| 379744 | Flange Nut .375"-24 | 6 | $1.63 | Add to Cart | ||
| 378431-12 | Hex Head Capscrew .375"-16 X 1.250" | 2 | $3.52 | Add to Cart | ||
| 378431-15 | Hex Head Capscrew .375"-16 X 1.625" | 3 | $4.81 | Add to Cart | ||
| 379433-6 | Socket Head Capscrew .375"-16 X 1.00" | 3 | $3.34 | Add to Cart | ||
| 379745 | Flange Nut .438"-20 | 6 | $2.34 | Add to Cart | ||
| 379908 | Metric Stud M10 X 1.25" X 1.750" | 4 | $15.21 | Add to Cart | ||
| 379908-1 | Metric Stud M10 X 1.25" X 1.625" | 2 | $17.69 | Add to Cart | ||
| 379423-12 | Standard Stud | 2 | $5.85 | Add to Cart | ||
| 379423-15 | Standard Stud | 4 | $4.89 | Add to Cart | ||
| 379428-22 | Metric Stud | 3 | $25.79 | Add to Cart | ||
| 378263 | Internal Lock Ring | 1 | $19.87 | Add to Cart | ||
| 379423-9 | Standard Stud | 6 | $7.87 | Add to Cart | ||
| 379224 | Lockwasher | 6 | $2.68 | Add to Cart | ||
| 378432-12 | Capscrew | 6 | $2.29 | Add to Cart | ||
| 379424-18 | Stud | 2 | $4.30 | Add to Cart | ||
| 379429-19 | Metric Stud | 8 | $5.79 | Add to Cart | ||
| 550010 | Ball Bearing 1.378" X 2.8346" X .6693" | 1 | $47.93 | Add to Cart | ||
| 329663X | Wiring Harness Ass'y | 1 | $300.37 | Add to Cart | ||
| 328946X | Caution Label Kit | 1 | — | No longer available — call for replacement | ||
| 379085-2 | Instructions Label | 1 | $4.02 | Add to Cart | ||
| 379749 | Connector .438"-20 X .500"-20 | 2 | $19.92 | Add to Cart | ||
| 379624 | Product Warranty Card | 1 | $3.72 | Add to Cart | ||
| 329130-8X | Transmission Main Line Pressure | $88.18 | Add to Cart | |||
| 329130-1X | Hose Assembly, 16.25" | 1 | $87.33 | Add to Cart | ||
| 379131-1 | Pipe Reducer Bushing | 1 | $3.19 | Add to Cart | ||
| 379254-18 | Pto Request Wire Blue | 1 | — | No longer available — call for replacement | ||
| 328951-8X | Gasket & Installation Instructions Kit | — | Call for availability | |||
| 379686-1 | 12V Hydraulic Solenoid Valve | 1 | $473.29 | Add to Cart | ||
| 500357-7 | Lock Washer .194" X .337" X .047" | 2 | $1.07 | Add to Cart | ||
| 500457-6 | Round Head Slotted Screw .191"-32 X .438" | 2 | $1.12 | Add to Cart | ||
| 329057-3X | Clutch Hose Ass'y | 1 | $52.55 | Add to Cart | ||
| 329129-1X | Hose Assembly With Fitting 16" | 1 | $123.32 | Add to Cart | ||
| 329130-5X | Pressure Lube Hose | 1 | $106.43 | Add to Cart | ||
| 329141-1X | Transmission Main Line Pressure | $156.32 | Add to Cart | |||
| 329884-12V | 12V Hyd Valve Installation Kit | — | Call for availability | |||
| 329130-9X | Lubrication Hose Ass'y | 1 | $60.19 | Add to Cart | ||
| 379686-2 | 24V Hydraulic Solenoid Valve | 1 | $466.27 | Add to Cart | ||
| 379700 | Swivel Nut Run Tee .438"-20 | 1 | $13.33 | Add to Cart | ||
| 329024-12X | 12V Installation Kit | 1 | $272.23 | Add to Cart | ||
| 329075-2X | Transmission Main Line Pressure | $150.07 | Add to Cart | |||
| 329057X | Hose Assembly, 48" | 1 | $92.88 | Add to Cart | ||
| 329024-24X | 24V Installation Kit | 1 | $304.69 | Add to Cart | ||
| 329076X | 24V Installation Kit | 1 | $152.30 | Add to Cart | ||
| 329076 | 12V & 24V W/ Eoc Installation Kit | 1 | — | Call for availability | ||
| 75-P-34 | Electrical Harness | 1 | $297.92 | Add to Cart | ||
| 329504 | Electrical Wiring Harness | 1 | — | Call for availability | ||
| 329057-4X | Hose Assembly 16.75" | 1 | $45.49 | Add to Cart | ||
| 329075X | Valve Exhaust Hose Ass'y | 1 | — | Call for availability | ||
| 328931X | Valve Mounting Kit | 1 | $3.54 | Add to Cart | ||
| 329090-6X | Valve Kit | 1 | $216.58 | Add to Cart | ||
| 379044-6 | Nylon Tubing .253" X .179" X 30 Ft | 1 | $41.17 | Add to Cart | ||
| 379130 | Air Shifter Support Bracket | 2 | $3.48 | Add to Cart | ||
| 75-P-40 | Press Switch Electrical Wiring Harness | 1 | $33.48 | Add to Cart | ||
| 379497 | Relay Valve | 1 | $434.66 | Add to Cart | ||
| 380097 | Union Tee .250" Tube | 1 | $20.69 | Add to Cart | ||
| 75-P-13 | Led Indicator Light | 1 | $25.84 | Add to Cart | ||
| 329650X | Eoc Controller | 1 | $1,358.05 | Add to Cart | ||
| 379254-8 | Green Wire 125" With Fork Connector | 1 | — | No longer available — call for replacement | ||
| 379303-1 | 12V Solenoid Valve | 1 | $334.31 | Add to Cart | ||
| 379303-2 | 24V Solenoid Valve | 1 | $538.99 | Add to Cart | ||
| 75-P-41 | Elec/air Electrical Harness | 1 | $63.59 | Add to Cart | ||
| 380009 | Female Connector .125" NPT X .125" Tube | $11.19 | Add to Cart | |||
| 28-P-171 | O-ring .644" X .087" | 1 | $4.88 | Add to Cart | ||
| 328075X | Hose Assembly | 1 | $150.56 | Add to Cart | ||
| 380010 | Union Female | 1 | $17.47 | Add to Cart | ||
| 329403X | Assembly Seal | 1 | $490.07 | Add to Cart | ||
| 379711 | Female Bracket | 1 | $157.76 | Add to Cart | ||
| 329160-102X | Conversion Kit (xd To Bv) | $2,382.06 | Add to Cart | |||
| 329160-100X | Conversion Kit (xd To Rk Dry) | $1,314.59 | Add to Cart | |||
| 379688 | Spline Lubricant | 1 | $8.98 | Add to Cart | ||
| 21-P-731 | Pump Flange | 1 | $196.99 | Add to Cart | ||
| 28-P-212 | Oil Seal 2.506" X 1.750" X .315" | 1 | $24.02 | Add to Cart | ||
| 329160-101X | Conversion Kit (xd To Rk Wet) | $1,649.93 | Add to Cart | |||
| 329160-103X | Conversion Kit (xd To Bd) | $1,730.44 | Add to Cart | |||
| 329658X | Cover Kit | 1 | $157.74 | Add to Cart | ||
| 329160-104X | Conversion Kit (xd To Rf Dry) | $1,403.47 | Add to Cart | |||
| 329160-116X | Conversion Kit (xd To Xv) | $1,766.44 | Add to Cart | |||
| 380503 | 1410 Series Companion Flange | 1 | $754.86 | Add to Cart | ||
| 329160-105X | Conversion Kit (xd To Rf Wet) | $979.62 | Add to Cart | |||
| 329160-108X | Conversion Kit (xd To Ry Dry) | $1,604.03 | Add to Cart | |||
| 329160-109X | Conversion Kit (xd To Ry Wet) | $1,909.58 | Add to Cart | |||
| 329659X | Cover Kit | 1 | $61.45 | Add to Cart | ||
| 329742X | Wet Spline Loose Parts Kit | 1 | $177.31 | Add to Cart | ||
| 329160-110X | Conversion Kit (xv To Rz Dry) | $1,386.40 | Add to Cart | |||
| 329160-107X | Conversion Kit (xd To Rs Wet) | $1,131.08 | Add to Cart | |||
| 329654X | Cover Kit Xs | 1 | $157.74 | Add to Cart | ||
| 329744X | Wet Spline Parts Kit | 1 | $102.28 | Add to Cart | ||
| 329160-111X | Conversion Kit (xv To Rz Wet) | $1,031.33 | Add to Cart | |||
| 329160-112X | Conversion Kit (xd To Ab) | $1,186.93 | Add to Cart | |||
| 379558 | Din 120 | 1 | $698.00 | Add to Cart | ||
| 329906X | Pump Kit Xr | 1 | $330.30 | Add to Cart | ||
| 329160-144X | Conversion Kit (xd To Sv) | — | No longer available — call for replacement | |||
| 329160-113X | Conversion Kit (xd To Ac) | $1,200.62 | Add to Cart | |||
| 379742 | Din 100 | 1 | $1,076.21 | Add to Cart | ||
| 329160-145X | Conversion Kit (xd To Rb Dry) | — | No longer available — call for replacement | |||
| 329160-118X | Conversion Kit (xd To Re Dry) | $586.23 | Add to Cart | |||
| 21-P-894 | Pump Flange | 1 | $434.18 | Add to Cart | ||
| 329160-142X | Conversion Kit (xd To Sd) | $523.13 | Add to Cart | |||
| 329160-146X | Conversion Kit (xd To Rb Wet) | — | No longer available — call for replacement | |||
| 68P511 | Adhesive Label | 1 | — | Call for availability | ||
| 3784524 | 1/8" Socket Head Set Screw (.250" -20 X .312 ") (l & Z Mount) | 1 | $3.26 | Add to Cart | ||
| 69P30 | Caution Tag | 1 | — | Call for availability | ||
| 379502X | Pressure Switch See Pages 73-87 For Bill Of Materials For The Below Loose Parts. Gasket Kits | 1 | $88.44 | Add to Cart | ||
| 330154X | Gear & Clutch Plates Kit (all) Stud Kits | $474.29 | Add to Cart | |||
| 717072X | Metric Stud Kit (272G Hv Pitch) (non-m Mounting) | 1 or | $53.10 | Add to Cart | ||
| 7170127X | Standard Stud Kit (272M) | 1 or | $222.90 | Add to Cart | ||
| 7170128X | Metric Stud Kit (272GvKU) | 1 or | $311.85 | Add to Cart | ||
| 7170129X | Standard Stud Kit (272X, E) | 1 or | $209.81 | Add to Cart | ||
| 7170130X | Metric Stud Kit (272N) | 1 or | $190.15 | Add to Cart | ||
| 7170131X | Stud Kit (272Z) Hydraulic Installation Kits | 1 | $171.25 | Add to Cart | ||
| 32999612X | 12VDC Hyd Valve Installation Kit (hv Pitch E-shift) | 1 or | $376.60 | Add to Cart | ||
| 32988324X | 24VDC Hyd Valve Installation Kit W/ Eoc (k Shift & L Shift, Hv Gear) | 1 | — | Call for availability | ||
| 329962X | 12VDC Remote Valve Conversion Kit (allison G-hv) | $1,029.67 | Add to Cart | |||
| 329964X | 12VDC Remote Valve Conversion Kit (ram G-hv) | — | Call for availability | |||
| 329966X | Eoc Conversion Kit (b And D Shift To K And L Shift) | — | Call for availability | |||
| 329967X | Eoc Conversion Kit (1 And J Shift) | $1,436.46 | Add to Cart | |||
| 329968X | Eoc Conversion Kit (a And 3 Shift) | — | Call for availability | |||
| 329969X | Eoc Conversion Kit (a And J Shift) | — | Call for availability | |||
| 32995812X | 12VDC Remote Valve Conversion Kit (g) | $1,192.97 | Add to Cart | |||
| 32995824X | 12VDC Remote Valve Conversion Kit (h) Output Conversion Kits | — | Call for availability | |||
| 5P151 | 1 -1X 5-P-151 1 27 5-P-1498 19 2-P-925 53 | — | Call for availability | |||
| 35P104 | $33.17 | Add to Cart | ||||
| 35P102 | 35-P-101 Gasket | $22.65 | Add to Cart | |||
| 28P245 | $45.00 | Add to Cart | ||||
| 35P111 | Bearing Cap 21 -P-887 | $114.76 | Add to Cart | |||
| 34P3181 | Air Integral Cap W/o Lube (329858-2X & 329858-4X) | 1 or | $362.31 | Add to Cart | ||
| 75P3512 | Air Valve Coil 12VDC (329858-1X & 329858-2X) | 1 or | $89.13 | Add to Cart | ||
| 75P3524 | Air Valve Coil 24VDC (329858-3X & 329858-4X) | 1 | $211.65 | Add to Cart | ||
| 5008975 | Shipping Plug | 1 | — | Call for availability | ||
| 379755 | Square Head Threaded Polyethylene Plug | 2 | $10.77 | Add to Cart | ||
| 379484 | O-ring Boss Plug (.438" -20) Chelsea Suggested List Price | 1 | $6.85 | Add to Cart | ||
| 34P3182 | Remote Air Cap W/ Lube (329859-1X) | 1 or | $225.27 | Add to Cart | ||
| 34P3183 | Remote Air Cap W/o Lube (329859-2X) | 1 | $285.48 | Add to Cart | ||
| ISO765380X80 | Mm) Din 5462 Shaft (B8x32x36) Xd To Ry (wet) 329160-109X Xd To Rz (dry) 329160-1 10X | — | Call for availability | |||
| 3P1143 | Din 6T (329828-7X & 329832-7X) | 1 or | — | Call for availability | ||
| 2P1038 | Inner Hub Gear. | 1 | — | Call for availability | ||
| 379595 | Clutch Plate | 7 | $14.47 | Add to Cart | ||
| 4P213 | Spacer | 1 | $3.54 | Add to Cart | ||
| RS1619 | 329699-1X Hose Assembly | 1 | — | Call for availability | ||
| 32894817X | Gasket & Installation Instructions Kit | 1 | $46.81 | Add to Cart | ||
| 32889212X | 12VDC Hyd Valve Installation Kit (b Shift) | 1 or | — | Call for availability | ||
| 32889224X | 24VDC Hyd Valve Installation Kit (d Shift) | 1 or | — | Call for availability | ||
| RB35P104 | — | Call for availability | ||||
| RS28P245 | — | Call for availability | ||||
| 765380X80MM | Din 5462 Shaft (B8x32x36) Xd To Ry (wet) 329160-109X Xd To Rz (dry) 329160-1 10X | — | Call for availability | |||
| 3E3E | 3 N Tu | S | — | Call for availability | ||
| 9V9V | — | Call for availability | ||||
| D14O | F E | — | Call for availability | |||
| 0H00 | — | Call for availability | ||||
| 1TA33 | 8 T E | — | Call for availability | |||
| 9E99 | 5 K | — | Call for availability | |||
| 7R77 | 2 C 7 | — | Call for availability | |||
| 916HEX | Head Flange Nut (.375" -24) 6 329130-8X Transmission Main Line Pressure Hose Assembly Kit (272M) 329130-1X Hose Assembly Lubrication | 1 | — | Call for availability | ||
| 1116HEX | Head Flange Nut (.375" -24) 6 379258 Mounting Bracket | 1 | — | Call for availability | ||
| M1015 | X .984") 3 380668X Bracket & Label Assembly 328075X Valve Exhaust Hose Assembly Kit (272Z) 75-P-46X Wire & Connectors Kit | 1 | — | Call for availability | ||
| TEE125 | -27) 1 378966 Tee (.125" -27) Connector (.250" Tube X .125" -27) 2 379042 Male Connector (.250" Tube X .125" -27) | 1 | — | Call for availability | ||
| TEE12527 | 1 378966 Street Tee (.125" -27) (.250" Tube X .125" -27) 2 379005 24VDC Indicator Light | 1 | — | Call for availability |
No parts match that search — try the part number with no dashes.
This is the complete factory parts breakdown for the Chelsea PTO 272 — every part in the manual, matched to our live inventory. We stock 446 of the 526 parts above; click any part number to view it, or add it straight to your cart. Click a number on any diagram to jump to that part.
This Chelsea Illustrated Parts List covering the 272 PTO helps you identify the correct gear sets, shifter kits and service parts for your power take-off before you order.
| Models covered | 272 |
| PTO type | Chelsea power take-off (PTO) |
| Document | Illustrated Parts List (Chelsea) |
| Length | 96 pages |
| Format | PDF — free download |
What’s inside
- Gear sets & output shaft assemblies
- Shifter & air-shift control kits
- Mounting gaskets & adapter plates
- Housings & cover assemblies
- Seal, bearing & snap-ring kits
- Application & ratio reference tables
- Exploded views with OEM part numbers
Chelsea parts & units we stock
Pro Gear and Transmission stocks new, remanufactured and good-used parts for Chelsea PTO units:
Not sure exactly which unit you have? Check our identification guides, or Ask an Expert — send us photos of your data tag and our drivetrain specialists will identify the unit and the exact parts you need. Or call (877) 776-4600.
Browse all Chelsea PTO parts — rebuild kits, seal kits, gears & shift covers — or shop complete Chelsea PTO units.
