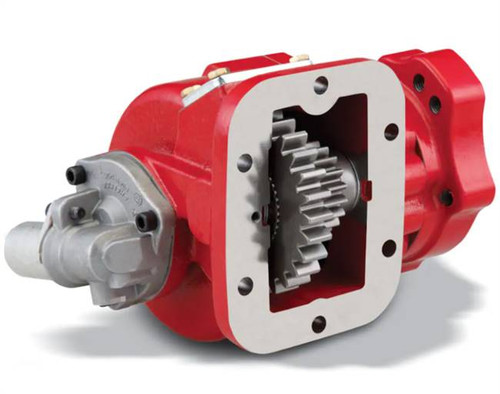

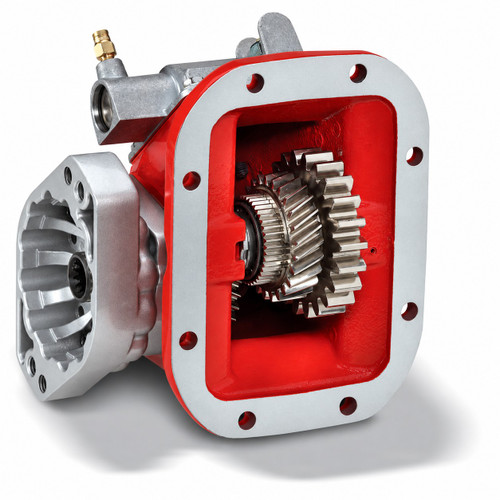

The Chelsea 489QRLZX-D3AZ is an 8-bolt Power Take-Off unit from the Chelsea 489 Series, designed for an Eaton Procision mount with an 8-bolt aperture. The one-piece cast iron housing eliminates the need for an adapter plate, reducing both installation time and potential leak paths. The 489 Series delivers intermittent torque in the 201-300 lb-ft range and shifts via 12V electric/air actuation. Output is through an SAE B 4-bolt flange with a 1-1/4" 14-tooth SAE C shaft. The 489 Series is rated at 24 HP at 500 RPM and 48 HP at 1,000 RPM. Tapered bearings replace needle bearings for greater load capacity. Available from Pro Gear and Transmission.
Features
8-bolt direct-mount housing
One-piece cast iron housing removes the need for an adapter plate, reducing leak paths
Eaton Procision 12V electric/air shift actuation
SAE B 4-bolt flange with a 1-1/4" 14-tooth SAE C shaft
Tapered bearings for greater load-bearing capability versus needle bearings
Intermittent torque rating: 201-300 lb-ft (301-400 Nm)
Tech Specs
- Series: Chelsea 489
- Mounting Type: 8-Bolt
- Mounting Option: Eaton Procision Mount (Q)
- Gear Ratio Code: R (22/24)
- Input Gear Designator: LZ
- Lube Option: No Pressure Lube (X)
- Shift Option: Eaton Procision 12V DC Electric/Air Shift (D)
- Assembly Arrangement: 3
- Output Option: SAE B 4-Bolt Flange, SAE C Shaft (1-1/4" 14T) (AZ)
- Intermittent Torque: 201-300 lb-ft (301-400 Nm)
- Output Power: 46-55 HP (31-40 kW)
- Shaft Power: 24 HP at 500 RPM, 48 HP at 1,000 RPM
- Housing Material: One-piece cast iron
- Lubricant Code (X): No Pressure Lube
Additional Information
The Chelsea 489 Series is suited for utility trucks, snow and ice removal, fire and rescue, and dump truck applications. Internal components are common with the Chelsea 442 Series, simplifying service parts sourcing. The 489 Series supports up to 27 output configurations and 11 internal speed ratios, and features kit-style serviceability for field repairs.Parts manual and diagrams: Chelsea 489 Series PTO parts list with prices
