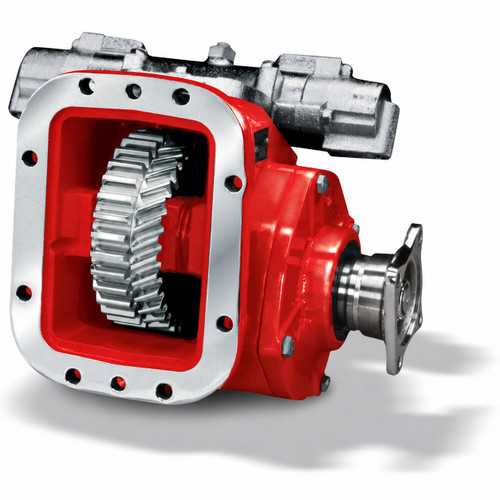

The Chelsea 880QMMEX-D4XY is an 880 Series Power Take-Off built for 8-bolt manual transmission apertures. The 880 Series is rated for up to 500 lb-ft intermittent torque and delivers 95 HP at 1,000 RPM, making it well-suited for bulk haulers, fire trucks, oil field equipment, winch applications, and large recovery trucks. A rugged cast iron housing and tapered cone bearings handle the demands of heavy continuous and intermittent duty. The shift cover is removable for straightforward backlash adjustment. Lever control shift is standard; air shift is available within the 880 Series. Sold by Pro Gear and Transmission.
Features
8-bolt mounting fits most manual transmissions with an 8-bolt aperture
Up to 500 lb-ft intermittent torque rating
95 HP output at 1,000 RPM (48 HP at 500 RPM)
Cast iron housing with tapered cone bearings for heavy load capacity
Removable shift cover for easier backlash adjustment
Available output types include SAE B, SAE C, ISO 7652 pump flange, and driveline
Tech Specs
- Mounting Type: 8-Bolt
- Shift Type: Lever (mechanical standard; air shift optional)
- Intermittent Torque Rating: 500 lb-ft (678 Nm)
- Output Power: 95 HP at 1,000 RPM / 48 HP at 500 RPM
- Output Shaft Options (880 Series): SAE B 7/8"-13T, SAE BB 1"-15T, SAE C 1-1/4"-14T pump spline; 1410 Series companion flange
- Lubrication: Pressure lube (P) or no pressure lube (X) variants available
- Continuous Operation: Yes, with 30% de-rating
- Housing Material: Cast iron
Additional Information
Parts Manual: Chelsea 880 Series PTO Parts Manual (PDF) — exploded views, item numbers and the full parts breakdown for this series.
