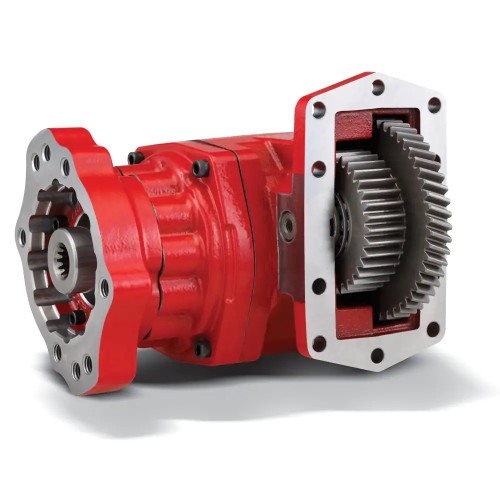

The Chelsea 288GCFJP-M8RK or 288GCFJPM8RK is a 10-bolt, constant mesh power take-off from Chelsea's heavy-duty 288 Series. Built on the 281 Series platform, the 288 Series delivers a single, continuous duty torque rating of up to 390 lb-ft, making it a step up from the 287 Series it replaces. The cast iron housing carries ductile iron bearing caps that are 117% stronger than gray iron, and an o-ring sealing configuration between the housing and cap improves clamp load while reducing vibration-related damage. The round shaft output (1-1/4" with key) features a positive stop to prevent oil seal damage from driveline couplings. Nine speed ratios cover both low and high range applications, and Wet Spline Lubrication is available to extend pump shaft life 7 to 10 times over a standard spline. The hose is included. Call us to confirm proper fit for your application.
Features
10-Bolt constant mesh design with cast iron housing
Ductile iron bearing caps, 117% stronger than gray iron
O-ring seal between housing and bearing cap reduces vibration effects and improves clamp load
Positive-stop round shaft output (1-1/4" with key) eliminates oil seal damage from driveline couplings
Nine speed ratios including low and high speeds
Wet Spline Lubrication option extends pump shaft life 7 to 10 times
Hose included, no separate order required
Tech Specs
- Mounting Type: 10-Bolt
- Shift Type: Constant Mesh
- Output Shaft Type: Round Shaft, 1-1/4" with Key
- Continuous Duty Torque Rating: Up to 390 lb-ft (series rating; confirm actual rating for your application)
- Intermittent Torque: 340 lb-ft (confirm actual rating for your application)
- Speed Ratios: Nine, including low and high
- Lubrication Options: Pressure Lube or Wet Spline
- Replaces: Chelsea 287 Series
- Application Markets: Snow and Ice, Vacuum, Aerial, Refuse
