Chelsea PTO 210 Series Parts Manual

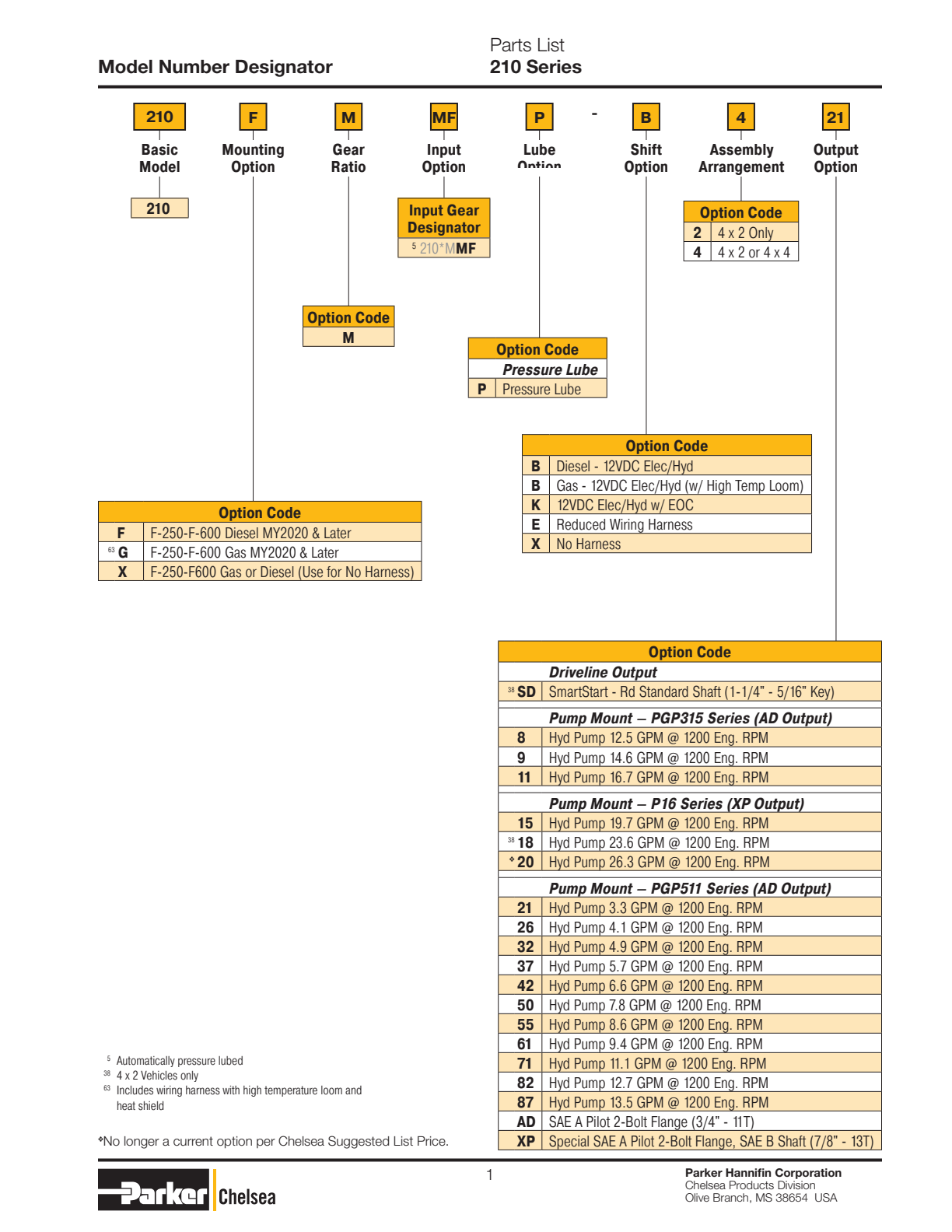

Model Number Designation
| Item | Part No. | Description | Qty | Notes | Price |
|---|
Parts List Bill of Materials 210 Series
| Item | Part No. | Description | Qty | Notes | Price |
|---|
Shift Options 210 Series Valve Cap Assembly 330011X
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 34P334 | Valve Cap | 1 | — | Call for availability | |
| 2 | 378849 | Lockring | 1 | $2.12 | Add to Cart | |
| 3 | 378811 | Seal Backup Plate | 1 | $5.21 | Add to Cart | |
| 4 | 28P119 | Oil Seal (1 .379 " X .875 " X .250") | 1 | $26.61 | Add to Cart | |
| 5 | 561031 | Ball Bearing (.984 " X 1 .850" X .472 ") | 1 | $27.59 | Add to Cart | |
| 6 | 38012312 | 12VDC Cartridge Valve Non-regulating (includes 380124 Hold Down Clamp) | 1 | $222.19 | Add to Cart | |
| 7 | 3784474 | 1/4 " Socket Head Cap Screw (.312 " -18 X .750") | 1 | $1.78 | Add to Cart | |
| 8 | 379484 | O-ring Plug Boss (.438 " -20) | 1 | $6.85 | Add to Cart |
Output Options 210 Series Drive Shaft & Clutch Assembly 330010-*X
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 3P1199 | Sd Output Shaft (1 .250" Keyed W/ Smartstart) (330010-1X & 330010-4X) | 1 or | $250.21 | Add to Cart | ||
| 3P1197 | Ad Output Shaft (3/4 " 1 1T) (330010-2X & 330010-5X) | 1 or | $255.49 | Add to Cart | ||
| 3P1198 | Xp Output Shaft (7/8 " 13T) (330010-3X & 330010-6X) | 1 | $376.89 | Add to Cart | ||
| 2 | 380062 | Clutch Cylinder | 1 | $69.80 | Add to Cart | |
| 3 | 380063 | Clutch Piston | 1 | $92.57 | Add to Cart | |
| 4 | 379693 | Lockring | 1 | $4.45 | Add to Cart | |
| 5 | 2P987 | Output Gear | 1 | $384.27 | Add to Cart | |
| 6 | 14P91 | Spacer (1 .400" X 1 .555 " X .440") | 1 | $5.73 | Add to Cart | |
| 7 | 380624 | Bell Gear | 1 | $242.95 | Add to Cart | |
| 8 | 562000 | Needle Bearing (35 Mm X 40 Mm X 13 Mm) | 2 | $19.21 | Add to Cart | |
| 9 | 378576 | Lockring | 1 | $3.16 | Add to Cart | |
| 10 | 31P90 | Thrust Washer (1 .382 " X 2 .042 " X .062 ") | 1 | $9.04 | Add to Cart | |
| 37P56 | Spring (1 .750" X 1 .510") | 1 | $9.77 | Add to Cart | ||
| 12 | 28P288 | O-ring (3 .234 " X .139 ") | 1 | $14.27 | Add to Cart | |
| 13 | 28P289 | O-ring (.864 " X .070") | 2 | $3.01 | Add to Cart | |
| 14 | 380683 | Eddy Ring (330010-1X, -2X, -3X Only) | 1 | $125.76 | Add to Cart | |
| 15 | 329989X | Clutch Kit (includes Items 15-1 ,15-2 And 15-3) | 1 | $209.35 | Add to Cart | |
| 2P860 | Output Gear | 1 | — | Call for availability | ||
| 380625 | Clutch Plate | 8 | $5.17 | Add to Cart | ||
| 379691 | Friction Disc | 9 | $25.49 | Add to Cart |

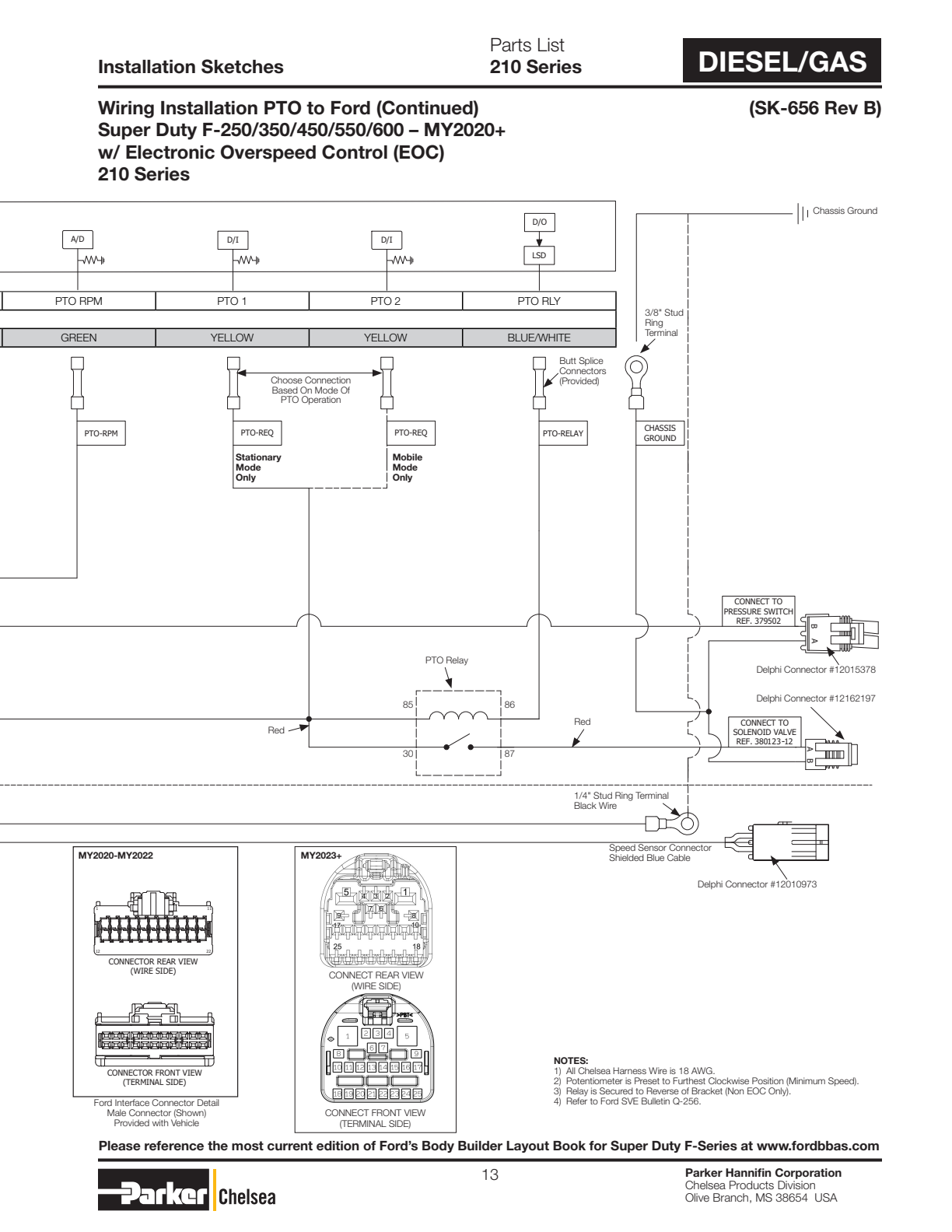

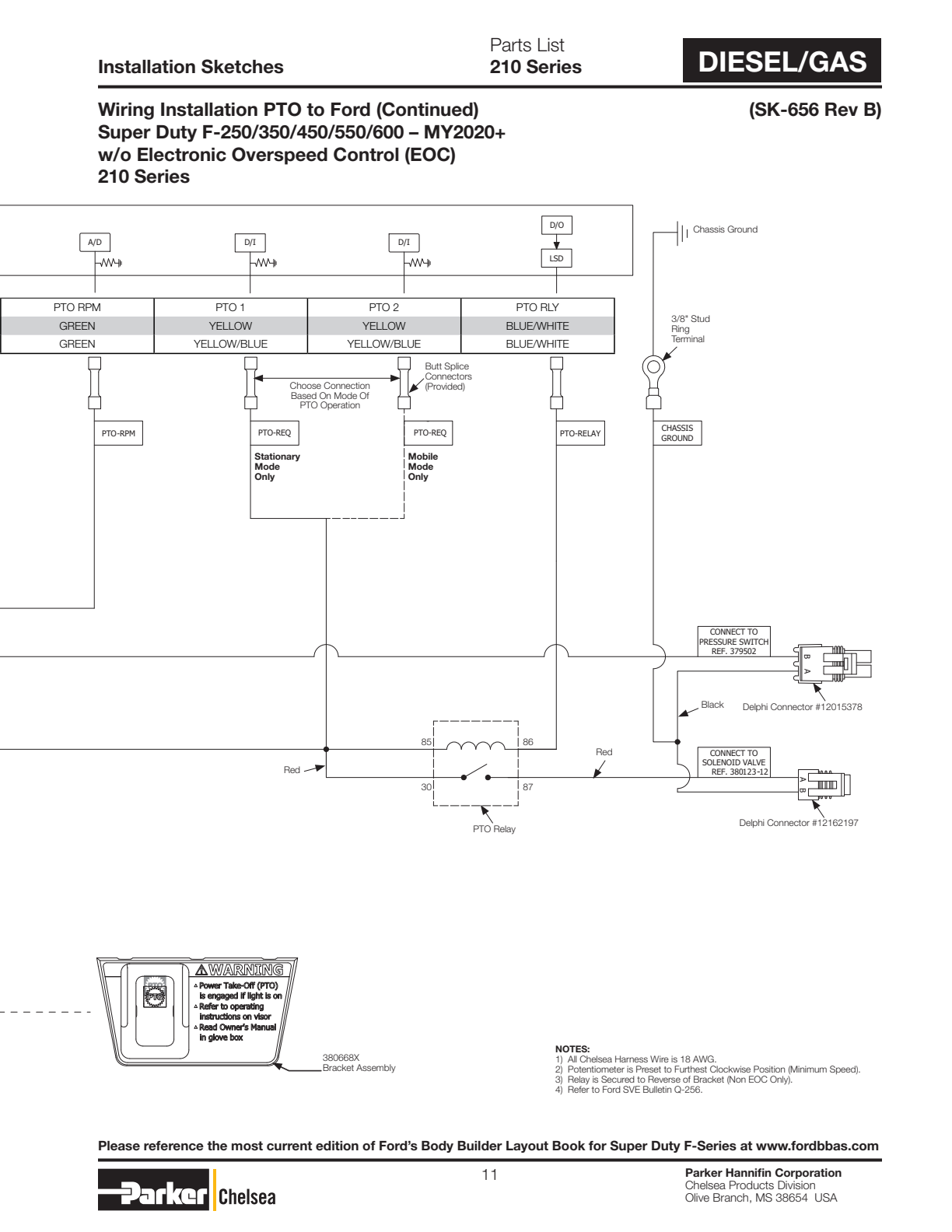

Diesel/Gas
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 329616X | $355.53 | Add to Cart | ||||
| 75P39 | 12-VDC 12VDC Pto-vref Ign Ign | PTO-RTN PTO-RPM PTO-REQ PTO-REQ PTO-RELAY CHASSIS | $654.82 | Add to Cart | ||
| CE912 | CE933 CE326 Ford Circuit Number 6 .2L And 7 .3L Gasoline Blue/orange 6 .2L And 7 .3L Gasoline Mobile Mode - Blue/white 6 .7L Diesel Blue/orange 6 .7L Diesel Mobile Mode - | 2020 | — | Call for availability |
Additional Parts Listed in This Manual
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1-P-783 | Housing | 1 | $377.04 | Add to Cart | ||
| 330011X | Valve Cap Ass'y (see Page 4) | 1 | $523.81 | Add to Cart | ||
| 22-P-152 | Valve Cap Gasket | 1 | $7.59 | Add to Cart | ||
| 550010 | Ball Bearing (1.378" X 2.835" X .669") | 1 | $47.93 | Add to Cart | ||
| 28-P-225 | Oil Seal (2.004" X 1.375" X .315) | 1 | $19.01 | Add to Cart | ||
| 380682 | Magnet Block (f And X Mount Only) | 3 | $56.08 | Add to Cart | ||
| 500595-16 | Slotted Spring Pin (.125" X 1.250") (f And X Mount Only) | 2 | $1.18 | Add to Cart | ||
| 380563-12 | .375"-16 X 1.250" Hex Flat Head Capscrew (9/16" Hex) | 5 | $4.68 | Add to Cart | ||
| 378422 | Drive Screw | 2 | $11.52 | Add to Cart | ||
| 68-P-51 | Name Plate | 1 | $2.14 | Add to Cart | ||
| 379486 | 90° Elbow (.438"-20) | 1 | $28.97 | Add to Cart | ||
| 380664 | .750"-16 Socket Hex Plug (5/16" Socket) (w/o Eoc Only) | 1 | $3.43 | Add to Cart | ||
| 378447-6 | .312"-18 X 1.000" Socket Head Capscrew (1/4" Socket) | 4 | $4.33 | Add to Cart | ||
| 380667 | Dowel Pin (.250" X .750") | 2 | — | Call for availability | ||
| 561097 | Needle Bearing (25mm X 35mm X 30mm) | 1 | $46.66 | Add to Cart | ||
| 5-P-1597 | Input Gear | 1 | $405.11 | Add to Cart | ||
| 9-P-129 | Idler Shaft (.984") | 1 | $28.51 | Add to Cart | ||
| 21-P-898 | Input Saddle | 2 | — | Call for availability | ||
| 379564-2 | Thread Cap (.438") | 1 | $1.23 | Add to Cart | ||
| 14-P-94 | Input Bearing Spacer | 1 | $36.75 | Add to Cart | ||
| 378769 | Thrust Bearing (1.375" X 2.000" X .125") | 1 | $148.20 | Add to Cart | ||
| 28-P-171 | O-ring (.644" X .087") (w/ Eoc Only) | 1 | $4.88 | Add to Cart | ||
| 379243 | Speed Sensor (w/ Eoc Only) | 1 | $229.65 | Add to Cart | ||
| 379504 | Reduced Wiring Harness (e Shift Only) | $52.22 | Add to Cart | |||
| 329617X | Wiring Harness (k Shift Only) | $678.71 | Add to Cart | |||
| 329650X | Speed Limiter Ass'y (k Shift Only) | $1,358.05 | Add to Cart | |||
| 330007-1X | Seal And Label Owner's Manual Kit (included In 330008X) | $55.62 | Add to Cart | |||
| 330007-2X | Integration Kit (included In 330008X) | $246.86 | Add to Cart | |||
| 330007-3X | Heat Shield Kit (gas Only) | — | No longer available — call for replacement | |||
| 330008X | Complete Installation Kit | $398.81 | Add to Cart | |||
| 28-P-397 | Mounting Seal | $12.89 | Add to Cart | |||
| 330009-1X | Gasket And Seal Service Kit | $112.46 | Add to Cart | |||
| 330009-2X | Bearing Service Kit | $294.76 | Add to Cart | |||
| 330009-3X | Clutch Service Kit | $209.35 | Add to Cart | |||
| 380124 | Hold Down Clamp | 1 | — | Call for availability | ||
| 330010-1X | F & X Mount Drive Shaft & Clutch Assembly 1 Or | $1,326.93 | Add to Cart | |||
| 330010-4X | G Mount Drive Shaft & Clutch Assembly | 1 | — | Call for availability | ||
| 500007-29 | Woodruff Key | 1 | $3.11 | Add to Cart | ||
| 330010-3X | F & X Mount Drive Shaft & Clutch Assembly 1 Or | $1,272.35 | Add to Cart | |||
| 330010-6X | G Mount Drive Shaft & Clutch Assembly | 1 | — | Call for availability | ||
| 330010-2X | F & X Mount Drive Shaft & Clutch Assembly 1 Or | $1,235.49 | Add to Cart | |||
| 330010-5X | G Mount Drive Shaft & Clutch Assembly | 1 | $1,126.31 | Add to Cart | ||
| 380569 | To | $69.00 | Add to Cart | |||
| 379502 | Torque | $93.06 | Add to Cart | |||
| 12162197 | Harness, 329616X | — | Call for availability | |||
| 380668X | 3) Relay Is Secured To Reverse Of Bracket (non Eoc Only) | $5.98 | Add to Cart | |||
| 328946X | Caution Label Kit | 1 | — | No longer available — call for replacement | ||
| 379085-2 | Pto Instruction Decal | 1 | $4.02 | Add to Cart | ||
| 379624 | Product Warranty Card | 1 | $3.72 | Add to Cart | ||
| 69-P-21 | Caution Label | 1 | — | Call for availability | ||
| 385096 | Grommet | 1 | — | Call for availability | ||
| 329784-3X | Hose Ass'y (17") | 1 | $68.16 | Add to Cart | ||
| 379451 | Pilot Screw | 2 | $7.23 | Add to Cart | ||
| 380666 | Bushing Dowel (M10 15mm) | 2 | $2.29 | Add to Cart | ||
| 380659 | Capscrew (M10-1.5 X 30mm) | 8 | $5.36 | Add to Cart | ||
| 329931-1 | Straight Heat Shield | 1 | — | Call for availability | ||
| 329931-2 | Elbow Heat Shield | 2 | — | Call for availability | ||
| 329931-3 | Stainless Steel Cable Tie | 12 | — | Call for availability | ||
| 328923-10X | Speed Sensor Cable 10 Ft | 1 | — | No longer available — call for replacement | ||
| 20071-3 | Eoc Unit (nss) | 1 | — | Call for availability |
This is the complete factory parts breakdown for the Chelsea PTO 210 — every part in the manual, matched to our live inventory. We stock 73 of the 91 parts above; click any part number to view it, or add it straight to your cart. Click a number on any diagram to jump to that part.
No parts match that search — try the part number with no dashes.
This Chelsea Illustrated Parts List covering the 210 PTO helps you identify the correct gear sets, shifter kits and service parts for your power take-off before you order.
| Models covered | 210 |
| PTO type | Chelsea 200 Series |
| Document | Illustrated Parts List (Chelsea) |
| Length | 24 pages |
| Format | PDF — free download |
What’s inside
- Gear sets & output shaft assemblies
- Shifter & air-shift control kits
- Mounting gaskets & adapter plates
- Housings & cover assemblies
- Seal, bearing & snap-ring kits
- Application & ratio reference tables
- Exploded views with OEM part numbers
