Chelsea PTO 244 Series Parts Manual

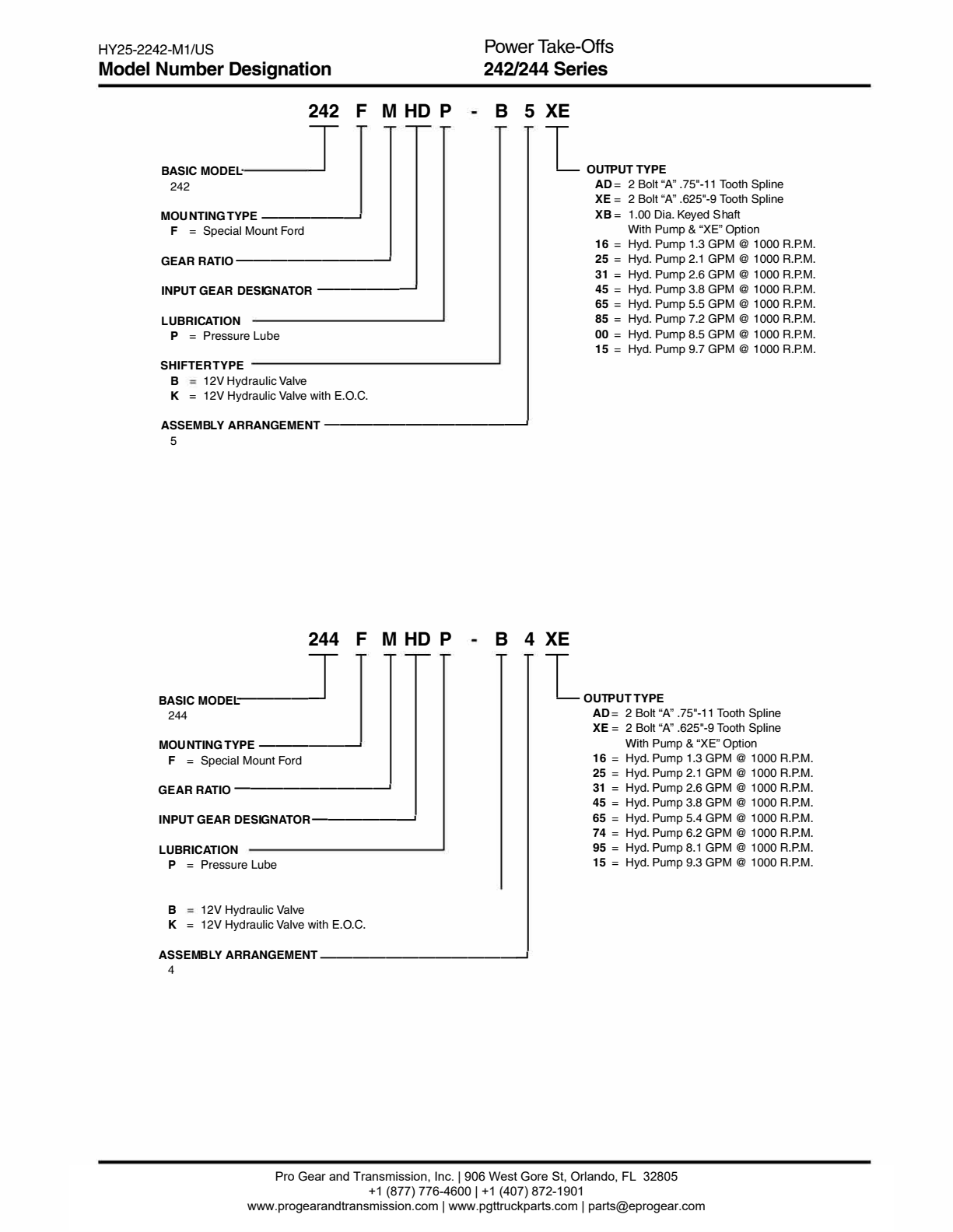

Model Number Designation
| Item | Part No. | Description | Qty | Notes | Price |
|---|

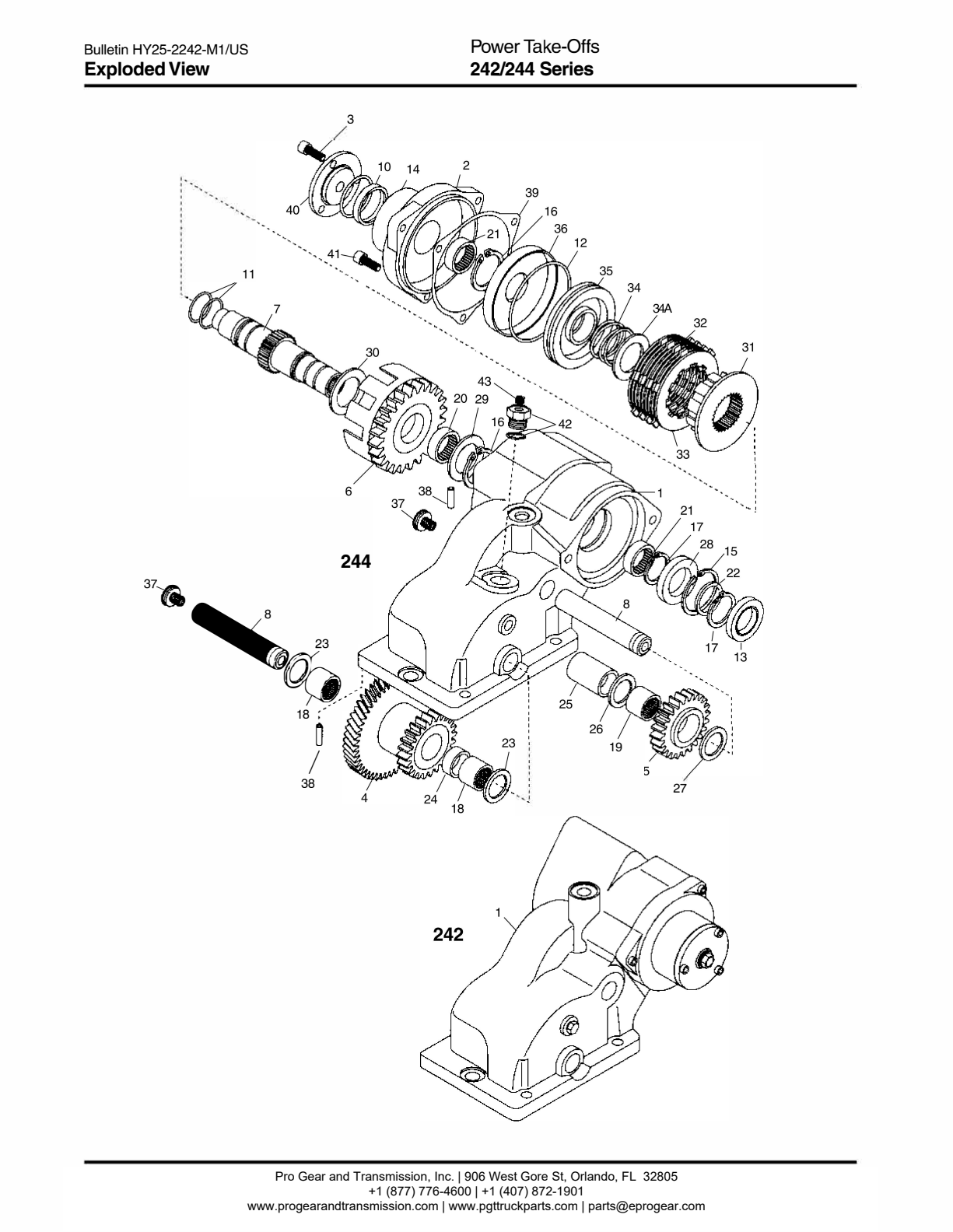

Power Take-Offs Bill of Materials 242/244 Series
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 1P544 | Housing 244 Series | 1 | — | Call for availability | |
| 1 | 1P561 | Housing 242 Series | 1 | — | Call for availability | |
| 2 | 21P613 | Bearing Cap, 244 Series | 1 | $354.55 | Add to Cart | |
| 2 | 21P618 | Bearing Cap, 242 Series | 1 | $104.40 | Add to Cart | |
| 3 | 34P126 | End Cap | 1 | $31.73 | Add to Cart | |
| 4 | 5P1231 | Input Gear | 1 | $330.45 | Add to Cart | |
| 5 | 5P1232 | Idler Gear | 1 | $221.74 | Add to Cart | |
| 6 | 2P775 | Output Gear | 1 | $452.31 | Add to Cart | |
| 7 | 3P936X | Pump Shaft, 5/8"-9 Tooth Spline, 242 And 244 Series | 1 | — | No longer available — call for replacement | |
| 7 | 3P937 | Output Shaft, 1 " Rd. 242 Series | 1 | $211.61 | Add to Cart | |
| 7 | 3P943X | Pump Shaft, 3/4"-11 Tooth Spline, 242 And 244 Series | 1 | — | Call for availability | |
| 8 | 9P90 | Idler Shaft | 2 | $81.03 | Add to Cart | |
| 10 | 28P263 | O-ring End Cap | 1 | $7.21 | Add to Cart | |
| 11 | 28P266 | O-ring Output Shaft | 2 | $5.74 | Add to Cart | |
| 12 | 28P265 | O-ring Piston | 1 | $7.39 | Add to Cart | |
| 13 | 28P264 | Oil Seal | 1 | $17.13 | Add to Cart | |
| 14 | 28P119 | Oil Seal | 1 | $26.61 | Add to Cart | |
| 15 | 379695 | Snap Ring Internal | 1 | $2.44 | Add to Cart | |
| 16 | 379694 | Snap Ring External 1 .25" | 2 | $3.19 | Add to Cart | |
| 17 | 379693 | Snap Ring External 1 " | 2 | $4.45 | Add to Cart | |
| 18 | 550890 | Needle Bearing Input Shaft | 2 | $39.93 | Add to Cart | |
| 19 | 550306 | Needle Bearing Idler Shaft | 1 | $6.88 | Add to Cart | |
| 20 | 560998 | Needle Bearing Output Gear | 1 | $62.83 | Add to Cart | |
| 21 | 560999 | Needle Bearing Output Gear | 2 | $13.56 | Add to Cart | |
| 22 | 31P95 | Spacer, 1 " | 1 | $6.42 | Add to Cart | |
| 23 | 31P97 | Thrust Washer | 2 | $7.46 | Add to Cart | |
| 24 | 14P70 | Spacer, Input Shaft Bearing | 1 | $194.02 | Add to Cart | |
| 25 | 4P175 | Spacer, Idler Shaft | 1 | $24.59 | Add to Cart | |
| 26 | 31P100 | Thrust Washer, .126" Thick | 1 | $4.05 | Add to Cart | |
| 27 | 31P99 | Thrust Washer, .032" Thick | 1 | $2.52 | Add to Cart | |
| 28 | 31P101 | Thrust Washer, Output Shaft, .329" Thick | 1 | $23.43 | Add to Cart | |
| 29 | 31P105 | Tabbed Thrust Washer, Output Shaft | 1 | $3.04 | Add to Cart | |
| 30 | 31P98 | Thrust Washer, Clutch, .094" Thick | 1 | $10.11 | Add to Cart | |
| 31 | 2P776 | Clutch Gear | 1 | — | Call for availability | |
| 32 | 379692 | Clutch Plate | 4 | $13.91 | Add to Cart | |
| 33 | 379691 | Friction Disk | 5 | $25.49 | Add to Cart | |
| 34 | 37P56 | Clutch Spring | 1 | $9.77 | Add to Cart | |
| 34A | 31P108 | Spacer, Clutch Spring | 1 | $13.07 | Add to Cart | |
| 35 | 379704 | Piston | 1 | — | No longer available — call for replacement | |
| 36 | 379705 | Cylinder, Back-up | 1 | $117.22 | Add to Cart | |
| 37 | 379672 | Nwd Plug | 2 | $12.09 | Add to Cart | |
| 38 | 379696 | Roll Pin (1 .250 Lg .) | 2 | $2.66 | Add to Cart | |
| 39 | 22P103 | Gasket, Bearing Cap | 1 | $5.35 | Add to Cart | |
| 40 | 3794314 | Hex Capscrew | 3 | — | Call for availability | |
| 41 | 3794317 | Hex Capscrew | 3 | — | Call for availability | |
| 42 | 379242 | Boss Plug With O-ring | 1 | $22.23 | Add to Cart | |
| 43 | 379231 | Pipe Plug For Boss Plug | 1 | $1.50 | Add to Cart | |
| 68P2 | Name Plate | 1 | $2.65 | Add to Cart | ||
| 378422 | Drive Screw For Nameplate | 2 | $11.52 | Add to Cart | ||
| 379708 | Tubing Assembly | 1 | $81.87 | Add to Cart | ||
| 379709 | Plug Weep Hole | 2 | $2.39 | Add to Cart | ||
| 800016X | Mounting Kit, 244 Series | 1 | $21.68 | Add to Cart | ||
| 28P200 | O-ring | 1 | $3.59 | Add to Cart | ||
| 37892452 | Hex Capscrew | 1 | — | Call for availability | ||
| 379697 | Dowel Split Hollow | 2 | $5.26 | Add to Cart | ||
| 379706 | Hex Capscrew, M10 X 1 .5 | 5 | $4.78 | Add to Cart | ||
| 800017X | Mounting Kit, 242 Series | 1 | $41.00 | Add to Cart | ||
| 37892464 | Hex Capscrew | 1 | — | Call for availability | ||
| 3292295X | Installation & Label Kit | 1 | — | No longer available — call for replacement | ||
| 328946X | Caution Label Kit | 1 | — | No longer available — call for replacement | ||
| 3790852 | Installation Decal | 1 | $4.02 | Add to Cart | ||
| 379624 | Warranty Card | 1 | $3.72 | Add to Cart | ||
| 379715 | Owners Manual | 1 | — | Call for availability | ||
| 3797161 | Envelope | 1 | — | Call for availability | ||
| 3292294X | Pump Mounting Kit | 1 | $14.62 | Add to Cart | ||
| 379743 | Hex Head Screw | 2 | — | Call for availability | ||
| 3293171X | Dash Plat & Wiring Harness/fitting Kit, 244 & 244 Series | 1 | — | Call for availability | ||
| 3293151X | Dash Plat/wire Harness Assembly, Non E.o.c | 1 | — | Call for availability | ||
| 329319X | Fitting Kit With Manifold 242 & 244 Series | 1 | $123.44 | Add to Cart | ||
| 379486 | Straight Thread O-ring 90 ° Elbow Jic | 4 | $28.97 | Add to Cart | ||
| 379698 | Male Elbow | 1 | $13.51 | Add to Cart | ||
| 379703 | Swivel Nut, 90 ° Elbow Jic | 1 | $20.23 | Add to Cart | ||
| 379726 | Temperature Sender | 1 | — | No longer available — call for replacement | ||
| 379832 | 90° Elbow Jic | 1 | $7.59 | Add to Cart | ||
| 379833 | Seal Nut | 1 | $12.56 | Add to Cart | ||
| 329321X | Installation Kit | 1 | — | No longer available — call for replacement | ||
| 379502 | Pressure Switch | 1 | $93.06 | Add to Cart | ||
| 379817 | Grommet | 1 | $6.42 | Add to Cart | ||
| 379818 | Flange Bolt | 2 | — | No longer available — call for replacement | ||
| 379830 | Pan Head Screw | 2 | $1.23 | Add to Cart | ||
| 3293202X | Manifold/hose Kit, 242 Series | 1 | $1,201.55 | Add to Cart | ||
| 3290574X | Hose Assembly (16-.750") Solenoid Exhaust To P.t.o | 1 | $45.49 | Add to Cart | ||
| 3291302X | Hose Assembly (17-.250") Manifold "lube" To P.t.o.-pressure Lube | 1 | $100.29 | Add to Cart | ||
| 329130X | Hose Assembly (12-.250") Manifold "out" To P.t.o.-clutch Pack | 1 | $60.19 | Add to Cart | ||
| 3292321X | Hose Assembly (19-.500") Trans. Main Pressure To Manifold "in" | 1 | $77.91 | Add to Cart | ||
| 329307X | Manifold Valve Assembly | $1,141.95 | Add to Cart | |||
| 3293204X | Manifold/hose Kit, 244 Series | 1 | $1,201.55 | Add to Cart | ||
| 3291305X | Hose Assembly (26-.750") Manifold "out" To P.t.o.-clutch Pack | 1 | $106.43 | Add to Cart | ||
| 3293111X | .625"-9 Tooth Shaft W/ Tabbed Washer | 1 | — | No longer available — call for replacement | ||
| 3293112X | 1 .000" Keyed Shaft W/ Tabbed Washer ( Xb Output Only) | 1 | — | No longer available — call for replacement | ||
| 3293391X | Gasket And Seal Kit | 1 | $113.65 | Add to Cart | ||
| 3293392X | Bearing Kit | 1 | $275.42 | Add to Cart | ||
| 3293393X | Clutch Plate Kit | 1 | $175.68 | Add to Cart | ||
| 3293394X | Rebuild Kit (includes 329339-1 X, -2X And -3X) | 1 | $435.65 | Add to Cart |

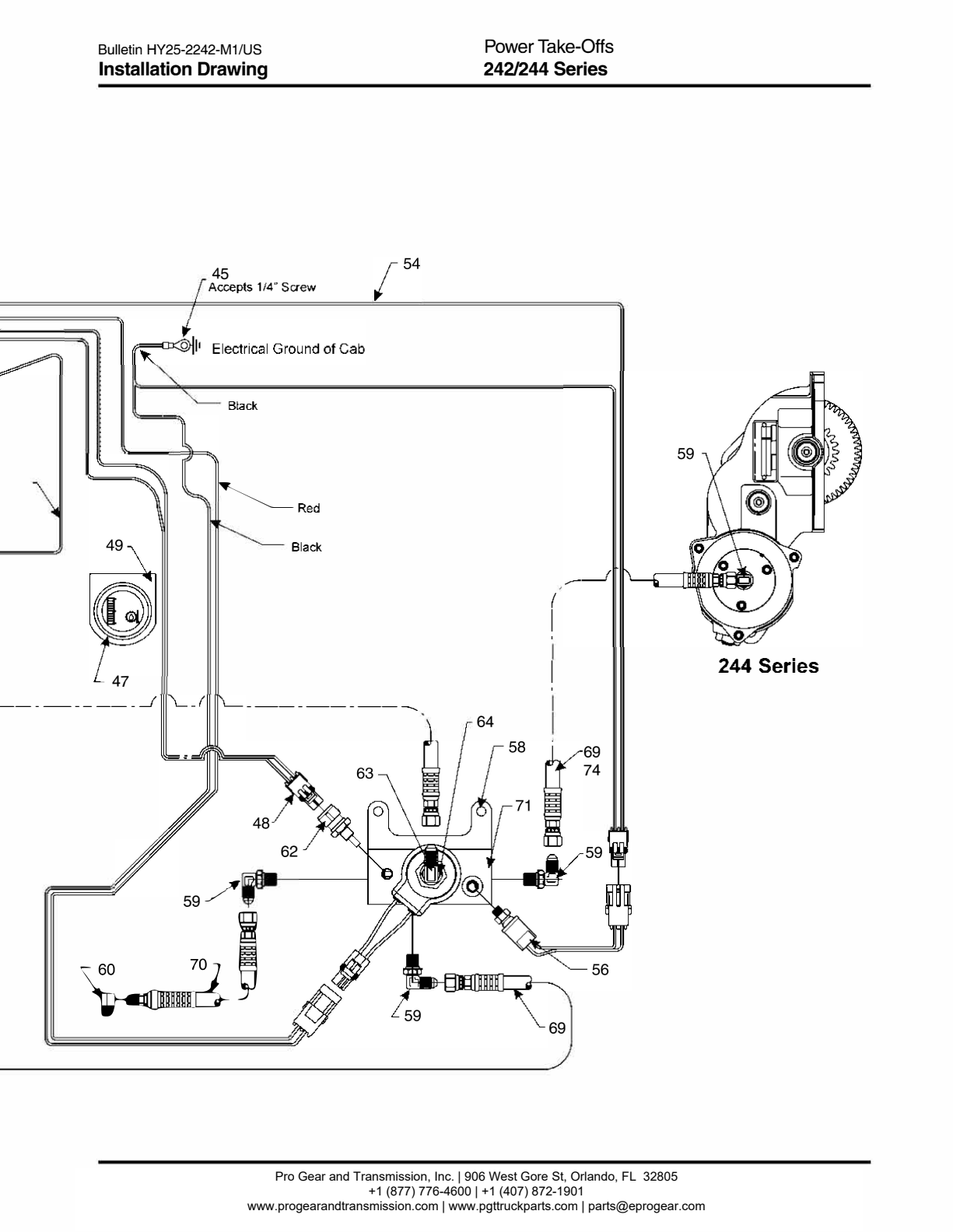

Shift Installation Kit with Electronic Overspeed Control
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 379061 | Wire Tie | 6 | $1.46 | Add to Cart | ||
| 44 | 379252 | Butt Connector | 5 | $2.30 | Add to Cart | |
| 379253 | Ring Connector | 2 | $3.11 | Add to Cart | ||
| 46 | 379257 | Electric Connector | 2 | $2.91 | Add to Cart | |
| 379725 | Temperture Gauge | 1 | — | Call for availability | ||
| 379741 | Mounting Hardware Temperature Gauge | 1 | — | Call for availability | ||
| 48 | 379727 | Wire Connector Assembly | 1 | — | Call for availability | |
| 379730 | Bracket, Temperature Gauge | 1 | — | Call for availability | ||
| 50 | 3797322 | Wire, White 42" With Spade & Butt Connector | 1 | — | No longer available — call for replacement | |
| 51 | 3797321 | Wire, Black 42" With Spade & Butt Connector | 1 | — | Call for availability | |
| 52 | 3797331 | Wire, Red 12" With Spade Connector | 1 | — | No longer available — call for replacement | |
| 3797332 | Wire, Black 12" With Spade Connector | 1 | — | Call for availability | ||
| 54 | 379736 | Wire Connector Assembly | 1 | $29.91 | Add to Cart | |
| 55 | 28P171 | O-ring | 1 | $4.88 | Add to Cart | |
| 329321X | Installation Kit | 1 | — | No longer available — call for replacement | ||
| 56 | 379502 | Pressure Switch | 1 | $93.06 | Add to Cart | |
| 57 | 379265 | Grommet | 1 | $3.21 | Add to Cart | |
| 58 | 379818 | Flange Bolt | 2 | — | No longer available — call for replacement | |
| 379830 | Pan Head Screw | 2 | $1.23 | Add to Cart | ||
| 329319X | Fitting Kit For Manifold 242 & 244 Series | 1 | $123.44 | Add to Cart | ||
| 59 | 379486 | Straight Thread O-ring 90° Elbow Jic | 4 | $28.97 | Add to Cart | |
| 60 | 379698 | Male Elbow | 1 | $13.51 | Add to Cart | |
| 61 | 379703 | Swivel Nut, 90° Elbow Jic | 1 | $20.23 | Add to Cart | |
| 62 | 379726 | Temperature Sender | 1 | — | No longer available — call for replacement | |
| 63 | 379832 | 90° Elbow Jic | 1 | $7.59 | Add to Cart | |
| 64 | 379833 | Seal Nut | 1 | $12.56 | Add to Cart | |
| 65 | 32925512X | Speed Limiter, 12 Volt | 1 | — | Call for availability | |
| 66 | 379243 | Speed Sensor | 1 | $229.65 | Add to Cart | |
| 3293202X | Manifold/hose Kit, 242 Series | 1 | $1,201.55 | Add to Cart | ||
| 67 | 3290574X | Hose Assembly (16-.750") Solenoid Exhaust To P.t.o | 1 | $45.49 | Add to Cart | |
| 68 | 3291302X | Hose Assembly (17-.250") Manifold "lube" To P.t.o.-pressure Lube | 1 | $100.29 | Add to Cart | |
| 69 | 329130X | Hose Assembly (12-.250") Manifold "out" To P.t.o.-clutch Pack | 1 | $60.19 | Add to Cart | |
| 70 | 3292321X | Hose Assembly (19-.500") Trans. Main Pressure To Manifold "in" | 1 | $77.91 | Add to Cart | |
| 71 | 329307X | Manifold Valve Assembly | $1,141.95 | Add to Cart | ||
| 3293204X | Manifold/hose Kit, 244 Series | 1 | $1,201.55 | Add to Cart | ||
| 72 | 3292321X | Hose Assembly (19-.500") Trans. Main Pressure To Manifold "in" | 1 | $77.91 | Add to Cart | |
| 73 | 329307X | Manifold Valve Assembly | 1 | $1,141.95 | Add to Cart | |
| 3291305X | Hose Assembly (26-.750") Manifold "out" To P.t.o. -clutch Pack | 1 | $106.43 | Add to Cart |

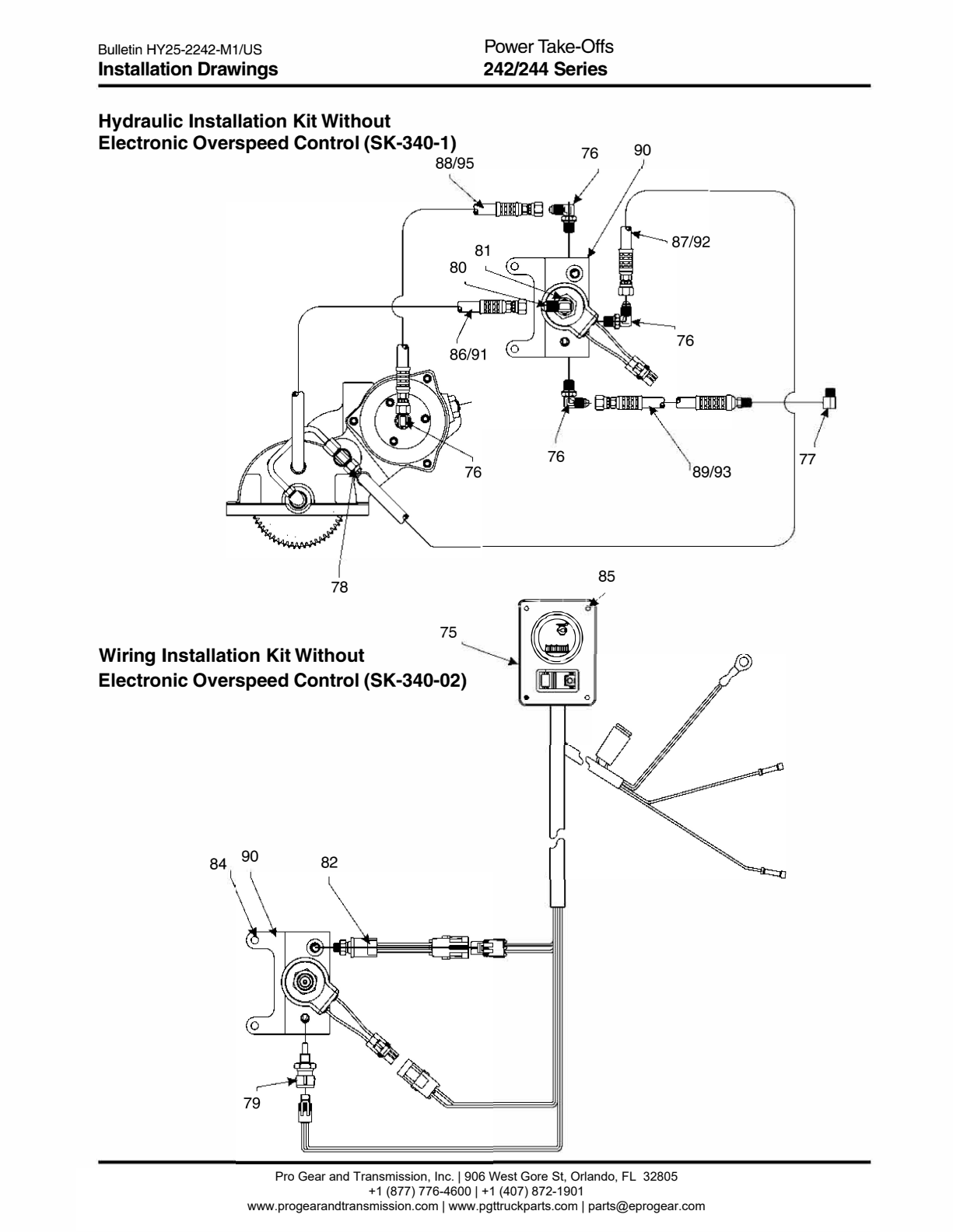

Shift Installation Kit Without Electronic Overspeed Control
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 3293171X | Dash Plat & Wiring Harness/fitting Kit, 244 & 244 Series | — | Call for availability | |||
| 75 | 3293151X | Dash Plat/wire Harness Assembly, Non E.o.g | — | Call for availability | ||
| 329319X | Fitting Kit For Manifold 242 & 244 Series | $123.44 | Add to Cart | |||
| 76 | 379486 | Straight Thread O-ring 90° Elbow Jig | $28.97 | Add to Cart | ||
| 77 | 379698 | Male Elbow | $13.51 | Add to Cart | ||
| 78 | 379703 | Swivel Nut, 90° Elbow Jig | $20.23 | Add to Cart | ||
| 79 | 379726 | Temperature Sender | — | No longer available — call for replacement | ||
| 80 | 379832 | 90° Elbow Jig | $7.59 | Add to Cart | ||
| 81 | 379833 | Seal Nut | $12.56 | Add to Cart | ||
| 329321X | Installation Kit | — | No longer available — call for replacement | |||
| 82 | 379502 | Pressure Switch | $93.06 | Add to Cart | ||
| 83 | 379817 | Grommet | $6.42 | Add to Cart | ||
| 84 | 379818 | Flange Bolt | — | No longer available — call for replacement | ||
| 85 | 379830 | Pan Head Screw | $1.23 | Add to Cart | ||
| 3293202X | Manifold/hose Kit, 242 Series | $1,201.55 | Add to Cart | |||
| 86 | 3290574X | Hose Assembly (16-.750") Solenoid Exhaust To P.t.o | $45.49 | Add to Cart | ||
| 87 | 3291302X | Hose Assembly (17-.250") Manifold "lube" To P.t.o. -pressure Lube | $100.29 | Add to Cart | ||
| 88 | 329130X | Hose Assembly (12-.250") Manifold "out" To P.t.o.-glutch Pack | $60.19 | Add to Cart | ||
| 89 | 3292321X | Hose Assembly (19-.500") Trans. Main Pressure To Manifold "in" | $77.91 | Add to Cart | ||
| 90 | 329307X | Manifold Valve Assembly | $1,141.95 | Add to Cart | ||
| 3293204X | Manifold /hose Kit, 244 Series | $1,201.55 | Add to Cart | |||
| 91 | 3290574X | Hose Assembly (16-.750") Solenoid Exhaust To P.t.o | $45.49 | Add to Cart | ||
| 92 | 3291302X | Hose Assembly (17-.250") Manifold "lube" To P.t.o. -pressure Lube | $100.29 | Add to Cart | ||
| 3292321X | Hose Assembly (19-.500") Trans. Main Pressure To Manifold "in" | $77.91 | Add to Cart | |||
| 95 | 329130SX | Hose Assembly (26-.750") Manifold "out" To P.t.o.-glutch Pack | — | Call for availability |
Pump Bill of Materials 242/244 Series
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 64543 | Flange | 1 | — | Call for availability | ||
| 2 | 64735 | Body, FP14-115C | 1 | — | Call for availability | |
| 64551 | Body, FP14-95C | 1 | — | Call for availability | ||
| 64952 | Body, FP14-74C | 1 | — | Call for availability | ||
| 64955 | Body, FP14-65C | 1 | — | Call for availability | ||
| 64954 | Body, FP14-45C | 1 | — | Call for availability | ||
| 3 | 2A053 | Drive Gear, Fp 14-11 Sc | 1 | — | Call for availability | |
| 29938 | Drive Gear, Fp 14-95C | 1 | — | Call for availability | ||
| 2A201 | Drive Gear, Fp 14-7 4C | 1 | — | Call for availability | ||
| 2A202 | Drive Gear, Fp 14-65C | 1 | — | Call for availability | ||
| 2A203 | Drive Gear, Fp 14-45C | 1 | — | Call for availability | ||
| 4 | 2A054 | Idler Gear, FP14-11 Sc | 1 | — | Call for availability | |
| 28287 | Idler Gear, FP14-95C | 1 | — | Call for availability | ||
| 2A207 | Idler Gear, FP14-74C | 1 | — | Call for availability | ||
| 28439 | Idler Gear, FP14-65C | 1 | — | Call for availability | ||
| 2A206 | Idler Gear, FP14-45C | 1 | — | Call for availability | ||
| 5 | 2A195 | Pressure Plate, Top | 1 | — | Call for availability | |
| 6 | 2A196 | Pressure Plate, Bottom | 1 | — | Call for availability | |
| 7 | 15818 | Back-up Ring | 2 | — | Call for availability | |
| 8 | 16920 | Shaft Seal | 1 | — | Call for availability | |
| 9 | 585000137 | Snap Ring | 1 | — | Call for availability | |
| 10 | 550408309 | O-ring | 1 | — | Call for availability | |
| 16030 | Dowels | 2 | — | Call for availability | ||
| 12 | 62B610HG8 | Socket Head Capscrew, 3/8 1 " | 4 | — | Call for availability | |
| 13 | 62B614HG8 | Socket Head Capscrew, 3/8 1 .50" | 4 | — | Call for availability | |
| 14 | 15817 | O-ring | 2 | — | Call for availability | |
| 329346X | Soft Goods Service Kit | 1 | — | Call for availability | ||
| 329347X | Shaft Seal Kit | 1 | — | Call for availability | ||
| 329348X | Soft Goods Service Kit W/pressure Plates | 1 | — | Call for availability |
Additional Parts Listed in This Manual
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 328923-5X | (5 Ft. Optional) | — | No longer available — call for replacement |
This is the complete factory parts breakdown for the Chelsea PTO 244 — every part in the manual, matched to our live inventory. We stock 117 of the 187 parts above; click any part number to view it, or add it straight to your cart. Click a number on any diagram to jump to that part.
No parts match that search — try the part number with no dashes.
This Chelsea Illustrated Parts List covering the 244 PTO helps you identify the correct gear sets, shifter kits and service parts for your power take-off before you order.
| Models covered | 244 |
| PTO type | Chelsea 200 Series |
| Document | Illustrated Parts List (Chelsea) |
| Length | 17 pages |
| Format | PDF — free download |
What’s inside
- Gear sets & output shaft assemblies
- Shifter & air-shift control kits
- Mounting gaskets & adapter plates
- Housings & cover assemblies
- Seal, bearing & snap-ring kits
- Application & ratio reference tables
- Exploded views with OEM part numbers
Chelsea parts & units we stock
Pro Gear and Transmission stocks new, remanufactured and good-used parts for Chelsea PTO units:
Not sure exactly which unit you have? Check our identification guides, or Ask an Expert — send us photos of your data tag and our drivetrain specialists will identify the unit and the exact parts you need. Or call (877) 776-4600.
Browse all Chelsea PTO parts — rebuild kits, seal kits, gears & shift covers — or shop complete Chelsea PTO units.
