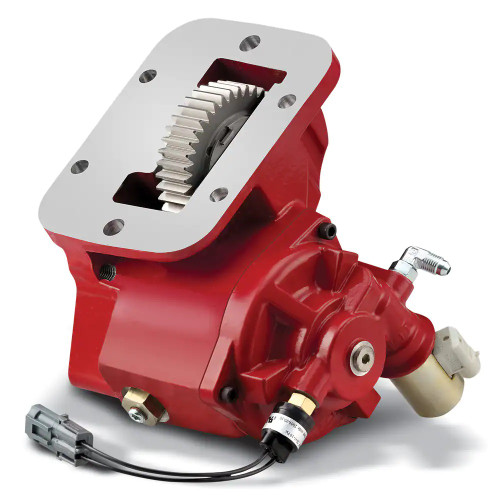

The Chelsea 249FMLLX-B218 or 249FMLLXB218 is a 249 Series Power Take-Off designed specifically for the Ford 6R140 TorqShift 6 automatic transmission, available for both 2WD and 4WD applications. This series uses a 6-bolt Ford mounting pattern with hydraulic (PowerShift) engagement and is rated for up to 200 lb-ft of intermittent torque at 57 HP (1,488 RPM). A patented noise-reduction system makes the 249 Series the only PTO designed to suppress torsional noise on this transmission platform. The single-hose connection and integrated actuation valve simplify installation and reduce leak points. Common applications include service trucks, small dump trucks, tow and recovery, and fire and rescue equipment. Call us to confirm proper fit for your specific vehicle and pump configuration.
Features
Chelsea 249 Series PTO, part number 249FMLLX-B218 or 249FMLLXB218
Designed for Ford 6R140 TorqShift 6 automatic transmission, 2WD and 4WD applications
Hydraulic PowerShift engagement with single-hose connection and integrated cartridge valve
6-bolt Ford mounting pattern
Intermittent torque rating up to 200 lb-ft (271 Nm); 57 HP at 1,488 RPM
Patented noise-suppression system - only quiet PTO available for this Ford transmission platform
Tech Specs
- Mounting Type: 6-Bolt, Ford
- Transmission Application: Ford 6R140 TorqShift 6 Automatic
- Shift Type: Hydraulic PowerShift
- Intermittent Torque Rating: 200 lb-ft (271 Nm)
- Shaft Power: 57 HP (1,488 RPM)
- Output Power: 56+ HP
- Lubricant: Internal Pressure Lube
- Continuous Operation: Yes, with 30% de-rating
- Available For: 2WD and 4WD applications
Additional Information
The Chelsea 249 Series is suited for aerial, service truck, tow and recovery, small dump truck, water drilling, and fire and rescue applications. Installation requires no special tools. The series supports multiple output shaft types across its variants, including round shaft (1-1/4 in. with 5/16 in. key), 3/4 in. 11-tooth pump spline, and SAE B (7/8 in. 13-tooth) pump spline. Parker Chelsea publishes a dedicated parts list (HY25-2249-M1_US) and owner's manual covering the 247/249/249V/272-F Series for reference during installation and service.Parts Manual: Chelsea 249 Series PTO Parts Manual (PDF) — exploded views, item numbers and the full parts breakdown for this series.
