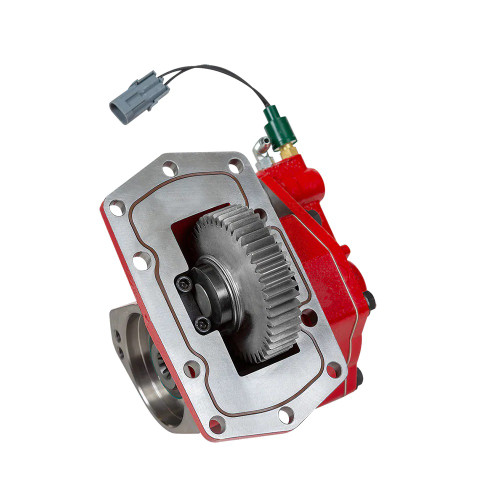

The Chelsea 249GMLLX-B426 or 249GMLLXB426 is a Power Take-Off from the Chelsea 249 Series, engineered specifically for Ford Super Duty trucks equipped with the Ford 6R140 TorqShift 6 automatic transmission. The 249 Series mounts with a 6-bolt Ford-pattern mounting and uses hydraulic (PowerShift) actuation with a single hose connection and integrated cartridge valve, simplifying installation and reducing leak paths. The series is rated for intermittent torque up to 200 lb-ft (271 Nm) with shaft power of 57 HP at 1488 RPM. Chelsea's patented noise-reduction design makes the 249 Series the only quiet PTO for this transmission platform. Typical applications include service trucks, small dump trucks, tow and recovery, and aerial equipment. Call us to confirm proper fit for your specific build.
Features
Chelsea 249 Series PTO for Ford Super Duty with 6R140 TorqShift 6 transmission
Hydraulic (PowerShift) shift with single hose connection and integrated actuation valve
6-bolt Ford-pattern mounting
Intermittent torque rating up to 200 lb-ft (271 Nm); shaft power 57 HP at 1488 RPM
Patented noise-suppression system, the only quiet PTO engineered for this transmission
Available for both 2WD and 4WD applications
Tech Specs
- Mounting Type: Ford 6-Bolt
- Shift Type: Hydraulic (PowerShift)
- Transmission Application: Ford 6R140 TorqShift 6 Automatic
- Intermittent Torque Rating: 200 lb-ft (271 Nm)
- Shaft Power: 57 HP (42 kW) at 1488 RPM
- Output Power: 56+ HP (41-50 kW)
- Lubricant: Internal Pressure Lube
- Continuous Operation: Yes, with 30% de-rating
- Vehicle Application: Ford Super Duty (2WD and 4WD)
Additional Information
The Chelsea 249 Series is the only PTO with a patented torsional noise-reduction system for the Ford TorqShift 6 platform. The integrated cartridge valve and pressure switch reduce installation time and eliminate additional hose connections. Common end-use markets include aerial equipment, tow and recovery, service trucks, small dump trucks, and fire and rescue vehicles. The 249GMLLX-B426 is sold by Pro Gear and Transmission. Not sure this is your part? Give us a call to confirm fit.Parts Manual: Chelsea 249 Series PTO Parts Manual (PDF) — exploded views, item numbers and the full parts breakdown for this series.
