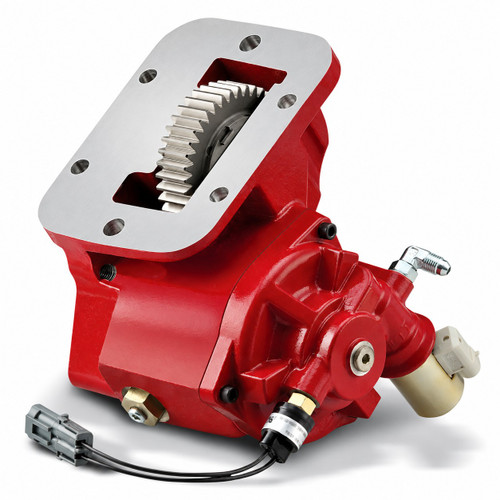

The Chelsea 249GMLLX-BV12 or 249GMLLXBV12 is a power take-off assembly from the Chelsea 249 Series, engineered specifically for the Ford 6R140 TorqShift 6 automatic transmission using a 6-bolt Ford mounting pattern. The 249 Series carries an intermittent torque rating up to 200 lb-ft (271 Nm) and delivers shaft power of 57 HP at 1,488 RPM. Its patented noise-suppression system is Chelsea's solution to the torsional noise common on these Ford Super Duty applications, and a single-hose connection with an integrated actuation cartridge valve simplifies installation while reducing potential leak paths. The series supports both 2WD and 4WD applications and suits service trucks, tow and recovery, aerial, small dump, and fire and rescue equipment. Contact Pro Gear and Transmission to confirm the correct fit for your specific application.
Features
Chelsea 249 Series PTO, part number 249GMLLX-BV12 or 249GMLLXBV12
6-bolt Ford mounting pattern, designed for Ford 6R140 TorqShift 6 automatic transmission
Intermittent torque rating up to 200 lb-ft (271 Nm); shaft power 57 HP at 1,488 RPM
Patented noise-suppression system, the only quiet PTO option for this Ford Super Duty transmission
Single-hose connection with integrated cartridge valve and pressure switch for faster, cleaner installation
Supports 2WD and 4WD applications; suits service trucks, tow and recovery, aerial, small dump, and fire and rescue
Tech Specs
- Mounting Type: Ford 6-Bolt
- Transmission Application: Ford 6R140 TorqShift 6 Automatic
- Intermittent Torque Rating: Up to 200 lb-ft (271 Nm)
- Shaft Power: 57 HP (1,488 RPM) / 42 kW (1,488 RPM)
- Shift Type: Hydraulic (PowerShift)
- Lubricant: Internal pressure lube
- Continuous Operation: Yes, with 30% de-rating
- Application: 2WD and 4WD
Additional Information
Parts Manual: Chelsea 249 Series PTO Parts Manual (PDF) — exploded views, item numbers and the full parts breakdown for this series.
