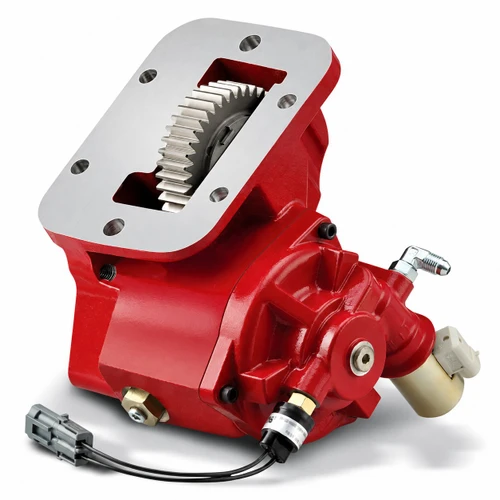

The Chelsea 249HMLLX-B426 or 249HMLLXB426 is a Power Take-Off from the Chelsea 249 Series, designed specifically for the Ford 6R140 TorqShift 6 automatic transmission with a 6-bolt Ford mounting pattern. The 249 Series is the only PTO in its class to incorporate Chelsea's patented noise-reduction system for quieter operation on Ford Super Duty trucks. It uses a hydraulic PowerShift actuation with a single hose connection and an integrated cartridge valve, reducing installation time and leak paths. The series carries an intermittent torque rating up to 200 lb-ft (271 Nm) and is available for both 2WD and 4WD applications. Typical uses include service trucks, tow and recovery, small dump trucks, and fire and rescue equipment. Call us to confirm proper fit for your specific application.
Features
Fits Ford 6R140 TorqShift 6 automatic transmission with 6-bolt Ford mounting pattern
Patented noise-suppression system - the only quiet PTO designed for this Ford Super Duty transmission
Hydraulic PowerShift actuation with single hose connection and integrated cartridge valve
Intermittent torque rating up to 200 lb-ft (271 Nm) per series specification
Suitable for 2WD and 4WD applications
Common applications include service trucks, tow and recovery, small dump trucks, and fire and rescue
Tech Specs
- Mounting Type: Ford 6-Bolt
- Shift Type: Hydraulic PowerShift
- Intermittent Torque: Up to 200 lb-ft (271 Nm) - check application pages for actual rating
- Output Power: 56+ HP (41+ kW); Shaft Power: 57 HP at 1,488 RPM (42 kW at 1,488 RPM)
- Lubricant: Internal pressure lube
- Continuous Operation: Yes, with 30% de-rating
- Transmission Application: Ford 6R140 TorqShift 6
- Vehicle Application: Ford Super Duty, 2WD and 4WD
Additional Information
Parts Manual: Chelsea 249 Series PTO Parts Manual (PDF) — exploded views, item numbers and the full parts breakdown for this series.
