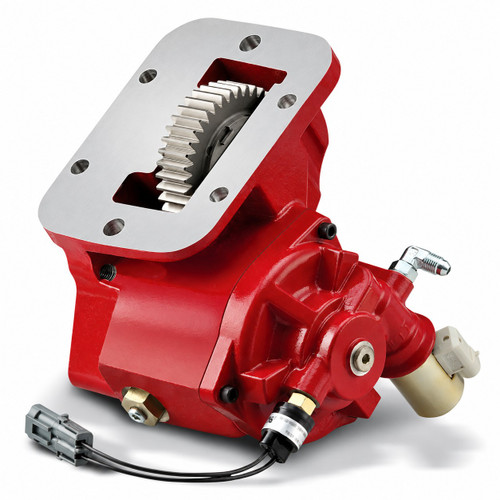

The Chelsea 249HMLLX-K455 or 249HMLLXK455 is a Power Take-Off from the Chelsea 249 Series, engineered specifically for the Ford 6R140 TorqShift 6 automatic transmission. This series uses a 6-bolt Ford mounting pattern and a hydraulic PowerShift actuation system with a single-hose connection and an integrated cartridge valve, which simplifies installation and reduces leak paths. The 249 Series is Chelsea's patented noise-reduction PTO, the only unit designed to suppress torsional noise on Ford Super Duty TorqShift 6 applications. Intermittent torque capacity for the series reaches up to 200 lb-ft (271 Nm). Output options across the series include round shaft and pump spline configurations. Available for both 2WD and 4WD applications, the 249 Series suits service trucks, tow and recovery, small dump trucks, and aerial and fire and rescue equipment. Call us to confirm proper fit and output configuration for your specific application.
Features
Chelsea 249 Series PTO, part number 249HMLLX-K455 or 249HMLLXK455
Designed for the Ford 6R140 TorqShift 6 automatic transmission, 2WD and 4WD
6-bolt Ford mounting pattern
Hydraulic PowerShift actuation with single-hose connection and integrated cartridge valve
Patented noise-suppression system - the only quiet PTO for the Ford Super Duty TorqShift 6
Series intermittent torque rating up to 200 lb-ft (271 Nm); check application pages for actual rating
Additional Information
Parts Manual: Chelsea 249 Series PTO Parts Manual (PDF) — exploded views, item numbers and the full parts breakdown for this series.
