Chelsea PTO 272F Series Parts Manual

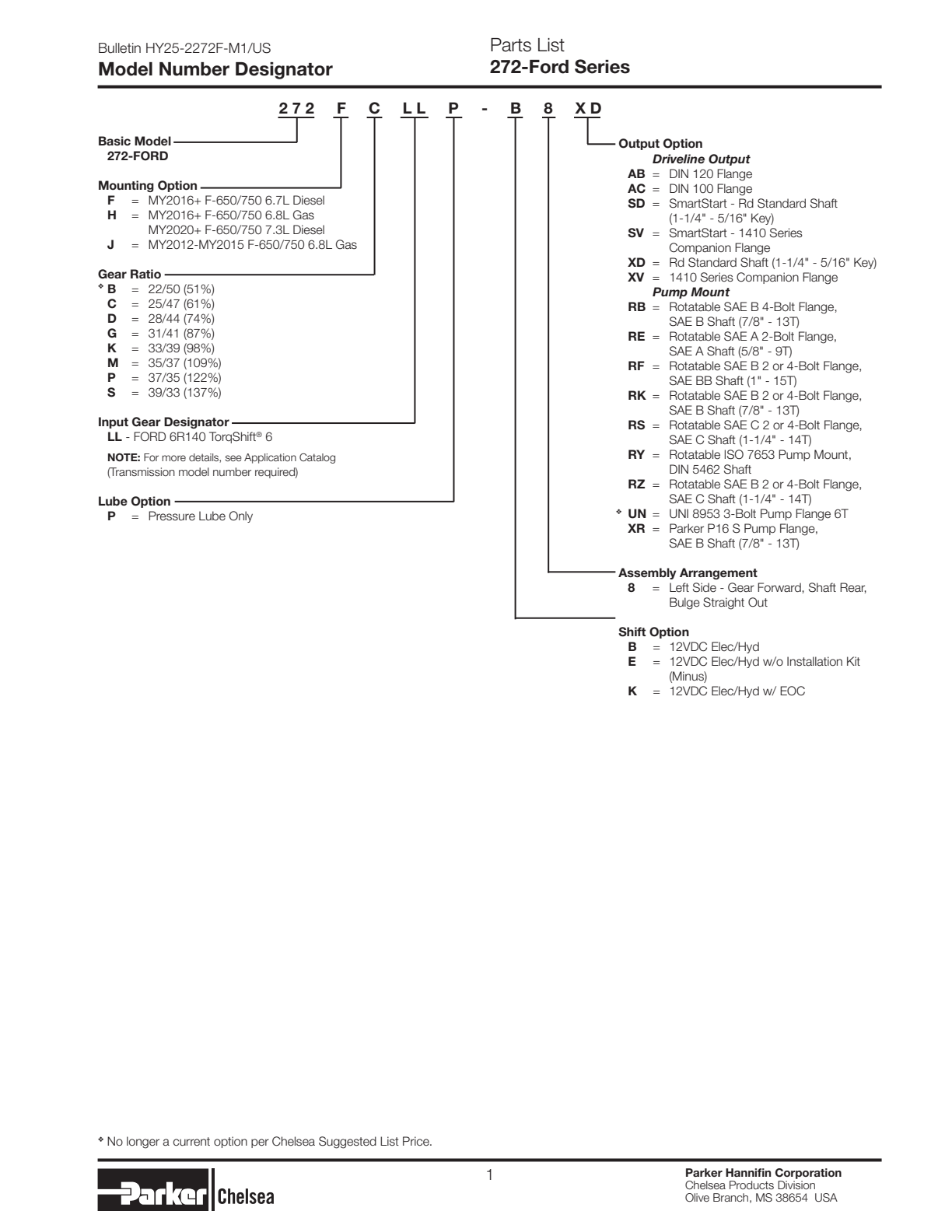

Model Number Designation
| Item | Part No. | Description | Qty | Notes | Price |
|---|

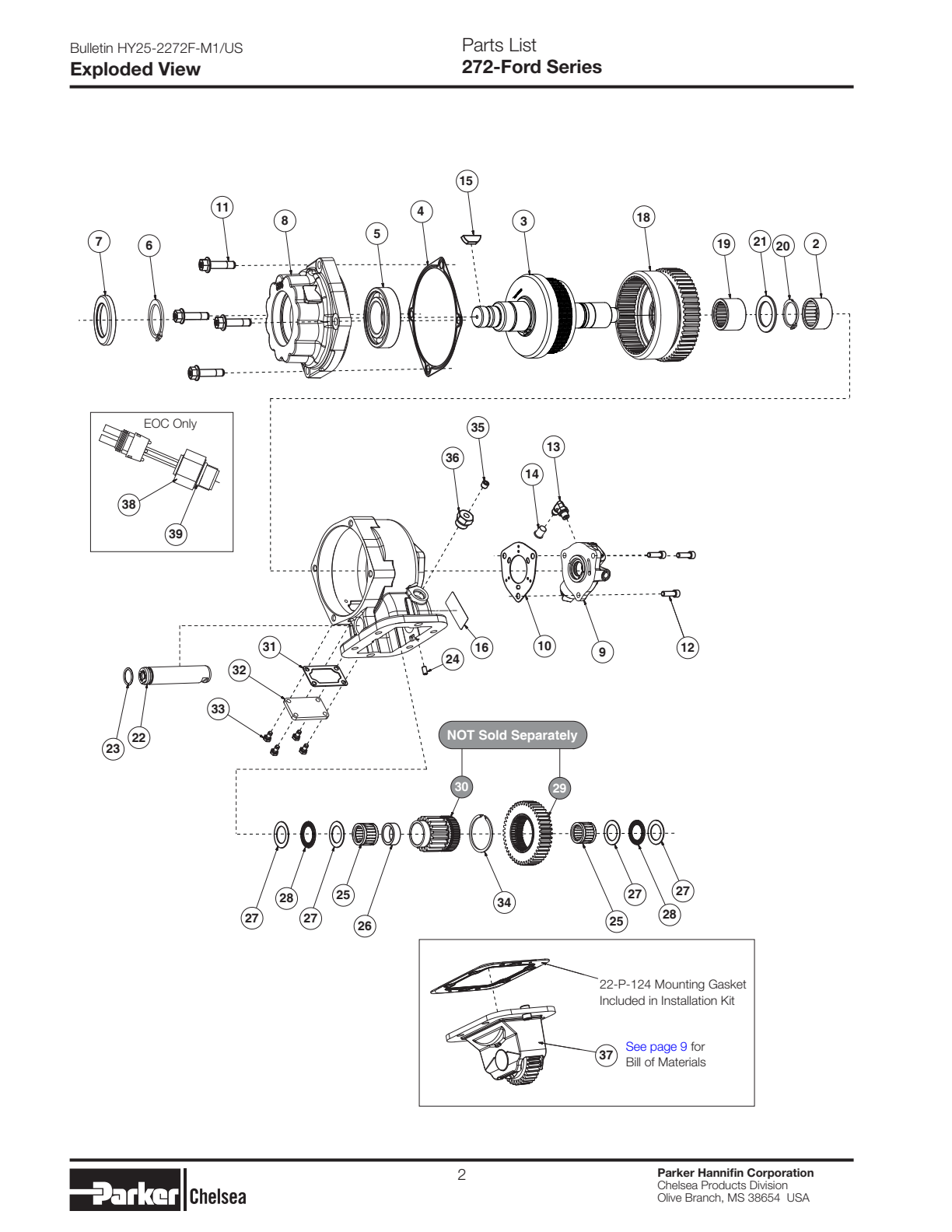

Parts List Bill of Materials 272-Ford Series
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 1P757 | Machined Housing (8 Arrangement) | 1 | $505.61 | Add to Cart | |
| 2 | 560972 | Needle Roller Bearing Assembly (1 .500" X 1 .875" X 1 .000") | 1 | $32.22 | Add to Cart | |
| 4 | 22P151 | Shim Gasket | 1 | $15.38 | Add to Cart | |
| 5 | 550311 | Ball Bearing (1 .770" X 3 .346" X .748") | 1 | $81.15 | Add to Cart | |
| 6 | 379555 | Lockring | 1 | $23.13 | Add to Cart | |
| 7 | 28P267 | Oil Seal (2 .627 " X 1 .750" X .312 ") | 1 | $66.05 | Add to Cart | |
| 8 | 21P886 | Bearing Cap | 1 | $189.52 | Add to Cart | |
| 10 | 22P112 | Valve Cap Gasket | 1 | $20.18 | Add to Cart | |
| 38056314 | Hex Flange Head Cap Screw (.375" -16 X 1 .500") (non-shaft Brake Option) | 4 | $7.14 | Add to Cart | ||
| 12 | 3784476 | Socket Head Cap Screw (.312 " -18 X 1 .000") | 3 | $4.33 | Add to Cart | |
| 13 | 379486 | 90° Elbow (.438" -20) (hydraulic Shift Options Only) | 1 | $28.97 | Add to Cart | |
| 14 | 3795642 | Thread Cap (.438") (hydraulic Shift Options Only) | 1 | $1.23 | Add to Cart | |
| 15 | 50000729 | Woodruff Key (xd Output Only) | 1 | $3.11 | Add to Cart | |
| 16 | 68P511 | Adhesive Label | 1 | — | Call for availability | |
| 19 | 561088 | Bearing Needle Roller Assembly (1 .500" X 1 .875" X 1 .250") | 1 | $41.81 | Add to Cart | |
| 20 | 379746 | Lockring | 1 | $5.06 | Add to Cart | |
| 21 | 31P70 | Thrust Washer (1 .507 " X 2 .167 " X .094") | 1 | $13.66 | Add to Cart | |
| 22 | 9P109 | Idler Shaft (1 .000") | 1 | $124.99 | Add to Cart | |
| 23 | 28P198 | O-ring (.798" X .103") | 1 | $7.10 | Add to Cart | |
| 24 | 3784527 | Socket Head Set Screw (.250" -20 X .500") | 1 | $4.37 | Add to Cart | |
| 25 | 550886 | Bearing Needle Roller Assembly (1 .000" X 1 .312 " X 1 .000") | 2 | $18.17 | Add to Cart | |
| 26 | 14P54 | Spacer (1 .035" X 1 .310" X .462 ") | 1 | $7.89 | Add to Cart | |
| 27 | 31P61 | Thrust Washer (1 .007 " X 1 .542 " X .031 ") | 4 | $4.17 | Add to Cart | |
| 28 | 560920 | Thrust Bearing (1 .000" X .078") | 2 | $9.52 | Add to Cart | |
| 31 | 35P118 | Plate Gasket | 1 | $5.77 | Add to Cart | |
| 32 | 34P315 | Cover Plate. | 1 | $13.89 | Add to Cart | |
| 33 | 3784294 | Hex Head Cap Screw (.250" -20 X .500") | 4 | $1.35 | Add to Cart | |
| 34 | 379522 | Lockring | 1 | $5.76 | Add to Cart | |
| 35 | 379231 | Pipe Plug (.125" -27) | 1 | $1.50 | Add to Cart | |
| 36 | 379242 | Straight Adapter (.125" -27 X .750" -16) | 1 | $22.23 | Add to Cart | |
| 37 | 329901X | Adapter Assembly | 1 | $983.04 | Add to Cart | |
| 38 | 379917 | Speed Sensor (eoc Only) | 1 | $317.71 | Add to Cart | |
| 39 | 28P171 | O-ring (.644" X .087 ") (eoc Only) | 1 | $4.88 | Add to Cart | |
| 40 | 6P30 | Caution Tag (e Shifter Only) | 1 | — | Call for availability | |
| 41 | 379504 | Pressure Switch Continued On Next | 1 | $52.22 | Add to Cart | |
| 32907163X | Bearing Kit (adapter Parts Ordered Separately, See Page 9) | 1 | $263.32 | Add to Cart | ||
| 329923X | Gasket & Seal Kit | 1 | $166.77 | Add to Cart | ||
| 330154X | Gear & Clutch Plates Kit Stud Kits | 1 | $474.29 | Add to Cart | ||
| 800046X | Stud Mounting Kit Installation Instructions Kits | 1 | $101.33 | Add to Cart | ||
| 3292485X | Gasket & Installation Instructions Kit (all) Installation Kits | 1 | $119.84 | Add to Cart | ||
| 329918X | Installation & Mounting Kit (201 1 + Diesel F Mount; B Shift Option) | 1 or | $974.41 | Add to Cart | ||
| 329919X | Eoc Installation & Mounting Kit (201 1 + Diesel F Mount/2016+ Gas H Mount; K Shift Option) | 1 or | $1,098.90 | Add to Cart | ||
| 329920X | Installation & Mounting Kit (2013-2015 Gas J Mount; B Shift Option) | 1 or | $1,319.67 | Add to Cart | ||
| 329922X | Installation & Mounting Kit (2016 + Gas H Mount; B Shift Option) | 1 or | $1,358.25 | Add to Cart | ||
| 329931X | Heat Shield Kit (h & J Mount) | 1 | $998.23 | Add to Cart | ||
| 329952X | Installation & Mounting Kit (h & J Less Wiring Harness All Mounting; E Shift Option) Conversion Kits | 1 | $313.45 | Add to Cart | ||
| 329921X | Eoc Conversion Kit (f & H Mount Only) | 1 | — | No longer available — call for replacement |
Gear Ratio Options 272-Ford Series
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 5P15573X | 5-P-1557 45 5-P-1560 25 2-P-977 | 47 | $805.68 | Add to Cart | ||
| 5P15574X | 5-P-1557 45 5-P-1561 28 2-P-978 | 44 | $805.68 | Add to Cart | ||
| 5P15575X | 5-P-1557 45 5-P-1562 31 2-P-979 | 41 | $805.68 | Add to Cart | ||
| 5P15576X | 5-P-1557 45 5-P-1563 33 2-P-980 | 39 | $805.68 | Add to Cart | ||
| 5P15577X | 5-P-1557 45 5-P-1564 35 2-P-981 | 37 | $789.87 | Add to Cart | ||
| 5P15578X | 5-P-1557 45 5-P-1565 37 2-P-982 | 35 | $789.87 | Add to Cart | ||
| 5P15579X | 5-P-1557 45 5-P-1566 39 2-P-983 | 33 | $606.77 | Add to Cart |

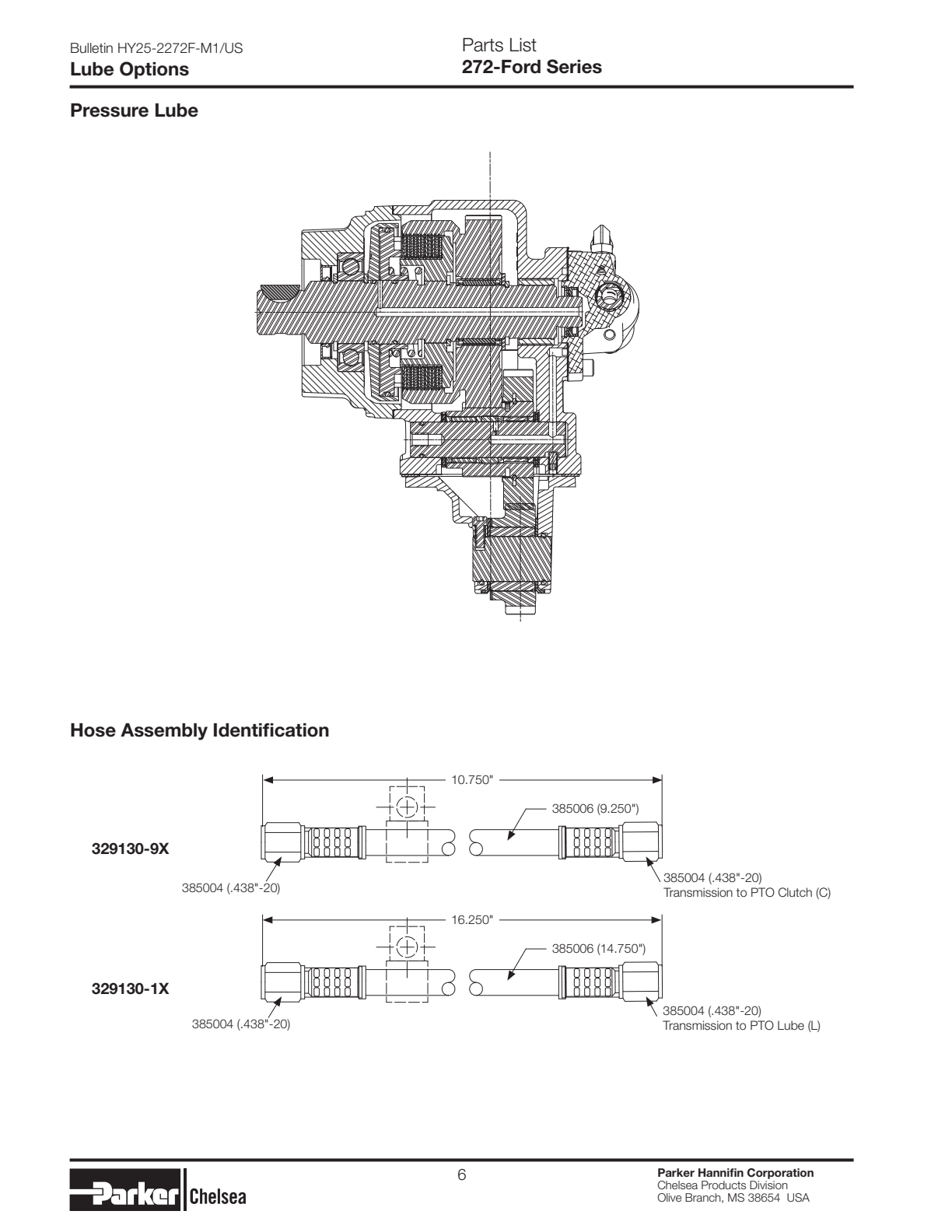

Shift Options 272-Ford Series Valve Cap Assembly (hydraulic) 329872-1X
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 34P327 | High Pressure W/ Lube Valve Cap Solenoid Port (329872-1X) | 1 | $150.35 | Add to Cart | |
| 2 | 28P119 | Oil Seal (1 .379" X .875" X .250") | 1 | $26.61 | Add to Cart | |
| 3 | 378811 | Seal Back-up Plate | 1 | $5.21 | Add to Cart | |
| 4 | 378849 | Lockring | 1 | $2.12 | Add to Cart | |
| 5 | 38012312 | Non-regulating Cartridge Valve 12VDC (329872-1X) | 1 | $222.19 | Add to Cart | |
| 7 | 3784474 | Head Cap Screw Socket (.312 " -18 X .750") | 1 | $1.78 | Add to Cart | |
| 32907183X | Hydraulic Solenoid Valve O-ring Kit | 1 | $135.56 | Add to Cart |
Output Options 272-Ford Series Adapter Assembly 329901X
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 42P245 | Housing Adapter | 1 | $351.81 | Add to Cart | |
| 2 | 9P100 | Shaft Idler (1 .260") | 1 | $76.07 | Add to Cart | |
| 3 | 5P1555 | Adapter Gear (35T) | 1 | $554.61 | Add to Cart | |
| 4 | 35P155 | Thrust Washer (1 .280" X 2 .300" X .064") | 2 | — | Call for availability | |
| 5 | 561029 | Needle Roller Bearing Assembly (1 .260" X 1 .81 1 " X 1 .260") | 1 | $53.91 | Add to Cart | |
| 6 | 385078 | Bushing Dowel (10.870" X 13 .010" X 20.000") | 2 | $5.29 | Add to Cart | |
| 7 | 3794313 | Socket Head Cap Screw (.250" -20 X .625") | 1 | $3.39 | Add to Cart | |
| 8 | 28P336 | O-ring (1 .171 " X .139") | 1 | $13.66 | Add to Cart | |
| 9 | 28P337 | O-ring (1 .171 " X .139") (modified) | 1 | $18.86 | Add to Cart |
Output Options 272-Ford Series Drive Shaft & Clutch Assembly 329832-*X
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 3P1133 | Xd Output Shaft (329832-1X) | 1 or | $387.77 | Add to Cart | ||
| 3P1134 | Xv Output Shaft 10T Straight (329832-2X) | 1 or | $603.41 | Add to Cart | ||
| 3P1135 | Rb Rk & Xr Output Shaft (7/8 " 13T) (329832-3X) , | 1 or | $383.11 | Add to Cart | ||
| 3P1136 | Rf Output Shaft (1 " 15T) (329832-4X) | 1 or | $427.93 | Add to Cart | ||
| 3P1137 | Rs Rz Output Shaft (1 -1/4 " 14T) (329832-5X) , | 1 or | $505.33 | Add to Cart | ||
| 3P1138 | Ry Output Shaft (din 8T) (329832-6X) | 1 | $421.53 | Add to Cart | ||
| 3P1168 | Sd Smartstart Output Shaft (329828-9X) , | 1 | $589.43 | Add to Cart | ||
| 3P1169 | Sv Smartstart 10T Straight Output Shaft (329828-10X) , | 1 | $598.90 | Add to Cart | ||
| 3P1170 | Re Output Shaft (5/8 " 9T) (329832-8X) | 1 | $464.71 | Add to Cart | ||
| 2 | 28P285 | O-ring (1 .597 " X .103 ") | 2 | $12.64 | Add to Cart | |
| 3 | 28P178 | O-ring (4 .484 " X .138 ") | 1 | $41.94 | Add to Cart | |
| 4 | 380051 | Clutch Back -up Cylinder | 1 | — | No longer available — call for replacement | |
| 5 | 3801102 | Clutch Piston | 1 | $68.99 | Add to Cart | |
| 6 | 379555 | Lockring | 1 | $23.13 | Add to Cart | |
| 7 | 380069 | Lockring | 1 | $6.90 | Add to Cart | |
| 8 | 330154X | Gear & Clutch Plates Kit | 1 | $474.29 | Add to Cart | |
| 379485 | Friction Disc | 8 | $14.45 | Add to Cart | ||
| 379595 | Clutch Plate | 7 | $14.47 | Add to Cart | ||
| 2P1038 | Inner Hub Gear | 1 | — | Call for availability | ||
| 9 | 37P72 | Spring (2 .140" X 1 .941 ") | 1 | $26.96 | Add to Cart |
Output Options 272-Ford Series Bill of Materials Driveline Output
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| HY252272FM1US | 272-Ford Series Driveline Output - To Lb-ft | — | Call for availability | |||
| 475542 | N-m] 7.49" [190.3] Ab Output Option .095" | — | Call for availability |
Output Options 272-Ford Series Bill of Materials Driveline Output (continued)
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| SV7585 | Lb-ft 380503 1410 Series Companion Flange -1 15 N-m] † 329160-144X Conversion Kit (xd To Sv) * 1 -1/2" 10T Spline Shaft - | 1 | — | Call for availability |
Output Options 272-Ford Series Bill of Materials Pump Mount
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| HY252272FM1US | 272-Ford Series Pump Mount - | — | Call for availability | |||
| NM325380 | N-m] † 329160-145X Conversion Kit (xd To Rb) 5.64" [143.3] | — | Call for availability | |||
| RF325380 | N-m] [10.31] † 329160-104X Conversion Kit (xd To Rf) | — | Call for availability |
Output Options 272-Ford Series Bill of Materials Pump Mount (continued)
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 32538 | N-m] .53" [13.5] † 329160-106X Conversion Kit (xd To Rs) 6.46" Ry Output Option | — | Call for availability | |||
| HY252272FM1US | 272-Ford Series Pump Mount (continued) - 6.86" Rz Output Option [174.3] 2.70" | — | Call for availability |

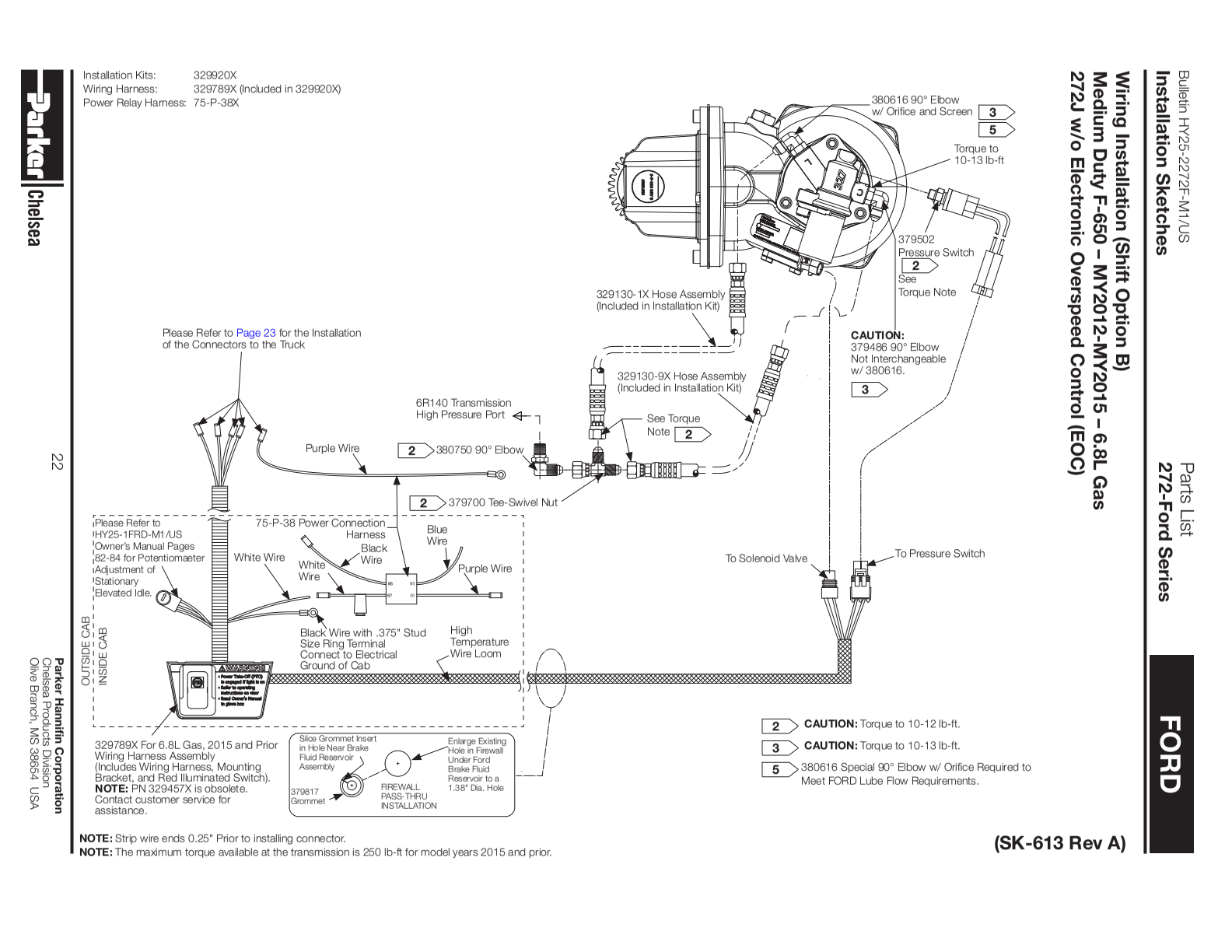

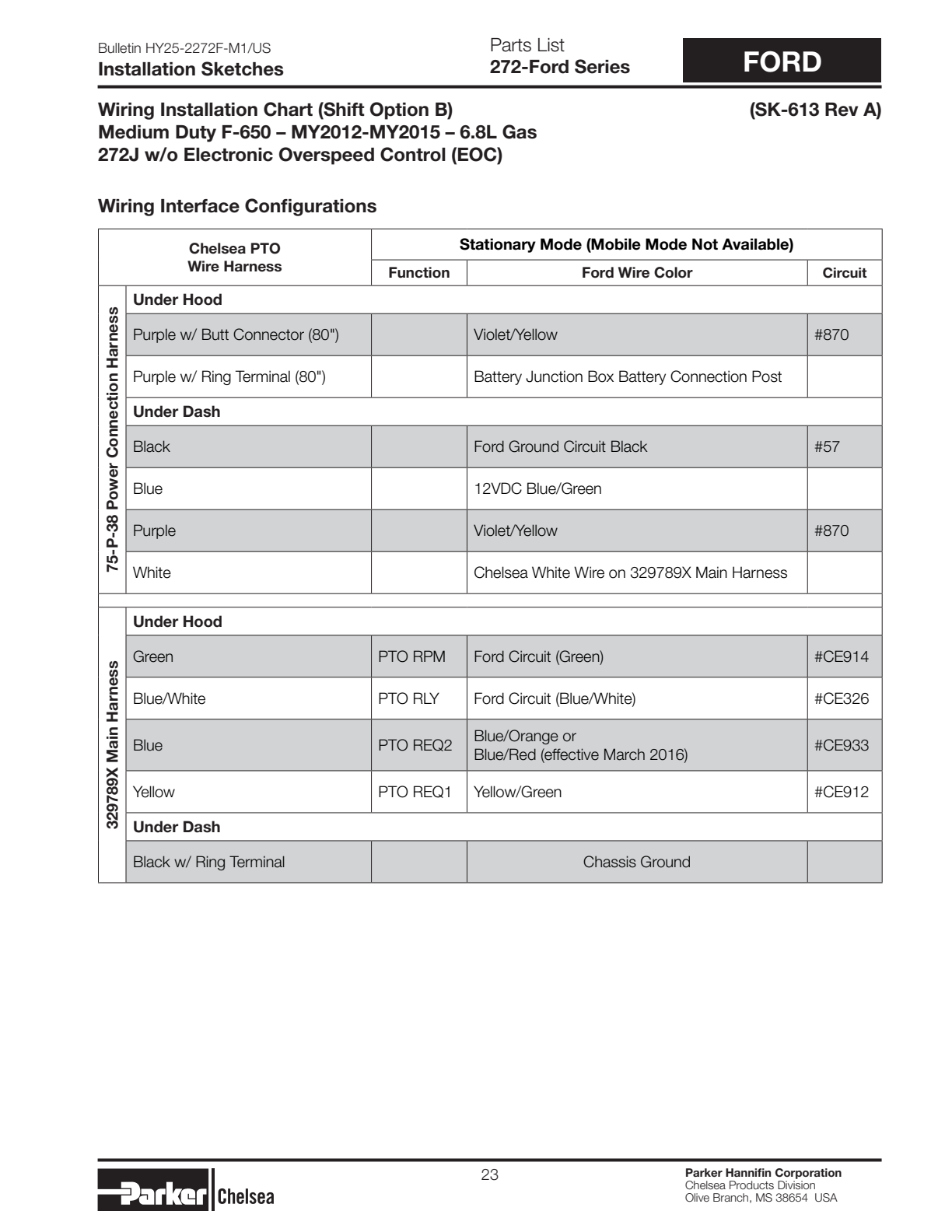

Parts List Kits Bill of Materials 272-FORD Series
| Item | Part No. | Description | Qty | Notes | Price |
|---|
Additional Parts Listed in This Manual
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 22-P-124 | Mounting Gasket | $22.94 | Add to Cart | |||
| 385006 | (9.250") | $12.24 | Add to Cart | |||
| 385004 | (.438"-20) | $10.91 | Add to Cart | |||
| 329832-2X | Drive Shaft & Clutch Assy (3-P-1134 Shaft) (air) | 1 | $933.24 | Add to Cart | ||
| 380486 | Thin Nylon Lock Nut (.875"-14) | 1 | $60.21 | Add to Cart | ||
| 380076-13 | Hardened Flat Washer (.950" X 1.762" X .157") | 1 | $3.51 | Add to Cart | ||
| 21-P-211 | Oil Seal (3.001" X 2.000" X .375") | 1 | — | Call for availability | ||
| 379742 | Companion Flange | 1 | $1,076.21 | Add to Cart | ||
| 329832-9X | Shaft & Clutch Assy Smartstart (3-P-1168) | 1 | $1,219.43 | Add to Cart | ||
| 329832-10X | Shaft & Clutch Assy Smartstart (3-P-1169) | 1 | $741.61 | Add to Cart | ||
| 329160-144X | Conversion Kit (xd To Sv) | — | No longer available — call for replacement | |||
| 329832-1X | Shaft & Clutch Assy (3-P-1133) | 1 | $802.15 | Add to Cart | ||
| 28-P-211 | Oil Seal (3.001" X 2.000" X .375") | 1 | $35.18 | Add to Cart | ||
| 380503 | 1410 Series Companion Flange | 1 | $754.86 | Add to Cart | ||
| 329832-3X | Shaft & Clutch Assy (3-P-1135 Shaft) | 1 | $791.70 | Add to Cart | ||
| 328170-216X | Cap Screw Kit (378447-8 Qty. 4) | 1 | $7.38 | Add to Cart | ||
| 21-P-894 | Pump Flange | 1 | $434.18 | Add to Cart | ||
| 329832-8X | Shaft & Clutch Assy (3-P-1170 Shaft) | 1 | $791.52 | Add to Cart | ||
| 329832-4X | Shaft & Clutch Assy (3-P-1136 Shaft) | 1 | $817.44 | Add to Cart | ||
| 21-P-885 | Bearing Cap 1 Or | $260.17 | Add to Cart | |||
| 21-P-731 | Pump Flange | 1 | $196.99 | Add to Cart | ||
| 35-P-101 | Bearing Cap Gasket | 1 | $37.17 | Add to Cart | ||
| 329832-5X | Shaft & Clutch Assy (3-P-1137 Shaft) | 1 | $904.58 | Add to Cart | ||
| 329832-6X | Shaft & Clutch Assy (3-P-1138 Shaft) | 1 | $845.03 | Add to Cart | ||
| 21-P-771 | Pump Flange | 1 | $649.32 | Add to Cart | ||
| 4-P-209 | Spacer (included In Kit) | 1 | $239.00 | Add to Cart | ||
| 328748X | Xr Pump Mounting Kit | 1 | $65.88 | Add to Cart | ||
| 380616 | 2 See | $71.53 | Add to Cart | |||
| 329616X | For | $355.53 | Add to Cart | |||
| 379428-24 | Metric Stud | $15.10 | Add to Cart | |||
| 378263 | Internal Lockring | 1 | $19.87 | Add to Cart | ||
| 379744 | Flange Nut (.375"-24) | 6 | $1.63 | Add to Cart | ||
| 550439 | Tapered Cone Bearing (.750" X .859") | 2 | $51.63 | Add to Cart | ||
| 31-P-102 | Thrust Washer (.754" X .440" X .030") | 1 | $3.72 | Add to Cart | ||
| 69-P-21 | Caution Label | 1 | — | Call for availability | ||
| 328946X | Caution Label Kit | 1 | — | No longer available — call for replacement | ||
| 379502 | Pressure Switch | 1 | $93.06 | Add to Cart | ||
| 379085-2 | Instructions Label | 1 | $4.02 | Add to Cart | ||
| 380569 | 90° Elbow M10 To JIC4 | 1 | $69.00 | Add to Cart | ||
| 379624 | Product Warranty Card | 1 | $3.72 | Add to Cart | ||
| 379817 | Grommet | 1 | $6.42 | Add to Cart | ||
| 329130-1X | Hose Assembly (16.25") | 1 | $87.33 | Add to Cart | ||
| 329130-9X | Hose Assembly (10.75") | 1 | $60.19 | Add to Cart | ||
| 379700 | Swivel Nut Tee (.438"-20) | 1 | $13.33 | Add to Cart | ||
| 329617X | Wiring Harness W/ Eoc | 1 | $678.71 | Add to Cart | ||
| 329789X | Wiring Harness W/o Eoc | 1 | $700.03 | Add to Cart | ||
| 75-P-39 | Wiring Harness W/o Eoc 272H | 1 | $654.82 | Add to Cart | ||
| 329160-100X | Conversion Kit (xd To Rk) | $1,314.59 | Add to Cart | |||
| 379688 | Spline Lubricant | 1 | $8.98 | Add to Cart | ||
| 329160-104X | Conversion Kit (xd To Rf) | $1,403.47 | Add to Cart | |||
| 329160-106X | Conversion Kit (xd To Rs) | $1,730.44 | Add to Cart | |||
| 21-P-769 | Pump Flange Rs | 1 | $477.36 | Add to Cart | ||
| 329160-108X | Conversion Kit (xd To Ry) | $1,604.03 | Add to Cart | |||
| 329160-110X | Conversion Kit (xd To Rz) | $1,386.40 | Add to Cart | |||
| 329160-143X | Conversion Kit (xd To Xr) | — | No longer available — call for replacement | |||
| 329906X | Pump Kit Xr | 1 | $330.30 | Add to Cart | ||
| 329160-116X | Conversion Kit (xd To Xv) | $1,766.44 | Add to Cart | |||
| 329160-145X | Conversion Kit (xd To Rb) | — | No longer available — call for replacement | |||
| 329160-118X | Conversion Kit (xd To Re) | $586.23 | Add to Cart | |||
| 21-P-880 | Bearing Cap Re | 1 | $246.35 | Add to Cart | ||
| 329160-142X | Conversion Kit (xd To Sd) | $523.13 | Add to Cart | |||
| 329650X | Electronic Overspeed Control | 1 | $1,358.05 | Add to Cart |
This is the complete factory parts breakdown for the Chelsea PTO 272F — every part in the manual, matched to our live inventory. We stock 140 of the 160 parts above; click any part number to view it, or add it straight to your cart. Click a number on any diagram to jump to that part.
No parts match that search — try the part number with no dashes.
