Chelsea PTO 441 Series Parts Manual
Model Number Designation
| Item | Part No. | Description | Qty | Notes | Price |
|---|

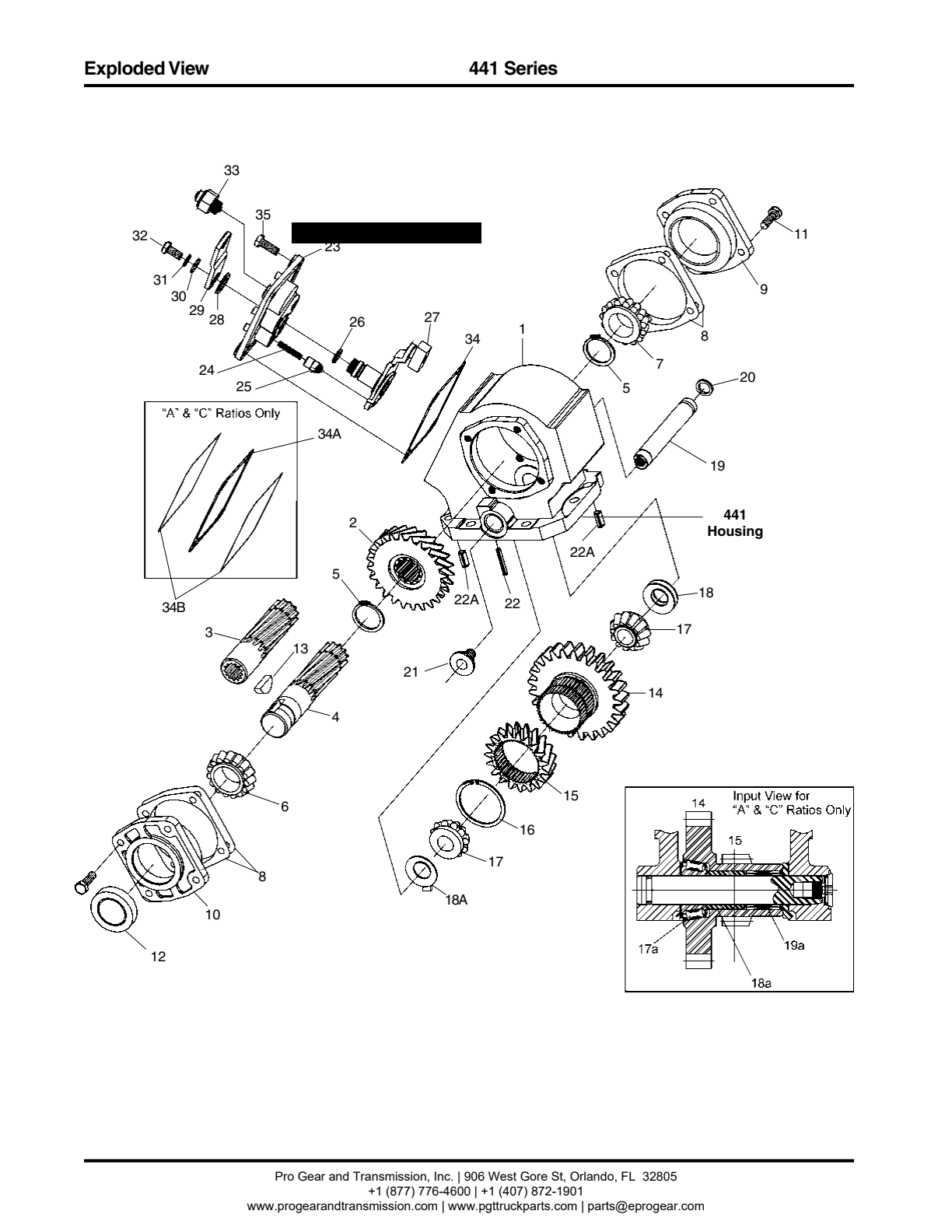

Bill of Materials 441 Series
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 1P570X | Housing Standard Mount (includes Item 22) | 1 | — | Call for availability | |
| 4 | 3P202 | Output Shaft, Standard 1 .125" Round .3125 K.w. | 1 | $95.42 | Add to Cart | |
| 4 | 3P766 | Output Shaft, Tapered | 1 | $787.30 | Add to Cart | |
| 379111 | Square Key, “xx” Output | 1 | $23.18 | Add to Cart | ||
| 501181 | Locknut, Hex “xx” Output | 1 | — | No longer available — call for replacement | ||
| 5 | 378391 | Lockring | 2 | $2.47 | Add to Cart | |
| 6 | 550397 | Bearing Cone, Open End | 1 | $36.75 | Add to Cart | |
| 7 | 550532 | Bearing Cone, Closed End | 1 | $36.75 | Add to Cart | |
| 8 | 22P241 | Bearing Cap Gasket (.010) | A.R. | $2.30 | Add to Cart | |
| 22P242 | Bearing Cap Gasket (.020) | A.R. | $10.49 | Add to Cart | ||
| 22P243 | Bearing Cap Gasket (.015) | A.R. | $10.49 | Add to Cart | ||
| 9 | 328274X | Bearing Cap Ass’y, Closed End | 1 | $64.09 | Add to Cart | |
| 550221 | Bearing Race | 1 | $14.19 | Add to Cart | ||
| 10 | 328273X | Bearing Cap Ass’y, Open End | 1 | $64.09 | Add to Cart | |
| 37843010 | Hex Capscrew .312"-18 X 1 .000" | 4 | $1.76 | Add to Cart | ||
| 12 | 28P216 | Oil Seal Standard Output Shaft | 1 | $21.40 | Add to Cart | |
| 13 | 50000729 | Woodruff Key | 1 | $3.11 | Add to Cart | |
| 16 | 379522 | Lockring | 1 | $5.76 | Add to Cart | |
| 17 | 550439 | Bearing Cone | 2 | $51.63 | Add to Cart | |
| 17A | 561006 | Bearing Cone (a & C Only) | 1 | $28.12 | Add to Cart | |
| 18A | 14P75 | Spacer, Input Bearing (a & C Only) | 1 | $29.12 | Add to Cart | |
| 19A | 550890 | Bearing Needle Roller (a & C Only) | 1 | $39.93 | Add to Cart | |
| 18 | 14P731 | Idler Gear Spacer (.149- .151) | A.R. | $10.38 | Add to Cart | |
| 14P732 | Idler Gear Spacer (.152- .154) | A.R. | $11.01 | Add to Cart | ||
| 14P733 | Idler Gear Spacer (.155- .157) | A.R. | $10.38 | Add to Cart | ||
| 14P734 | Idler Gear Spacer (.158- .160) | A.R. | $10.76 | Add to Cart | ||
| 14P735 | Idler Gear Spacer (.161 .163) | A.R. | — | No longer available — call for replacement | ||
| 18A | 31P102 | Tab Thrust Washer | 2 | $3.72 | Add to Cart | |
| 19 | 9P74 | Idler Shaft, Standard | 1 | $71.73 | Add to Cart | |
| 9P76 | Idler Shaft, Pressure Lube | 1 | — | Call for availability | ||
| 20 | 28P191 | O-ring | 1 | $3.59 | Add to Cart | |
| 21 | 379672 | Retainer Plug O-ring Hex Socket | 1 | $12.09 | Add to Cart | |
| 22 | 50059716 | Roll Pin (1 .125" Long) Standard Mount | 1 | $1.18 | Add to Cart | |
| 22A | 379860 | Slotted Spring Pins Cable Control Cover Assemblies For Ratios Q, W & X | 2 | $14.83 | Add to Cart | |
| 3291191X | Assemblies 3 & 6 | 1 | $176.78 | Add to Cart | ||
| 3291192X | Assemblies 4 & 5 For Ratios F, H L, R, S & U | 1 | $176.78 | Add to Cart | ||
| 3291211X | Assemblies 3 & 6 | 1 | $176.78 | Add to Cart | ||
| 3291212X | Assemblies 4 & 5 For Ratios A & C | 1 | $176.78 | Add to Cart | ||
| 3292711X | Shifter Cover Assy, Wire Control (assy 3 & 6) | 1 | $228.77 | Add to Cart | ||
| 3292712X | Shifter Cover Assy, Wire Control (assy 4 & 5) Required Table Continued On Following Page | 1 | $262.00 | Add to Cart | ||
| 23 | 34P74 | Shifter Cover | 1 | $44.57 | Add to Cart | |
| 34P39 | Shifter Cover, Constant Mesh | 1 | $54.10 | Add to Cart | ||
| 24 | 37P19 | Spring | 1 | $2.04 | Add to Cart | |
| 25 | 63P16 | Poppet | 1 | $9.26 | Add to Cart | |
| 26 | 28P191 | O-ring Post & Plate Ass’y For Ratios Q ,w, X | 1 | $3.59 | Add to Cart | |
| 27 | 3291181X | For Assemblies 3 & 6 | 1 | $69.07 | Add to Cart | |
| 3291182X | For Assemblies 4 & 5 Post & Plate Ass’y For Ratios F, L, R, S & U | 1 | $69.07 | Add to Cart | ||
| 3291201X | For Assemblies 3 & 6 | 1 | $81.03 | Add to Cart | ||
| 3291202X | For Assemblies 4 & 5 Post & Plate Ass’y For Ratios A & C | 1 | $86.10 | Add to Cart | ||
| 3292651X | For Assemblies 3 & 6 | 1 | $155.60 | Add to Cart | ||
| 3292652X | For Assemblies 4 & 5 | 1 | $173.93 | Add to Cart | ||
| 28 | 378004 | Flat Washer | 1 | $2.01 | Add to Cart | |
| 29 | 51P22 | Shifter Lever | 1 | $12.57 | Add to Cart | |
| 30 | 50036522 | Flat Washer | 1 | $1.05 | Add to Cart | |
| 31 | 50035610 | Lockwasher | 1 | $1.53 | Add to Cart | |
| 32 | 5004096 | Hex Capscrew | 1 | $1.23 | Add to Cart | |
| 33 | 379639 | Indicator Switch Pin Style | 1 | $25.03 | Add to Cart | |
| 34 | 35P8 | Gasket, Shift Cover | 1 | $3.48 | Add to Cart | |
| 34A | 5A188 | Gasket, Shifter Cover (“a” & “c” Ratio Only) | 1 | $147.38 | Add to Cart | |
| 34B | 35P8 | Gasket, Shifter Cover (“a” & “c” Ratio Only) | 2 | $3.48 | Add to Cart | |
| 35 | 3784309 | Hex Capscrew .312"-18 X .875" (cable Shift) | 4 | $1.76 | Add to Cart | |
| 3784308 | Hex Capscrew .312"-18 X .750" (electric, Lever, Air Shift) | 4 | $2.06 | Add to Cart | ||
| 3784306 | Hex Capscrew .312"-18 X .625" (constant Mesh) | 4 | $3.74 | Add to Cart | ||
| 717072X | Stud Kit, Metric Standard Mount | 1 | $53.10 | Add to Cart | ||
| 32834610X | Wire Control Cable (“w” Shifter) (includes 378441 -10 Cable And 378502 Knob) | 1 | $135.56 | Add to Cart | ||
| 329245X | Wire Control Bracket Kit (“c” Shifter) | 1 | $94.08 | Add to Cart | ||
| 328380X | Wire Control Parts Bag (“w” Shifter) | 1 | $13.25 | Add to Cart | ||
| 32838837X | Air Shift Installation Kit (“a” Shifter) | 1 | $367.41 | Add to Cart | ||
| 32838847X | Air Shift Installation Kit (“p” Shifter) | 1 | $563.43 | Add to Cart | ||
| 32838848X | Air Shift Installation Kit (“q” Shifter) | 1 | $544.19 | Add to Cart | ||
| 32838865X | Air Shift Installation Kit (“s” Shifter) | 1 | $762.60 | Add to Cart | ||
| 32838872X | Air Shift Installation Kit (“t” Shifter) | $762.60 | Add to Cart | |||
| 3287511X | Installation Kit (c, H W, X & Y Shifter) | 1 | $65.59 | Add to Cart | ||
| 68P18 | Name Plate | 1 | $4.50 | Add to Cart | ||
| 378978 | 12V Indicator Light | 1 | $25.82 | Add to Cart | ||
| 378884 | 9-Amp Fuse Holder | 1 | $5.99 | Add to Cart | ||
| 379252 | Butt Connector | 2 | $2.30 | Add to Cart | ||
| 379640 | Connector | 1 | $18.40 | Add to Cart | ||
| 32894824X | Gaskets & Installation Instructions | 1 | — | Call for availability | ||
| 32916612X | Electric Shift Installation Kit | 1 | — | Call for availability | ||
| 32835613X | Gasket & Seal Kit | 1 | $55.97 | Add to Cart | ||
| 32835615X | Shift Cover Seal Kit (cable Control) | 1 | $85.55 | Add to Cart | ||
| 32835617X | Shift Cover Seal Kit (air Shift) | 1 | $77.91 | Add to Cart | ||
| 32835626X | Shift Cover Seal Kit (lever Control) | 1 | — | Call for availability | ||
| 329143X | Shift Shaft Cover Kit (includes Items 60, 61 62 On Pg 7) , . | 1 | $42.55 | Add to Cart | ||
| 329218X | Indicator Switch Service Kit | 1 | $18.40 | Add to Cart | ||
| 32859413X | Bearing & Spacer Kit, Standard Idler Shaft | $228.03 | Add to Cart | |||
| 14P731 | Spacer Idler Gear (.149 .151) | 1 | $10.38 | Add to Cart | ||
| 28P191 | O-ring | 1 | $3.59 | Add to Cart | ||
| 31P102 | Thrust Washer | 1 | $3.72 | Add to Cart | ||
| 379672 | Nwd Plug | 1 | $12.09 | Add to Cart | ||
| 550439 | Bearing | 2 | $51.63 | Add to Cart | ||
| 9P88 | Idler Shaft | 1 | $79.32 | Add to Cart | ||
| 32859414X | Bearing & Spacer Kit, Pressure Lube Idler Shaft | $296.36 | Add to Cart | |||
| 379484 | Hex Socket, Straight Thread | 1 | $6.85 | Add to Cart | ||
| 38P102 | Washer, Thrust | 1 | — | Call for availability | ||
| 5008411 | 90° Elbow | 1 | $9.09 | Add to Cart | ||
| 9P89 | Idler Shaft | 1 | $207.54 | Add to Cart |
Lever Control Parts (“Y” Designator) 441 Series
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 3290351X | Lever Control Assembly (ass’y 3 & 6) | 1 | — | No longer available — call for replacement | ||
| 3290352X | Lever Control Assembly (ass’y 4 & 5) Shown Above Include Items 49 Thru 64) | 1 | — | Call for availability | ||
| 49 | 34P87 | Shift Cover | 1 | — | Call for availability | |
| 50 | 32P166 | Shifter Fork | 1 | $106.87 | Add to Cart | |
| 51 | 11P112 | Shifter Shaft | 1 | $51.93 | Add to Cart | |
| 52 | 3784474 | Socket Head Capscrew | 1 | $1.78 | Add to Cart | |
| 53 | 28P207 | Oil Seal | 2 | $19.83 | Add to Cart | |
| 54 | 5003813 | Hex Lock Nut (.375"-24) | 1 | $1.10 | Add to Cart | |
| 55 | 36P1 | Eye Bolt | 1 | $56.02 | Add to Cart | |
| 56 | 379639 | Indicator Switch | 1 | $25.03 | Add to Cart | |
| 57 | 378002 | Poppet Ball | 1 | $1.63 | Add to Cart | |
| 58 | 37P41 | Poppet Spring | 1 | $4.45 | Add to Cart | |
| 59 | 378554 | Poppet Cap | 1 | $12.41 | Add to Cart | |
| 60 | 35P14 | Gasket, Shifter Shaft Cover | 1 | $2.88 | Add to Cart | |
| 61 | 65P23 | Shifter Shaft Cover | 1 | $20.58 | Add to Cart | |
| 62 | 3784304 | Hex Capscrew (.312"-18 X .500") | 2 | $6.00 | Add to Cart | |
| 63 | 35P8 | Gasket, Shifter Cover | 1 | $3.48 | Add to Cart | |
| 64 | 3784308 | Hex Capscrew (.312"-18 X .750") | 4 | $2.06 | Add to Cart |
Air Control Parts 441 Series
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 3290361X | Shift Cover Assembly 12V (ass’y 3 & 6) | 1 | $337.38 | Add to Cart | ||
| 3290362X | Shift Cover Assembly 12V (ass’y 4 & 5) S Shown Above Include Items 65 Thru 82) | 1 | $337.38 | Superseded by 329361XAdd to Cart | ||
| 65 | 34P76 | Shift Cover | 1 | — | Call for availability | |
| 66 | 32P166 | Shifter Fork | 1 | $106.87 | Add to Cart | |
| 67 | 11P112 | Shifter Shaft | 1 | $51.93 | Add to Cart | |
| 68 | 3784474 | Socket Head Capscrew (.312"-18 X .750") | 3 | $1.78 | Add to Cart | |
| 69 | 28P207 | Oil Seal | 1 | $19.83 | Add to Cart | |
| 70 | 37P25 | Return Spring | 1 | $11.57 | Add to Cart | |
| 71 | 378462 | Washer | 1 | $1.61 | Add to Cart | |
| 72 | 378908 | Button Head Capscrew | 1 | — | No longer available — call for replacement | |
| 73 | 66P22 | Piston | 1 | $9.22 | Add to Cart | |
| 74 | 28P41 | O-ring | 1 | $5.03 | Add to Cart | |
| 75 | 35P14 | Gasket, Shifter Shaft Cover | 2 | $2.88 | Add to Cart | |
| 76 | 65P14 | Cylinder | 1 | $120.90 | Add to Cart | |
| 77 | 379231 | Pipe Plug | 1 | $1.50 | Add to Cart | |
| 78 | 65P23 | Shifter Shaft Cover | 1 | $20.58 | Add to Cart | |
| 79 | 3784304 | Hex Capscrew (.312"-18 X .500") | 2 | $6.00 | Add to Cart | |
| 80 | 379639 | Indicator Switch | 1 | $25.03 | Add to Cart | |
| 81 | 35P8 | Gasket, Shift Cover | 1 | $3.48 | Add to Cart | |
| 82 | 3784308 | Hex Capscrew (.312"-18 X .750") Air Shift Field Conversion Kits | 4 | $2.06 | Add to Cart | |
| 32839085X | Lever To Air Shift | 1 | — | Call for availability | ||
| 328390117X | Cable To Air (ass’y 3 & 6) | 1 | $576.15 | Add to Cart | ||
| 328390118X | Cable To Air (ass’y 4 & 5) | 1 | $576.15 | Add to Cart | ||
| 328390119X | Cable To Electric/air 12V (ass’y 3 & 6) | 1 | $1,071.10 | Add to Cart | ||
| 328390120X | Cable To Electric/air 24V (ass’y 3 & 6) | 1 | $708.43 | Add to Cart | ||
| 328390121X | Cable To Electric/air 12V (ass’y 4 & 5) | 1 | — | Call for availability | ||
| 328390122X | Cable To Electric/air 24V (ass’y 4 & 5) | 1 | — | Call for availability |
E-Z Shift™ Parts ("Z" Designator) 441 Series
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 3291651X | Shift Cover Assembly 12V (ass’y 3 & 6) | 1 | — | Call for availability | ||
| 3291652X | Shift Cover Assembly 12V (ass’y 4 & 5) Shown Above Include Items 38 Thru 46) | 1 | — | Call for availability | ||
| 38 | 34P76 | Shift Cover | 1 | — | Call for availability | |
| 39 | 32P166 | Shifter Fork | 1 | $106.87 | Add to Cart | |
| 40 | 32922512X | Electric Shift Ass’y | 1 | — | Call for availability | |
| 41 | 3784474 | Socket Head Capscrew (.312"-18 X .500") | 1 | $1.78 | Add to Cart | |
| 42 | 28P207 | Oil Seal | 1 | $19.83 | Add to Cart | |
| 43 | 379639 | Indicator Switch 12 Volt | 1 | $25.03 | Add to Cart | |
| 44 | 35P14 | Gasket, Shifter Shaft Cover | 1 | $2.88 | Add to Cart | |
| 45 | 65P23 | Shifter Shaft Cover | 1 | $20.58 | Add to Cart | |
| 46 | 3784304 | Hex Capscrew (.312"-18 X .500") | 4 | $6.00 | Add to Cart | |
| 47 | 3784308 | Hex Capscrew (.312"-18 X .750") | 4 | $2.06 | Add to Cart | |
| 48 | 35P8 | Gasket, Shifter Cover Electric Shift Field Conversion Kits | 1 | $3.48 | Add to Cart | |
| 328390105X | Lever To Electric/air 12V | 1 | — | Call for availability | ||
| 328390106X | Lever To Electric/air 24V | 1 | — | Call for availability | ||
| 328390138X | Cable To Electric 12V (ass’y 3 & 6) | 1 | — | Call for availability | ||
| 328390139X | Cable To Electric 12V (ass’y 4 & 5) | 1 | — | Call for availability | ||
| 328390140X | Lever To Electric/air 12V | 1 | — | Call for availability |
For P.t.o.’s Ordered Without the Shifter (shifter Type “H ”), the Kits Shown Below Will Provide All the Components Required to Complete the Assembly
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 83 | 5P1243 | Input Gear | 1 | $810.05 | Add to Cart | |
| 84 | 54P166 | Spacer, Drive Shaft | 1 | — | Call for availability | |
| 85 | 4P167 | Spacer, Drive Shaft | 1 | — | Call for availability | |
| 86 | 378391 | Lockring | 1 | $2.47 | Add to Cart | |
| 34P39 | Cover Plate, Shifter | 1 | $54.10 | Add to Cart | ||
| 35P8 | Gasket, Shifter Cover | 1 | $3.48 | Add to Cart | ||
| 3784306 | Capscrews, Hex Head (.312-18 X .625) Model Part Gear No. Number Number Type Teeth 441 **ja 5-P-1243 Left Hand Helix 27 441 *aja 5-P-1366 Left Hand Helix 27—14 441 *cja 5-P-1368 Left Hand Helix 27—16 441 *fja 5-P-1340 Left Hand Helix 27—21 441 *hja 5-P-1342 Left Hand Helix 27—23 Input Output No.teeth Ratio Part Number No. Chart A 2-P-791 - Chart C 2-P-792 - Chart F 2-P-726 - Chart H 2-P-802 - | 4 | $3.74 | Add to Cart | ||
| 5P964 | 25 L 2-P-727 | 34 | $227.25 | Add to Cart | ||
| 5P965 | 19 Q 2-P-559 | 24 | $227.25 | Add to Cart | ||
| 5P1214 | 22 R 2-P-559 | 24 | $227.27 | Add to Cart | ||
| 5P966 | 24 S 2-P-637 | 22 | $257.25 | Add to Cart | ||
| 5P967 | 26 U 2-P-560 | 20 | $227.25 | Add to Cart | ||
| 5P968 | 26 W 2-P-561 | 17 | $227.25 | Add to Cart | ||
| 5P969 | 38 X 2-P-728 | 21 | $227.25 | Add to Cart |
Direct Mount Pump Conversion Kits 441 Series
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 32859130X | Kit For A F | $508.28 | Add to Cart | |||
| 32859128X | Kit For A K | $392.52 | Add to Cart | |||
| 32859170X | Kit For A Z | $903.54 | Add to Cart | |||
| 32859129X | Kit For Ff | — | No longer available — call for replacement | |||
| 32859172X | Kit For G A | $591.49 | Add to Cart | |||
| 32859174X | Kit For Gb | $591.49 | Add to Cart | |||
| 32859171X | Kit For Gf | $845.87 | Add to Cart | |||
| 32859189X | Kit For Gk | $569.55 | Add to Cart | |||
| 32859190X | Kit For Gp | $483.90 | Add to Cart | |||
| 32859191X | Kit For Gq | $626.74 | Add to Cart | |||
| 32859176X | Kit For Gr | — | No longer available — call for replacement | |||
| 32859192X | Kit For G Y | $700.87 | Add to Cart | |||
| 32859193X | Kit For Gz | $808.83 | Add to Cart | |||
| 32859144X | Kit For La | — | Call for availability | |||
| 32859145X | Kit For Lb | — | Call for availability | |||
| 32859146X | Kit For Lc | — | Call for availability | |||
| 32859148X | Kit For Lf | $1,029.12 | Add to Cart | |||
| 32859155X | Kit For Ra | $382.35 | Add to Cart | |||
| 32859156X | Kit For Rb | $382.35 | Add to Cart | |||
| 32859178X | Kit For Rf | $586.51 | Add to Cart | |||
| 32859127X | Kit For X E | $402.60 | Add to Cart | |||
| 32859110X | Kit For X G | $174.50 | Add to Cart | |||
| 32859111X | Kit For X J | $369.75 | Add to Cart | |||
| 32859116X | Kit For X K | $357.11 | Add to Cart | |||
| 32859118X | Kit For X L | — | Call for availability | |||
| 32859126X | Kit For X O | — | Call for availability | |||
| 32859123X | Kit For X P | — | Call for availability | |||
| 32859117X | Kit For Xq | $357.11 | Add to Cart | |||
| 32859152X | Kit For X R | $260.80 | Add to Cart | |||
| 21P525 | Xr To “xk” Conversion — Flange Type Flange | — | Call for availability |
Pump Conversion Kit Bill of Materials 441 Series
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 32859130X | 329088X 3-P-854 378447-10 28-P-219 | $508.28 | Add to Cart | |||
| 32859128X | 328989X 3-P-282 378447-8 28-P-216 | $392.52 | Add to Cart | |||
| 32859170X | 329052X 3-P-844 378447-1 1 28-P-230 | $903.54 | Add to Cart | |||
| 32859129X | 329088X 3-P-851 378447-10 28-P-219 | — | No longer available — call for replacement | |||
| 32859172X | 329195X 3-P-923X 378447-6 28-P-216 328273X 378430-10 | 28-P-268 | $591.49 | Add to Cart | ||
| 32859174X | 329195X 3-P-923X 378447-6 28-P-216 328273X 378430-10 | 28-P-268 | $591.49 | Add to Cart | ||
| 32859171X | 329088X 3-P-921X 378447-10 28-P-219 328273X 378430-10 | 28-P-268 | $845.87 | Add to Cart | ||
| 32859189X | 328333X 3-P-933X 378447-8 28-P-216 328273X 378430-10 | 28-P-268 | $569.55 | Add to Cart | ||
| 32859190X | 328328X 3-P-933X 378447-8 28-P-216 328273X 378430-10 | 28-P-268 | $483.90 | Add to Cart | ||
| 32859191X | 328589X 3-P-933X 378442-8 28-P-216 328273X 378430-10 | 28-P-268 | $626.74 | Add to Cart | ||
| 32859176X | 329194X 3-P-923X 3796738 28-P-216 328273X 378430-10 | 28-P-268 | — | No longer available — call for replacement | ||
| 32859192X | 329234X 3-P-938X 378430-10 28-P-216 328273X 378430-10 | 28-P-268 | $700.87 | Add to Cart | ||
| 32859193X | 329052X 3-P-939X 378447-1 1 28-P-230 328273X 378430-10 | 28-P-268 | $808.83 | Add to Cart | ||
| 32859144X | 328989X 3-P-858 378447-8 28-P-216 | — | Call for availability | |||
| 32859145X | 328328X 3-P-858 378447-8 28-P-216 | — | Call for availability | |||
| 32859146X | 328589X 3-P-858 378447-8 28-P-216 328273X 3-P-857 378430-10 28-P-216 | — | Call for availability | |||
| 32859148X | 328333X 3-P-858 378447-8 28-P-216 | $1,029.12 | Add to Cart | |||
| 32859155X | 329195X 3-P-283 378447-6 28-P-216 | $382.35 | Add to Cart | |||
| 32859156X | 329195X 3-P-283 348447-6 28-P-216 | $382.35 | Add to Cart | |||
| 32859178X | 329264X 3-P-924 378447-6 28-P-219 | $586.51 | Add to Cart | |||
| 32859127X | 329328X 3-P-800 348447-8 28-P-216 | $402.60 | Add to Cart | |||
| 32859110X | 329580X 3-P-281 348447-8 28-P-216 | $174.50 | Add to Cart | |||
| 32859111X | 329580X 3-P-284 348447-8 28-P-216 | $369.75 | Add to Cart | |||
| 32859116X | 329333X 3-P-282 348447-8 28-P-216 | $357.11 | Add to Cart | |||
| 32859118X | 329580X 3-P-283 348447-8 28-P-216 | — | Call for availability | |||
| 32859126X | 329328X 3-P-284 348447-8 28-P-216 | — | Call for availability | |||
| 32859123X | 329328X 3-P-282 348447-8 28-P-216 | — | Call for availability | |||
| 32859117X | 329589X 3-P-282 348447-8 28-P-216 | $357.11 | Add to Cart | |||
| 32859152X | 329194X 3-P-283 3796738 28-P-216 329234X 3-P-768 378430-10 28-P-230 Shown In The Illustration Plus Lockring (item 5) And Bearing Cap Gasket (item 8) , Fasten The Flange Assembly 328195X To The Housing And Three To Fasten The Rotatable Flange To Only Rotated 90° Ak, Xp, Xq, Xn Or Xk Output To The Lube Pump Option Use 329097-1X. , , Xd Output To The Lube Pump Option Use 329096-1X | $260.80 | Add to Cart |
Pump Flange and Shaft Dimensions 441 Series
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 2834M1015 | 6 2.050 N/a N/a N/a 3.447 .982/.816 6 Spline - | — | Call for availability | |||
| 371031224 | 4 2.752 0.281 N/a N/a 2.809 7/8"-13 Spline In 30° Increments 14° Apart To An “xk” Use Conversion Flange Number 21 -P-525 , . | — | Call for availability |
Model Number Designation 441 Series
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 03911C04891 | Aa = Special For England Af = S.a.e. “bb” 2 Or | 4 Bolt | — | Call for availability | ||
| 05201H07131 | Ak = S.a.e. “b” 2 Bolt Az = S.a.e. “b” 4 Bolt | 1 .250" 14T | — | Call for availability | ||
| 06911Q08651 | Ff = S.a.e. “b” 2 Or 4 Bolt Ra = Rotatable S.a.e. | “B” 2 Bolt | — | Call for availability | ||
| 09411S1 | .205:1 Rb = Rotatable S.a.e. “b” 4 Bolt Rc = Rotatable S.a.e. | “A” 2 Bolt | — | Call for availability | ||
| 14101W1 | .713:1 Rd = Rotatable S.a.e. “a” 2 Bolt Rf = Rotatable S.a.e. | “BB” 2 Bolt | — | Call for availability |
Additional Parts Listed in This Manual
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 329106-39X | Air Shift (ass'y 3 & 6) | $575.22 | Add to Cart | |||
| 329106-40X | Air Shift (ass'y 4 & 5) | $575.22 | Add to Cart | |||
| 329106-43X | Electric/air 12V (ass'y 3 & 6) | $825.45 | Add to Cart | |||
| 329106-44X | Electric/air 12V (ass'y 4 & 5) | — | Call for availability | |||
| 329106-45X | Electric/air 24V (ass'y 3 & 6) | — | No longer available — call for replacement | |||
| 329106-46X | Electric/air 24V (ass'y 4 & 5) | — | Call for availability | |||
| 329106-47X | Lever Shift 12V (ass'y 3 & 6) | — | Call for availability | |||
| 329106-48X | Lever Shift 12V (ass'y 4 & 5) | — | Call for availability | |||
| 329106-105X | Cable Shift (q, W, X Ratios, Ass'y 3 & 6) | $299.76 | Add to Cart | |||
| 329106-106X | Cable Shift (q, W, X Ratios, Ass'y 4 & 5) | $295.91 | Add to Cart | |||
| 329106-107X | Cable Shift, Less Cable (q, W, X Ratios, Ass'y 3 & 6) | $234.58 | Add to Cart | |||
| 329106-108X | Cable Shift, Less Cable (q, W, X Ratios, Ass'y 4 & 5) | $234.58 | Add to Cart | |||
| 329106-109X | Cable Shift (f,r,l,s,u Ratios, Ass'y 3 & 6) | $291.44 | Add to Cart | |||
| 329106-110X | Cable Shift (f,r,l,s,u Ratios, Ass'y 4 & 5) | $291.44 | Add to Cart | |||
| 329106-111X | Cable Shift, Less Cable (f,r,l,s,u Ratios, Ass'y 3 & 6) | $270.02 | Add to Cart | |||
| 329106-112X | Cable Shift, Less Cable (f,r,l,s,u Ratios, Ass'y 4 & 5) | $270.02 | Add to Cart | |||
| 329106-125X | Easy Shift 12V (ass'y 3 & 6) | — | Call for availability | |||
| 329106-126X | Easy Shift 12V (ass'y 4 & 5) | — | Call for availability |
This is the complete factory parts breakdown for the Chelsea PTO 441 — every part in the manual, matched to our live inventory. We stock 200 of the 259 parts above; click any part number to view it, or add it straight to your cart. Click a number on any diagram to jump to that part.
No parts match that search — try the part number with no dashes.
This Chelsea Illustrated Parts List covering the 441 PTO helps you identify the correct gear sets, shifter kits and service parts for your power take-off before you order.
| Models covered | 441 |
| PTO type | Chelsea 400 Series |
| Document | Illustrated Parts List (Chelsea) |
| Length | 20 pages |
| Format | PDF — free download |
What’s inside
- Gear sets & output shaft assemblies
- Shifter & air-shift control kits
- Mounting gaskets & adapter plates
- Housings & cover assemblies
- Seal, bearing & snap-ring kits
- Application & ratio reference tables
- Exploded views with OEM part numbers
Chelsea parts & units we stock
Pro Gear and Transmission stocks new, remanufactured and good-used parts for Chelsea PTO units:
Not sure exactly which unit you have? Check our identification guides, or Ask an Expert — send us photos of your data tag and our drivetrain specialists will identify the unit and the exact parts you need. Or call (877) 776-4600.
Browse all Chelsea PTO parts — rebuild kits, seal kits, gears & shift covers — or shop complete Chelsea PTO units.
