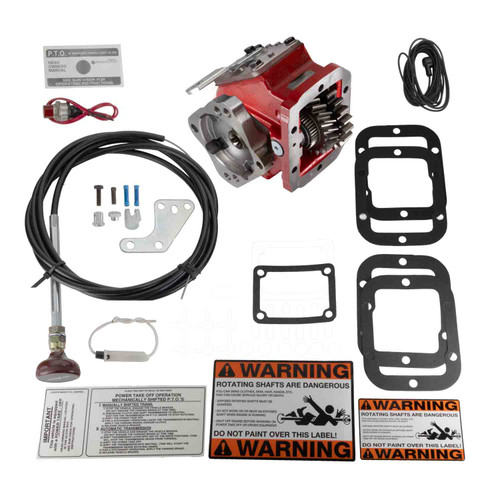

The Chelsea 442 Series Power Take-Off, part number 442KRAPX-W5XK or 442KRAPXW5XK, fits virtually all existing 6-bolt transmission applications. The series uses a cast iron housing with tapered cone bearings on the output shaft, giving it an intermittent torque rating in the 201-300 lb-ft range and output power of 46-55 HP. Shift type is wire/cable mechanical. The output shaft is a round 1-inch shaft with a 1/4-inch key. Chelsea's 442 Series suits light-to-medium duty vocational work including dump trucks, service trucks, tow trucks, and aerial equipment. Call us to confirm proper fit for your transmission and application before ordering.
Features
Chelsea 442 Series PTO, part number 442KRAPX-W5XK or 442KRAPXW5XK
6-bolt mounting for broad transmission compatibility
Cast iron housing with tapered cone bearings on the output shaft
Round 1-inch output shaft with 1/4-inch key
Wire/cable mechanical shift type
Suited for dump trucks, service trucks, tow trucks, and aerial applications
Tech Specs
- Mounting Type: 6-Bolt
- Shift Type: Wire/Cable, Mechanical
- Output Shaft Type: Round Shaft, 1 in. with 1/4 in. Key
- Intermittent Torque (Series): 201-300 lb-ft (339 Nm) - check application pages for actual rating
- Output Power (Series): 46-55 HP
- Shaft Power: 24 HP at 500 RPM, 48 HP at 1,000 RPM
- Housing Material: Cast Iron
- Bearings: Tapered Cone Bearings on Output Shaft
- Product Series: 442
