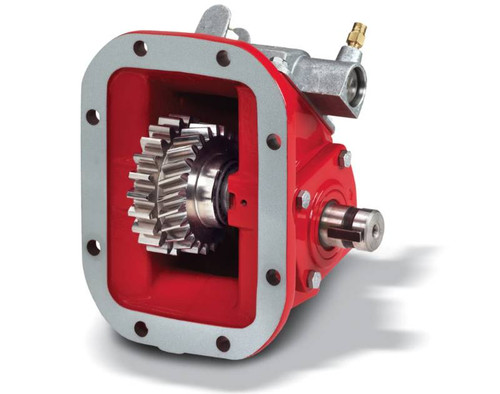

The Chelsea 442 Series Power Take-Off, part number 442XQAHX-M3XY or 442XQAHXM3XY, is a 6-bolt mounting PTO built for light-to-medium duty vocational truck work. The 442 Series features a cast iron housing and tapered cone bearings on the output shaft, which together deliver the series' class-leading torque rating and extended service life. The series carries an intermittent torque rating of 250 lb-ft (339 Nm) and output shaft power of 48 HP at 1,000 RPM. Shift is via wire/cable mechanical actuation. Typical applications across the 442 Series include dump trucks, tow and recovery trucks, service trucks, and aerial equipment. Call us to confirm proper fit for your specific transmission and application.
Features
Chelsea 442 Series Power Take-Off, part number 442XQAHX-M3XY or 442XQAHXM3XY
6-bolt mounting compatible with a wide range of transmission applications
Cast iron housing with tapered cone bearings on the output shaft
Wire/cable mechanical shift actuation
Series intermittent torque rating: 250 lb-ft (339 Nm); 48 HP output at 1,000 RPM
Suited for dump trucks, tow and recovery trucks, service trucks, and aerial equipment
Tech Specs
- Mounting Type: 6-Bolt
- Shift Type: Wire/Cable, Mechanical
- Output Shaft Type: Round Shaft (1-1/4" Key)
- Intermittent Torque Rating: 250 lb-ft (339 Nm) - check application pages for actual torque rating
- Output Power: 48 HP at 1,000 RPM (series rating)
- Housing Material: Cast Iron
- Bearing Type: Tapered Cone Bearings
- Product Series: Chelsea 442
