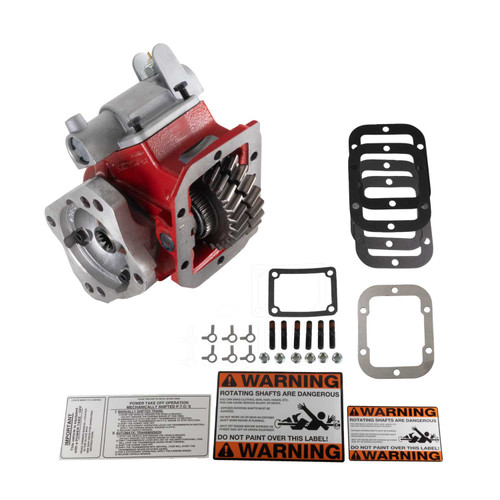

The Chelsea 442 Series Power Take-Off, part number 442ZSFNX-V5XK or 442ZSFNXV5XK, is a 6-bolt transmission-mount PTO built for light-to-medium duty vocational service. The 442 Series uses a cast iron housing with tapered cone bearings on the output shaft, delivering an intermittent torque rating of 250 lb-ft (339 Nm) for the series. Shift is accomplished via wire/cable mechanical actuation. Output shaft is a round shaft with a 1-1/4" key. The 442 Series supports output power up to 48 HP at 1,000 RPM and is a proven fit for dump trucks, tow trucks, service trucks, and aerial equipment. Call us to confirm proper fit for your specific transmission and application.
Features
Chelsea 442 Series, 6-bolt transmission mounting
Wire/cable mechanical shift actuation
Cast iron housing with tapered cone bearings on output shaft
Intermittent torque rating: 250 lb-ft (339 Nm) series rating
Output shaft: round shaft with 1-1/4" key
Output power: up to 48 HP at 1,000 RPM (series rating)
Tech Specs
- Mounting Type: 6-Bolt
- Shift Type: Wire/Cable, Mechanical
- Output Shaft Type: Round Shaft (1-1/4" Key)
- Intermittent Torque (Series): 250 lb-ft / 339 Nm
- Output Power (Series): up to 48 HP at 1,000 RPM / 36 kW at 1,000 RPM
- Housing: Cast Iron
- Bearings: Tapered Cone (Output Shaft)
