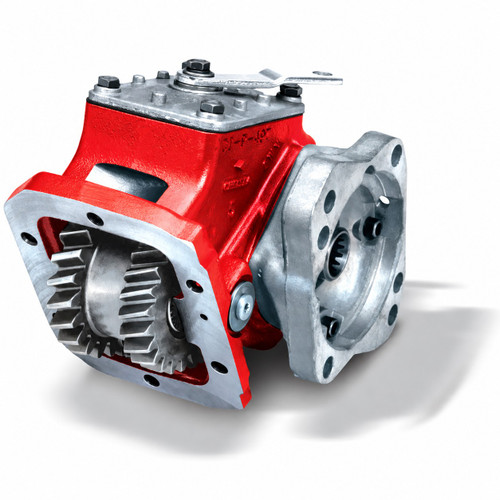

The Chelsea 447 Series Power Take-Off, part number 447KSESX-A5RK or 447KSESXA5RK, is built around a one-piece input gear with a deliberate space between its two sets of gear teeth. That design eliminates internal gear interference in the transmission PTO aperture, a problem that disqualifies conventional PTOs on certain Eaton FS series and other transmissions. Mounting is 6-bolt with no adapter plate required. Shift is air shift. The 447 Series delivers up to 43 HP at 1,000 RPM, with intermittent torque ratings in the 201-300 lb-ft range (verify actual torque on the Chelsea application pages for your specific unit). Compatible with Eaton/Fuller, ZF, and other transmission makes. Call us to confirm proper fit for your application.
Features
6-bolt mounting with no adapter plate required
One-piece input gear eliminates gear interference inside the transmission PTO opening
Shift type: air shift
Rotatable SAE B 2 or 4-bolt flange with a 7/8" 13-tooth SAE B shaft
Shaft power: 21 HP at 500 RPM, 43 HP at 1,000 RPM
Intermittent torque: 201-300 lb-ft (check Chelsea application pages for your specific torque rating)
Compatible with Eaton/Fuller, ZF, and other transmission manufacturers
Tech Specs
- Mounting Option: Standard Mount without Stud Kit (K)
- Gear Ratio Code: S
- Input Gear Designator: ES
- Lube Option: No Pressure Lube (X)
- Shift Option: Air Shift (A)
- Assembly Arrangement: 5
- Output Option: Rotatable SAE B 2 or 4-Bolt Flange, SAE B Shaft (7/8" 13T) (RK)
- Mounting Type: 6-Bolt
- Output Power: 36-45 HP (31-40 kW)
- Shaft Power: 21 HP (500 RPM), 43 HP (1,000 RPM) / 16 kW (500 RPM), 32 kW (1,000 RPM)
- Intermittent Torque: 201-300 lb-ft / 301-400 Nm (check application pages for actual torque ratings for your specific unit)
- Transmission Compatibility: Eaton/Fuller, ZF, and other manufacturers
Additional Information
Parts manual and diagrams: Chelsea 447 Series PTO parts list with prices
