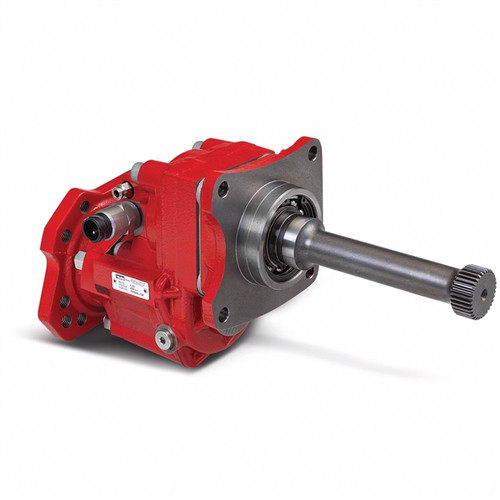

The Chelsea 524 Series Power Take-Off, part number 524XMDAX-P-XV or 524XMDAXPXV, is a rear mount PTO designed to eliminate clearance issues by using the rear mount aperture available on certain transmissions. The 524 Series features pneumatic shift, an ISO 7653 80mm x 80mm mounting interface, and a dry spline output configuration. The series intermittent torque rating reaches 407 lb-ft, with output power ranging from 49 to 57 HP at 100 RPM output shaft speed. The compact two-gear housing integrates six shift options and accommodates direct mount pump output flanges. Input adapters are available for ZF, Mack mDrive, Volvo I-Shift, and Eaton Endurant transmissions. Call us to confirm proper fit for your application.
Features
Chelsea 524 Series rear mount PTO, part number 524XMDAX-P-XV or 524XMDAXPXV
Pneumatic shift with six shift options integrated into the PTO housing
ISO 7653 80mm x 80mm mounting interface, dry spline output configuration
Intermittent torque rating up to 407 lb-ft; output power 49-57 HP at 100 RPM output shaft
Compatible with input adapters for ZF, Mack mDrive, Volvo I-Shift, and Eaton Endurant transmissions
Compact two-gear housing with direct mount pump output flange options
Tech Specs
- Mounting Type: Rear Mount
- Shift Type: Pneumatic
- Mounting Option: ISO 7653 80mm x 80mm Mount
- Output Shaft Type: DIN 5462 / 4-Bolt DIN 5462
- Lubricant/Spline: Dry Spline
- Intermittent Torque Rating: 407 lb-ft
- Output Power: 49 to 57 HP (at 100 RPM Output Shaft)
- Product Series: 524
