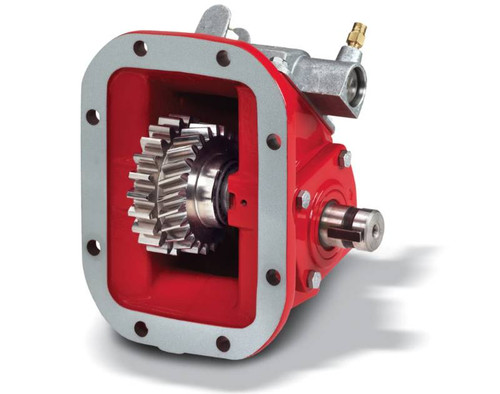

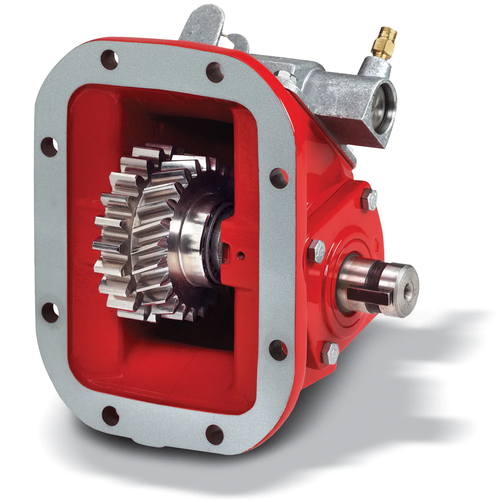

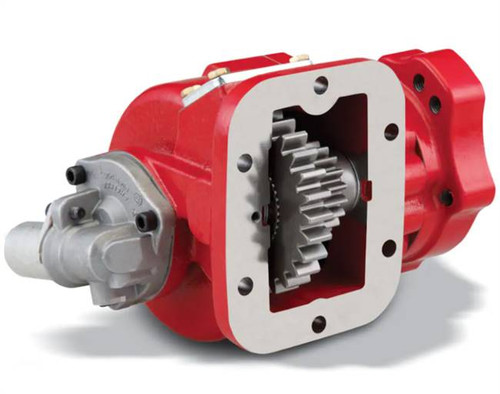

The Chelsea 680XQAHX-V5RF (also referenced as 680XQAHXV5RF) is a 680 Series Power Take-Off built around an 8-bolt mounting configuration for manual transmission applications. The 680 Series uses a cast iron housing with tapered cone bearings on the output shaft and tapered bearings on the input shaft, giving it higher load-bearing capability than needle-bearing designs. It covers Eaton Fuller transmissions and includes a deep-mount housing option suited to Mack applications. The series supports four internal speed ratios and ten shift options, including wire/cable and mechanical shift. Output options span SAE A, SAE B, and SAE C pump flanges, a 1410 companion flange, and multiple spline configurations. Call us to confirm the exact output configuration and ratio for your application.
Features
8-bolt mounting for most manual transmission applications including Eaton Fuller and Mack
Cast iron housing with tapered cone bearings on the output shaft for high torque capacity
Tapered input shaft bearings for greater load bearing over needle-bearing designs
Four internal speed ratios and ten shift options including wire/cable and mechanical
Multiple output configurations: SAE A, B, C pump flanges; 1410 companion flange; round and spline shafts
Space-saving air shift cover provides clearance under the truck
Tech Specs
- Mounting Type: 8-Bolt
- Transmission Compatibility: Eaton/Fuller, Volvo/Mack, Daimler/Detroit
- Shift Type: Wire/Cable or Mechanical
- Output Types Available: SAE A Pump Flange, SAE B Pump Flange, SAE C Pump Flange, ISO 7652 Pump Flange, Driveline
- Output Shaft Options: Round Shaft (1-1/4 in. with 5/16 in. key), SAE A (5/8 in. - 9T) Pump Spline, SAE B (7/8 in. - 13T) Pump Spline, SAE BB (1 in. - 15T) Pump Spline, SAE C (1-1/4 in. - 14T) Pump Spline, 1410 Companion Flange
- Intermittent Torque Rating (Series): 301-400 lb-ft (check application pages for actual torque rating)
- Continuous Operation: Yes, with 30% de-rating
- Output Power (Series): 56+ HP / 51+ kW
- Housing Material: Cast Iron
Additional Information
Parts Manual: Chelsea 680 Series PTO Parts Manual (PDF) — exploded views, item numbers and the full parts breakdown for this series.
