Chelsea PTO 700 Series Parts Manual

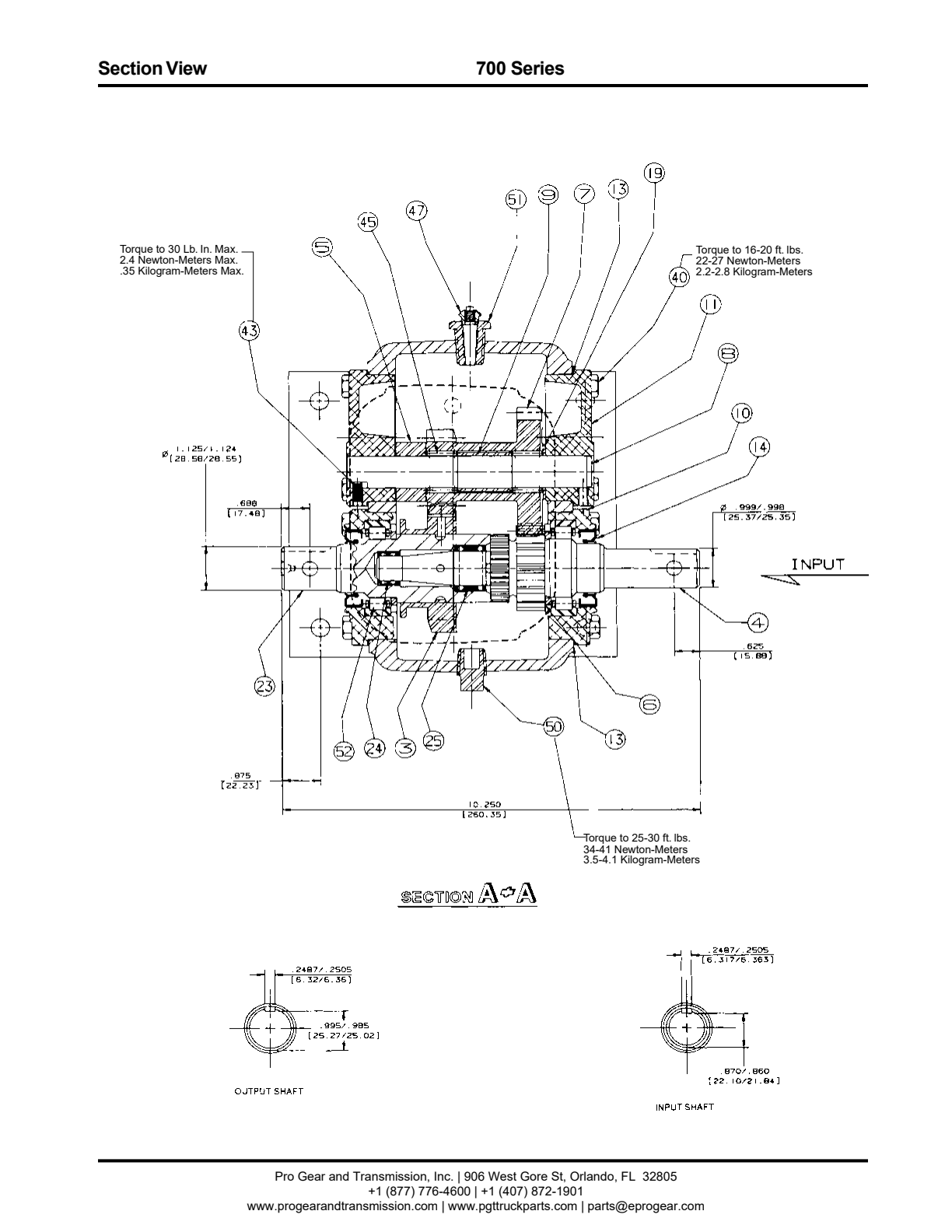

Section View 700 Series M " " -R
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 1P233 | Housing Gearbox | 1 | — | Call for availability | |
| 3 | 2P418 | Gear, Sliding | 1 | $256.34 | Add to Cart | |
| 4 | 3P536 | Shaft, Input | 1 | — | Call for availability | |
| 5 | 4P90 | Spacer | 1 | $28.64 | Add to Cart | |
| 6 | 4P91 | Spacer | 2 | — | No longer available — call for replacement | |
| 7 | 5P439 | Gear, Idler | 1 | $416.16 | Add to Cart | |
| 8 | 9P48 | Shaft, Idler | 1 | $124.44 | Add to Cart | |
| 9 | 14P40 | Spacer | 1 | — | Call for availability | |
| 10 | 21P197 | Cover, Bearing | 2 | — | Call for availability | |
| 11 | 21P198 | Cover, Bearing | 2 | — | Call for availability | |
| 13 | 22P242 | Gasket | 4 | $10.49 | Add to Cart | |
| 14 | 28P216 | Oil Seal | 2 | $21.40 | Add to Cart | |
| 15 | 34P18 | Plate | 1 | — | No longer available — call for replacement | |
| 17 | 35P91 | Gasket, Housing (.010 Thick) | 1 | $4.09 | Add to Cart | |
| 19 | 40P6 | Washer | 1 | $3.92 | Add to Cart | |
| 20 | 68P2 | Name Plate | 1 | $2.65 | Add to Cart | |
| 328439X | Shaft & Bearing Assembly | 1 | — | Call for availability | ||
| 23 | 3P538 | Drive Shaft, Output | 1 | — | Call for availability | |
| 24 | 550125 | Needle Bearing | 1 | — | No longer available — call for replacement | |
| 25 | 550282 | Needle Bearing | 1 | — | No longer available — call for replacement | |
| 40 | 37843010 | Capscrew, Hex Head (.318"-18 X 1 ") | 16 | $1.76 | Add to Cart | |
| 42 | 378422 | Drive Screw | 2 | $11.52 | Add to Cart | |
| 43 | 3784527 | Set Screw | 1 | $4.37 | Add to Cart | |
| 44 | 3792121 | Socket Screw, Flat Hex Head Patched (.375"-16 X 1 .250") | 6 | — | No longer available — call for replacement | |
| 45 | 378544 | Needle Roller (23 Per Set) | 2 | — | No longer available — call for replacement | |
| 46 | 379334 | Oil Level Caution Tag (shipped Wired To Unit) | 1 | $7.03 | Add to Cart | |
| 47 | 5001671 | Breather Valve | 1 | — | No longer available — call for replacement | |
| 49 | 5003703 | Nut, Hex (.375"-16) | 6 | $1.12 | Add to Cart | |
| 50 | 5001143 | Pipe Plug (.500"-14 N .p.t.f.) | 1 | — | No longer available — call for replacement | |
| 51 | 3791314 | Pipe Reducer Bushing (.500"-14 X .125"-27 N .p.t.f.) | 1 | — | No longer available — call for replacement | |
| 52 | 550671 | Roller Bearing | 2 | — | Call for availability | |
| 53 | 5A250 | Spacer Loose Parts | 1 | $138.39 | Add to Cart | |
| 328751X | Indicator Light Installation Kit | 1 | $65.59 | Superseded by 3287511XAdd to Cart | ||
| 328380X | Parts Bag Wire Control (includes Items 58 Thru 64) | 1 | $13.25 | Add to Cart | ||
| 58 | 50P17 | Bracket | 1 | $5.47 | Add to Cart | |
| 59 | 50P19 | Bracket, Swivel | 1 | $3.48 | Add to Cart | |
| 60 | 378019 | Pivot Pin | 1 | $4.50 | Add to Cart | |
| 61 | 378326 | Nut, Hex Bushing | 1 | $2.22 | Add to Cart | |
| 63 | 5003968 | Screw, Hex Head (.250"-20 X .750") | 1 | $1.17 | Add to Cart | |
| 64 | 5005684 | Set Screw, Square Head (.250"-20 X .500") | 1 | $1.45 | Add to Cart | |
| 66 | 32834610X | Wire Control Assembly | 1 | $135.56 | Add to Cart | |
| 37844110 | Cable | 1 | $85.17 | Add to Cart | ||
| 378502 | Knob | 1 | $14.54 | Add to Cart |
Wire Control Assembly
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 3291491X | Shift Cover Sub-assembly, Wire Control (includes Items 28 Thru 39) | 1 | — | Call for availability | ||
| 28 | 28P191 | O-ring | 1 | $3.59 | Add to Cart | |
| 29 | 34P74 | Cover, Shifter | 1 | $44.57 | Add to Cart | |
| 30 | 37P14 | Poppet Spring | 1 | $3.46 | Add to Cart | |
| 31 | 51P13 | Lever, Shifter | 1 | $83.49 | Add to Cart | |
| 32 | 3291481X | Shifter Plate Assembly | 1 | — | No longer available — call for replacement | |
| 33 | 378002 | Ball (.438 Dia .) | 1 | $1.63 | Add to Cart | |
| 34 | 50035610 | Lockwasher | 1 | $1.53 | Add to Cart | |
| 35 | 378004 | Flat Washer | 1 | $2.01 | Add to Cart | |
| 36 | 5004096 | Capscrew, Hex Head (.312"-24 X .625") | 1 | $1.23 | Add to Cart | |
| 37 | 379639 | Indicator Switch (norm “on”) | 1 | $25.03 | Add to Cart | |
| 39 | 50036522 | Flat Washer | 1 | $1.05 | Add to Cart | |
| 40 | 37843010 | Capscrew, Hex Head (.318"-18 X 1 ") | 16 | $1.76 | Add to Cart | |
| 41 | 37843011 | Capscrew, Hex Head (.318"-18 X 1 .25") | 4 | $4.84 | Add to Cart |
