Chelsea PTO 741 Series Parts Manual

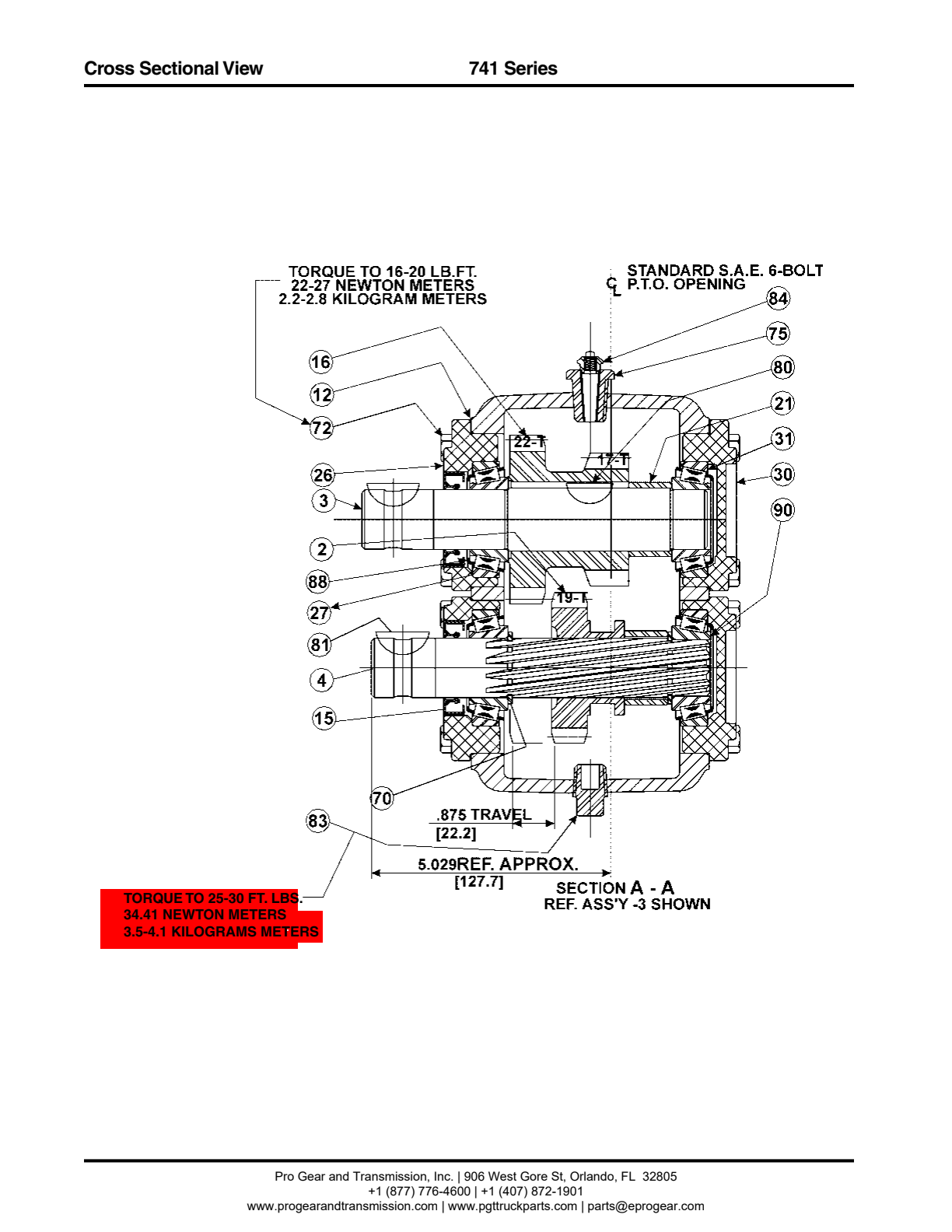

Bill of Materials 741 Series
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 1P233 | Housing Gearbox | 1 | — | Call for availability | |
| 2 | 2P721 | Sliding Gear (19-T) | 1 | $274.46 | Add to Cart | |
| 3 | 3P315 | Drive Shaft Std, (1 .250" Dia. Input) | 1 | $174.42 | Add to Cart | |
| 4 | 3P859 | Drive Shaft Std, (1 .250" Dia.output) | 1 | $265.44 | Add to Cart | |
| 12 | 22P241 | Gasket Brg Cap (.010" Thick) | A/R | $2.30 | Add to Cart | |
| 22P242 | Gasket Brg Cap (.020" Thick) | A/R | $10.49 | Add to Cart | ||
| 22P243 | Gasket Brg Cap (.015" Thick) | A/R | $10.49 | Add to Cart | ||
| 15 | 28P216 | Oil Seal | 2 | $21.40 | Add to Cart | |
| 16 | 33P64 | Reverse Idler Gear | 1 | $254.31 | Add to Cart | |
| 18 | 34P18 | Cover Plate | 1 | — | No longer available — call for replacement | |
| 19 | 35P8 | Gasket- Shifter Cover (.020" Thick) | 1 | $3.48 | Add to Cart | |
| 20 | 35P92 | Gasket (.020" Thick) | 1 | $4.35 | Add to Cart | |
| 21 | 40P4 | Reverse Idler Gear Spacer | 2 | $6.78 | Add to Cart | |
| 22 | 68P2 | Name Plate (chelsea) | 1 | $2.65 | Add to Cart | |
| 328273X | Bearing Cap Sub- Assy/ Open (includes Items 26 & 27) | $64.09 | Add to Cart | |||
| 26 | 21P418 | Bearing Cap | 1 | — | Call for availability | |
| 27 | 550221 | Bearing Cup | 1 | $14.19 | Add to Cart | |
| 328274X | Bearing Cap Sub- Assy/ Closed (includes Items 30 & 31) | $64.09 | Add to Cart | |||
| 30 | 21P420 | Bearing Cap | 1 | — | Call for availability | |
| 31 | 550221 | Bearing Cup | 1 | $14.19 | Add to Cart | |
| 49 | 3784308 | Hex Head Cap Screw (.312"-18 X .750") | 4 | $2.06 | Add to Cart | |
| 3288301X | Wire Control Shift Cover Sub-assembly (includes Items 55 Thru 66) | $200.05 | Add to Cart | |||
| 55 | 28P191 | O-ring | 1 | $3.59 | Add to Cart | |
| 56 | 34P74 | Shifter Cover | 1 | $44.57 | Add to Cart | |
| 57 | 37P14 | Poppet Spring | 1 | $3.46 | Add to Cart | |
| 58 | 51P13 | Shifter Lever | 1 | $83.49 | Add to Cart | |
| 60 | 3288291X | Shifter Plate Assembly | 1 | $65.55 | Add to Cart | |
| 61 | 50036522 | Flat Washer | 1 | $1.05 | Add to Cart | |
| 62 | 378002 | Ball (.438" Dia.) | 1 | $1.63 | Add to Cart | |
| 63 | 50035610 | Lockwasher | 1 | $1.53 | Add to Cart | |
| 64 | 378004 | Flat Washer | 1 | $2.01 | Add to Cart | |
| 65 | 379652 | Indicator Switch (norm “on”) | 1 | $40.79 | Add to Cart | |
| 66 | 5004096 | Hex Head Cap Screw (.312"-24 X .625") | 1 | $1.23 | Add to Cart | |
| 67 | 3784308 | Hex Head Capscrew (.312"-18 X .750") | 3 | $2.06 | Add to Cart | |
| 68 | 3784309 | Hex Head Capscrew (.312"-18 X .875") | 1 | $1.76 | Add to Cart | |
| 70 | 378391 | Retaining Ring | 2 | $2.47 | Add to Cart | |
| 71 | 378422 | Drive Screw | 2 | $11.52 | Add to Cart | |
| 72 | 37843010 | Hex Head Cap Screw (.312"-18 X 1 .000") | 16 | $1.76 | Add to Cart | |
| 75 | 3791314 | Reducer Bushing | 1 | — | No longer available — call for replacement | |
| 77 | 3792121 | Flat Head Hex Socket Capscrew (.375"-16 X 1 .250" (with Patch)) | 6 | — | No longer available — call for replacement | |
| 78 | 379334 | Oil Level Caution Tag (ship Wired To Unit) | 1 | $7.03 | Add to Cart | |
| 80 | 50000724 | Woodruff Key (ref Input Shaft) | 1 | $1.83 | Add to Cart | |
| 81 | 50000729 | Woodruff Key (.312" X 1 .125") | 2 | $3.11 | Add to Cart | |
| 83 | 5001143 | Pipe Plug (.500"-14) | 1 | — | No longer available — call for replacement | |
| 84 | 5001671 | Pressure Relief Fitting | 1 | — | No longer available — call for replacement | |
| 85 | 5003703 | Hex Nut (.375"-16) | 6 | $1.12 | Add to Cart | |
| 88 | 550397 | Tapered Bearing Cone | 3 | $36.75 | Add to Cart | |
| 90 | 550532 | Tapered Bearing Cone Loose Parts | 1 | $36.75 | Add to Cart | |
| 95 | 32834610X | Cable Control Assembly | 1 | $135.56 | Add to Cart | |
| 328380X | Wire Control Parts Bag (includes Items 99 Thru 104) | $13.25 | Add to Cart | |||
| 99 | 50P17 | Bracket | 1 | $5.47 | Add to Cart | |
| 100 | 50P19 | Swivel Bracket | 1 | $3.48 | Add to Cart | |
| 101 | 378019 | Pivot Pin | 1 | $4.50 | Add to Cart | |
| 102 | 378326 | Hex Bushing Nut | 1 | $2.22 | Add to Cart | |
| 103 | 5003968 | Hex Head Screw (.250"-20 X .750") | 1 | $1.17 | Add to Cart | |
| 104 | 5005684 | Square Head Set Screw (.250"-20 X .500") | 1 | $1.45 | Add to Cart | |
| 328751X | Wire Or Lever Control Installation Kit | 1 | $65.59 | Superseded by 3287511XAdd to Cart |

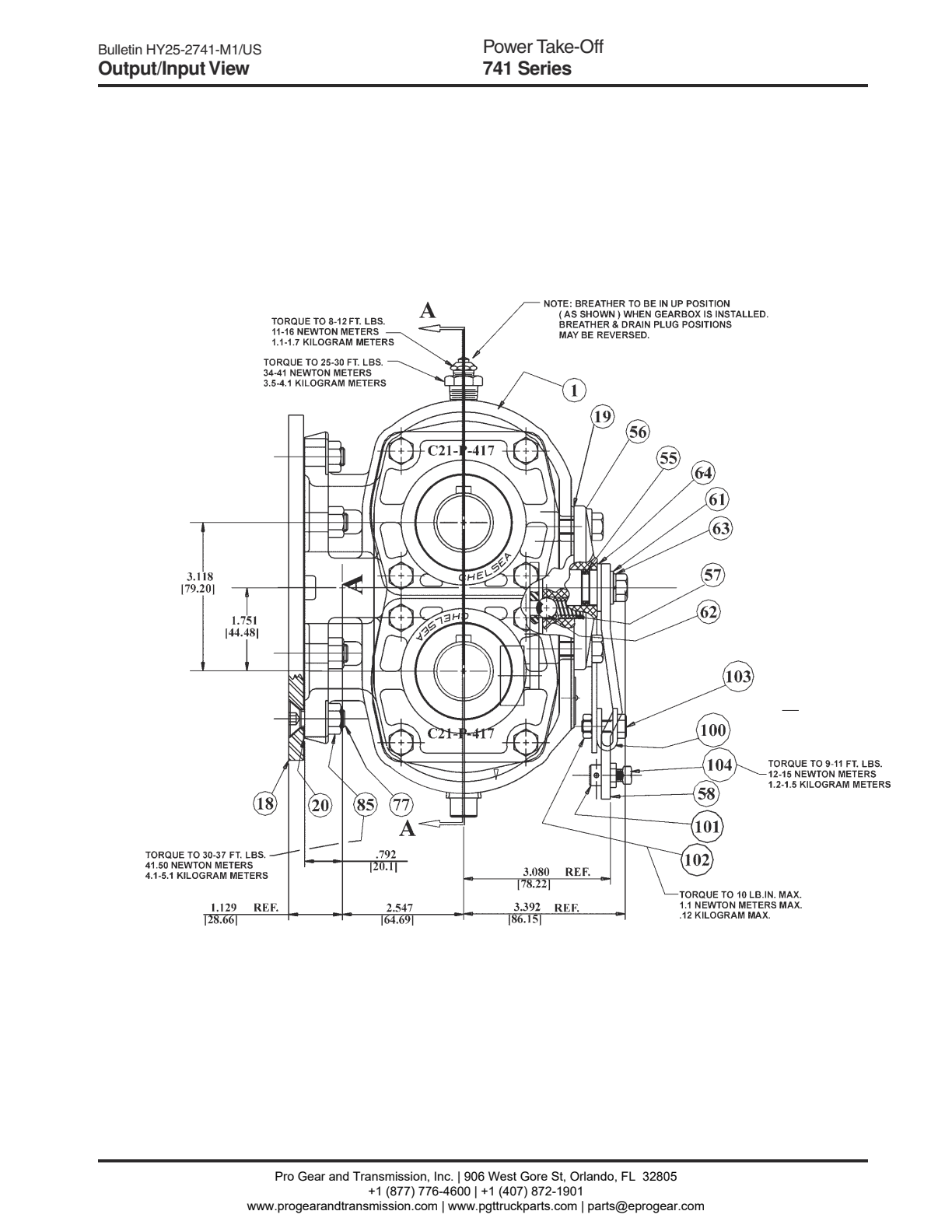

Wire Control Assembly 741 Series
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| TO1015 | Ft. Lbs. 22-27 Newton Meters | — | Call for availability |
Mounting Detail 741 Series
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 379334 | $7.03 | Add to Cart |
Optional Lever Control 741 Series
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 3288251X | Lever Control Assembly (includes Items 35 Thru 48) | $653.81 | Add to Cart | |||
| 35 | 11P129 | Shifter Shaft | 1 | $200.74 | Add to Cart | |
| 36 | 28P207 | Oil Seal | 2 | $19.83 | Add to Cart | |
| 37 | 32P141 | Shifter Fork | 1 | $180.33 | Add to Cart | |
| 38 | 34P82 | Shifter Cover | 1 | $843.35 | Add to Cart | |
| 39 | 36P1 | Eye Bolt (.375"-24) | 1 | $56.02 | Add to Cart | |
| 40 | 35P14 | Gasket | 1 | $2.88 | Add to Cart | |
| 41 | 37P14 | Spring | 1 | $3.46 | Add to Cart | |
| 42 | 378002 | Ball / Poppet | 1 | $1.63 | Add to Cart | |
| 43 | 3784474 | Socket Head Cap Screw (.312"-18 X .75") | 1 | $1.78 | Add to Cart | |
| 44 | 378554 | Poppet Cap | 1 | $12.41 | Add to Cart | |
| 45 | 65P23 | Shifter Shaft Cover | 1 | $20.58 | Add to Cart | |
| 46 | 379652 | Indicator Switch (norm “on”) | 1 | $40.79 | Add to Cart | |
| 47 | 5003813 | Hex Nut (.375"-24) | 1 | $1.10 | Add to Cart | |
| 48 | 3784304 | Hex Head Capscrew | 2 | $6.00 | Add to Cart |
This is the complete factory parts breakdown for the Chelsea PTO 741 — every part in the manual, matched to our live inventory. We stock 64 of the 74 parts above; click any part number to view it, or add it straight to your cart. Click a number on any diagram to jump to that part.
No parts match that search — try the part number with no dashes.
This Chelsea Illustrated Parts List covering the 741 PTO helps you identify the correct gear sets, shifter kits and service parts for your power take-off before you order.
| Models covered | 741 |
| PTO type | Chelsea 700 Series |
| Document | Illustrated Parts List (Chelsea) |
| Length | 16 pages |
| Format | PDF — free download |
