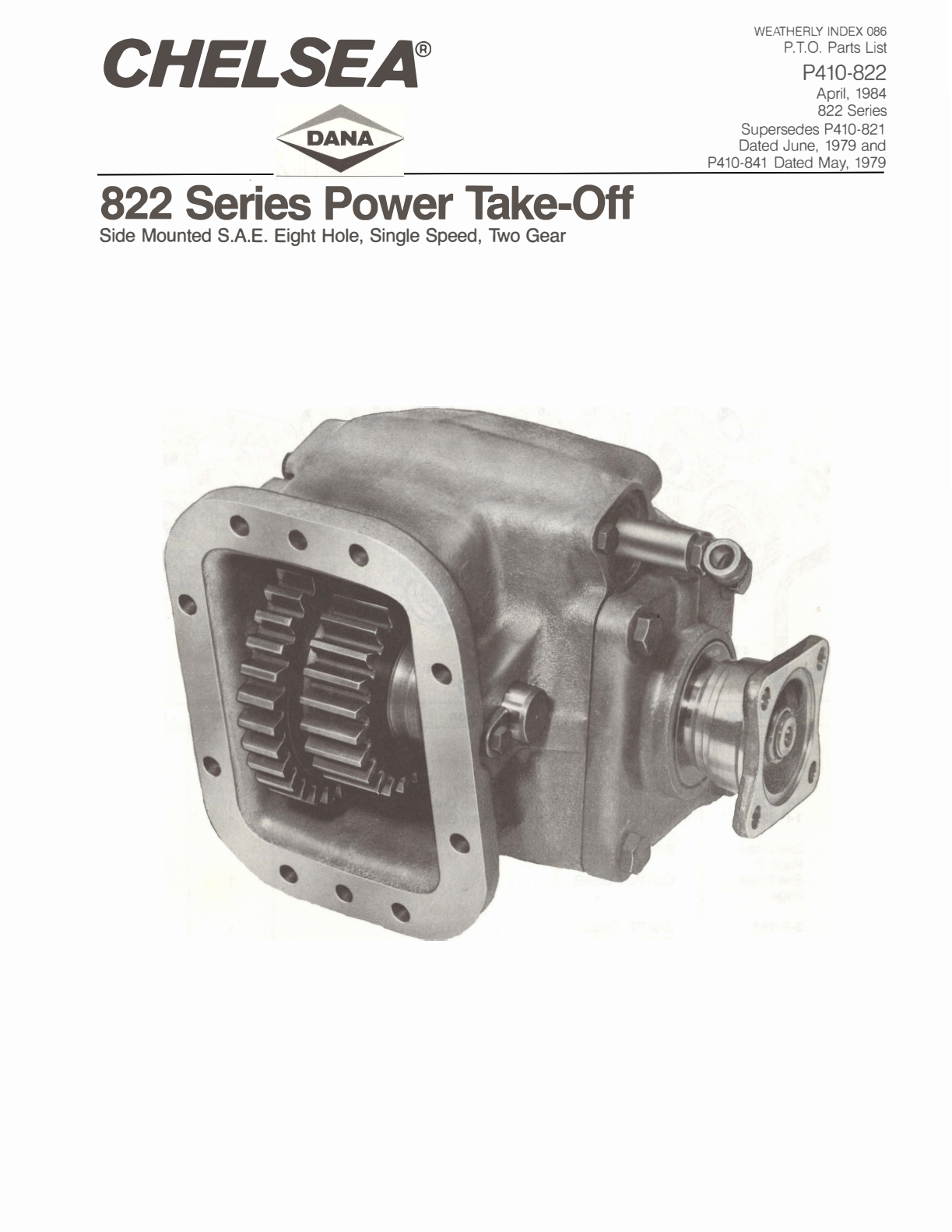

Chelsea PTO 822 Series Parts Manual

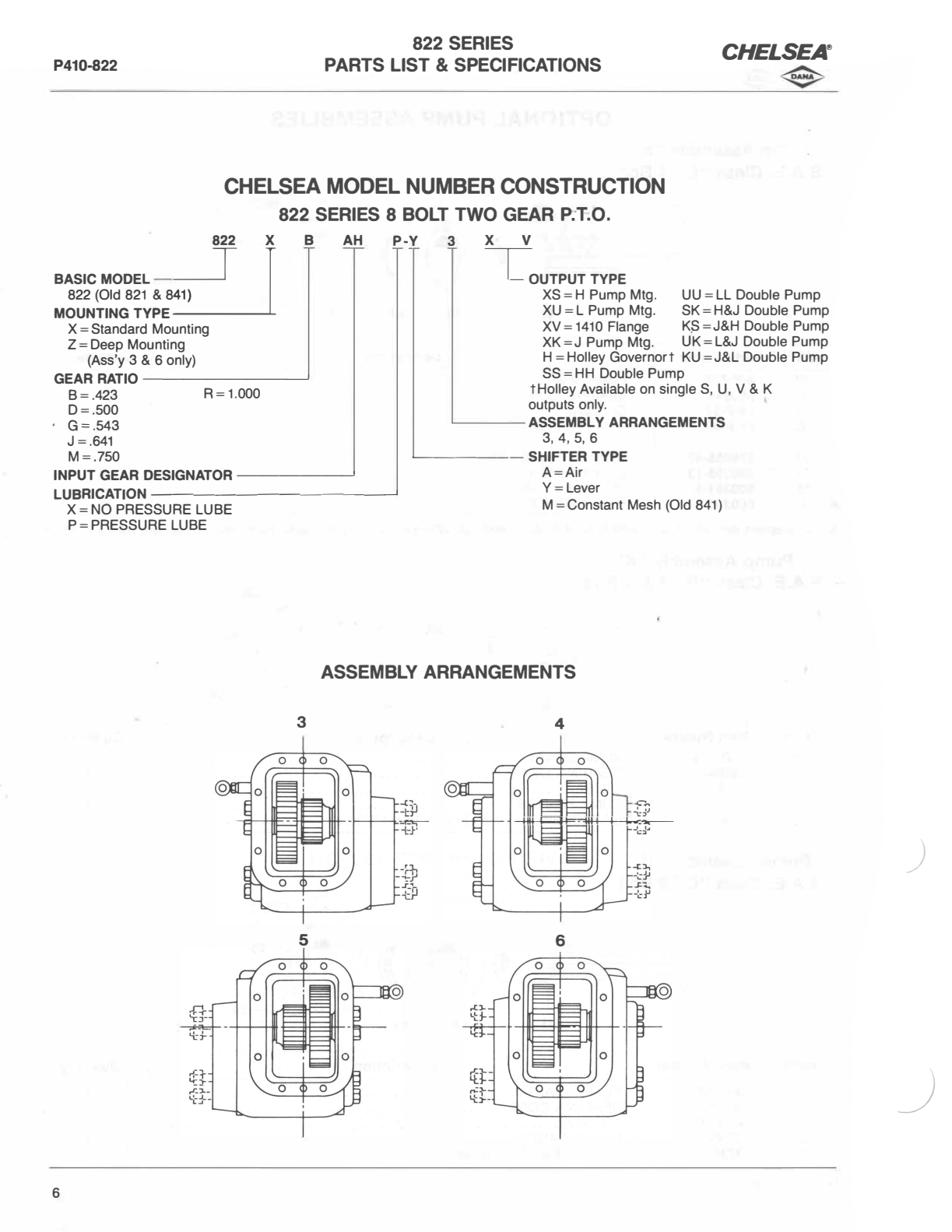

Model Number Designation
| Item | Part No. | Description | Qty | Notes | Price |
|---|
Chelsea®
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1P323 | For Ass'y. 3 & 6 1 | $1,554.04 | Add to Cart | |||
| 1P324 | For Ass'y. 4 & 5 1 | $1,103.67 | Add to Cart | |||
| 1P360 | Deep Mount For Ass'y. 3 & 6 Only 1 | — | Call for availability | |||
| 1P321 | For Ass'y. 3 & 6 (constant Mesh Only) 1 | $1,993.78 | Add to Cart | |||
| 1P322 | For Ass'y. 4 & 5 (constant Mesh Only) 1 T Gear 1 1 | $2,150.40 | Add to Cart | |||
| 9P28 | No Pressure Lube (standard) | $182.34 | Add to Cart | |||
| 9P37 | Pressure Lube Only (optional) | $461.39 | Add to Cart | |||
| 10 | 31P55 | Thrust Race 2 2 | $35.99 | Add to Cart | ||
| 11 | 28P59 | "o" Ring 1 1 | — | Call for availability | ||
| 12 | 28P58 | "o" Ring 1 1 | $6.64 | Add to Cart | ||
| 13 | 313431 | Spicer 1410 Companion Flange 1 1 | — | Call for availability | ||
| 14 | 378382 | Hex Nut, (esna) Std Shaft Only (7/a " -14) 1 1 | $60.21 | Add to Cart | ||
| 15 | 21P66 | Bearing Cover Closed End 1 1 | $250.24 | Add to Cart | ||
| 16 | 55P19 | Gasket, Shim 2 2 | $12.09 | Add to Cart | ||
| S55P61 | Plastic Shim A.a. A.r. | — | Call for availability | |||
| 55P62 | Plastic Shim A.a. A.r. | $7.95 | Add to Cart | |||
| 18 | 560946 | Bearing Cup : 2 2 | $48.05 | Add to Cart | ||
| 19 | 560945 | Cone Bearing, Standard Shaft 2 2 | $201.25 | Add to Cart | ||
| 20 | 21P65 | Bearing Cover, Open End : " 1 1 | $358.46 | Add to Cart | ||
| 21 | 28P35 | Oil Seal, Standard Shaft 1 1 | — | Call for availability | ||
| 22 | 37843314 | Capscrew, Hex Head (1/2 " -13 X 11/2 ") 8 8 | $3.89 | Add to Cart | ||
| 23 | 3784314 | Screw, Hex Head (% " -16 X 1/2 ") 4 4 I | $2.14 | Add to Cart | ||
| 24 | 11P135 | Shaft, Shifter 1 | $173.53 | Add to Cart | ||
| 25 | 38P8 | Poppet Cap 2 | $64.83 | Add to Cart | ||
| 26 | 37P51 | Poppet Spring 2 | $6.06 | Add to Cart | ||
| 27 | 378002 | Poppet Ball 2 | $1.63 | Add to Cart | ||
| 28 | 28P57 | Oil Seal 2 | — | Call for availability | ||
| 29 | 5003813 | Jam Nut, Hex (.438-20) | $1.10 | Add to Cart | ||
| 30 | 36P1 | Eye Bolt (.438-20) | $56.02 | Add to Cart | ||
| 31 | 32P121 | Shift Fork, Assy. 4 & 5 | $327.06 | Add to Cart | ||
| 4P110 | Driveshaft Spacer (constant Mesh Only) 2 | $146.90 | Add to Cart | |||
| 32 | 378916 | Capscrew, Shift Fork (3/a " -24 X 13/a ") | $6.67 | Add to Cart | ||
| 33 | 379231 | Pipe Plug (1/a " -27 N .p.t.) | $1.50 | Add to Cart | ||
| 34 | 378329 | Inspection Plug (1 " -16) | — | Call for availability | ||
| 35 | 378037 | Gasket, Inspection Plug I | — | No longer available — call for replacement | ||
| 36 | 27P9 | Retaining Plate | $3.19 | Add to Cart | ||
| 37 | 3784308 | Capscrew Hex Head ( 5/,6 " -18 x3/4 ") Loose Parts | $2.06 | Add to Cart | ||
| 3281708X | Mounting Stud Kit (contains Items 38-41) 1 1 | $57.14 | Add to Cart | |||
| 38 | 378054 | Dowel Pin 2 2 | $4.88 | Add to Cart | ||
| 39 | 37849619 | Stud (7/,6 " -14-20 x2 ") 8 8 | — | Call for availability | ||
| 40 | 50035712 | Lockwasher (7As ") 8 8 | $1.05 | Add to Cart | ||
| 41 | 5003714 | Hex Nut (7As " -20) 8 8 | — | Call for availability | ||
| 35P151 | Gasket (.010) | $3.00 | Add to Cart | |||
| 35P152 | Gasket (.020) Gasket & Seal Kit | $3.52 | Add to Cart | |||
| 3283562X | Must Be Ordered Separately (contains 5 Pieces Item 17; Two Pieces Items 16 And 28; 1 Piece Each Items 11 12, 21 And 42) 1 | $142.81 | Add to Cart | |||
| 3283565X | Must Be Ordered Separately (contains 5 Pieces Item 17; Two Pieces Item 16 And 1 Piece Each Items 11 12, 21 And 42) 1 | $123.59 | Add to Cart |
Chelsea® Air Shift
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 43 | 28P61 | "o" Ring | 4 | $7.18 | Add to Cart | |
| 44 | 66P5 | Floating Piston | 2 | — | No longer available — call for replacement | |
| 45 | 65P16 | Air Cylinder Body | 2 | — | Call for availability | |
| 46 | 35P16 | Gasket | 2 | $6.62 | Add to Cart | |
| 47 | 379027 | Air Cylinder Cap | 2 | $155.60 | Add to Cart | |
| 48 | 37843128 | Cap Screw, Hex Head (% " -16 X 3112 ") | 4 | $2.50 | Add to Cart | |
| 32839071X | Conversion Kit (lever To Air) | — | Call for availability | |||
| 32838828X | Installation Kit Holley Governor Drive Description Quantity | — | Call for availability | |||
| 328208X | Drive Shaft Ass 'y | — | Call for availability | |||
| 3P358 | Drive Shaft | — | Call for availability | |||
| 378178 | Spinner | — | Call for availability | |||
| 328782X | Pumpshaft Ass'y. "s" & "u " | — | Call for availability | |||
| 3P730 | Pumpshaft, "s" & "u " Ass'y. Only | — | Call for availability | |||
| 328780X | Pumpshaft Ass'y. "k" | — | Call for availability | |||
| 3P729 | Pumpshaft "k" Ass'y. Only | — | Call for availability | |||
| 328230X | Bearing Cover Ass'y For Holley Governor Drive | — | Call for availability | |||
| 21P162 | Bearing Cover | — | Call for availability | |||
| 28P53 | Oil Seal | — | Call for availability | |||
| 5001131 | Pipe Plug | — | Call for availability |
(��fj@,�
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 51 | 28P37OIL | Seal | — | Call for availability | ||
| 55 | 5003815HEX | Nut (1/2 " -20) | 4 | — | Call for availability | |
| 58 | 28P37OIL | Seal | 1 | — | Call for availability | |
| 63 | 28P37OIL | Seal | 1 | — | Call for availability |
2J Toutput
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| R1000 | Outputs Only. Assembly Arrangements 3, 4, 5, 6 Shifter Type � A =air Y Lever = M Constant Mesh (old 841) = Arrangements 4 -!_:�j --HH-�;;J-F�f-+-4, :_� -'cd� 6 | — | Call for availability |
Chelsea®
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 822 | BAB5P50827 | 5 20 ° Spur 18 2-P-312 | 32 | — | Call for availability | |
| 822 | BAH5P28532 | 6/8 20 ° Spur 18 2-P-312 | 32 | — | Call for availability | |
| 822 | BAR5P23629 | 6 Nor. 17 °30 ' 26 °10 '37 "l.h 18 2-P-312 . | 32 | — | Call for availability | |
| 822 | BAK5P22332 | 6 25 ° Spur 18 2-P-312 | 32 | — | Call for availability | |
| 822 | BCR5P49826 | 5 17 °30 ' 24 °48 '42 "l.h 18 2-P-312 . | 32 | — | Call for availability | |
| 822 | BBG5P42233 | 7 Nor. 17 °30 ' 28 °4 '23 "l.h 18 . ' 2-P-312 . | 32 | — | Call for availability | |
| 822 | 0AK5P29332 | 6 25 ° Spur 20 2-P-315 | 30 | — | Call for availability | |
| 822 | GAK5P29432 | 6 25 ° Spur 21 2-P-308 | 29 | — | Call for availability | |
| 822 | JAH5P32532 | 6/8 20 ° Spur 23 2-P-31 � | 27 | — | Call for availability | |
| 822 | JAR5P23729 | 6 Nor. 17 °30 'nor. 26 ° 10 '37 " L. H 23 2-P-311 . | 27 | — | Call for availability | |
| 822 | JAK5P22432 | 6 25 ° Spur 23 2-P-31 1 | 27 | — | Call for availability | |
| 822 | MAH5P28332 | 6/8 20 ° Spur 25 2-P-309 | 25 | — | Call for availability | |
| 822 | MAK5P28432 | 6 25 ° Spur 25 2-P-309 | 25 | — | Call for availability | |
| 822 | BOA5P63635 | 6.4800 17.6528 ° Spur 18 2-P-312 | 32 | — | Call for availability | |
| 822 | MOA5P63735 | 6.4800 17.6528 ° Spur 25 2-P-309 | 25 | — | Call for availability | |
| 822 | 0005P69133 | 5.8500 20 ° Spur 20 2-P-315 | 30 | — | Call for availability | |
| 822 | MOO5P69233 | 5.8500 20 ° Spur 25 2-P-309 | 25 | — | Call for availability | |
| 822 | RAH5P72132 | 6/8 20 ° Spur 29 2-P-630 | 21 | — | Call for availability |
Additional Parts Listed in This Manual
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 3-P-364 | Shaft, Output 1 | 1 | $935.90 | Add to Cart | ||
| 14-P-27 | Spacer, Needle Bearing 1 | 1 | $20.82 | Add to Cart | ||
| 328297-3X | Needle Roller Replacemen T Kit 1 | 1 | $87.93 | Add to Cart | ||
| 378389 | Needle Rollers (21 Per Set) 2 Sets 2 Sets | $2.68 | Add to Cart | |||
| 378769 | Thrus T Bearing 2 | 2 | $148.20 | Add to Cart | ||
| 14-P-48 | Spacer, Needle Bearing 2 | 2 | $23.23 | Add to Cart | ||
| 3-P-726 | Pump Shaft | $1,068.57 | Add to Cart | |||
| 560944 | Bearing Cone | $150.00 | Add to Cart | |||
| 28-P-37 | Oil Seal | — | Call for availability | |||
| 21-P-382 | Pump Flange | $487.06 | Add to Cart | |||
| 379056-47 | Stud (112 "-13-20 X 33/4 ") | 4 | — | Call for availability | ||
| 500356-13 | Lockwasher | 4 | $1.31 | Add to Cart | ||
| 500381-5 | Hex Nut (1/2 "-20) | 4 | $1.33 | Add to Cart | ||
| 3-P-725 | Pump Shaft | 1 | — | Call for availability | ||
| 21-P-163 | Pump Flange | 1 | $601.16 | Add to Cart | ||
| 2-P-31 | ' | 27 | — | Call for availability |
