Chelsea PTO 867 Series Parts Manual

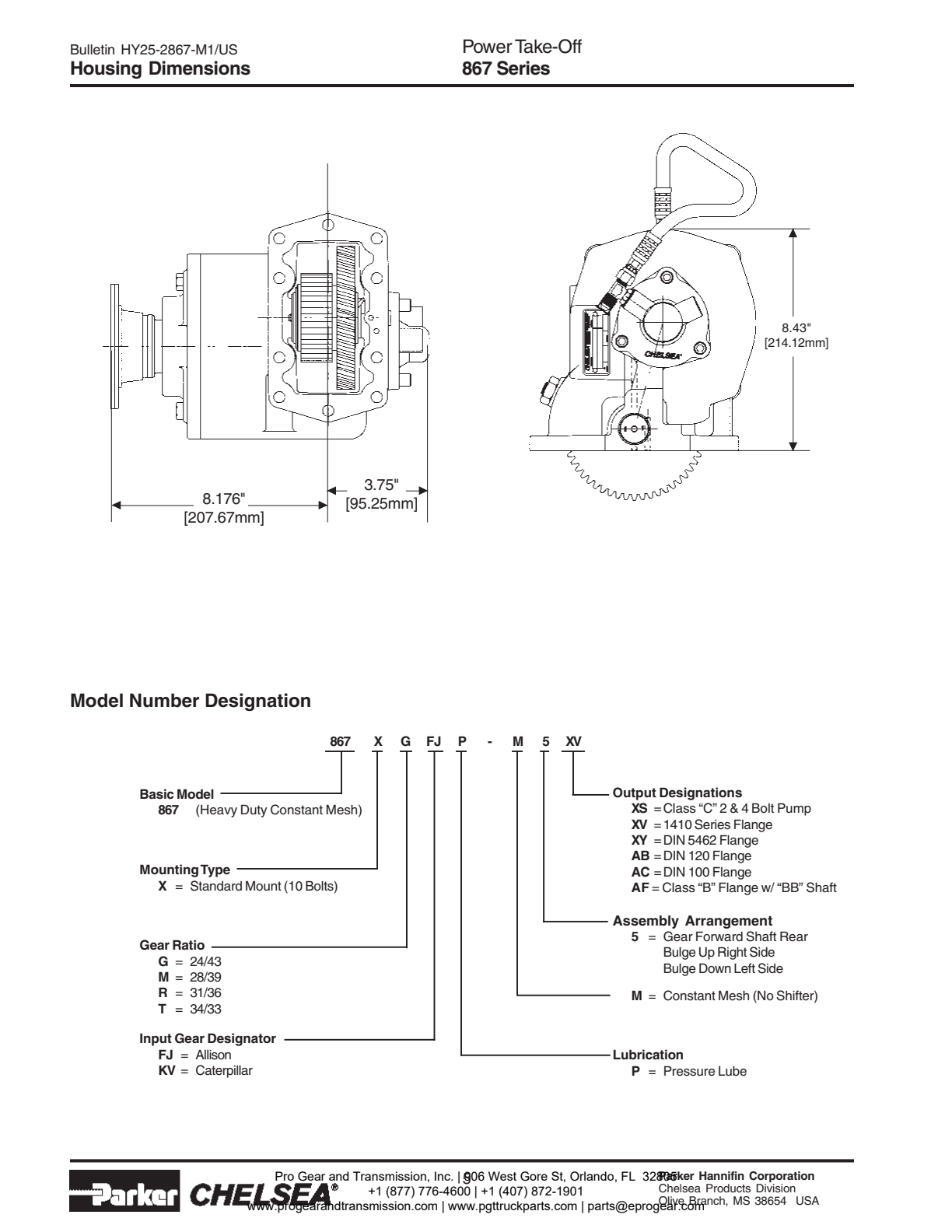

Model Number Designation
| Item | Part No. | Description | Qty | Notes | Price |
|---|
Power Take-Off Bill of Materials 867 Series
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 1P609X | P.t.o. Housing | 1 | $2,401.66 | Add to Cart | |
| 3P904 | Output Shaft “xv” Output | $429.41 | Add to Cart | |||
| 5 | 9P92 | Idler Shaft (pressure Lube) | 1 | — | Call for availability | |
| 6 | 14P801 | Tabbed Washer (.1 10"- .1 12") | 1 or | $15.00 | Add to Cart | |
| 14P802 | Tabbed Washer (.1 15"- .1 17") | 1 or | $15.00 | Add to Cart | ||
| 14P803 | Tabbed Washer (.120"- .122") | 1 or | $15.00 | Add to Cart | ||
| 14P804 | Tabbed Washer (.124"- .126") Bearing Cap | 1 | $15.00 | Add to Cart | ||
| 21P596 | Bearing Cap “xv” Output | $402.73 | Add to Cart | |||
| 8 | 22P112 | Gasket, Valve Cap Oil Seal | 1 | $20.18 | Add to Cart | |
| 28P211 | Oil Seal “xv” Output | $35.18 | Add to Cart | |||
| 11 | 28P196 | O-ring | 1 | $60.36 | Add to Cart | |
| 12 | 28P198 | O-ring | 1 | $7.10 | Add to Cart | |
| 13 | 31P94 | Thrust Washer | 1 | $18.15 | Add to Cart | |
| 14 | 55P201 | Shim Bearing Cap (.003 Green) | A.R. | $5.92 | Add to Cart | |
| 55P202 | Shim Bearing Cap (.010 Brown) | $7.74 | Add to Cart | |||
| 55P203 | Shim Bearing Cap (.020 Yellow) | $17.66 | Add to Cart | |||
| 15 | 68P2 | Name Plate | 1 | $2.65 | Add to Cart | |
| 17 | 378382 | Hex Locknut “xv” “ab” “ac” Output Only | 1 | $60.21 | Add to Cart | |
| 18 | 378422 | Drive Screw | 2 | $11.52 | Add to Cart | |
| 19 | 37843111 | Hex Capscrew ( .375"-16 X 1 .125") | 4 | $2.01 | Add to Cart | |
| 20 | 3784476 | Socket Capscrew (.312"-18 X 1 .000") | 3 | $4.33 | Add to Cart | |
| 21 | 379746 | Lockring | 1 | $5.06 | Add to Cart | |
| 22 | 378856 | Wiggler Wire | 1 | $1.05 | Add to Cart | |
| 24 | 379231 | Pipe Plug (.125"-27 Nptf) | 1 | $1.50 | Add to Cart | |
| 25 | 379242 | O-ring Boss Plug | 1 | $22.23 | Add to Cart | |
| 26 | 379719 | Nwd Plug Companion Flange | 1 | $42.60 | Add to Cart | |
| 313431 | Companion Flange, “xv” Output | — | Call for availability | |||
| 31 | 3795642 | Shipping Cap | 1 | $1.23 | Add to Cart | |
| 32 | 379556 | Run Tee, O-ring Boss | 1 | $90.82 | Add to Cart | |
| 34 | 379668 | Lockring (5100-175) | 2 | $3.21 | Add to Cart | |
| 36 | 560978 | Tapered Bearing Cone | 2 | $71.02 | Add to Cart | |
| 37 | 560982 | Tapered Bearing Cup, “xv” Output | 1 | $19.83 | Add to Cart | |
| 38 | 560986 | Tapered Bearing Cone Tapered Bearing Cup | 1 | $31.81 | Add to Cart | |
| 560982 | Tapered Bearing Cup, “xv” Output | $19.83 | Add to Cart | |||
| 560986 | Tapered Bearing Cone, “xv” Output | $31.81 | Add to Cart | |||
| 42 | 21P690 | Cap, Seal | 1 | $498.30 | Add to Cart | |
| 43 | 379594 | Pipe Adapter: Restrictor | 1 | $68.36 | Add to Cart | |
| 44 | 379625 | 90o Elbow Loose Parts | 1 | $17.80 | Add to Cart | |
| 3289489X | Gasket & Installation Instructions | 1 | $42.19 | Add to Cart | ||
| 717086X | Mounting Kit, “fj” Input Gear | 1 | $84.46 | Add to Cart | ||
| 7170118X | Mounting Kit, “kv” Input Gear | 1 | $70.57 | Add to Cart | ||
| 3291301X | Flex-hose Service Kits | 1 | $87.33 | Add to Cart | ||
| 32907138X | Bearing Kit (“xs”, “af” Output) | $272.37 | Add to Cart | |||
| 32907139X | Bearing Kit (“xv”, “ab” & “ac” Output) | $242.85 | Add to Cart | |||
| 32907140X | Bearing Kit (“xy” Output) | — | No longer available — call for replacement | |||
| 32907127X | Gasket & Seal Kit (“xs” Output) | $150.32 | Add to Cart | |||
| 32907128X | Gasket & Seal Kit (“xv” “ab” & “ac” Output) | $230.06 | Add to Cart | |||
| 32907129X | Gasket & Seal Kit (“xy” Output) | — | No longer available — call for replacement | |||
| 32907134X | Gasket & Seal Kit (“af” Output) Helix Number Output Gear Item No. Angle Teeth | 2 | — | No longer available — call for replacement | ||
| 5P1160 | RH 50/24 2 -P-765 | 43 | $1,150.61 | Add to Cart | ||
| 5P1161 | RH 50/28 2 -P-766 | 39 | — | No longer available — call for replacement | ||
| 5P1162 | RH 50/31 2 -P-767 | 36 | $1,150.61 | Add to Cart | ||
| 5P1212 | RH 50/34 2 -P-772 | 33 | $698.81 | Add to Cart | ||
| 5P1360 | LH 45/24 2-P-765 | 43 | — | No longer available — call for replacement | ||
| 5P1398 | LH 45/28 2-P-766 | 39 | $471.04 | Add to Cart | ||
| 5P1399 | LH 45/31 2-P-767 | 36 | — | Call for availability |
Output Bill of Materials 867 Series
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 3P904 | Output Shaft | 1 | $429.41 | Add to Cart | ||
| 21P596 | Bearing Cap | 1 | $402.73 | Add to Cart | ||
| 28P211 | Oil Seal | 1 | $35.18 | Add to Cart | ||
| 378382 | Hex Locknut | 1 | $60.21 | Add to Cart | ||
| 37843111 | Hex Cap Screw (.375"-16 X 1 .125") | 4 | $2.01 | Add to Cart | ||
| 379558 | Companion Flange | 1 | $698.00 | Add to Cart | ||
| 560982 | Bearing Cup | 1 | $19.83 | Add to Cart | ||
| 560986 | Bearing Cone | 1 | $31.81 | Add to Cart | ||
| 379594 | Pipe Adapter, Restrictor | 1 | $68.36 | Add to Cart | ||
| 379625 | 90° Elbow | 1 | $17.80 | Add to Cart | ||
| 379742 | Companion Flange | 1 | $1,076.21 | Add to Cart | ||
| 3P951 | Output Shaft | 1 | — | Call for availability | ||
| 21P592 | Bearing Cap | 1 | $1,369.57 | Add to Cart | ||
| 28P219 | Oil Seal | 1 | $28.20 | Add to Cart | ||
| 560977 | Bearing Cup | 1 | $14.27 | Add to Cart | ||
| 560976 | Bearing Cone | 1 | $29.24 | Add to Cart | ||
| 379231 | Pipe Plug | 1 | $1.50 | Add to Cart | ||
| 28P259 | O-ring | 1 | $52.57 | Add to Cart | ||
| 3P903 | Output Shaft | 1 | — | Call for availability | ||
| 21P544 | Bearing Cap | 1 | $683.71 | Add to Cart | ||
| 28P245 | O-ring | 1 | $45.00 | Add to Cart | ||
| 3P905 | Output Shaft | 1 | — | Call for availability | ||
| 21P615 | Bearing Cap | 1 | $743.11 | Add to Cart | ||
| 28P267 | Oil Seal | 1 | $66.05 | Add to Cart | ||
| 560984 | Bearing Cup | 1 | $408.26 | Add to Cart | ||
| 560985 | Bearing Cone | 1 | $408.28 | Add to Cart | ||
| 22P84 | Gasket | 1 | $45.16 | Add to Cart |
This is the complete factory parts breakdown for the Chelsea PTO 867 — every part in the manual, matched to our live inventory. We stock 72 of the 83 parts above; click any part number to view it, or add it straight to your cart. Click a number on any diagram to jump to that part.
No parts match that search — try the part number with no dashes.
This Chelsea Illustrated Parts List covering the 867 PTO helps you identify the correct gear sets, shifter kits and service parts for your power take-off before you order.
| Models covered | 867 |
| PTO type | Chelsea 800 Series |
| Document | Illustrated Parts List (Chelsea) |
| Length | 12 pages |
| Format | PDF — free download |
