Chelsea PTO 877L Series Parts Manual

View the official Chelsea PTO 877L parts manual (PDF)Download PDFOwner's Manual (PDF)Full Manual, all series (PDF)

Allison

Chelsea PTO 877L Allison exploded-view diagram
Chelsea PTO 877L Allison exploded-view diagram
Chelsea PTO 877L Allison exploded-view diagram
Chelsea PTO 877L Allison exploded-view diagram
ItemPart No.DescriptionQtyNotesPrice

Model Number Designator 877-XL Series

ItemPart No.DescriptionQtyNotesPrice
61G3331Ts Sae C 2 Or 4-Bolt Rotatable Flange, =—Call for availability

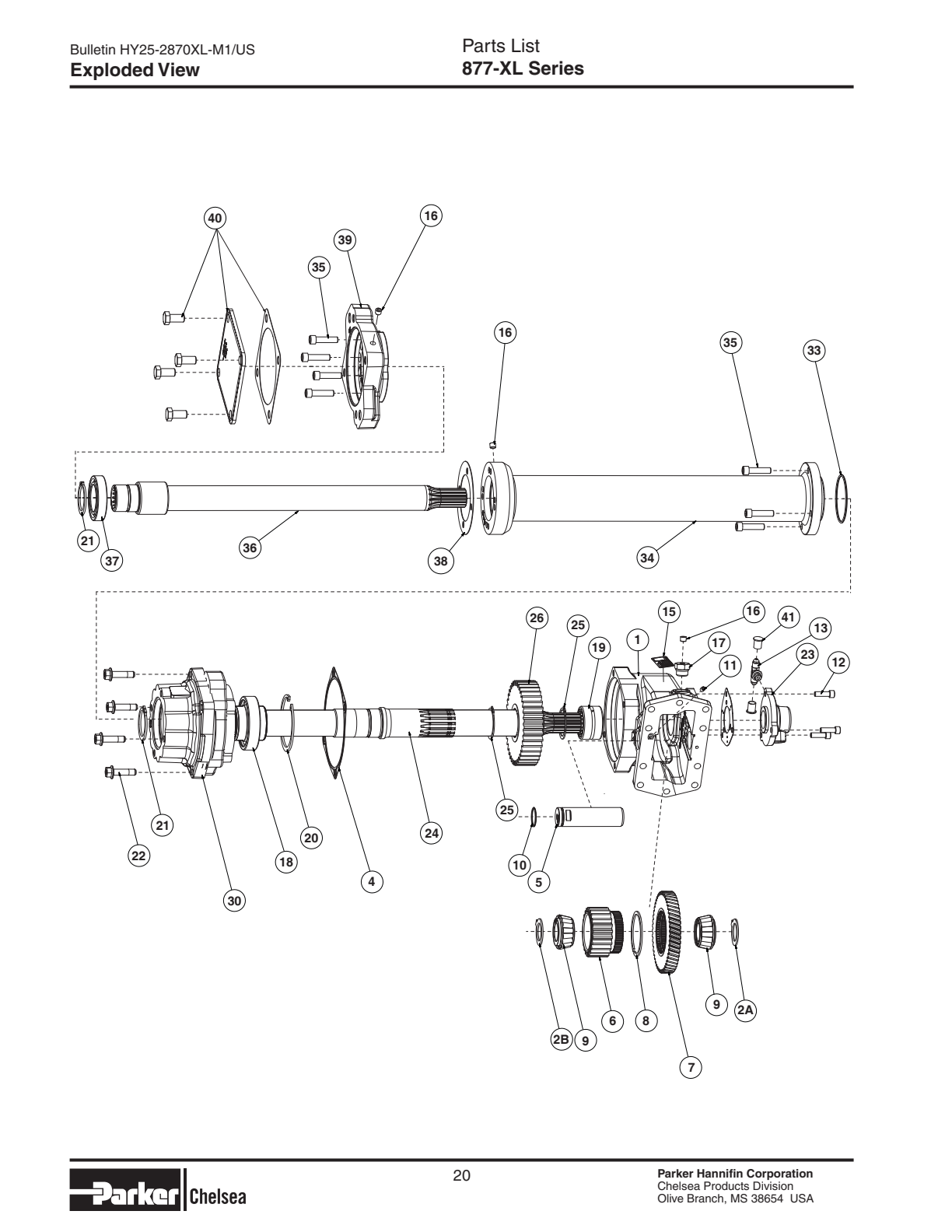

Parts List Bill of Materials 877-XL Series

Chelsea PTO 877L Parts List Bill of Materials 877-XL Series exploded-view diagram

Click a number on the diagram to highlight that part below.

ItemPart No.DescriptionQtyNotesPrice
11P764Housing (3 Arrangement)1 or$951.26Add to Cart
1P762Housing (5 Arrangement)1$951.26Add to Cart
2A14P821Spacer (1 .191 " X 1 .750" X .080")1$43.74Add to Cart
2B14P821Spacer (1 .191 " X 1 .750" X .080") (thickness As Required)A.R.$43.74Add to Cart
14P822Spacer (1 .191 " X 1 .750" X .085")A.R.$43.74Add to Cart
14P823Spacer (1 .191 " X 1 .750" X .090")A.R.$43.74Add to Cart
14P824Spacer (1 .191 " X 1 .750" X .094")A.R.$43.74Add to Cart
322P112Valve Cap Gasket2$20.18Add to Cart
422P151Shim Gasket1$15.38Add to Cart
59P99Idler Shaft (1 .180")1$273.42Add to Cart
8380064Lockring1$14.60Add to Cart
9561026Tapered Cone Bearing (1 .181 " X .984")1$131.13Add to Cart
1028P42O-ring (1 .051 " X .070")1$3.59Add to Cart
37845271/8" Socket Head Set Screw (.250"-20 X .500")1$4.37Add to Cart
1237844761/4" Socket Head Cap Screw (.312"-18 X 1 .000")3$4.33Add to Cart
13379556Tee (.438"-20)1$90.82Add to Cart
1568P511Adhesive Label1—Call for availability
16379231Pipe Plug (.125"-27)3$1.50Add to Cart
17379242Straight Adapter (.125"-27 X .750"-16)1$22.23Add to Cart
18550311Ball Bearing (1 .770" X 3.346" X .748")1$81.15Add to Cart
19561047Needle Roller Bearing Assy (1 .500" X 2.062" X 1 .250")1$156.82Add to Cart
20378263Internal Lockring1$19.87Add to Cart
21379555Lockring2$23.13Add to Cart
22380563149/16" Hex Flex Head Cap Screw (3/8"-16 X 1 .500")4$7.14Add to Cart
2321P690Seal Cap1$498.30Add to Cart
243P1070Output Shaft (1 -1/4"-14T)1$688.51Add to Cart
25379668Lockring2$3.21Add to Cart
3021P903Bearing Cap1$213.77Add to Cart
3328P252O-ring (2.987" X .103")1$14.67Add to Cart
3454P48Machined Tube Assy.1$825.79Add to Cart
3537943385/16" Socket Head Cap Screw (.375"-16 X 1 .500")8$28.69Add to Cart
363P12123XOutput Shaft (ts & Tz Output)1$1,267.07Add to Cart
37561018Ball Bearing (1 .772" X 2.953" X .630")1$37.34Add to Cart
3835P101Bearing Cap Gasket (wet Spline)1$37.17Add to Cart
3921P891Pump Flange (ts Output Only)1$486.12Add to Cart
40329654XKit Cover (xs) (ts Output Only)1 or$157.74Add to Cart
40329658XKit Cover (xk, Af, Az) (tk, Tf & Tz Output)1 or$157.74Add to Cart
40329659XKit Cover (xy) (ty Output Only)1$61.45Add to Cart
413795642Thread Cap (.438") Continued On Next2$1.23Add to Cart
32894852XGasket & Installation Instructions Kit (all) Stud Kits1$81.56Add to Cart
329926XBracket Mounting Clamp Kit (all)1$880.24Add to Cart
717086XStud Kit (all) Service Kits1$84.46Add to Cart
3299293XGasket & Seal Kit (all Outputs)1—Call for availability
3299294XBearing Kit (all Outputs) Hose Assembly Kits1—Call for availability
3291411XPressure Hose Assy1$156.32Add to Cart
3299251XLube Line & Gasket Kit (tk, Tf & Tz Output)1$286.36Add to Cart
3299252XLube Line & Gasket Kit (ts Output Only)1$286.36Add to Cart
3299253XLube Line & Gasket Kit (ty Output Only)1$398.62Add to Cart

Output Options 877-XL Series Pump Flange & Shaft Dimensions

Chelsea PTO 877L Output Options 877-XL Series Pump Flange & Shaft Dimensions exploded-view diagram
Chelsea PTO 877L Output Options 877-XL Series Pump Flange & Shaft Dimensions exploded-view diagram
Chelsea PTO 877L Output Options 877-XL Series Pump Flange & Shaft Dimensions exploded-view diagram
ItemPart No.DescriptionQtyNotesPrice

Output Options 877-XL Series Bill of Materials Driveline Output

ItemPart No.DescriptionQtyNotesPrice
10170379231 Pipe Plug (.125"-27)1—Call for availability
10165379555 Lockring 379433-8 5/16" Socket Head Cap Screw (.375"-16 X 1 .500") 3-P-1212-1X Output Shaft 561018 Ball Bearing (1 .772" X 2.953" X .630")1—Call for availability
407475NM69-P-18 Tag (wet Spline) Tz Output Option Rotatable Sae B Pilot 2/4-Bolt Flange, Sae C Shaft (1 -1/4"1—Call for availability

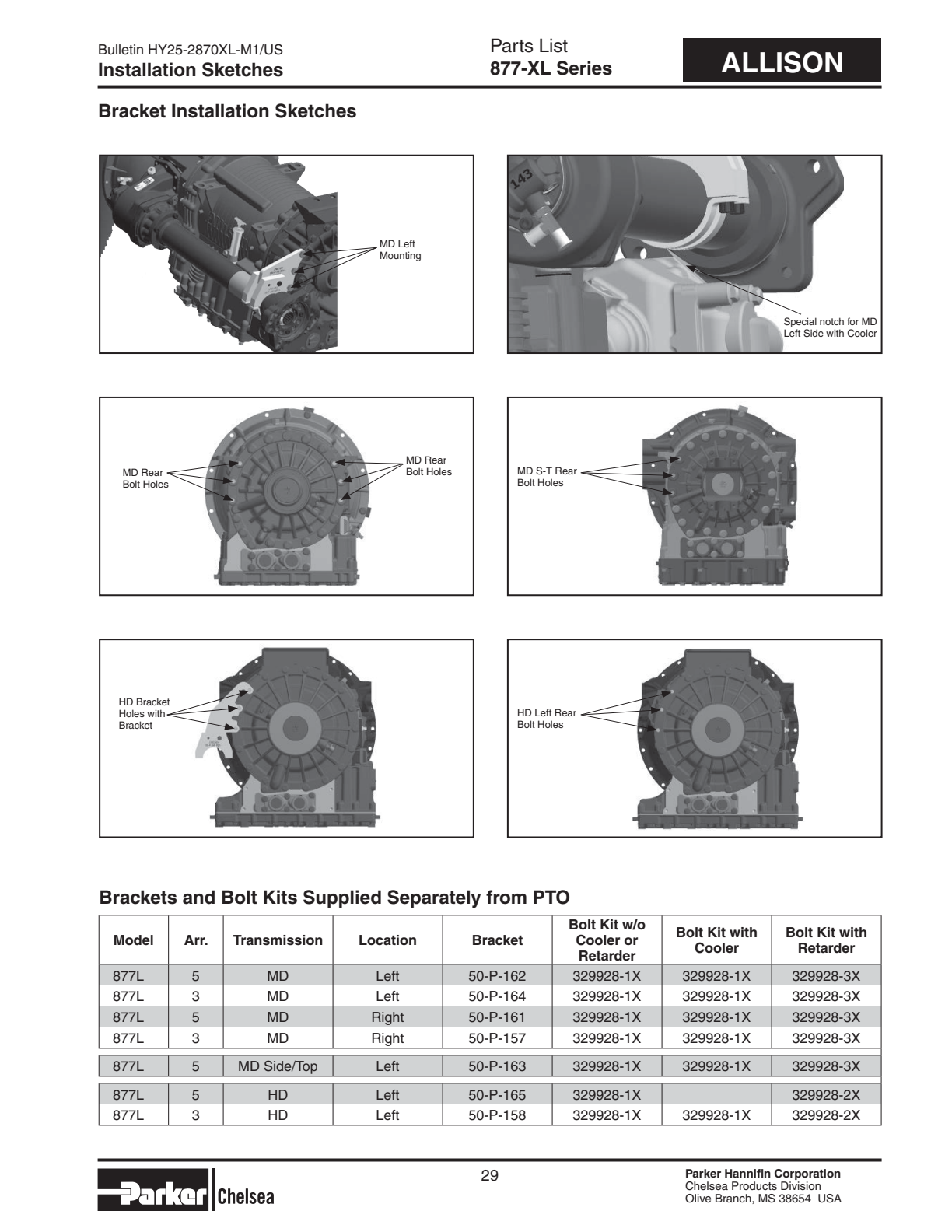

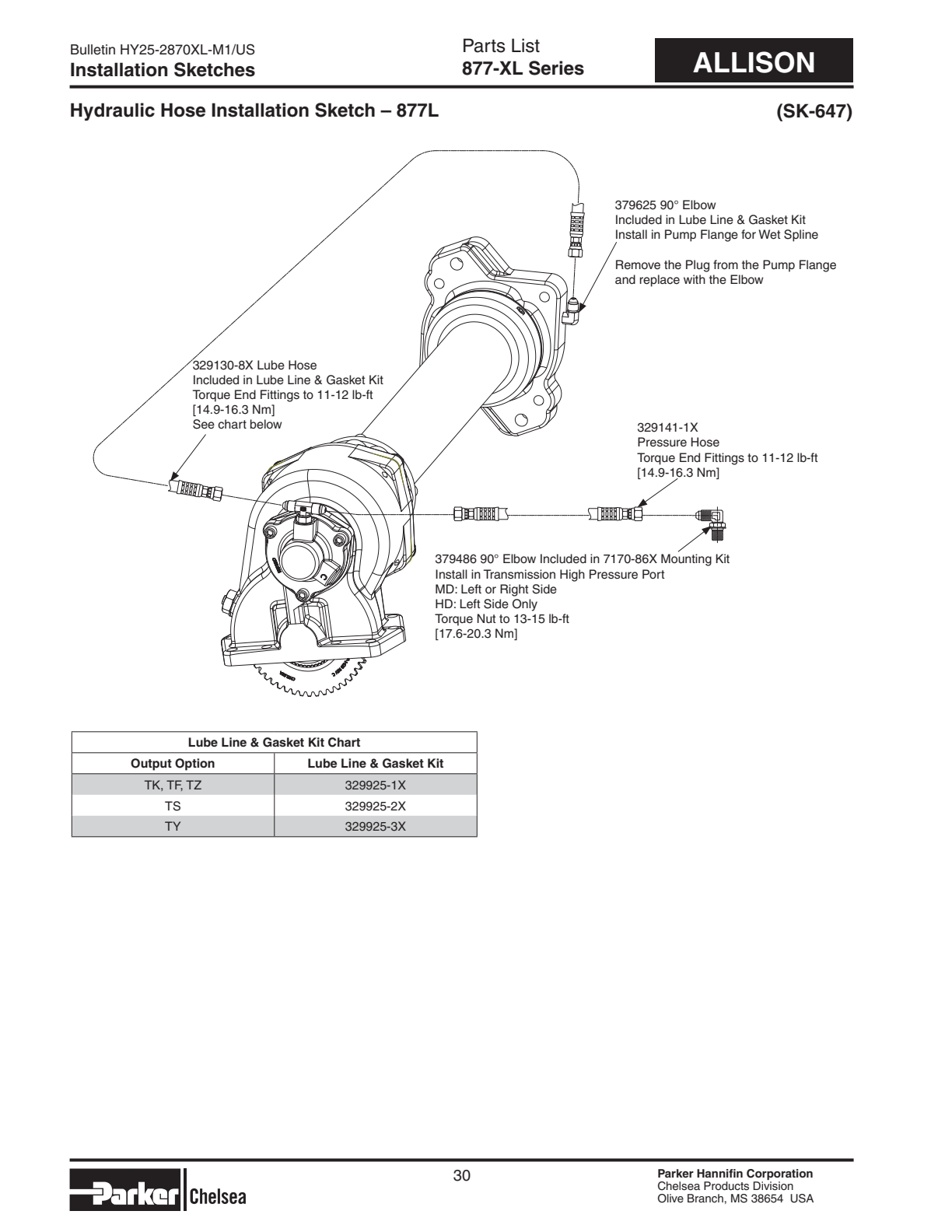

Parts List Kits Bill of Materials 870-XL/877-XL Series

Chelsea PTO 877L Parts List Kits Bill of Materials 870-XL/877-XL Series exploded-view diagram
Chelsea PTO 877L Parts List Kits Bill of Materials 870-XL/877-XL Series exploded-view diagram
ItemPart No.DescriptionQtyNotesPrice

Additional Parts Listed in This Manual

ItemPart No.DescriptionQtyNotesPrice
5-P-154524 2-P-89140—Call for availability
5-P-154625 2-P-89239—Call for availability
5-P-143926 2-P-89338—Call for availability
5-P-144027 2-P-89437$216.25Add to Cart
5-P-143229 2-P-89535—Call for availability
5-P-143331 2-P-89633$283.88Add to Cart
5-P-145733 2-P-89731—Call for availability
5-P-145534 2-P-89830—Call for availability
69-P-18Tag (wet Spline)1$6.83Add to Cart
21-P-890Pump Flange1$350.58Add to Cart
37962590° Elbow$17.80Add to Cart
379130-8XLube Hose—Call for availability
5-P-142924 2-P-86240$940.40Superseded by 5P142811XAdd to Cart
5-P-143825 2-P-87239—Call for availability
5-P-143733 2-P-88831$382.87Add to Cart
329130-8XLube Hose$88.18Add to Cart
379451Pilot Screw (M10-1.500 X .984")2$7.23Add to Cart
328946XCaution Label Kit 6 & 8-Bolt1—No longer available — call for replacement
379453-1011 Mm Fc Cap Screw$6.86Add to Cart
35-P-74Shim Gasket1$7.13Add to Cart
379085-2Hot Shift Instructions Label1$4.02Add to Cart
379624Warranty Card1$3.72Add to Cart
50-P-169Upper Clamp2$193.48Add to Cart
50-P-170Lower Clamp2$43.91Add to Cart
14-P-90Spacer (.395" X .625" X 1.000")2$28.88Add to Cart
379433-65/16" Socket Head Cap Screw$3.34Add to Cart
378431-209/16" Hex Head Cap Screw$18.38Add to Cart
380672(.250") Female Spade Connector3—Call for availability
328923-10XSpeed Sensor Cable 10 Ft1—No longer available — call for replacement
380668XBracket & Label Assy1$5.98Add to Cart
379061Plastic Wire Tie6$1.46Add to Cart
379252Electrical Butt Connector1$2.30Add to Cart
379257Electrical Connector2$2.91Add to Cart
379265Grommet1$3.21Add to Cart
379502Pressure Switch1$93.06Add to Cart
379504Electrical Valve Connector1$52.22Add to Cart
329230XWire & Butt Electrical Connector1—No longer available — call for replacement
379900Fuse Holder Assy1$5.99Add to Cart
329231XValve Connector Wire Assy1$123.35Add to Cart
379254-17Electrical Wire 14G Fork1$18.76Add to Cart
378881Rocker Switch1$111.97Add to Cart
37897812-volt Indicator Light1$25.82Add to Cart
379131-1Pipe Reducer Bushing$3.19Add to Cart
379258Mounting Bracket1$5.11Add to Cart
379306Insulated Fork Terminal3$2.50Add to Cart
379336Switch Bracket1$10.11Add to Cart
379449Male Connector1$13.18Add to Cart
379686-112-volt Hydraulic Shifter Solenoid Valve1$473.29Add to Cart
379700Swivel Nut Fitting2$13.33Add to Cart
379711Tee (.375"-24 X .438"-20 X .438"-20)1$157.76Add to Cart
380010Union Fitting1$17.47Add to Cart
500357-7Lock Washer (.194" X .337" X .047")2$1.07Add to Cart
500457-6Round Hd Slotted Screw (.191"-32 X .438")2$1.12Add to Cart
75-P-46XWire And Connectors Kit1$27.77Add to Cart
37900524-volt Indicator Light1—No longer available — call for replacement
379686-224-volt Hydraulic Shifter Solenoid Valve1$466.27Add to Cart
329403XSeal Cap Assembly1$490.07Add to Cart
329057-4XHose Length Assy (16.750")2$45.49Add to Cart
This is the complete factory parts breakdown for the Chelsea PTO 877L — every part in the manual, matched to our live inventory. We stock 89 of the 110 parts above; click any part number to view it, or add it straight to your cart. Click a number on any diagram to jump to that part.
