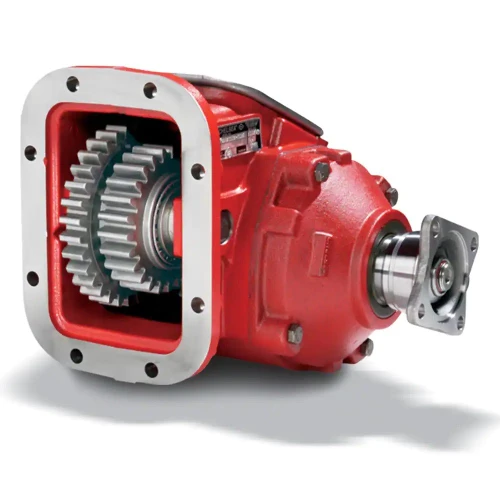

The Chelsea 885GBAHX-P5XV is an 8-bolt PowerShift Power Take-Off from the Chelsea 885 Series, engineered for heavy-duty applications on automatic and manual transmissions with an 8-bolt PTO aperture. The series is rated for intermittent torque up to 500 ft-lb (678 Nm), with continuous operation available at a 30% de-rating. Output options include an SAE C pump flange and driveline configurations, and the SAE C output shaft carries a 1-1/4"-14T pump spline or a 1410 Series companion flange. The cast iron housing and heavy-duty ball bearings on the output shaft are built for demanding applications including oil field, bulk transport, and fire and rescue service. Call us to confirm proper fit for your transmission.
Features
Chelsea 885 Series, 8-bolt PowerShift (hydraulic shift) Power Take-Off
Intermittent torque rating up to 500 ft-lb (678 Nm); continuous operation with 30% de-rating
SAE C output: 1-1/4"-14T pump spline or 1410 Series companion flange
Rugged cast iron housing with heavy-duty ball bearings on output shaft
Compatible with Allison, Eaton/Fuller, Volvo/Mack, and other transmissions featuring an 8-bolt PTO aperture
Pressure lubrication available; Electric Overspeed Control (EOC) option in the series
Tech Specs
- Mounting Type: 8-Bolt
- Shift Type: PowerShift (Hydraulic)
- Intermittent Torque: Up to 500 ft-lb (678 Nm)
- Continuous Operation: Yes, with 30% de-rating
- Output Shaft Type: SAE C 1-1/4"-14T Pump Spline; 1410 Series Companion Flange
- Output Type: SAE C Pump Flange, Driveline
- Shaft Power: 48 HP at 500 RPM; 95 HP at 1000 RPM
- Output Power: 56+ HP (51+ kW)
- Compatible Transmissions: Allison, Eaton/Fuller, Volvo/Mack, and others with 8-bolt PTO aperture
- Housing: Cast iron
Additional Information
Parts manual and diagrams: Chelsea 885 Series PTO parts list with prices
