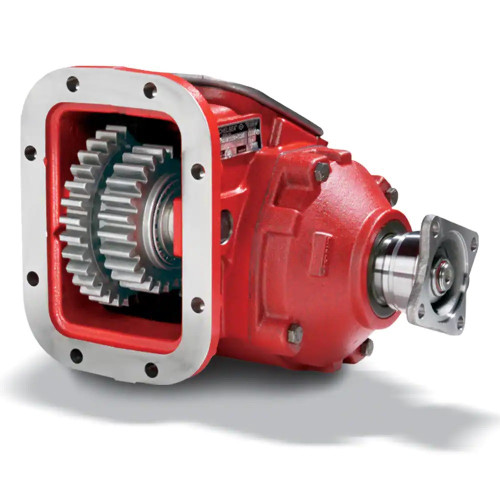

The Chelsea 885 Series Power Take-Off, part number 885GMAHX-V3XV or 885GMAHXV3XV, is an 8-bolt hydraulic PowerShift PTO built for heavy-duty applications on automatic and manual transmissions with an 8-bolt aperture. The 885 Series is rated for up to 500 ft-lbs intermittent torque and supports continuous operation with a 30% de-rating. Output options include an SAE C pump flange or driveline configuration, with an SAE C 1-1/4 inch 14-tooth pump spline or 1410 Series companion flange. A cast iron housing and heavy-duty ball bearings on the output shaft characterize this series. Shaft power ranges from 48 HP at 500 RPM to 95 HP at 1000 RPM. The 885 Series is well suited to oil field, bulk transport, and fire and rescue applications. Call us to confirm proper fit for your transmission and application.
Features
Chelsea 885 Series, 8-bolt mounting for automatic and manual transmissions
Hydraulic PowerShift (PowerShift) engagement
Intermittent torque rating up to 500 ft-lbs (678 Nm)
Continuous operation supported with 30% de-rating
SAE C pump flange or 1410 Series companion flange output options
Cast iron housing with heavy-duty ball bearings on the output shaft
Tech Specs
- Mounting Type: 8-Bolt
- Shift Type: Hydraulic PowerShift
- Intermittent Torque Rating: Up to 500 ft-lbs (678 Nm)
- Continuous Operation: Yes, with 30% de-rating
- Output Shaft Type: SAE C 1-1/4 in. 14-tooth pump spline or 1410 Series companion flange
- Output Type: SAE C Pump Flange or Driveline
- Shaft Power: 48 HP at 500 RPM / 95 HP at 1000 RPM
- Transmission Compatibility: 8-bolt aperture automatics and manuals (Allison, Eaton/Fuller, Volvo/Mack, and others)
- Housing Material: Cast iron
Additional Information
Parts Manual: Chelsea 885 Series PTO Parts Manual (PDF) — exploded views, item numbers and the full parts breakdown for this series.
