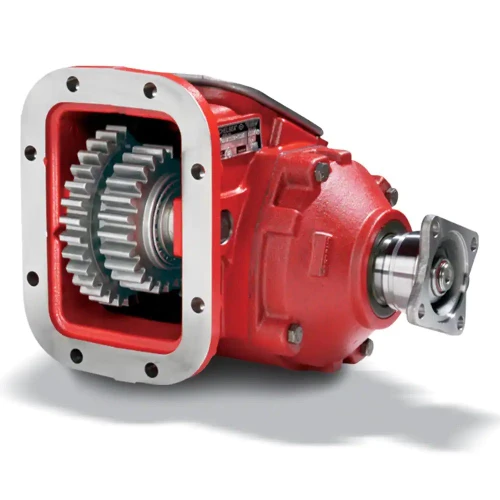

The Chelsea 885GGAHX-V3XV is a heavy-duty 885 Series Air PowerShift Power Take-Off built for high-torque applications. This 8-bolt unit shifts hydraulically and is rated for intermittent torque up to 500 ft-lbs (678 Nm). The cast iron housing and heavy-duty ball bearings on the output shaft are characteristic of the 885 Series, which supports continuous operation with a 30% de-rating. Output options include an SAE C pump flange and a 1410 Series companion flange. The 885 Series is compatible with Allison, Eaton/Fuller, Volvo/Mack, and other transmissions featuring an 8-bolt PTO aperture. Common applications include oil field equipment, bulk transporter trucks, and fire and rescue vehicles. Call us to confirm proper fit for your specific transmission and application.
Features
Chelsea 885 Series, 8-bolt mounting configuration
Hydraulic PowerShift (Air PowerShift) shift type
Intermittent torque rating up to 500 ft-lbs (678 Nm); continuous operation supported with 30% de-rating
SAE C pump spline output (1-1/4 in. - 14T) and 1410 Series companion flange output
Cast iron housing with heavy-duty ball bearings on output shaft
Compatible with Allison, Eaton/Fuller, Volvo/Mack, and other 8-bolt aperture transmissions
Tech Specs
- Mounting Type: 8-Bolt
- Shift Type: Hydraulic PowerShift (Air PowerShift)
- Intermittent Torque: Up to 500 ft-lbs (678 Nm)
- Continuous Operation: Yes, with 30% de-rating
- Output Shaft Type: SAE C pump spline (1-1/4 in. - 14T); 1410 Series companion flange
- Output Power: 56+ HP (51+ kW)
- Shaft Power: 48 HP at 500 RPM; 95 HP at 1000 RPM
- Housing Material: Cast iron
- Transmission Compatibility: Allison, Eaton/Fuller, Volvo/Mack, and other 8-bolt aperture transmissions
- Part Number: 885GGAHX-V3XV or 885GGAHXV3XV
Additional Information
Parts manual and diagrams: Chelsea 885 Series PTO parts list with prices
