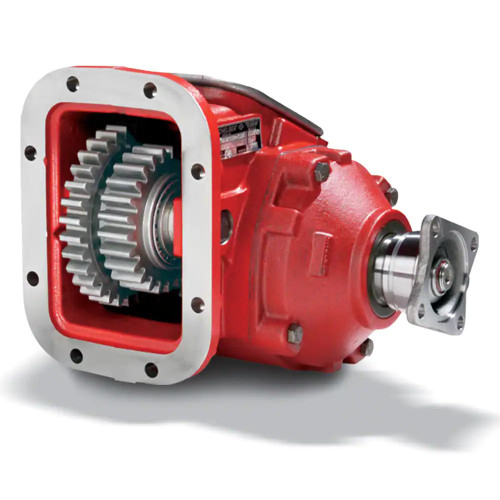

The Chelsea 885 Series Power Take-Off, part number 885XMAHX-A4XV or 885XMAHXA4XV, is a hydraulic PowerShift PTO built for heavy-duty 8-bolt transmission apertures from Allison, Eaton/Fuller, Volvo/Mack, and other manufacturers. The 885 Series carries an intermittent torque rating up to 500 ft-lb (678 Nm) and supports continuous operation with a 30% de-rating. Output options include an SAE C pump flange with a 1-1/4"-14T pump spline and a 1410 Series companion flange for driveline applications. The cast iron housing and heavy-duty ball bearings on the output shaft are designed for demanding cycles in oil field, bulk transport, and fire and rescue applications. Shaft power is rated at 48 HP at 500 RPM and 95 HP at 1,000 RPM. Call us to confirm proper fit for your transmission and application.
Features
8-bolt hydraulic PowerShift design for Allison, Eaton/Fuller, Volvo/Mack, and other compatible transmissions
Intermittent torque rating up to 500 ft-lb (678 Nm); continuous operation supported with 30% de-rating
SAE C pump flange output with 1-1/4"-14T spline; 1410 Series companion flange also available
Shaft power: 48 HP at 500 RPM / 95 HP at 1,000 RPM
Rugged cast iron housing with heavy-duty ball bearings on the output shaft
Pressure lubrication available; Electric Overspeed Control (EOC) option offered within the 885 Series
Tech Specs
- Mounting Type: 8-Bolt
- Shift Type: Hydraulic PowerShift
- Output Shaft Type: SAE C Pump Flange (1-1/4"-14T spline); 1410 Series Companion Flange
- Intermittent Torque: Up to 500 ft-lb (678 Nm)
- Continuous Operation: Yes, with 30% de-rating
- Shaft Power: 48 HP (500 RPM) / 95 HP (1,000 RPM)
- Output Power: 56+ HP (51+ kW)
- Compatible Transmissions: Allison, Eaton/Fuller, Volvo/Mack, and others with 8-bolt aperture
- Lubrication: Pressure lube or non-pressure lube configurations available
- Housing: Cast iron
Additional Information
Parts Manual: Chelsea 885 Series PTO Parts Manual (PDF) — exploded views, item numbers and the full parts breakdown for this series.
