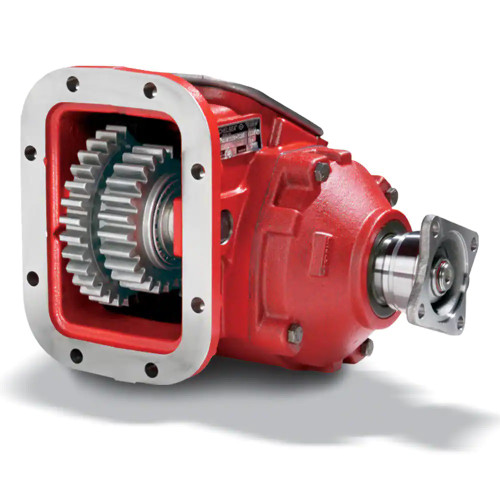

The Chelsea 885 Series Power Take-Off, part number 885XMAHX-V3XS or 885XMAHXV3XS, is an 8-bolt hydraulic PowerShift PTO built for heavy-duty vocational truck applications. It fits transmissions from Eaton/Fuller, Allison, Volvo/Mack, and other manufacturers with an 8-bolt PTO aperture. The output shaft is a 1-1/2"-10T spline with a 1410 companion flange. Intermittent torque capacity reaches 500 lb-ft (678 Nm); check application pages for actual ratings on your specific installation. Shaft power output is 48 HP at 500 RPM and 95 HP at 1000 RPM. The cast iron housing and heavy-duty ball bearings on the output shaft make this unit well-suited for oil field, bulk transport, and fire and rescue equipment. Continuous operation is supported with a 30% de-rating. Call us to confirm proper fit for your application.
Features
8-bolt mounting for compatibility with Eaton/Fuller, Allison, Volvo/Mack, and other 8-bolt aperture transmissions
Hydraulic PowerShift engagement
Intermittent torque rating up to 500 lb-ft (678 Nm) - verify actual rating for your application
1-1/2"-10T spline output shaft with 1410 series companion flange
Shaft power: 48 HP at 500 RPM, 95 HP at 1000 RPM
Rugged cast iron housing with heavy-duty ball bearings on output shaft
Pressure lubrication available
Supports continuous operation with 30% de-rating
Tech Specs
- Intermittent Torque: Up to 500 lb-ft (678 Nm) - Check Application Pages for Actual Torque Ratings
- Shift Type: Hydraulic PowerShift
- Mounting Type: 8-Bolt
- Output Shaft Type: 1-1/2"-10T Spline with 1410 Series Companion Flange
- Output Power: 56+ HP (51+ kW)
- Shaft Power: 48 HP (36 kW) at 500 RPM; 95 HP (71 kW) at 1000 RPM
- Continuous Operation: Yes, with 30% de-rating
- Transmission Compatibility: Eaton/Fuller, Allison, Volvo/Mack, Other 8-bolt aperture transmissions
- Lubrication: Pressure lubrication available
Additional Information
Parts Manual: Chelsea 885 Series PTO Parts Manual (PDF) — exploded views, item numbers and the full parts breakdown for this series.
