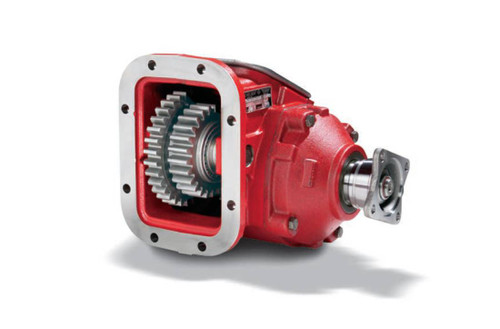

The Chelsea 885 Series Power Take-Off, part number 885XMAHX-J3XS or 885XMAHXJ3XS, is a hydraulic PowerShift PTO built for heavy-duty applications on transmissions with an 8-bolt PTO aperture. The 885 Series is rated for up to 500 ft-lb intermittent torque and supports continuous operation with a 30% de-rating. Output options include an SAE C pump flange with a 1-1/4"-14T pump spline or a 1410 Series companion flange for driveline use. The cast iron housing and heavy-duty ball bearings on the output shaft are characteristic of the 885 Series design. Compatible transmission manufacturers for the 885 Series include Allison, Eaton/Fuller, and Volvo/Mack. Call us to confirm proper fit for your specific transmission and application.
Features
Chelsea 885 Series Air PowerShift (hydraulic) PTO
8-bolt transmission aperture mounting
Intermittent torque rating up to 500 ft-lb (678 Nm)
SAE C pump flange output with 1-1/4"-14T pump spline
1410 Series companion flange driveline output also available
Cast iron housing with heavy-duty ball bearings on the output shaft
Tech Specs
- Mounting Type: 8-Bolt
- Shift Type: Hydraulic PowerShift
- Intermittent Torque Rating: Up to 500 ft-lb (678 Nm)
- Output Options: SAE C Pump Flange (1-1/4"-14T Pump Spline), 1410 Series Companion Flange
- Continuous Operation: Yes, with 30% de-rating
- Compatible Transmission Brands: Allison, Eaton/Fuller, Volvo/Mack
- Output Power: 56+ HP (51+ kW)
- Shaft Power: 48 HP at 500 RPM, 95 HP at 1000 RPM
- Housing Material: Cast Iron
Additional Information
Parts Manual: Chelsea 885 Series PTO Parts Manual (PDF) — exploded views, item numbers and the full parts breakdown for this series.
