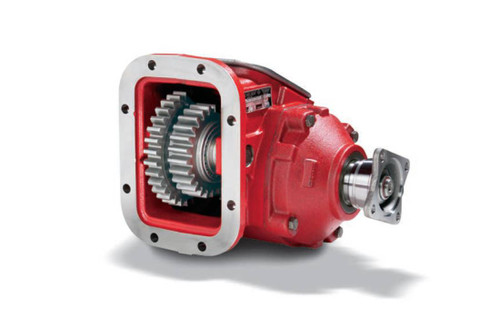

The Chelsea 885XMAHX-Q3XS or 885XMAHXQ3XS is a Chelsea 885 Series hydraulic PowerShift Power Take-Off built for heavy-duty 8-bolt transmission apertures on Allison, Eaton/Fuller, Volvo/Mack, and other compatible transmissions. The 885 Series is rated for intermittent torque up to 500 ft-lb (678 Nm) and supports continuous operation with a 30% de-rating. Output options include an SAE C pump flange and 1410 Series companion flange, with shaft power reaching 95 HP at 1,000 RPM. The cast iron housing and heavy-duty ball bearings on the output shaft are built for demanding vocational applications including oil field, bulk transport, and fire and rescue service. Call us to confirm proper fit for your transmission and application.
Features
Chelsea 885 Series hydraulic PowerShift (Air PowerShift) PTO
8-bolt mounting for automatic and manual transmissions
Intermittent torque rating up to 500 ft-lb (678 Nm)
Continuous operation supported with 30% de-rating
SAE C pump flange and 1410 Series companion flange output options
Rugged cast iron housing with heavy-duty ball bearings on the output shaft
Tech Specs
- Shift Type: Hydraulic PowerShift (Air PowerShift)
- Mounting: 8-Bolt
- Intermittent Torque: Up to 500 ft-lb (678 Nm)
- Continuous Operation: Yes, with 30% de-rating
- Output Shaft Types: SAE C (1-1/4"-14T) Pump Spline; 1410 Series Companion Flange
- Shaft Power: 48 HP at 500 RPM; 95 HP at 1,000 RPM (36 kW at 500 RPM; 71 kW at 1,000 RPM)
- Output Power: 56+ HP (51+ kW)
- Compatible Transmissions: Allison, Eaton/Fuller, Volvo/Mack, and others with 8-bolt PTO aperture
- Housing Material: Cast iron
Additional Information
Parts Manual: Chelsea 885 Series PTO Parts Manual (PDF) — exploded views, item numbers and the full parts breakdown for this series.
