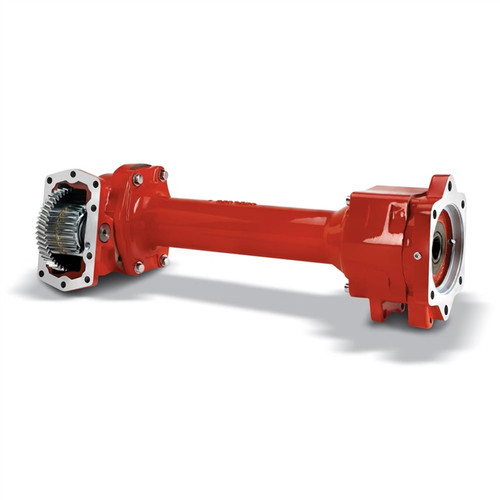

The Chelsea 890 Series Power Take-Off, part number 890HCFJW-G5XK or 890HCFJWG5XK, is a hydraulic PowerShift PTO engineered specifically for Allison 3000 MD and 4000 HD Series transmissions. It mounts via a 10-bolt pattern and positions the pump output flange at the rear of the transmission, fitting between the transmission and the frame rail to maximize working clearance. The output is an SAE C ("XS") flange type. A one-piece main shaft eliminates the input splines between the PTO and the output extension, and the clutch sits at the rear of the housing so the gear section tucks tightly to the transmission. Wet Spline Technology on the output extends pump and PTO shaft life in demanding duty cycles. Continuous torque rating reaches 670 ft-lb; intermittent torque is rated at 501+ ft-lb. Shaft power output is 64 HP at 500 RPM and 128 HP at 1,000 RPM. Typical applications include aerial trucks, fire and rescue, refuse, snow and ice, and truck cranes. Call us to confirm proper fit for your specific transmission configuration.
Features
Fits Allison 3000 MD and 4000 HD Series transmissions via 10-bolt mounting
Hydraulic PowerShift (hot shift) engagement
SAE C ("XS") outlet flange with Wet Spline output to extend PTO and pump shaft life
Continuous torque rating: 670 ft-lb; intermittent torque: 501+ ft-lb
Shaft power: 64 HP at 500 RPM, 128 HP at 1,000 RPM
One-piece main shaft and rear-mounted clutch position the pump output at the rear of the transmission for improved pump clearance
Tech Specs
- Transmission Application: Allison 3000 MD and 4000 HD Series
- Product Series: 890
- Mounting Type: 10-Bolt
- Shift Type: Hydraulic PowerShift
- Outlet Flange Type: SAE C
- Output Shaft Type: SAE C ("XS") Wet Spline
- Continuous Torque: 670 lb-ft (check application pages for actual torque ratings)
- Intermittent Torque: 501+ lb-ft
- Output Power: 56+ HP (51+ kW)
- Shaft Power: 64 HP (48 kW) at 500 RPM; 128 HP (95 kW) at 1,000 RPM
- Lubricant: Wet Spline
Additional Information
The Chelsea 890 Series is a single-unit PTO, not a PTO with a separate extension. The one-piece main shaft eliminates the input splines that would otherwise exist between the PTO body and an output extension, reducing potential wear points. The clutch is located at the rear of the PTO housing, allowing the housing and gear section to mount tightly against the transmission while still positioning the pump output flange rearward for adequate clearance between the pump and the frame rail. The unit can be ordered for transmissions equipped with or without a cooler, retarder, or both. Common applications include aerial trucks, fire and rescue pumpers, refuse trucks, truck cranes, and snow and ice equipment.Parts Manual: Chelsea 890 Series PTO Parts Manual (PDF) — exploded views, item numbers and the full parts breakdown for this series.
