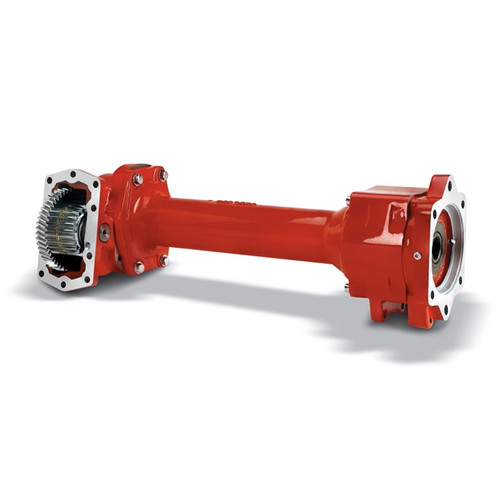

The Chelsea 890 Series Power Take-Off, part number 890NDFJW-B3ZS or 890NDFJWB3ZS, is a hydraulic PowerShift PTO engineered for Allison 3000 MD and 4000 HD Series transmissions. It mounts via a 10-bolt pattern with an SAE C outlet flange and SAE C ("XS") output shaft. The one-piece main shaft eliminates the input splines found in PTO-plus-extension designs, and the clutch is positioned at the rear of the housing so the gear section tucks close to the transmission, freeing space between the unit and the frame rail. Wet-spline output technology lubricates the shaft interface under load, extending both PTO and pump shaft service life. Shaft power output reaches 64 HP at 500 RPM and 128 HP at 1000 RPM. Call us to confirm proper fit for your specific Allison application.
The 890 Series is suited for aerial trucks, fire and rescue trucks, snow and ice equipment, refuse trucks, truck cranes, and pumper cleaners - any application where pump space is tight and high continuous torque is required. The unit mounts like a standard side-mounted PTO but includes an additional bracket at the rear of the transmission for added support. The 890 Series is a single unit, not a PTO with a bolt-on extension.
Features
Hydraulic PowerShift (hot shift) operation for Allison 3000 MD and 4000 HD Series transmissions
10-bolt mounting with SAE C outlet flange and SAE C (XS) output shaft
Continuous-duty torque rating up to 670 ft-lb; intermittent torque rated 501+ ft-lb
Shaft power: 64 HP at 500 RPM, 128 HP at 1000 RPM
One-piece main shaft with rear-positioned clutch extends pump clearance between transmission and frame rail
Wet-spline output lubrication extends PTO and pump shaft life in demanding service
Tech Specs
- Transmission Application: Allison 3000 MD Series and 4000 HD Series
- Product Series: 890
- Mounting Type: 10-Bolt
- Shift Type: Hydraulic PowerShift
- Outlet Flange Type: SAE C
- Output Shaft Type: SAE C (XS)
- Lubricant: Wet Spline
- Continuous Torque: 670 ft-lb (check application pages for actual torque ratings)
- Intermittent Torque: 501+ ft-lb
- Output Power: 56+ HP (51+ kW)
- Shaft Power: 64 HP (48 kW) at 500 RPM; 128 HP (95 kW) at 1000 RPM
Additional Information
The 890 Series is suited for aerial trucks, fire and rescue trucks, snow and ice equipment, refuse trucks, truck cranes, and pumper cleaners - any application where pump space is tight and high continuous torque is required. The unit mounts like a standard side-mounted PTO but includes an additional bracket at the rear of the transmission for added support. The 890 Series is a single unit, not a PTO with a bolt-on extension.
Parts Manual: Chelsea 890 Series PTO Parts Manual (PDF) — exploded views, item numbers and the full parts breakdown for this series.
