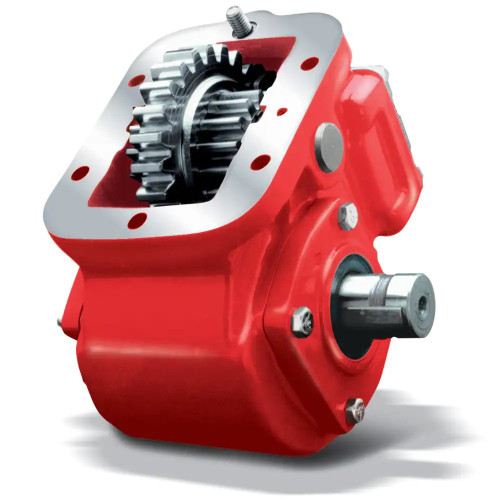

The Chelsea 221ZEAKP-M6XQ or 221ZEAKPM6XQ is a 6-bolt mounted power take-off assembly from Chelsea's 221 Series, designed for low-speed, heavy-duty service in applications such as dump trucks, tow and recovery, and aerial equipment. Shift type is wire/cable mechanical. The 1-1/4" round output shaft with key delivers up to 250 lb-ft (339 Nm) intermittent torque, with shaft power rated at 24 HP at 500 RPM and 48 HP at 1,000 RPM. Compatible transmission manufacturers include Allison, Eaton/Fuller, Volvo/Mack, Hino, and others. The cast iron housing is available in standard or low-profile configurations. Greaseable pump shafts help control spline fretting and corrosion over time. Call us to confirm proper fit for your transmission and application.
Features
6-bolt mounting compatible with Allison, Eaton/Fuller, Volvo/Mack, Hino, and other transmission manufacturers
Wire/cable mechanical shift type
1-1/4" round output shaft with key
Intermittent torque rating: 250 lb-ft (339 Nm), confirm actual rating on application pages
Shaft power: 24 HP at 500 RPM, 48 HP at 1,000 RPM
Available in standard or low-profile housing; greaseable pump shafts reduce spline fretting and corrosion
Tech Specs
- Intermittent Torque: 250 lb-ft / 339 Nm (check application pages for actual torque ratings)
- Shift Type: Wire/Cable, Mechanical
- Output Power: 46-55 HP / 31-40 kW
- Output Shaft Type: 1-1/4" Round with Key
- Mounting Type: 6-Bolt
- Compatible Transmissions: Allison, Eaton/Fuller, Volvo/Mack, Hino, Other
- Shaft Power: 24 HP (500 RPM), 48 HP (1,000 RPM) / 18 kW (500 RPM), 36 kW (1,000 RPM)
