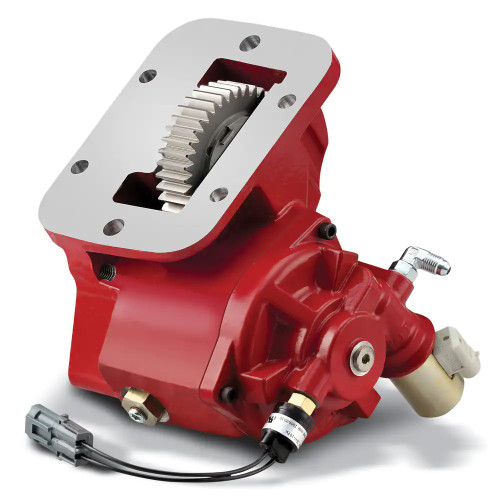

Chelsea part number 249FMLLX-B2XD or 249FMLLXB2XD is a 249 Series Power Take-Off assembly built for Ford Super Duty trucks equipped with the 6R140 transmission, fitting both 2WD and 4WD applications. It mounts via a Ford 6-bolt pattern and uses Hydraulic PowerShift actuation through a single hose connection with an integrated actuation valve, which cuts installation time and reduces potential leak paths. Output is a 1-1/4" round shaft rated at 56+ HP, with shaft power of 57 HP at 1,488 RPM. Intermittent torque capacity is rated up to 200 lb-ft (271 Nm) - check Chelsea application pages for your specific torque rating. Chelsea's patented noise suppression system makes this the only quiet PTO solution for the Ford Super Duty TorqueShift 6. Sold by Pro Gear and Transmission. Call us to confirm proper fit for your application.
Features
Ford 6R140 transmission application - fits 2WD and 4WD Ford Super Duty trucks
Hydraulic PowerShift actuation with single hose connection and integrated actuation valve
1-1/4" round output shaft, 56+ HP output (57 HP at 1,488 RPM)
Intermittent torque rated up to 200 lb-ft (271 Nm) - verify rating for your specific application
Patented Chelsea noise suppression system - designed as the only quiet PTO for the Ford Super Duty TorqueShift 6
Ford 6-bolt mounting pattern; no special installation tools required
Tech Specs
- Transmission Manufacturer: Ford 6R140 Series
- Mounting Type: Ford 6-Bolt
- Shift Type: Hydraulic PowerShift (Hydraulic)
- Output Shaft Type: 1-1/4" Round
- Output Power: 56+ HP
- Shaft Power: 57 HP at 1,488 RPM
- Intermittent Torque: Up to 200 lb-ft (271 Nm) - check application pages for actual torque rating
- Mounting Bolt Holes: 6
