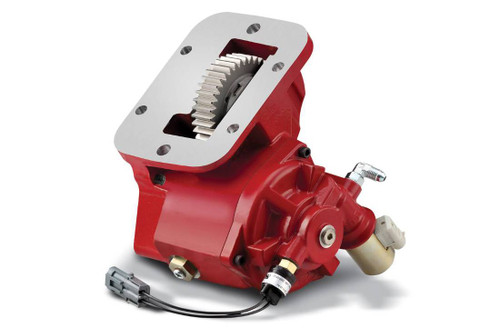

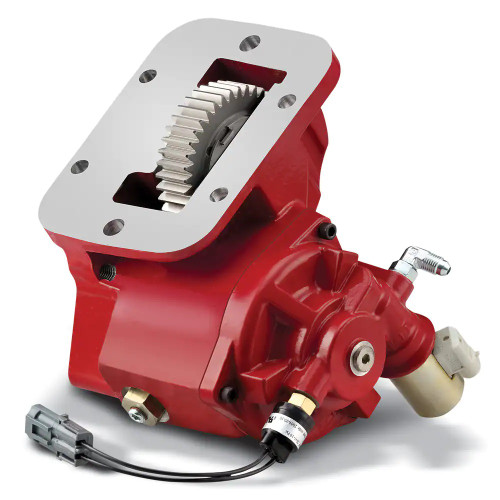

The Chelsea 249GMLLX-B2XD or 249GMLLXB2XD is a 249 Series Power Take-Off Assembly engineered specifically for the Ford 6R140 TorqShift 6 automatic transmission on Super Duty trucks. It mounts via a 6-bolt Ford pattern and uses hydraulic PowerShift actuation with a single hose connection and an integrated cartridge valve and pressure switch, reducing installation time and eliminating additional leak paths. The 249 Series carries an intermittent torque rating up to 200 lb-ft (271 Nm) and delivers up to 57 HP at 1,488 RPM. Chelsea's patented noise-reduction design makes this the only quiet PTO available for this transmission family. Typical applications include service trucks, tow and recovery, small dump trucks, and fire and rescue vehicles. Call us to confirm proper fit for your specific truck and hydraulic setup.
Features
Chelsea 249 Series PTO, designed for the Ford 6R140 TorqShift 6 automatic transmission
Intermittent torque rating up to 200 lb-ft (271 Nm); check application pages for actual ratings
Hydraulic PowerShift actuation with single hose connection for simplified installation
Integrated cartridge valve and pressure switch eliminate extra components and reduce leak paths
Patented noise-suppression system, the only quiet PTO solution for this Ford Super Duty application
Suitable for service trucks, tow and recovery, small dump trucks, and fire and rescue applications
Tech Specs
- Mounting Type: Ford 6-Bolt
- Shift Type: Hydraulic PowerShift
- Intermittent Torque: 200 lb-ft (271 Nm) - check application pages for actual rating
- Shaft Power: 57 HP (42 kW) at 1,488 RPM
- Lubricant: Internal Pressure Lube
- Continuous Operation: Yes, with 30% de-rating
- Transmission Application: Ford 6R140 TorqShift 6
- Drive Configuration: Available for 2WD and 4WD
Additional Information
Parts Manual: Chelsea 249 Series PTO Parts Manual (PDF) — exploded views, item numbers and the full parts breakdown for this series.
