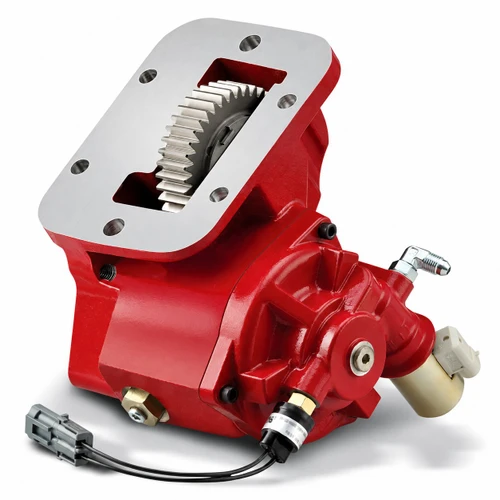

The Chelsea 249GMLLX-B282 or 249GMLLXB282 is a hydraulic-shift Power Take-Off Assembly from the Chelsea 249 Series, designed specifically for Ford Super Duty trucks equipped with the Ford 6R140 TorqShift 6 automatic transmission. The 249 Series mounts via a 6-bolt Ford pattern and uses internal pressure lubrication. The series carries an intermittent torque rating up to 200 lb-ft (271 Nm) and delivers 57 HP at 1,488 RPM. A patented noise-suppression system makes this the only quiet PTO option on the Ford TorqShift 6, and a single-hose actuation connection with an integrated cartridge valve simplifies installation. Typical applications include service trucks, tow and recovery vehicles, small dump trucks, and aerial and fire-rescue equipment. Call us to confirm proper fit for your specific truck and pump configuration.
Features
Chelsea 249 Series Power Take-Off Assembly, part number 249GMLLX-B282 or 249GMLLXB282
Designed for Ford Super Duty trucks with the Ford 6R140 TorqShift 6 automatic transmission
6-bolt Ford mounting pattern with hydraulic (PowerShift) actuation
Patented noise-suppression system, the only quiet PTO solution for this transmission
Intermittent torque rating up to 200 lb-ft (271 Nm); 57 HP (42 kW) at 1,488 RPM
Single-hose connection with integrated cartridge valve and pressure switch simplifies installation
Available for both 2WD and 4WD applications
Tech Specs
- Mounting Type: Ford 6-Bolt
- Shift Type: Hydraulic (PowerShift)
- Lubricant System: Internal Pressure Lube
- Intermittent Torque Rating: 200 lb-ft (271 Nm)
- Shaft Power: 57 HP (42 kW) at 1,488 RPM
- Output Power: 56+ HP (41-50 kW range)
- Transmission Application: Ford 6R140 TorqShift 6 Automatic
- Vehicle Application: Ford Super Duty (2WD and 4WD)
- Continuous Operation: Yes, with 30% de-rating
Additional Information
The Chelsea 249 Series is the only PTO engineered with a patented torsional noise-reduction system for the Ford TorqShift 6 automatic transmission. No special installation tools are required. The integrated actuation valve and single-hose connection reduce installation time and eliminate additional leak paths compared to conventional multi-hose setups. Common work-truck applications for this series include aerial equipment, tow and recovery, small dump trucks, service trucks, and fire and rescue vehicles. Parker Chelsea documents covering this series include the 247/249/249V/272-F Series Owner's Manual and the 249 Series Parts List (HY25-2249-M1_US).Parts Manual: Chelsea 249 Series PTO Parts Manual (PDF) — exploded views, item numbers and the full parts breakdown for this series.
