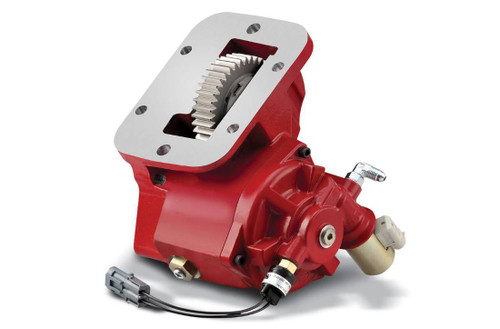

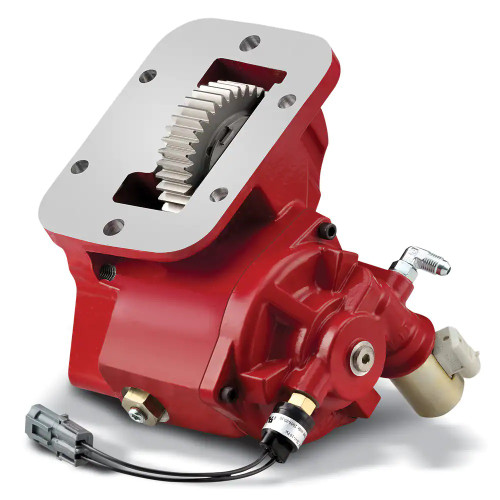

The Chelsea 249GMLLX-B432 or 249GMLLXB432 is a Power Take-Off assembly from the Chelsea 249 Series, engineered specifically for the Ford 6R140 TorqShift 6 automatic transmission with a 6-bolt Ford mounting pattern. This series is the only PTO on the market with a patented noise-suppression system designed to reduce torsional noise levels on Ford Super Duty applications. The hydraulic PowerShift engagement uses a single hose connection and an integrated cartridge valve and pressure switch, simplifying installation and reducing potential leak paths. The 249 Series carries an intermittent torque rating up to 200 lb-ft and is designed for continuous operation with a 30% de-rating. Available for both 2WD and 4WD applications, it serves aerial, tow and recovery, service truck, small dump truck, and fire and rescue markets. Call us to confirm proper fit for your specific application.
Features
Chelsea 249 Series PTO for Ford 6R140 TorqShift 6 automatic transmission
Patented noise-suppression system - the only quiet PTO for this Ford Super Duty transmission
Hydraulic PowerShift engagement with single hose connection
Integrated cartridge valve and pressure switch simplifies installation
Intermittent torque rating up to 200 lb-ft (271 Nm)
6-bolt Ford mounting pattern; available for 2WD and 4WD applications
Tech Specs
- Mounting Type: Ford 6-Bolt
- Shift Type: Hydraulic PowerShift
- Intermittent Torque: Up to 200 lb-ft (271 Nm) - check application pages for actual torque rating
- Output Power: 56+ HP (41+ kW)
- Shaft Power: 57 HP at 1488 RPM (42 kW at 1488 RPM)
- Continuous Operation: Yes, with 30% de-rating
- Transmission Application: Ford 6R140 TorqShift 6 Automatic
- Vehicle Application: Ford Super Duty, 2WD and 4WD
- Lubricant: Internal Pressure Lube
- Output Shaft Options: Smart Start Round Shaft (1-1/4 in. - 5/16 in. Key); Round Shaft (1-1/4 in. - 5/16 in. Key); 3/4 in. - 11T Pump Spline; SAE B (7/8 in. - 13T) Pump Spline
- Output Type: Driveline or SAE A Pump Flange
Additional Information
The Chelsea 249 Series is designed for aerial work, water drilling, tow and recovery, service trucks, small dump trucks, and fire and rescue applications. No special installation tools are required. The integrated actuation valve and single hose connection reduce installation time and eliminate additional leak paths compared to conventional PTO setups. This PTO assembly is a genuine Parker Chelsea part sold by Pro Gear and Transmission.Parts Manual: Chelsea 249 Series PTO Parts Manual (PDF) — exploded views, item numbers and the full parts breakdown for this series.
